| 硬件规格 |
| Network Interface |

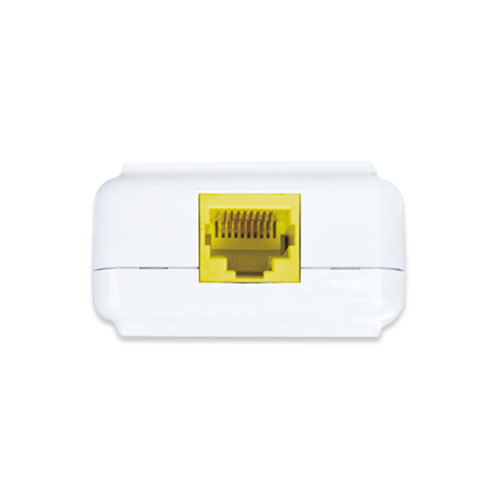

One RJ-45 port (10/100BASE-TX Ethernet)
One 500Mbps powerline port supporting co-existence with
HomePlug 1.0 (14/85Mbps)
|
| Cable |
Cat. 5 UTP cable |
| LED |
Power: On / Off Ethernet: Red / Orange / Green / Off Data: Solid / Blinking / Off |
| Button |

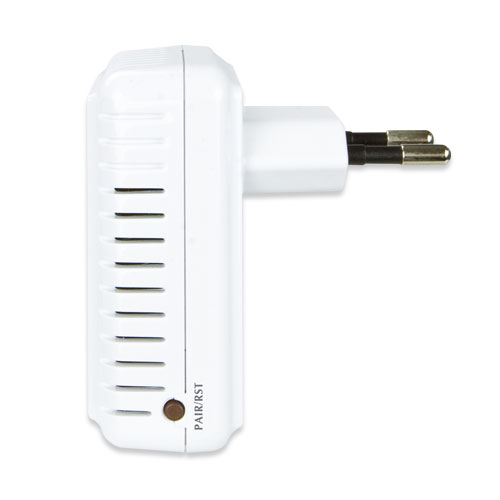

One Pair / Reset button |
| 标准 |
| 计算机接口 |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
|
| Standard |
IEEE 1901 / HomePlug AV |
| Safety |
128-bit AES link encryption with key management |
| PHY 数据速率 |
500Mbps over powerline and 10/100Mbps over Ethernet |
| Modulation Scheme |
OFDM symbol modulation on line synchronization
1024/256/64/16/8 - QAM, QPSK, BPSK, ROBO carrier
modulation
|
| Band |
2 ~ 50MHz |
| 附加议定书 |
Mix of TDMA and CSMA/CA channel access scheme;
CO device generates a periodic beacon carrier for channel
access scheme
|
| Operating Range |
Estimated range of 300 meters in wall powerlines |
| 软件实用程序 |
Device detect / diagnostic, Windows 98 SE, ME, 2000, NT, XP, Vista, and Window 7 |
| 环境规格 |
| Operation |
Temperature: 0~40 degrees C Relative Humidity:10~90% (non-condensing) |
| Storage |
Temperature: -20~70 degrees C Relative Humidity: 5~95% (non-condensing) |
| Power Supply |
100~240V AC, 50~60Hz internal |

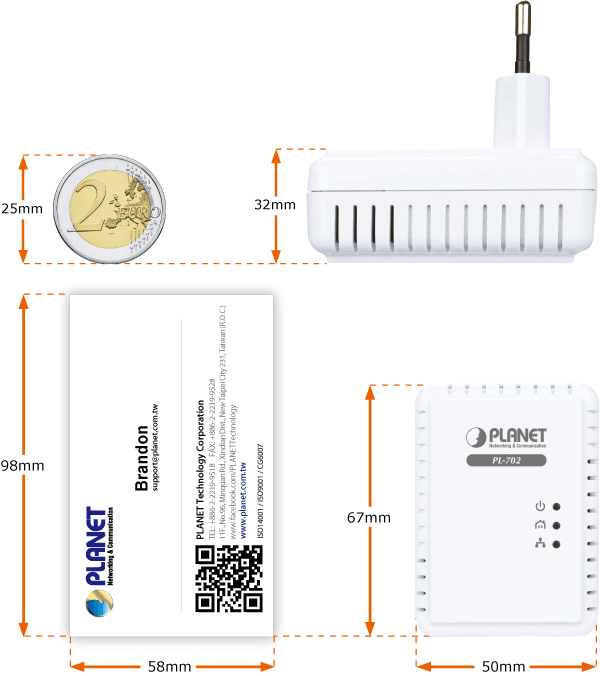

| 尺寸 (W x D x H) |
67 x 50 x 32 mm (Plastic only) |
| Weight |
72 g |
| Authentication |
FCC, CE, LVD |
