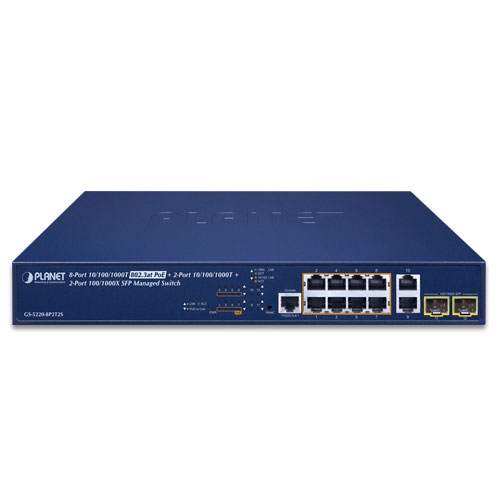

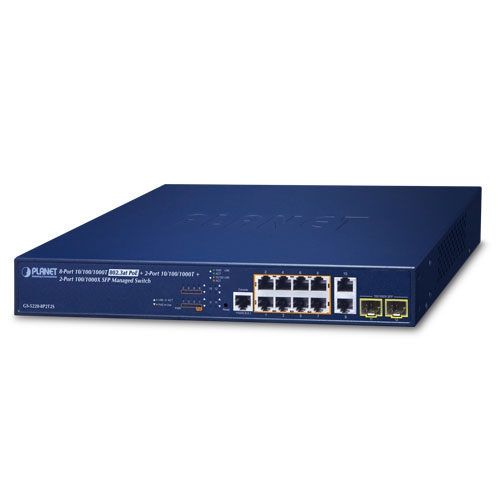

| Hardware Specifications |
| Copper Ports |
10 10/ 100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP mini-GBIC Interfaces |
2 x 100/1000BASE-X SFP interfaces with Port-11 to Port-12
Supports 100/1000Mbps dual mode and DDM |
| PoE Injector Port |
8 ports with 802.3at/af PoE injector function with Port-1 to Port-8 |
| Console |
1 x RJ45 serial port (115200, 8, N, 1) |
| Reset Button |
< 5 sec: System reboot
> 5 sec: Factory Default |
| Smart Fan |
1 |

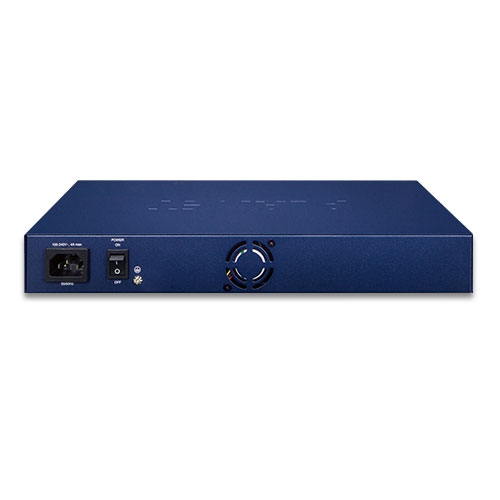

| Power Requirements |
100~240V AC, 50/60Hz, 4A |
| Power Consumption (Full Loading) |
282 watts/962BTU |
| ESD Protection |
6KV DC |
| Dimensions (W x D x H) |
330.2 x 200 x 44 mm, 1U high |
| Weight |
3.9 kg |
| LED |
System:
Power (Green)
PoE Ethernet Interfaces (Port 1 to Port 8):
LNK/ACT (10/100/1000Mbps, Green), PoE In-Use (Amber)
10/100/1000BASE-T Ports (Port 9 to port 10):
1000 (LNK/ACT, Green), 10/100 (LNK/ACT, Amber)
100/1000Mbps SFP Interfaces (Port 11 to Port 12):
1000 (LNK/ACT, Green), 100 (LNK/ACT, Amber) |
| Switching |
| Switch Architecture |
Store-and-Forward |
| Switch Fabric |
24Gbps /non-blocking |
| Throughput |
17.76Mpps@64Bytes |
| Address Table |
8K entries, automatic source address learning and ageing |
| SDRAM |
128Mbytes |
| Flash |
64Mbytes |
| Flow Control |
IEEE 802.3x pause frame for full duplex
Back pressure for half duplex |
| Jumbo Frame |
9K bytes |
| Power over Ethernet Specifications |
| PoE Standard |
IEEE 802.3at Power over Ethernet Plus PSE |
| PoE Power Supply Type |
End-span |
| PoE Power Output |
Per port 54V DC, 590mA. max. 30.8 watts |
| Power Pin Assignment |
1/2(+), 3/6(-) |
| PoE Power Budget |
240 watts max. @25 degrees C
200 watts max. @50 degrees C |
| Number of PDs, 7 watts |
8 units |
| Number of PDs, 15.4 watts |
8 units |
| Number of PDs, 30 watts |
8 units |
| PoE Management |
| Active POE Device Alive Detection |
Yes |
| PoE Power Recycling |
Yes, daily or predefined schedule |
| PoE Schedule |
4 schedule profiles |
| PoE System Management |
System PoE admin control
PoE Management Mode options
Over-temperature threshold alarm
PoE usage threshold alarm |
| Layer 3 Functions |
| IP Interface |
Max. 8 VLAN interfaces |
| Routing Table |
Max. 32 routing entries |
| Routing Protocols |
IPv4 software static routing
IPv6 software static routing |
| Layer 2 Functions |
| Port Configuration |
Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow Control disable/enable |
| Port Status |
Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status |
| Port Mirroring |
TX/RX/Both
Many-to-1 monitor |
| Port Backup |
4 groups with Active/Backup port assign |
| VLAN |
802.1Q tag-based VLAN
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
VLAN Translation
Voice VLAN
MVR (Multicast VLAN Registration)
GVRP
Up to 4K VLAN groups, out of 4095 VLAN IDs |
| Link Aggregation |
IEEE 802.3ad LACP/static trunk
Supports 6 trunks groups with 12 ports per trunk group |
| Spanning Tree Protocol |
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol |
| QoS |
Traffic classification based, strict priority and WRR
8-Level priority for switching
Port Number
802.1p priority
802.1Q VLAN tag
DSCP/TOS field in IP packet |
| IGMP Snooping |
IPv4 IGMP Snooping (v1/v2/v3)
IPv4 IGMP Querier mode support
Up to 255 multicast groups |
| MLD Snooping |
IPv6 MLD Snooping ((v1/v2)
IPv6 MLD Querier mode support
Up to 255 multicast groups |
| Bandwidth Control |
Per port bandwidth control
Ingress: 10Kbps~3276Mbps
Egress: 10Kbps~3276Mbps |
| Security Functions |
| Access Control List |
IP-based ACL/MAC-based ACL
ACL based on:
MAC Address
IP Address
Ethertype
Protocol Type
VLAN ID
DSCP
802.1p Priority
Up to 256 entries |
| Security |
Port security
IP source guard
Dynamic ARP inspection
Command line authority control based on user level |
| AAA |
RADIUS client
TACACS+ client |
| Network Access Control |
IEEE 802.1x port-based network access control
MAC-based authentication
Local/RADIUS authentication |
| Management Functions |
| Basic Management Interfaces |
Console; Telnet; Web Browser; SNMP v1, v2c |
| Secure Management Interfaces |
SSHv2, TLSv1.2, SNMPv3 |
| System Management |
Firmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote Syslog
System log
LLDP protocol
NTP
PLANET Smart Discovery Utility |
| Event Management |
Remote Syslog
Local System log
SMTP |
| ONVIF |
ONVIF device discovery
ONVIF device monitoring
Floor Map |
| SNMP MIBs |
RFC 1213 MIB-II
RFC 2863 IF-MIB
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2737 Entity MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2618 RADIUS Client MIB
RFC 3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB
Power over Ethernet MIB |
| Standards Conformance |
| Regulatory Compliance |
FCC Part 15 Class A, CE |
| Standards Compliance |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3ab 1000BASE-T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree protocol
IEEE 802.1w Rapid Spanning Tree protocol
IEEE 802.1s Multiple Spanning Tree protocol
IEEE 802.1p Class of service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet PLUS
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
RFC 3810 MLD version 2 |
| Environments |
| Operating |
Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage |
Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
