| Hardware Specifications |
| Hardware Version |
3 |

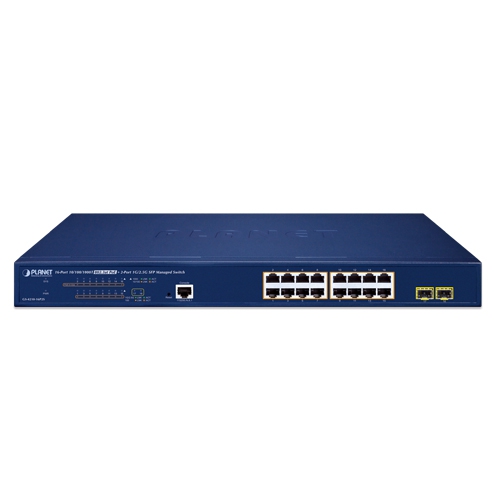

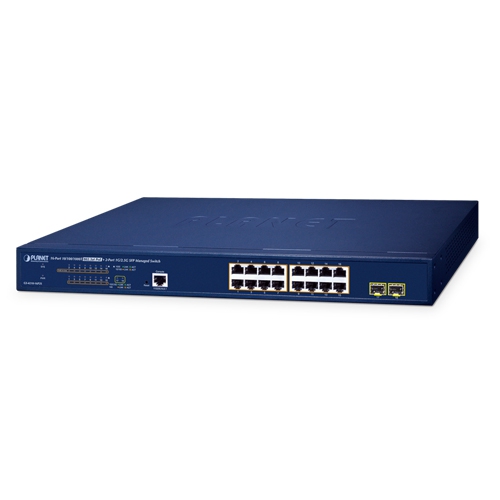

| Copper Ports |
16 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| PoE+ Injector Port |
16 802.3af/802.3at PoE+ Injector Ports |
| SFP Slots |
2 100/1000/2500BASE-X SFP interfaces, supporting 100/1000/2500Mbps triple mode |
| Console |
1 x RS232-to-RJ45 serial port (115200, 8, N, 1) |
| Reset Button |
< 5 sec: System reboot
> 5 sec: Factory default |
| Fan |
1 fan |
| Dimensions (W x D x H) |
440 x 207 x 44 mm (1U height) |
| Weight |
2.3kg |
| ESD Protection |
±8KV air gap discharge
±6KV contact discharge |
| Enclosure |
Metal |

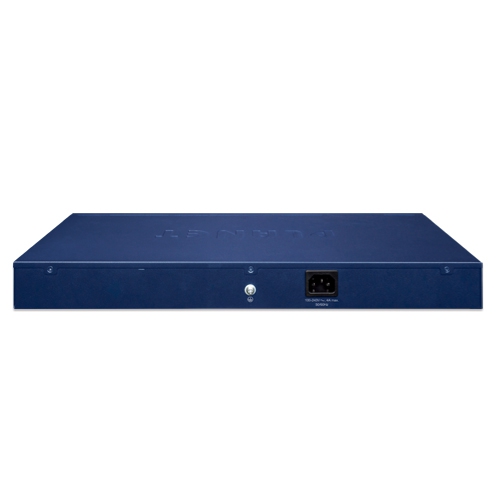

| Power Requirements |
100~240V AC, 50/60Hz, 4A (max.) |
| Power Consumption/Dissipation |
Max. 14 watts / 47.7 BTU (Power on without any connection)
Max. 293 watts / 999 BTU (Full Loading) |
| LED |
System:
SYS (Green), Power (Green)
10/100/1000T RJ45 Interfaces (Port 1 to Port 16):
1000 LNK/ACT (Green), 10/100 LNK/ACT (Amber), PoE-in-Use (Amber)
100/1000/2500BASE-X SFP Interfaces (Port 17 to Port 18):
1G/2.5G LNK/ACT (Green), 100 LNK/ACT (Amber) |
| Switching Specifications |
| Switch Architecture |
Store-and-Forward |
| Switch Fabric |
42Gbps/non-blocking |
| Switch Throughput@64 bytes |
31.2Mpps @64 bytes |
| MAC Address Table |
16K entries |
| Shared Data Buffer |
4.1 megabits |
| Flow Control |
IEEE 802.3x pause frame for full duplex
Back pressure for half duplex |
| Flow Control |
IEEE 802.3x pause frame for full duplex
Back pressure for half duplex |
| Jumbo Frame |
12K bytes |
| Power over Ethernet |
| PoE Standard |
IEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Output |
Per Port 54V DC, 300mA. Max. 15.4 watts (IEEE 802.3af)
Per Port 54V DC, 600mA. Max. 30 watts (IEEE 802.3at) |
| PoE Power Budget |
240 watts |
| Number of PDs, 7 watts |
16 units |
| Number of PDs, 15.4 watts |
15 units |
| Number of PDs, 30 watts |
8 units |
| PoE Management |
PD Alive Check
Scheduled Power Recycling
PoE Schedule
PoE Usage Monitoring
PoE Extension |
| Layer 2 Functions |
| Port Mirroring |
TX/RX/both
Many-to-1 monitor
Up to 4 sessions |
| VLAN |
IEEE 802.1Q tagged-based VLAN
IEEE 802.1ad Q-in-Q tunneling (VLAN stacking)
Voice VLAN
Protocol VLAN
Private VLAN (Protected port)
GVRP
Management VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs |
| Link Aggregation |
IEEE 802.3ad LACP and static trunk
Supports 8 groups of 8-port trunk |
| Spanning Tree Protocol |
IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
STP BPDU Guard, BPDU Filtering and BPDU Forwarding |
| IGMP Snooping |
IPv4 IGMP (v2/v3) snooping
IGMP querier
Up to 256 multicast groups |
| MLD Snooping |
IPv6 MLD (v1/v2) snooping
Up to 256 multicast groups |
| QoS |
8 mapping IDs to 8 level priority queues
Port number
802.1p priority
DSCP/IP precedence of IPv4/IPv6 packets
Traffic classification based, strict priority and WRR
Ingress/Egress Rate Limit per port bandwidth control |
| Ring |
Supports ERPS, and complies with ITU-T G.8032
Recovery time < 450ms |
| Security Functions |
| Access Control List |
IPv4/IPv6 IP-based ACL/MAC-based ACL
IPv4/IPv6 IP-based ACE/MAC-based ACE
Max. 256 ACL entries |
| Port Security |
IEEE 802.1X – Port-based authentication
Built-in RADIUS client to co-operate with RADIUS server
RADIUS/TACACS+ user access authentication |
| MAC Security |
IP-MAC port binding
MAC filter
Static MAC address, max. 256 static MAC entries |
| Enhanced Security |
DHCP Snooping and DHCP Option82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard |
| Management Functions |
| Basic Management Interfaces |
RS232 to RJ45 Console
Web browser
Telnet
SNMP v1, v2c |
| Secure Management Interfaces |
SSHv2, TLSv1.2/TLSv1.3, SNMP v3 |
| System Management |
Firmware upgrade by HTTP/TFTP protocol through Ethernet network
LLDP protocol
SNTP
PLANET Smart Discovery Utility
PLANET NMS system
PLANET NMSViewerPro/CloudViewerPro/CloudNMS |
| Event Management |
Remote/Local Syslog
System log
SMTP remote alarm |
| SNMP MIBs |
RFC 1213 MIB-II
RFC 1215 Generic Traps
RFC 1493 Bridge MIB
RFC 2737 Entity MIB (Version 2)
RFC 2819 RMON (1, 2, 3, 9)
RFC 3635 Ethernet-like MIB
LLDP MIB
PLANET-Aggr-MIB
PLANET-DDMI-MIB
PLANET-Firmware-MIB
PLANET-GVRP-MIB
PLANET-LACP-MIB
PLANET-SYSUTIL-MIB |
| Standards Conformance |
| Regulatory Compliance |
FCC Part 15 Class A, CE |
| Standards Compliance |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3z Gigabit SX/LX
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN Tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
RFC 768 UDP
RFC 783 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 793 TCP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
RFC 3810 MLD version 2
ITU-T G.8032 ERPS Ring |
| Environment |
| Operating |
Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage |
Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
