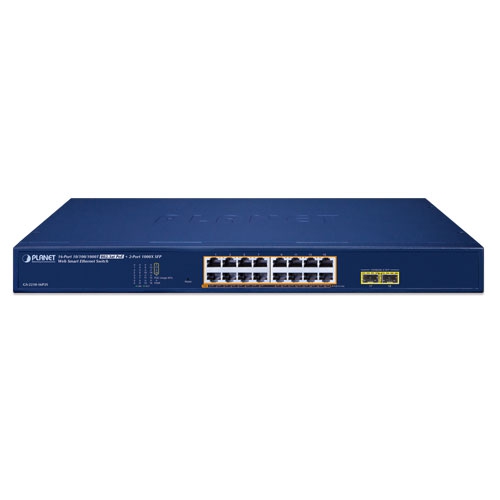

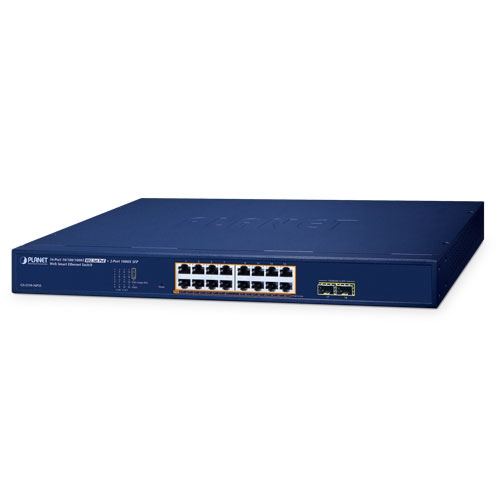

| Hardware Specifications |
| Copper Ports |
16 10/100/1000BASE-T RJ45 copper ports |
| PoE Injector Port |
16 ports with 802.3af/802.3at PoE+ injector function |
| SFP Slots |
2 x 100/1000BASE-X SFP interface |
| Flash Memory |
16Mbytes |
| Reset Button |
< 10 sec: System reboot
> 10 sec: Factory default |
| ESD Protection |
Contact ±6KV , Air ±8KV |
| Surge Protection |
Differential mode ±2KV , Common mode ±4KV |
| Dimensions (W x D x H) |
440 x 207 x 44mm |
| Weight |
2343g |
| Power Consumption |
7.1 watts / 24.2BTU (System)
283 watts/ 965BTU (System+PoE) |

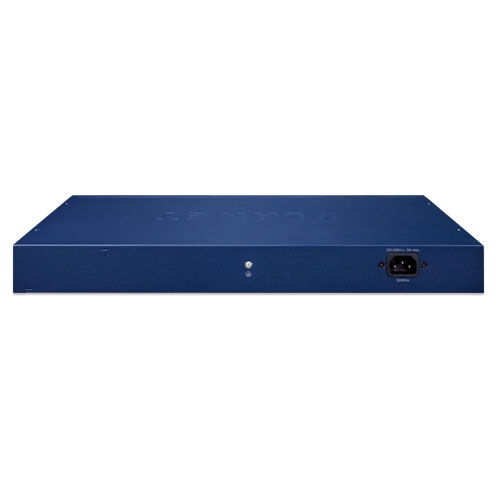

| Power Requirements |
AC 100~240V, 50/60Hz |
| Fan |
2 |
| LED |
System:
PWR (Green)
PoE Usage 80% (Green)
Ports:
LNK/ACT (Green)
PoE-in-Use (Amber) |
| Switching Specifications |
| Switch Architecture |
Store-and-forward |
| Switch Fabric |
36Gbps/non-blocking |
| Switch Throughput |
26.78Mpps |
| Address Table |
8K MAC address table with auto-learning, auto-aging |
| Shared Data Buffer |
4.1MB |
| Jumbo Frame |
10KBytes |
| Flow Control |
Back pressure for half duplex
IEEE 802.3x pause frame for full duplex |
| Power over Ethernet Specifications |
| PoE Standard |
IEEE 802.3at PoE+ PSE |
| PoE Power Supply Type |
End-span |
| PoE Power Output |
32W (max.) |
| Power Pin Assignment |
1/2(+), 3/6(-) |
| PoE Power Budget |
240 watts (max.) |
| Layer 2 Functions |
| Port Configuration |
EEE Green energy savings disable/enable
Port disable/enable/reboot
Flow control disable/enable
Bandwidth control on each port
Port loopback protection |
| Port Status |
Display each port’s speed duplex mode,
Display link status
Display flow control status
Display auto negotiation status
Display Green energy saving status |
| Port Mirroring |
In / Out / All
Many-to-1 monitor |
| VLAN |
802.1Q tagged VLAN, up to 16 VLAN groups |
| Bandwidth Control |
TX/RX/Both |
| Link Aggregation |
static trunk
Supports 8 groups with 8 ports per trunk group |
| QoS |
8 priority queues on all switch ports
Supports strict priority and Weighted Round Robin (WRR) CoS policies
Traffic classification:
IEEE 802.1p CoS/ToS
IPv4 DSCP
Port-based WRR |
| Multicast |
IPv4 IGMP v1/v2 snooping
Up to 256 |
| Security Functions |
| Security |
Port isolation
DHCP Snooping |
| Switch Management Functions |
| System Configuration |
Telnet, Web browser |
| Management |
Authentication for IPv4 Telnet user name and password
Telnet
Cable Diagnostics
IP address or domain name Ping Test
NTP (Network Time Protocol)
PLANET Smart Discovery Utility
PLANET NMS
PLANET NMSViewerPro |
| Standard Conformance |
| Regulatory Compliance |
FCC Part 15 Class A, CE |
| Standards Compliance |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3z Gigabit 1000BASE-SX/LX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3x flow control and back pressure
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet PLUS
RFC 783 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2 |
| Environment |
| Operating |
Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 90% (non-condensing) |
| Storage |
Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 90% (non-condensing) |
