| Hardware Specifications |

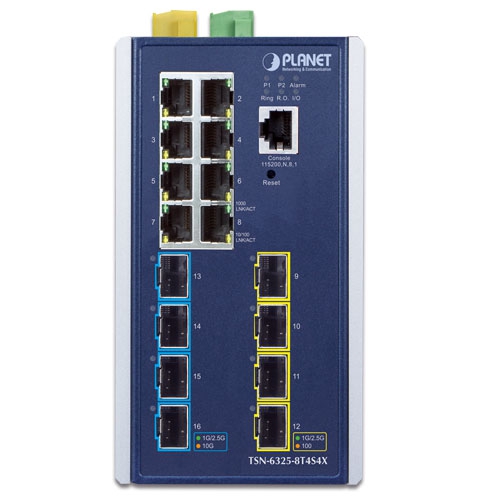

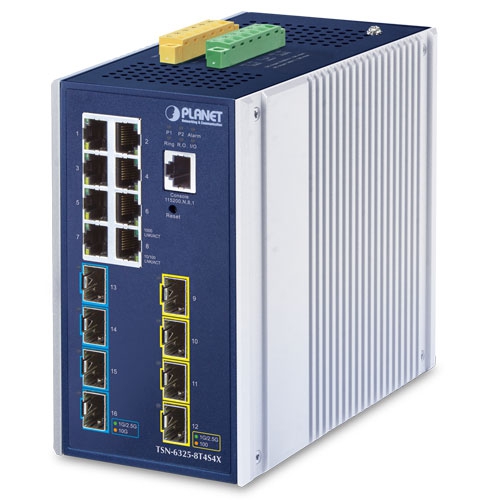

| Copper Ports |
8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP Port |
4 1000/2500BASE-X SFP portsslot interfaces (Ports -9 to and Port-12)
Compatible with 1000BASE-X and 2500BASE-X SFP transceiver |
| SFP+ Ports |
4 10GBASE-SR/LR SFP+ slots
Backward compatible with 1000BASE-SX/LX/BX and 2500BASE-X SFP transceivers |
| Console |
1 x RJ45-to-RS232 serial port (115200, 8, N, 1) |
| Reset Button |
< 5 sec: System reboot
> 5 sec: Factory default |

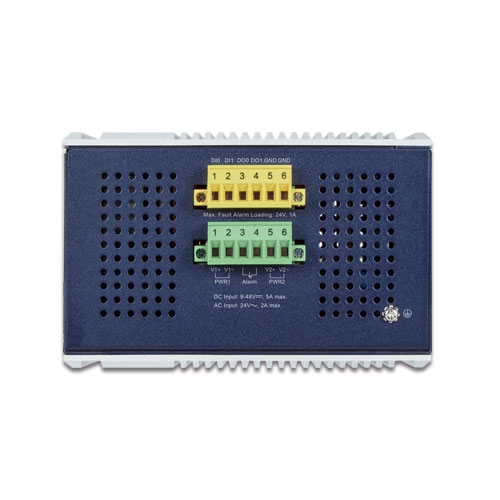

| Connector |
Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND |
| Alarm |
One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC |
| Digital Input (DI) |
2 digital input:
Level 0: -24~2.1V (±0.1V)
Level 1: 2.1~24V (±0.1V)
Input load to 24V DC, 10mA max. |
| Digital Output (DO) |
2 digital output:
Open collector to 24VDC, 100mA |
| Enclosure |
IP30 aluminum case |
| Installation |
DIN-rail or wall mounting |
| SDRAM |
2048Mbytes |
| Flash Memory |
64Mbytes |
| Dimensions (W x D x H) |
86 x 135 x 152 mm |
| Weight |
1,597g |
| Power Requirements |
DC 9~48V, 5A max.
AC 24V, 2A max. |
| Power Consumption |
DC input:
Max. 16.8 watts/57.3BTU (system on)
Max. 38.2 watts/130.3BTU (Full loading)
AC 24V input:
Max. 21.7 watts/74BTU (system on)
Max. 30 watts/102.3BTU (Full loading) |
| ESD Protection |
5KV DC |
| Surge Protection |
6KV DC |
| LED Indicators |
System:
Power 1 (Green), Power 2 (Green)
Fault Alarm (Red)
Ring (Green), Ring Owner (Green)
DIDO (Red)
Per 10/100/1000T RJ45 Port:
1000Mbps LNK/ACT (Green)
10/100Mbps LNK/ACT (Amber)
Per SFP Port:
1G/2.5Gbps LNK/ACT (Green)
Per SFP+ Port:
1G/2.5Gbps LNK/ACT (Green)
10Gbps LNK/ACT (Amber) |
| Switching Specifications |
| Switch Architecture |
Store-and-Forward |
| Switch Fabric |
116Gbps/non-blocking |
| Throughput |
86.3Mpps@64Bytes |
| Address Table |
32K entries, automatic source address learning and aging |
| Shared Data Buffer |
32Mbits |
| Jumbo Frame |
10K bytes |
| Flow Control |
IEEE 802.3x pause frame for full duplex
Back pressure for half duplex |
| Layer 3 Functions |
| IP Interfaces |
Max. 128 VLAN interfaces |
| Routing Table |
Max. 512 static route entries
Max. 3072 routing table entries |
| Routing Protocols |
IPv4 RIPv2
IPv4 OSPFv2
IPv6 OSPFv3
IPv4 hardware static routing
IPv6 hardware static routing |
| Layer 2 Functions |
| Port Configuration |
Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Port link capability control |
| Port Status |
Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status |
| Port Mirroring |
TX/RX/Both
Many-to-1 monitor
Mirror – Remote Switched Port Analyzer (Cisco RSPAN)
Supports up to 5 sessions |
| VLAN |
IEEE 802.1Q tagged VLAN
IEEE 802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
IP Subnet-based VLAN
MVR (Multicast VLAN registration)
GVRP
Up to4K VLAN groups, out of 4095 VLAN IDs |
| Link Aggregation |
IEEE 802.3ad LACP/static trunk
8 trunk groups with 16 ports per trunk group |
| Spanning Tree Protocol |
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
Supports 7 MSTP instances
BPDU Guard, BPDU filtering and BPDU transparent
Root Guard |
| IGMP Snooping |
IPv4 IGMP (v1/v2/v3) snooping
IPv4 IGMP querier mode support
Supports 255 IGMP groups |
| MLD Snooping |
IPv6 MLD (v1/v2) snooping,
IPv6 MLD querier mode support
Supports 255 MLD groups |
| Bandwidth Control |
Per port bandwidth control
Ingress: 10Kbps~13128Mbps
Egress: 10Kbps~13128Mbps |
| Ring |
Supports ERPS, and complies with ITU-T G.8032
Recovery time < 10ms @ 3 nodes
Recovery time <50ms @ 16 nodes
Supports Major ring and sub-ring |
| Synchronization |
IEEE 1588v2 PTP(Precision Time Protocol)
PTP Master
PTP Slave
Boundary clock
Peer-to-peer transparent clock
End-to-end transparent clock |
| QoS |
Traffic classification based, strict priority and WRR
8-level priority for switching:
Port number
802.1p priority
802.1Q VLAN tag
DSCP/ToS field in IP packet |
| Time-Sensitive Networking Protocols |
High Precision Time Synchronization
IEEE1588 (Time Stamping)
802.1AS-Rev gPTP default profile
Shapers
802.1Qbv (Time-aware Scheduling)
802.1Qch (Cyclic Queuing and Forwarding)
TSN Stream Policing
802.1Qci (Per Stream Filtering and Policing)
Redundancy
802.1CB ( Frame Replication and Elimination for Redundancy for seamless redundancy)
Also standard Linear and Ring protection
Delay Reduction
EEE 802.1Qbu Frame Preemption
IEEE 802.3br Interspersing Express Traffic (IET) |
| Security Functions |
| Access Control List |
IP-based ACL/MAC-based ACL
ACL based on:
MAC Address
IP Address
Ethertype
Protocol Type
VLAN ID
DSCP
802.1p Priority
Up to 512 entries |
| Security |
Port security
IP source guard, up to 512 entries
Dynamic ARP inspection, up to 1K entries
Command line authority control based on user level
Static MAC address, up to 64 entries |
| AAA |
RADIUS client
TACACS+ client |
| Network Access Control |
IEEE 802.1x port-based network access control
MAC-based authentication
Local/RADIUS authentication |
| Management |
| Basic Management Interfaces |
Console; Telnet; Web browser; SNMP v1, v2c |
| Secure Management Interfaces |
SSHv2, TLSv1.2, SNMPv3 |
| System Management |
Firmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote Syslog
System log
LLDP protocol
NTP
PLANET Smart Discovery Utility
PLANET CloudViewer app |
| SNMP MIBs |
RFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Group 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2863 IF-MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4292 IP Forward MIB
RFC 4293 IP MIB
RFC 4836 MAU-MIB
IEEE 802.1X PAE
LLDP |
| Standards Conformance |
| Regulatory Compliance |
FCC Part 15 Class A
CE:
EN55032
EN55035 |
| Stability Testing |
EC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration) |
| Standards Compliance |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3bz 2.5GBASE-X
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3ah OAM
IEEE 802.1ag Connectivity Fault Management (CFM)
IEEE 802.1AS - Timing and Synchronization for Time-sensitive Applications
IEEE 802.1Qbu Frame Preemption,
IEEE 802.3br Interspersing Express Traffic (IET)
IEEE 802.1Qci Per-Stream Filtering and Policing (PSFP)
IEEE 802.1Qbv Enhancements for Scheduled Traffic
IEEE 802.1CB Frame Replication and Elimination for Reliability (FRER)
RFC 768 UDP
RFC 783 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
RFC 2328 OSPF v2
RFC 5340 OSPF v3
RFC 2453 RIP v2
ITU-T G.8032 ERPS Ring |
| Environment |
| Operating |
-40 ~ 75 degrees C |
| Storage |
-40 ~ 85 degrees C |
| Humidity |
5 ~ 95% (non-condensing) |
