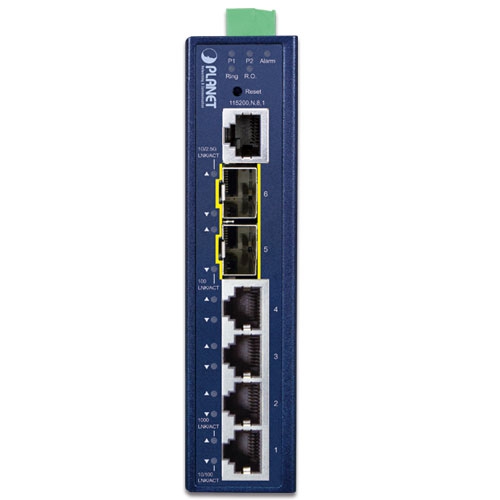

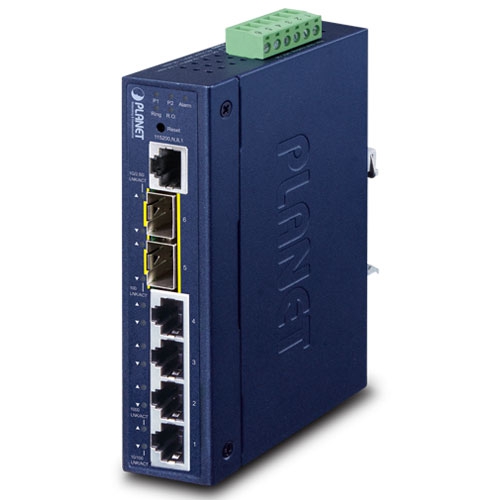

| Hardware Specifications |
| Copper Ports |
4 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP/mini-GBIC Slots |
2 1000/2500BASE-SX/LX/BX SFP interfaces (Port-5 to Port-6)
Compatible with 100BASE-FX SFP |
| Console |
1 x RJ45-to-RS232 serial port (115200, 8, N, 1) |
| Reset Button |
< 5 sec: System reboot
> 5 sec: Factory default |
| ESD Protection |
Air 8KV, Contact 6KV |
| Enclosure |
IP30 metal case |
| Installation |
DIN-rail kit and wall-mount kit |
| Connector |

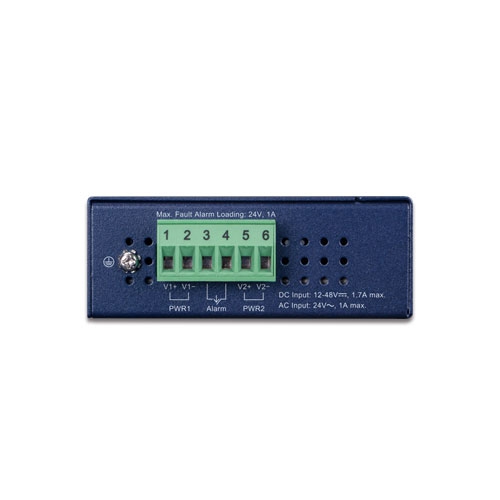

Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 |
| Alarm |
One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC |
| LED Indicator |
System:
Power 1 (Green)
Power 2 (Green)
Fault Alarm (Red:)
Ring (Green)
Ring Owner (Green)
Per 10/100/1000T RJ45 Ports:
10/100Mbps LNK/ACT (Amber)
1000 LNK/ACT (Green)
Per SFP Interface:
100 LNK/ACT (Amber)
1000/2500 LNK/ACT (Green) |
| Dimensions (W x D x H) |
32 x 87.8 x 135 mm |
| Weight |
442g |
| Power Requirements |
Dual 12~48V DC
24V AC |
| Power Consumption |
Max. 4.8 watts/16.4 BTU (Power on without any connection)
Max. 8.5 watts/29.2 BTU (Full loading) |
| Switching Specifications |
| Switch Architecture |
Store-and-Forward |
| Switch Fabric |
18Gbps/non-blocking |
| Throughput (packet per second) |
13.39Mpps@ 64 bytes packet |
| Address Table |
8K entries, automatic source address learning and aging |
| Shared Data Buffer |
4Mbits |
| Flow Control |
IEEE 802.3x pause frame for full duplex
Back pressure for half duplex |
| Jumbo Frame |
9Kbytes |
| Layer 3 Function |
| IP Interface |
Max. 8 VLAN interfaces |
| Routing Table |
Max. 32 routing entries |
| Routing Protocols |
IPv4 software static routing
IPv6 software static routing |
| Layer 2 Function |
| Port Configuration |
Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Power saving mode control |
| Port Status |
Display each port’s speed duplex mode, link status, flow control status,
auto negotiation status, trunk status |
| Port Mirroring |
TX/RX/both
Many to 1 monitor
Rmirror – Remote Switch Port Analyzer (Cisco RSPAN) |
| VLAN |
IEEE 802.1Q tag-based VLAN
IEEE 802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
VLAN Translation
Voice VLAN
MVR (Multicast VLAN Registration)
GVRP
Up to 4K VLAN groups, out of 4094 VLAN IDs |
| Spanning Tree Protocol |
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol |
| Link Aggregation |
IEEE 802.3ad LACP/static trunk
Supports 4 trunk groups with 4 ports per trunk group |
| IGMP Snooping |
IPv4 IGMP (v1/v2/v3) snooping
IPv4 IGMP querier mode support
Up to 255 multicast groups |
| MLD Snooping |
IPv6 MLD (v1/v2) snooping
IPv6 MLD querier mode support
Up to 255 multicast groups |
| Bandwidth Control |
Per port bandwidth control
Ingress: 500Kb~1000Mbps
Egress: 500Kb~1000Mbps |
| RING |
Supports ERPS, and complies with ITU-T G.8032
Recovery time < 10ms @ 3 units
Recovery time < 50ms @16 units |
| Synchronization |
IEEE 1588v2 PTP(Precision Time Protocol)
Peer-to-peer transparent clock
End-to-end transparent clock |
| QoS |
Traffic classification based, strict priority and WRR
8-level priority for switching
Port number
802.1p priority
802.1Q VLAN tag
DSCP/TOS field in IP packet |
| Security Functions |
| Access Control List |
IP-based ACL/MAC-based ACL
ACL based on:
MAC Address
IP Address
Ethertype
Protocol Type
VLAN ID
DSCP
802.1p Priority
Up to 256 entries |
| Security |
Port Security
IP source guard
Dynamic ARP inspection
Command line authority control based on user level |
| AAA |
RADIUS client
TACACS+ client |
| Network Access Control |
IEEE 802.1x port-based network access control
MAC-based authentication
Local/RADIUS authentication |
| Switch Management |
| Basic Management Interfaces |
Console interface; Telnet; Web browser; SNMP v1, v2c |
| Secure Management Interfaces |
SSHv2, TLS v1.2, SNMP v3 |
| System Management |
Firmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote syslog
System log
LLDP protocol
NTP
PLANET Smart Discovery Utility
PLANET CloudViewer app |
| Event Management |
Remote syslog
Local system log
SMTP |
| SNMP MIBs |
RFC 1213 MIB-II
RFC 2863 IF-MIB
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2737 Entity MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2618 RADIUS Client MIB
RFC 3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB |
| Standards Conformance |
| Regulatory Compliance |
FCC Part 15 Class A, CE |
| Stability Testing |
IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration) |
| Standards Compliance |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1ad Q-in-Q VLAN stacking
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3ah OAM
IEEE 1588 PTPv2
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
RFC 3810 MLD version 2
ITU-T G.8032 ERPS Ring |
| Environment |
| Operating Temperature |
-40 ~ 75 degrees C |
| Storage Temperature |
-40 ~ 85 degrees C |
| Humidity |
5 ~ 95% (non-condensing) |
