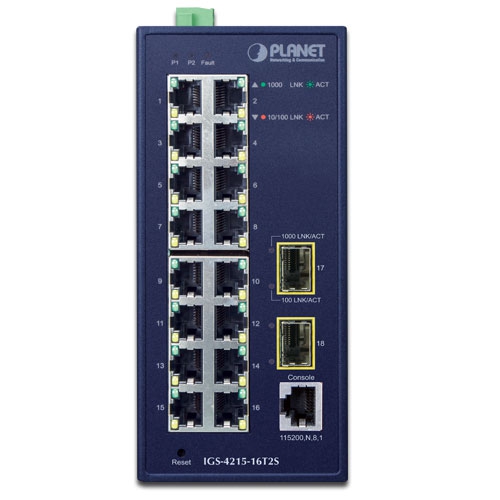

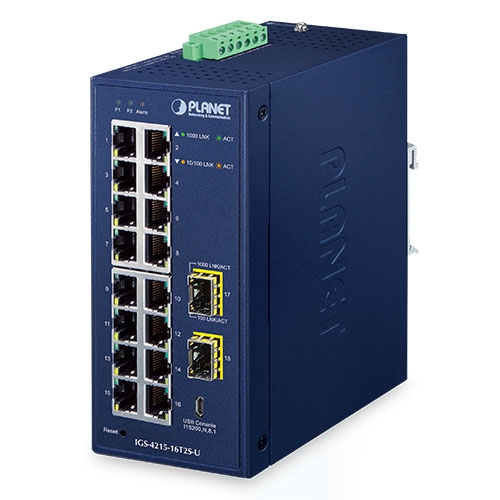

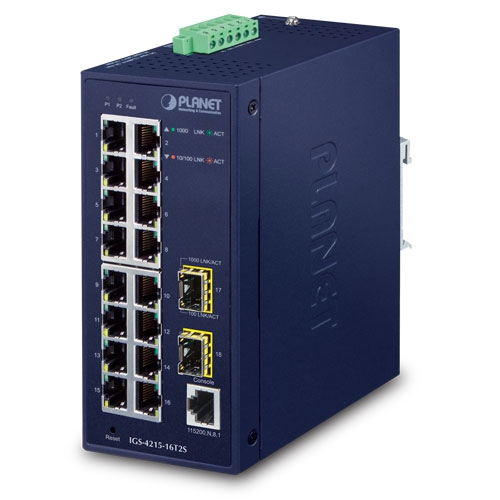

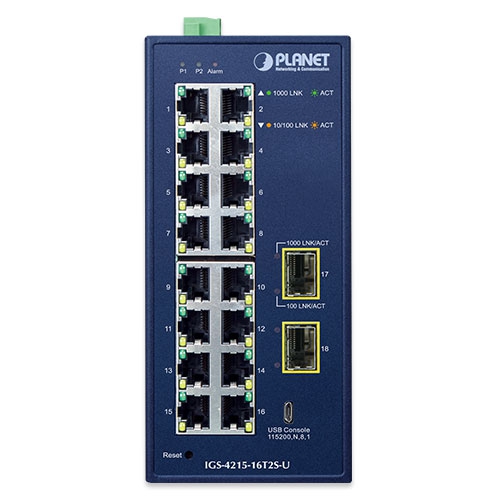

| Hardware Specifications |
| Copper Ports |
16 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| Gigabit SFP Slots |
2 100/1000BASE-SX/LX/BX SFP interfaces |
| Console |
IGS-4215-16T2S：1 RJ45 serial port (115200,8, N, 1)
IGS-4215-16T2S-U：1 Micro-USB female port (115200,8, N, 1) |
| RAM |
128Mbytes |
| Flash Memory |
16Mbytes |
| Reset Button |
< 5 sec: System reboot
> 5 sec: Factory default |
| Connector |

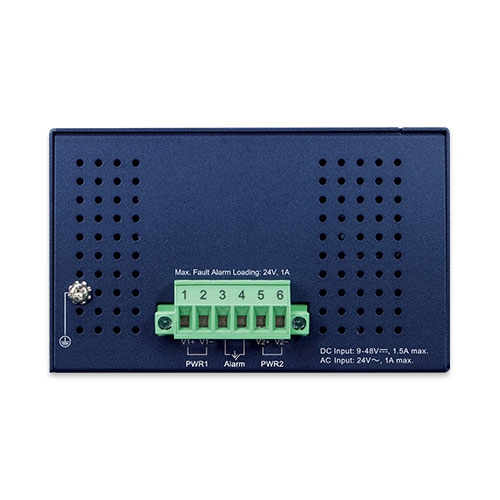

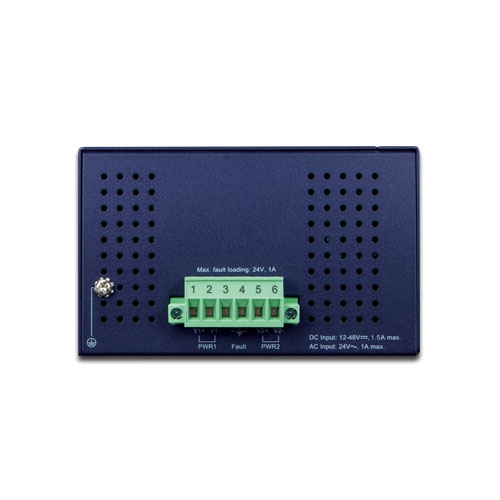

Removable 6-pin terminal block for power input
Pin 1/2 for Power 1
Pin 3/4 for fault alarm
Pin 5/6 for Power 2 |
| Alarm |
One relay output for power failure.
Alarm relay current carry ability: 1A @ 24V DC |
| Power Requirements |
IGS-4215-16T2S：
Dual 12~48V DC
24V AC
IGS-4215-16T2S-U：
Dual 9~48V DC
24V AC |
| Power Consumption |
IGS-4215-16T2S：
DC input:
Max. 3.4 watts/11.6BTU (System on)
Max. 12.5 watts/42.7BTU (Full loading)
AC input:
Max. 6 watts/20.5BTU (System on)
Max. 15 watts/51.2BTU (Full loading)
IGS-4215-16T2S-U：
DC input:
Max. 3.31 watts/11.3BTU (System on)
Max.10.41 watts/35.5BTU (Full loading)
AC input:
Max. 3 watts/10.2BTU (System on)
Max. 10 watts/34.1BTU (Full loading) |
| Dimensions (W x D x H) |
66 x 107 x 152 mm |
| Weight |
IGS-4215-16T2S：813g
IGS-4215-16T2S-U：829g |
| Enclosure |
IP30 metal case |
| Installation |
DIN-rail kit and wall-mount ear |
| ESD Protection |
6KV DC |
| LED |
System
Green: Power 1
Green: Power 2
Red: Power Fault
Per 10/100/1000T RJ45 Ports
Green: 1000 LNK/ACT
Orange: 10/100 LNK/ACT
Per SFP Interface
Green: 1000 LNK/ACT
Orange: 100 LNK/ACT |
| Switching Specifications |
| Switch Architecture |
Store-and-Forward |
| Switch Fabric |
36Gbps (non-blocking) |
| Switch Throughput@64 bytes |
26.79Mpps@ 64 bytes |
| MAC Address Table |
8K entries |
| Shared Data Buffer |
4.1Mbits |
| Flow Control |
IEEE 802.3x pause frame for full duplex
Back pressure for half duplex |
| Jumbo Frame |
10 Kbytes |
| Layer 2 Functions |
| Port Mirroring |
TX/RX/Both
Many-to-1 monitor
Up to 4 sessions |
| VLAN |
802.1Q tagged-based VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs
802.1ad Q-in-Q tunneling (VLAN stacking)
Voice VLAN
Protocol VLAN
Private VLAN (Protected port)
GVRP |
| Link Aggregation |
IEEE 802.3ad LACP and static trunk
Cisco ether-channel (Static Trunk)
Up to 8 trunk groups
Up to 8 ports per trunk group with 16Gbps bandwidth |
| Spanning Tree Protocol |
IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
STP BPDU Guard, BPDU Filtering and BPDU Forwarding |
| IGMP Snooping |
IPv4 IGMP snooping v1, v2, v3
IGMP querier
Up to 256 multicast groups |
| MLD Snooping |
IPv6 MLD snooping v1, v2, up to 256 multicast groups |
| QoS |
Ingress/Egress Rate Limit per port bandwidth control
8-level priority for switching
Port number
802.1p priority
DSCP/IP precedence of IPv4/IPv6 packets
Typical network application
DSCP remarking |
| Ring |
Supports ERPS, and complies with ITU-T G.8032
Recovery time < 450ms |
| Security Functions |
| Access Control List |
IPv4/IPv6 IP-based ACL/MAC-based ACL
IPv4/IPv6 IP-based ACE/MAC-based ACE
Max. 256 ACL entries |
| Port Security |
IEEE 802.1X – Port-based authentication
Built-in RADIUS client to co-operate with RADIUS server
RADIUS/TACACS+ user access authentication |
| MAC Security |
IP-MAC port binding
MAC filter
Static MAC address, max. 256 static MAC entries |
| Enhanced Security |
DHCP Snooping and DHCP Option82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard |
| Management Functions |
| Basic Management Interfaces |
Console; Telnet; Web browser; SNMP v1, v2c |
| Secure Management Interfaces |
SSHv2, TLS v1.2, SNMP v3 |
| System Management |
Firmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote Syslog
System log
LLDP protocol
SNTP
PLANET Smart Discovery Utility
PLANET NMS System/CloudViewer app |
| Event Management |
Remote/Local Syslog
System log |
| SNMP MIBs |
RFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2863 IF-MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4292 IP Forward MIB
RFC 4293 IP MIB
RFC 4836 MAU-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB |
| Standards Conformance |
| Regulatory Compliance |
FCC Part 15 Class A
EN 55032
EN 55035
ICES-003 issue 7 |
| Certification |
EN50121-4 |
| Stability Testing |
IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration) |
| Standards Compliance |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP
IEEE 802.3az for Energy-Efficient Ethernet
RFC 768 UDP
RFC 783 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
FRC 3810 MLD v2
ITU G.8032 ERPS Ring |
| Environment |
| Operating Temperature |
-40 ~ 75 degrees C |
| Storage Temperature |
-40 ~ 85 degrees C |
| Humidity |
5 ~ 95% (non-condensing) |
