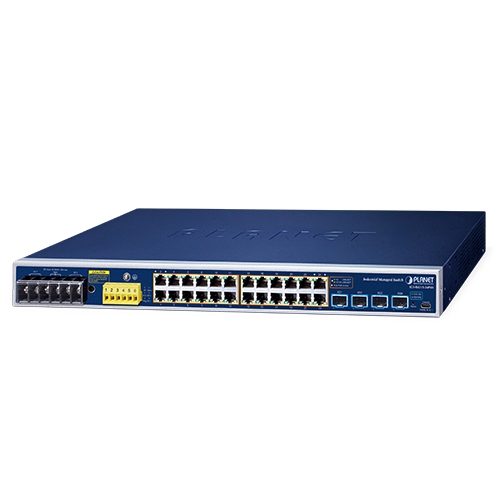

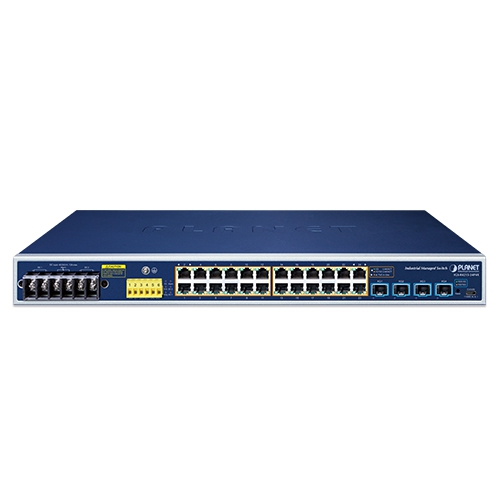

| Hardware Specifications |
| Copper Ports |
24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (Ports 1 to 24) |
| PoE Injector Port |
24 ports with 802.3at PoE+ injector function (Ports 1 to 24) |
| SFP+ Ports |
4 10GBASE-SR/LR SFP+ interfaces (Ports XG1 to XG4)
Backward compatible with 100M/1G/2.5GBASE-SX/LX/BX transceivers |
| Console |
1 x USB Type-C to RS232 serial port (115200, 8, N, 1) |
| Reset Button |
< 5 sec: System reboot
> 5 sec: Factory default |
| Terminal Block |
Fixed 6-pin terminal block for power input
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND |
| Alarm |
One relay output for port breakdown and power failure.
Alarm relay current carry ability: 3A @ 24V DC |
| Digital Input (DI) |
2 digital input (DI)
Level 0: -24V~2.1V (±0.1V)
Level 1: 2.1V~24V (±0.1V)
Input load to 24V DC, 10mA max. |
| Digital Output (DO) |
2 digital output (DO)
Open collector to 24V DC, 100mA max. |
| Enclosure |
IP30 metal case |
| Installation |
Rack-mount kit |
| Dimensions (W x D x H) |
444 x 200 x 44.2 mm, 1U height |
| Weight |
3250g |
| Power Requirements |
Dual 48-54V DC, 12A max. |
| Power Consumption/ Dissipation |
Max. 10.7 watts / 36.6 BTU (system on)
Max. 486 watts / 1658.4 BTU (Full loading) |
| EFT Protection |
6KV DC |
| ESD Protection |
6KV DC |
| LED |
System:
DC1 (Green)
DC2 (Green)
Alarm (Red)
Ring (Green)
R.O. (Green)
I/O (Red)
Per 10/100/1000T RJ45 PoE+ Ports:
Left: 1000 LNK/ACT (Green)
10/100 LNK/ACT (Amber)
Right: 802.3at (Amber)
Per 10G SFP+ Interface:
1G/2.5G LNK/ACT (Green)
100/10G LNK/ACT (Amber) |
| Switching Specifications |
| Switch Architecture |
Store-and-forward |
| Switch Fabric |
128Gbps/non-blocking |
| Switch Throughput@64Bytes |
95.23Mpps @64Bytes |
| Address Table |
16K MAC address table with auto learning function |
| Shared Data Buffer |
12Mbits |
| Flow Control |
IEEE 802.3x pause frame for full duplex
Back pressure for half duplex |
| Jumbo Frame |
12KBytes |
| Power over Ethernet |
| PoE Standard |
IEEE 802.3at Power over Ethernet Plus PSE |
| PoE Power Supply Type |
End-span |
| PoE Power Output |
IEEE 802.3af Standard
Per port 48V~54V DC (depending on the power supply), max. 15.4 watts
IEEE 802.3at Standard
Per port 50V~54V DC (depending on the power supply), max. 36 watts |
| Power Pin Assignment |
1/2(+), 3/6(-) |
| Power Power Budget |
Single Power input: 240W maximum
Dual Power input: 440W maximum
※Dual power input must be the same as DC voltage, like dual 54V. |
| Max. Number of Class 2 PDs |
24 |
| Max. Number of Class 3 PDs |
24 |
| Max. Number of Class 4 PDs |
16 |
| PoE Management Functions |
| PoE Management |
PD Alive Check
Scheduled Power Recycling
PoE Schedule
PoE Usage Monitoring
PoE Extension |
| Enhanced PoE Mode |
Standard/ Legacy/ Force |
| Active PoE Device Live Detection |
Yes |
| PoE Power Recycling |
Yes, daily or predefined schedule |
| PoE Schedule |
4 schedule profiles |
| PoE Extend Mode |
Yes, max. up to 250 meters |
| Layer 2 Functions |
| Port Mirroring |
TX/RX/both
Many-to-1 monitor
Up to 4 sessions |
| VLAN |
802.1Q tag-based VLAN
802.1ad Q-in-Q tunneling (VLAN stacking)
Voice VLAN
Protocol VLAN
Private VLAN (Protected port)
GVRP
Up to 256 VLAN groups, out of 4094 VLAN IDs |
| Link Aggregation |
IEEE 802.3ad LACP/Static Trunk
Static Port Trunking, (Max. 8 groups with 8 ports for each group)
Dynamic LACP (Max. 8 groups with 8 ports for each group) |
| Spanning Tree Protocol |
IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
STP BPDU Guard, BPDU Filtering and BPDU Forwarding |
| IGMP Snooping |
IPv4 IGMP (v2/v3) Snooping
IGMP Querier
Up to 256 multicast groups |
| MLD Snooping |
IPv6 MLD snooping v2, v3, up to 256 multicast groups |
| QoS |
8 mapping ID to 8 level priority queues
Port number
802.1p priority
802.1Q VLAN tag
DSCP/IP precedence of IPv4/IPv6 packets
Traffic classification based, strict priority and WRR
Ingress/Egress Rate Limit per port bandwidth control |
| Ring |
Supports ERPS, and complies with ITU-T G.8032
Recovery time < 450ms |
| Layer 3 Functions |
| IP Interfaces |
Max. 64 VLAN interfaces |
| Routing Table |
Max. 32 routing entries |
| Routing Protocols |
IPv4 hardware static routing
IPv6 hardware static routing |
| Security Functions |
| Access Control List |
IPv4/IPv6 IP-based ACL/MAC-based ACL
IPv4/IPv6 IP-based ACE/MAC-based ACE
Max. 256 ACL entries |
| Port Security |
Built-in RADIUS client to co-operate with RADIUS server
RADIUS/TACACS+ user access authentication |
| MAC Security |
IP-MAC port binding
MAC filter
Static MAC address, max. 256 static MAC entries |
| Enhanced Security |
DHCP Snooping and DHCP Option82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard |
| Management Functions |
| Basic Management Interfaces |
Console/ Telnet/ Web browser/ SNMP v1, v2c |
| Secure Management Interfaces |
SSHv2, TLS v1.2, SNMP v3 |
| System Management |
Firmware upgrade by HTTP/TFTP protocol through Ethernet network
LLDP protocol
SNTP
PLANET Smart Discovery Utility
PLANET NMS System, NMSViewerPro and CloudViewerPro App |
| Event Management |
Remote/Local Syslog
System log |
| SNMP MIBs |
RFC 1213 MIB-II
RFC 1215 Generic Traps
RFC 1493 Bridge MIB
RFC 2674 Bridge MIB Extensions
RFC 2737 Entity MIB (Version 2)
RFC 2819 RMON (1, 2, 3, 9)
RFC 2863 Interface Group MIB
RFC 3635 Ethernet-like MIB
RFC 3621 Power Ethernet MIB |
| Standards Conformance |
| Regulatory Compliance |
FCC Part 15 Class A, CE |
| Standards Compliance |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3bz 2.5GBASE-X
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x Flow Control and Back Pressure
IEEE 802.3ad Port Trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN Tagging
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy Efficient Ethernet (EEE)
RFC 768 UDP
RFC 783 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
ITU-T G.8032 ERPS Ring |
| Environment |
| Operating |
Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage |
Temperature: -40 ~ 85 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
