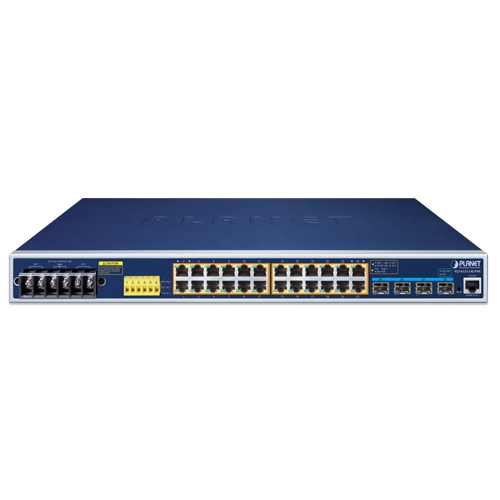

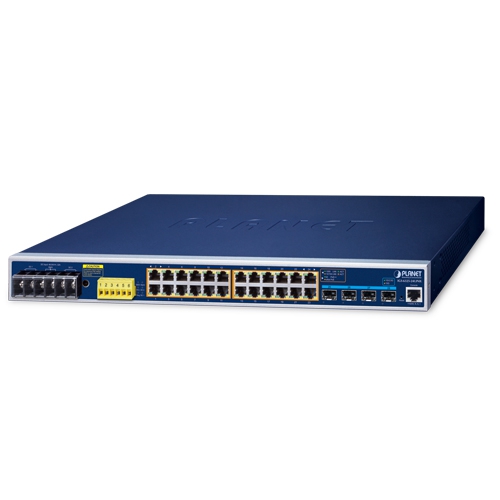

| Hardware Specifications |
| Copper Ports |
24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP+ Slots |
4 10GBASE-SR/LR SFP+ interfaces (Port-25 to Port-28)
Backward compatible with 1G/2.5GBASE-SX/LX/BX SFP transceivers |
| PoE Injector Port |
24 ports with 802.3bt PoE++ injector function from Port-1 to Port-24 |
| Console |
1 x RJ45-to-RS232 serial port (115200, 8, N, 1) |
| Reset Button |
< 5 sec: System reboot
> 5 sec: Factory default |
| ESD Protection |
Contact 4KVDC; Air 8KVDC |
| Connector |
6-contact barrier terminal block for power input
Contact 1/2 for Power 1, Contact 3/4 for fault alarm, Contact 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
Pin 1/2 for DI 0 & 1, Pin 3/4 for DO 0 & 1, Pin 5/6 for GND |
| Alarm |
One relay output for power failure. Alarm relay current carry ability: 3A @ 24V DC |
| Digital Input (DI) |
2 digital input (DI):
Level 0: -24V~2.1V (±0.1V)
Level 1: 2.1V~24V (±0.1V)
Input load to 24VDC, 10mA max. |
| Digital Output (DO) |
2 digital output (DO):
Open collector to 24V DC, 100mA max. |
| Enclosure |
IP30 metal case |
| Installation |
Rack-mount kit |
| SDRAM |
512Mbytes |
| Flash Memory |
64Mbytes |
| Dimensions (W x D x H) |
443.7 x 301.5 x 44 mm, 1U height |
| Weight |
4,051g |
| Power Requirements |
Dual 48~54V DC, 32A max. |
| Power Consumption |
52VDC Input:
No Loading: 20.74W/70.8BTU/hr; Full Loading: 1,522W/5,262.9BTU/hr
54VDC Input:
No Loading: 20.78W/70.9BTU/hr; Full Loading: 1,522W/5,193.3BTU/hr |
| LED Indicators |
System:
DC 1 (Green)
DC 2 (Green)
Alarm (Red)
Ring (Green)
Ring Owner (Green)
DIDO (Red)
10/100/1000T RJ45 PoE++ Interfaces (Port 1 to Port 24):
bt PoE++ (Green)
af/at PoE (Amber)
1000 LNK/ACT (Green)
100 LNK/ACT (Amber)
1G/2.5G/10Gbps Fiber Interfaces (Port 25 to Port 28):
1G/2.5Gbps LNK/ACT (Green)
10Gbps LNK/ACT (Amber) |
| Switching Specifications |
| Switch Architecture |
Store-and-Forward |
| Switch Fabric |
128Gbps/non-blocking |
| Throughput (packet per second) |
95.2Mpps@ 64 bytes packet |
| Address Table |
16K entries, automatic source address learning and aging |
| Shared Data Buffer |
32M bits |
| Flow Control |
IEEE 802.3x pause frame for full duplex
Back pressure for half duplex |
| Jumbo Frame |
10K bytes |
| Power Over Ethernet |
| PoE Standard |
IEEE 802.3bt PoE++ Type-4 |
| PoE Power Supply Type |
End-span
Mid-span
BT |
| PoE Power Output |
Per port 48V ~ 54VDC
802.3bt Type-4 mode: maximum 95 watts
802.3bt Type-3 mode: maximum 60 watts
End-span mode: maximum 36 watts
Mid-span mode: maximum 36 watts
Force mode: maximum 95 watts |
| Power Pin Assignment |
802.3bt/UPoE: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
802.3at PoE: End-span: 1/2(-), 3/6(+)
802.3at PoE: Mid-span: 4/5(+), 7/8(-) |
| PoE Power Budget |
Single power input: 720W maximum (depending on power input)
Dual power input: 1,440W maximum (depending on power input)
Note: The DC voltage of the dual power input must match, such as dual 54V. |
| Number of 90W 802.3bt Type-4 PDs |
16 |
| Number of 60W 802.3bt Type-3 PDs |
24 |
| Number of 30W 802.3at Type-2 PDs |
24 |
| PoE Management Functions |
| Enhanced PoE Mode |
Standard/Legacy/Force |
| PoE Management |
PD Alive Check
Scheduled Power Recycling
PoE Schedule
PoE Usage Monitoring
PoE Extension |
| Active PoE Device Live Detection |
Yes |
| PoE Power Recycling |
Yes, daily or predefined schedule |
| PoE Schedule |
4 schedule profiles |
| PoE Extend Mode |
Yes, max. up to 160 meters |
| Layer 3 Function |
| IP Interfaces |
Max. 128 VLAN interfaces |
| Routing Table |
Max. 128 static routing entries
Max. 4K routing table entries |
| Routing Protocols |
IPv4 RIPv1/v2 dynamic routing
IPv4 OSPFv2 dynamic routing
IPv6 OSPFv3 dynamic routing
IPv4 hardware static routing
IPv6 hardware static routing |
| Layer 2 Function |
| Port Configuration |
Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Port link capability control |
| Port Status |
Display each port’s speed duplex mode, link status, flow control status,
auto negotiation status, trunk status |
| Port Mirroring |
TX / RX / Both
Many-to-1 monitor
RMirror – Remote Switched Port Analyzer (Cisco RSPAN)
Supports up to 5 sessions |
| VLAN |
IEEE 802.1Q tag-based VLAN
IEEE 802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
GVRP (GARP VLAN Registration Protocol)
Up to 4K VLAN groups, out of 4096 VLAN IDs |
| Link Aggregation |
IEEE 802.3ad LACP/static trunk
Supports 14 trunk groups with 16 ports per trunk group |
| Spanning Tree Protocol |
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
Supports 7 MSTP instances
BPDU Guard, BPDU filtering and BPDU transparent
Root Guard |
| IGMP Snooping |
IPv4 IGMP (v1/v2/v3) snooping
IPv4 IGMP querier mode support
Up to 2K multicast groups |
| MLD Snooping |
IPv6 MLD (v1/v2) snooping
IPv6 MLD querier mode support
Up to 512 multicast groups |
| Bandwidth Control |
Per port bandwidth control
Ingress: 10Kbps~13000Mbps
Egress: 100Kbps~13000Mbps |
| Ring |
Supports ERPS, and complies with ITU-T G.8032
Recovery time < 10ms @ 3 nodes
Recovery time < 50ms @ 16 nodes
Supports Major ring and sub-ring |
| Synchronization |
IEEE 1588v2 PTP (Precision Time Protocol)
Peer-to-peer transparent clock
End-to-end transparent clock |
| QoS |
Traffic classification based, strict priority and WRR
8-level priority for switching
Port number
802.1p priority
802.1Q VLAN tag
DSCP/TOS field in IP packet |
| Security Functions |
| Access Control List |
IP-based ACL/MAC-based ACL
ACL based on:
MAC Address
IP Address
Ethertype
Protocol Type
VLAN ID
DSCP
802.1p Priority
Up to 512 entries |
| Security |
Port security
IP source guard, up to 512 entries
Dynamic ARP inspection, up to 1K entries
Command line authority control based on user level
Static MAC address, up to 64 entries |
| AAA |
RADIUS client
TACACS+ client |
| Network Access Control |
IEEE 802.1x port-based network access control
MAC-based authentication
Local/RADIUS authentication |
| Management |
| Basic Management Interfaces |
Console; Telnet; Web browser; SNMP v1, v2c |
| Secure Management Interfaces |
SSHv2, TLSv1.2, SNMP v3 |
| System Management |
Firmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote Syslog
System log
LLDP protocol
NTP
PLANET Smart Discovery Utility
PLANET CloudViewer app |
| SNMP MIBs |
RFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2863 IF-MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4292 IP Forward MIB
IEEE 802.1X PAE
RFC 4293 IP MIB
RFC 4836 MAU-MIB
IEEE 802.1X PAE
LLDP
PowerEthernet MIB |
| Standards Conformance |
| Regulatory Compliance |
FCC Part 15 Class A
CE:
EN55032
EN55035 |
| Standards Compliance |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3ae 10Gigabit Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1ad Q-in-Q VLAN stacking
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3ah OAM
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus Plus
IEEE 802.3az Energy-Efficient Ethernet
IEEE 1588 PTPv2
RFC 768 UDP
RFC 783 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
RFC 3810 MLD version 2
RFC 2328 OSPF v2
RFC 5340 OSPF v3
RFC 2453 RIP v2
ITU-T G.8032 ERPS Ring |
| Environment |
| Operating Temperature |
-40 ~ 75 degrees C |
| Storage Temperature |
-40 ~ 85 degrees C |
| Humidity |
5 ~ 95% (non-condensing) |
