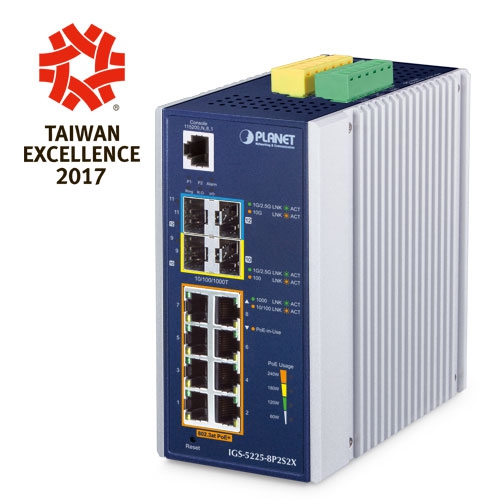

| Hardware Specifications |
| Hardware Version |
4 |

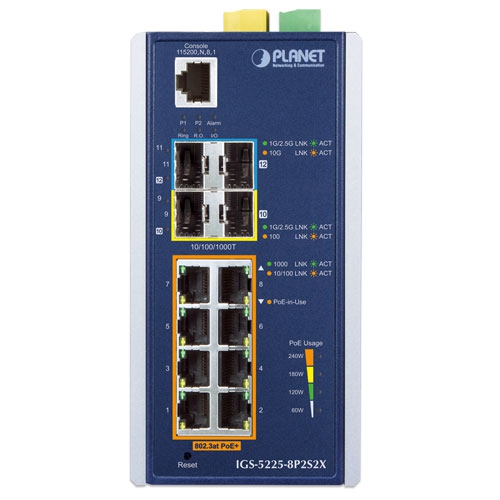

| Copper Ports |
8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP/mini-GBIC Slots |
2 1000BASE-SX/LX/BX SFP interfaces (Port-9 and Port-10)
Compatible with 100BASE-FX and 2500BASE-X SFP |
| SFP+ Slots |
2 10GbBASE-SR/LR SFP+ interfaces (Port-11 and Port-12)
Compatible with 1000BASE-SX/LX/BX and 2500BASE-X SFP transceiver |
| PoE Injector Port |
8 ports with 802.3at/af PoE injector function with Port-1 to Port-8 |
| Console |
1 x RJ45-to-RS232 serial port (115200, 8, N, 1) |
| Reset Button |
< 5 sec: System reboot
> 5 sec: Factory default |

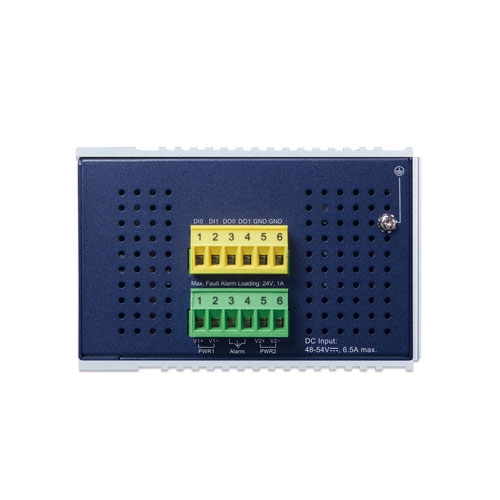

| Connector |
Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND |
| Alarm |
One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC |
| DI & DO |
2 Digital Input (DI):
Level 0: -24V~2.1V (±0.1V)
Level 1: 2.1V~24V (±0.1V)
Input load to 24V DC, 10mA max.
2 Digital Output (DO):
Open collector to 24V DC, 100mA max. |
| Installation |
DIN rail kit and wall-mount kit |
| Enclosure |
IP30 aluminum case |
| Dimensions (W x D x H) |
86 x 107.3 x 152 mm |
| Weight |
1353 g |
| Power Consumption |
Max. 11.52 watts/39.31 BTU (Power on without any connection)
Max. 267 watts/911.04 BTU (Full loading with PoE function) |
| Power Requirements |
Dual 48~54V DC (>51V DC for PoE+ output recommended) |
| ESD Protection |
6KV DC |
| LED Indicator |
System:
Power 1 (Green)
Power 2 (Green)
Fault Alarm (Red)
Ring (Green)
R.O. (Green)
DIDO (Red)
Per 10/100/1000T RJ45 Port:
LNK/ACT (Green)
PoE In-Use (Amber)
Per 100/1000/2500BASE-X SFP Interface:
1G/2.5G LNK/ACT (Green)
100 LNK/ACT (Amber)
Per SFP+ Interface:
1G/2.5G LNK/ACT (Green)
10G LNK/ACT (Amber) |
| Switching Specifications |
| Switch Architecture |
Store-and-Forward |
| Switch Fabric |
66Gbps/non-blocking |
| Throughput (packet per second) |
49.107Mpps@ 64Bytes packet |
| Address Table |
32K entries, automatic source address learning and aging |
| Shared Data Buffer |
16Mbits |
| Flow Control |
IEEE 802.3x pause frame for full duplex
Back pressure for half duplex |
| Jumbo Frame |
10Kbytes |
| Power Over Ethernet |
| PoE Standard |
IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type |
End-span |
| PoE Power Output |
IEEE 802.3af Standard
Per port 48V~51V DC (depending on the power supply), max. 15.4 watts
IEEE 802.3at Standard
Per port 51V~54V DC (depending on the power supply), max. 36 watts |
| Power Pin Assignment |
1/2(+), 3/6(-) |
| PoE Power Budget |
Dual power input: 240W maximum (depending on power input) |
| Max. number of Class 2 PDs |
8 units |
| Max. number of Class 3 PDs |
8 units |
| Max. number of Class 4 PDs |
8 units |
| PoE Management Functions |
| PoE System Management |
PoE Port status monitoring
Total PoE power budget control
Over temperature protection
PoE usage threshold and temperature threshold |
| PoE Device Live Detection |
Per port remote PD IP address
4 actions
None
PD reboot
PR reboot and alarm
Alarm |
| PoE Power Recycling |
Daily or predefined schedule |
| PoE Schedule |
4 schedule profiles |
| PoE Extend Mode |
Max. 200 meters |
| Layer 3 Function |
| IP Interfaces |
Max. 128 VLAN interfaces |
| Routing Table |
Max. 128 routing entries
Max. 4K H/W routing table entries |
| Routing Protocols |
IPv4 RIPv1/v2
IPv4 OSPFv2
IPv4 hardware static routing
IPv6 OSPFv3
IPv6 hardware static routing |
| Layer 2 Function |
| Port Configuration |
Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Port link capability control |
| Port Status |
Display each port’s speed duplex mode, link status, flow control status,
auto negotiation status, trunk status |
| Port Mirroring |
TX/RX/Both
Many-to-1 monitor
RMirror – Remote Switched Port Analyzer (Cisco RSPAN)
Supports up to 5 sessions |
| VLAN |
IEEE 802.1Q tag-based VLAN
IEEE 802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
GVRP (GARP VLAN Registration Protocol)
Up to 4K VLAN groups, out of 4094 VLAN IDs |
| Spanning Tree Protocol |
IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
BPDU Guard |
| Link Aggregation |
IEEE 802.3ad LACP/static trunk
Supports 6 trunk groups with 4 ports per trunk group |
| IGMP Snooping |
IPv4 IGMP (v1/v2/v3) snooping
IPv4 IGMP querier mode support
IPv4 IGMP Snooping port filtering
Up to 255 multicast groups |
| MLD Snooping |
IPv6 MLD (v1/v2) snooping
IPv6 MLD querier mode support
Up to 255 multicast groups |
| Ring |
Supports ERPS, and complies with ITU-T G.8032
Recovery time < 10ms @ 3 nodes
Recovery time <50ms @ 16 nodes
Supports major ring and sub-ring |
| Synchronization |
IEEE 1588v2 PTP (Precision Time Protocol)
Peer-to-peer transparent clock
End-to-end transparent clock |
| QoS |
Traffic classification based, strict priority and WRR
8-level priority for switching
Port number
802.1p priority
802.1Q VLAN tag
DSCP/TOS field in IP packet |
| Bandwidth Control |
Per port bandwidth control
Ingress: 500Kb~1000Mbps
Egress: 500Kb~1000Mbps |
| Security Functions |
| Access Control List |
IP-based ACL/MAC-based ACL
ACL based on:
MAC Address
IP Address
Ethertype
Protocol Type
VLAN ID
DSCP
802.1p Priority
Up to 512 entries |
| Security |
Port security
IP source guard, up to 512 entries
Dynamic ARP inspection, up to 1K entries
Command line authority control based on user level
Static MAC address, up to 64 entries |
| AAA |
RADIUS client
TACACS+ client |
| Network Access Control |
IEEE 802.1x port-based network access control
MAC-based authentication
Local/RADIUS authentication |
| Management |
| Basic Management Interfaces |
Console; Telnet; Web browser; SNMP v1, v2c |
| Secure Management Interfaces |
SSHv1/SSHv2, TLSv1.2, SNMP v3 |
| System Management |
Firmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote syslog
System log
LLDP protocol
NTP
PLANET Smart Discovery Utility
PLANET CloudViewer app |
| Event Management |
Remote syslog
System log
SMTP |
| ONVIF |
ONVIF device discovery
ONVIF device monitoring
Floor map |
| SNMP MIBs |
RFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2737 Entity MIB RFC 2618 RADIUS Client MIB
RFC 2863 IF-MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4292 IP Forward MIB
RFC 4293 IP MIB
RFC 4836 MAU-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB |
| Standards Conformance |
| Regulatory Compliance |
FCC Part 15 Class A, CE |
| Stability Testing |
IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration) |
| Standards Compliance |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1ad Q-in-Q VLAN stacking
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3ah OAM
IEEE 802.1ag Connectivity Fault Management(CFM)
IEEE 802.3az Energy Efficient Ethernet(EEE)
IEEE 1588 PTPv2
RFC 768 UDP
RFC 783 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1058 RIP v1
RFC 2453 RIP v2
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
RFC 3810 MLD version 2
RFC 2328 OSPF v2
RFC 2740 OSPF v3
ITU G.8032 ERPS Ring
ITU-T G.8032 ERPS Ring
ITU-T Y.1731 Performance Monitoring |
| Environment |
| Operating |
Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage |
Temperature: -40 ~ 85 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
