| Hardware Specifications |

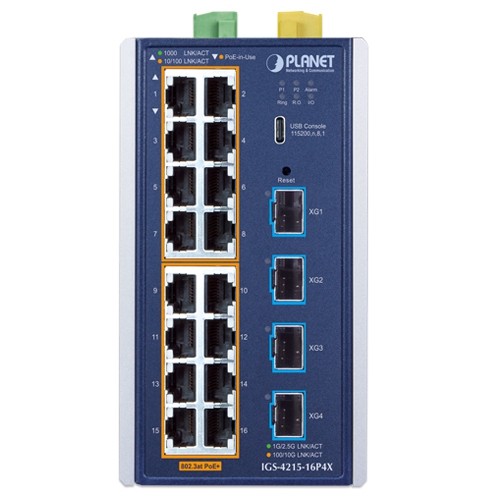

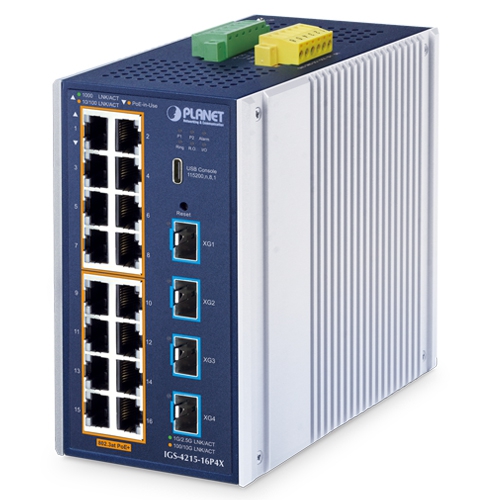

| Copper Ports |
16 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (Ports 1 to 16) |
| PoE Injector Port |
16 ports with 802.3at PoE+ injector function (Ports 1 to 16) |
| SFP+ Ports |
4 10GBASE-SR/LR SFP+ interfaces (Port XG1 to Port XG4)
Backward compatible with 100M/1G/2.5GBASE-SX/LX/BX SFP transceivers |
| Console |
1 x USB Type C to RS232 serial port (115200,8, N, 1) |
| Reset Button |
< 5 sec: System reboot
> 5 sec: Factory default |

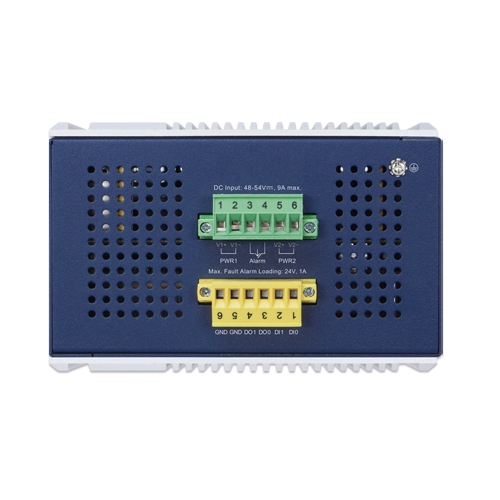

| Connector |
Removable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND |
| Alarm |
One relay output for power failure. Alarm relay current carry ability: 1A @ 24V AC |
| Digital input (DI) |
2 digital input (DI):
Level 0: -24V~2.1V (±0.1V)
Level 1: 2.1V~24V (±0.1V)
Input load to 24V DC, 10mA max. |
| Digital output (DO) |
2 digital output (DO):
Open collector to 24V DC, 100mA max. |
| Power Requirements |
48~54V DC, 9A (max.) |
| Power Consumption/ Dissipation |
DC (system on)
Max. 9.1 watts / 31.06BTU
DC (Full loading)
Max. 402 watts/1,372.1BTU |
| Dimensions (W x D x H) |
86 x 135 x 152 mm |
| Weight |
1,754g |
| Enclosure |
IP30 aluminum case |
| Installation |
DIN-rail kit and wall-mount ear |
| ESD Protection |
Contact Discharge 6KV DC
Air Discharge 8KV DC |
| LED |
System:
Power 1 (Green)
Power 2 (Green)
Alarm (Red)
Ring (Green)
R.O.(Green)
I/O (Red)
Per 10/100/1000T RJ45 PoE+ Port:
Up
1000 LNK/ACT (Green)
10/100 LNK/ACT (Amber)
Down
PoE-in-Use (Amber)
Per 10G SFP Interface:
1G/2.5G LNK/ACT (Green)
100/10G LNK/ACT (Amber) |
| Switching Specification |
| Switch Architecture |
Store-and-Forward |
| Switch Fabric |
112Gbps/non-blocking |
| Switch Throughput@64 bytes |
83.33Mpps @64 bytes |
| MAC Address Table |
32K entries |
| Shared Data Buffer |
12Mbits |
| Flow Control |
IEEE 802.3x pause frame for full duplex
Back pressure for half duplex |
| Jumbo Frame |
12 Kbytes |
| Power over Ethernet |
| PoE Standard |
IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type |
End-span |
| Power Pin Assignment |
802.3at PoE: End-span: 1/2(+), 3/6(-) |
| PoE Power Output |
IEEE 802.3af Standard
Per port 48V~51V DC, max. 15.4 watts
IEEE 802.3at Standard
Per port 51V~54V DC, max. 36 watts |
| PoE Power Budget |
Single power input: 240W maximum (depending on power input)
Dual power input: 360W maximum (depending on power input)
※Dual power input must be the same as DC voltage, like dual 54V. |
| Max. Number of Class 2 PDs (~6.5 watts) |
16 |
| Max. Number of Class 3 PDs (~13 watts) |
16 |
| Max. Number of Class 4 PDs (~25.5 watts) |
12 |
| PoE Management Functions |
| PoE Management |
PD Alive Check
Scheduled Power Recycling
PoE Schedule
PoE Usage Monitoring
PoE Extension |
| Enhanced PoE Mode |
Standard/Legacy/Force |
| Active PoE Device Live Detection |
Yes |
| PoE Power Recycling |
Yes, daily or predefined schedule |
| PoE Schedule |
4 schedule profiles |
| PoE Extend Mode |
Yes, max. up to 250 meters |
| Layer 2 Functions |
| Port Mirroring |
TX/RX/Both
Many-to-1 monitor
Up to 4 sessions |
| VLAN |
802.1Q tagged VLAN
802.1ad Q-in-Q tunneling (VLAN stacking)
Voice VLAN
Protocol VLAN
Private VLAN (Protected port)
GVRP
Management VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs |
| Link Aggregation |
IEEE 802.3ad LACP and static trunk
Supports 8 groups with 8 ports per trunk |
| Spanning Tree Protocol |
IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
STP BPDU Guard, BPDU Filtering and BPDU Forwarding |
| IGMP Snooping |
IPv4 IGMP snooping v2, v3
IGMP Querier
Up to 256 multicast groups |
| MLD Snooping |
IPv6 MLD snooping v2, v3, up to 256 multicast groups |
| Access Control List |
IPv4/IPv6 IP-based ACL/MAC-based ACL
IPv4/IPv6 IP-based ACE/MAC-based ACE |
| QoS |
8 mapping IDs to 8 level priority queues
Port number
802.1p priority
DSCP/IP precedence of IPv4/IPv6 packets
Traffic classification based, strict priority and WRR
Ingress/Egress Rate Limit per port bandwidth control |
| Ring |
Supports ERPS, and complies with ITU-T G.8032
Recovery time < 450ms |
| Layer 3 Functions |
| IP Interfaces |
Max. 64 VLAN interfaces |
| Routing Table |
Max. 32 routing entries |
| Routing Protocols |
IPv4/IPv6 hardware static routing |
| Security Functions |
| Access Control List |
IPv4/IPv6 IP-based ACL/MAC-based ACL
IPv4/IPv6 IP-based ACE/MAC-based ACE
Max. 256 ACL entries |
| Port Security |
Built-in RADIUS client to co-operate with RADIUS server
RADIUS/TACACS+ user access authentication |
| MAC Security |
IP-MAC port binding
MAC filtering
Static MAC address, max. 256 static MAC entries |
| Enhanced Security |
DHCP Snooping and DHCP Option82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard |
| Management Functions |
| Basic Management Interfaces |
USB to RS232 Console
Web browser
Telnet
SNMP v1, v2c |
| Secure Management Interfaces |
SSHv2, TLSv1.3, SNMPv3 |
| System Management |
Firmware upgrade by HTTP/TFTP protocol through Ethernet network
Configuration upload/download through HTTP/TFTP
LLDP protocol
SNTP
PLANET Smart Discovery Utility
PLANET NMS System/CloudViewer/CloudViewerPro |
| Event Management |
Remote/Local Syslog
System log |
| SNMP MIBs |
RFC 1213 MIB-II
RFC 1215 Generic Traps
RFC 1493 Bridge MIB
RFC 2674 Bridge MIB Extensions
RFC 2737 Entity MIB (Version 2)
RFC 2819 RMON (1, 2, 3, 9)
RFC 2863 Interface Group MIB
RFC 3635 Ethernet-like MIB
RFC 3621 Power Ethernet MIB |
| Standards Conformance |
| Regulatory Compliance |
FCC Part 15 Class A, CE |
| Stability Testing |
IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration) |
| Standards Compliance |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x Flow Control and Back Pressure
IEEE 802.3ad Port Trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN Tagging
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus Plus
IEEE 802.3az for Energy-Efficient Ethernet
RFC 768 UDP
RFC 783 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
ITU-T G.8032 ERPS Ring |
| Environment |
| Operating Temperature |
-40 ~ 75 degrees C |
| Storage Temperature |
-40 ~ 85 degrees C |
| Humidity |
5 ~ 95% (non-condensing) |
