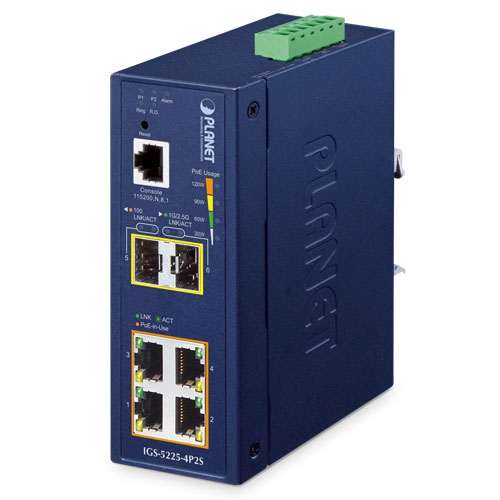

| Hardware Specifications |
| Version |
2 |
| Copper Ports |
4 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP Slots |
2 100/1000/2500BASE-X mini-GBIC SFP ports (Port 5 and Port 6) |
| Console |
1 x RJ45-to-RS232 serial port (115200, 8, N, 1) |
| Reset Button |
< 5 sec: System reboot
> 5 sec: Factory default |
| Enclosure |
IP40 metal case |
| Installation |
DIN-rail kit and wall-mount kit |

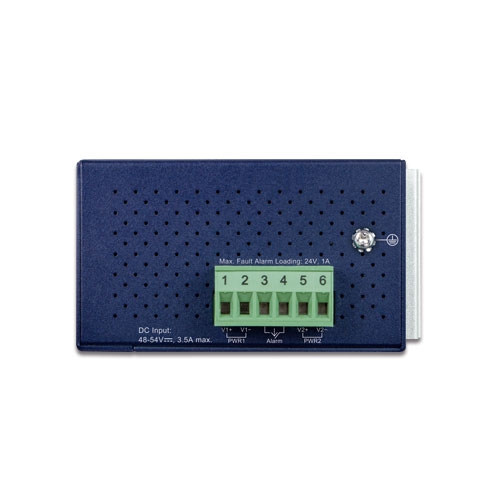

| Connector |
Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 |
| Alarm |
One relay output for power failure. Alarm Relay current carry ability: 1A @ DC 24V |
| Dimensions (W x D x H) |
50 x 87.8x 135 mm |
| Weight |
592g |
| Power Requirements |
48-54V |
| Power Consumption |
153 watts/522BTU (Full loading with PoE function with DC 54V input) |
| ESD Protection |
6KV DC |
| EFT Protection |
6KV DC |

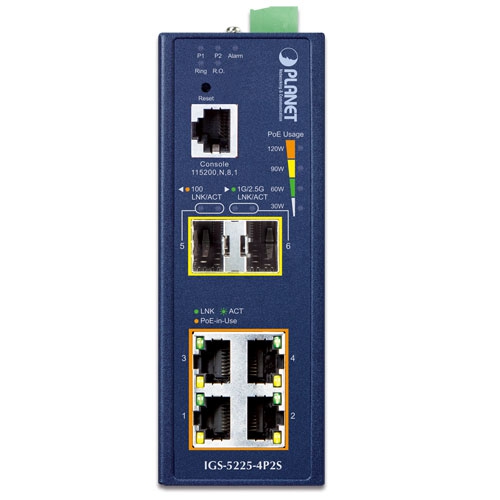

| LED Indicator |
System:
Power 1 (Green)
Power 2 (Green)
Fault Alarm (Red)
Ring (Green)
R.O. (Ring Owner) (Green)
Per 10/100/1000T RJ45 PoE+ Ports (Port 1 to port 4):
PoE-in-use x 1 (Amber)
LNK/ACT x 1 (Green)
Per 100/1000/2500BASE-X SFP Interface (Port 5 to port 6):
1G/2.5G LNK/ACT (Green)
100 LNK/ACT (Amber)
4 x LED for PoE Usage:
30W, 60W, 90W and 120W (Amber) |
| Switching Specifications |
| Switch Architecture |
Store-and-Forward |
| Switch Fabric |
18Gbps/non-blocking |
| Throughput (packet per second) |
13.3Mpps@ 64Bytes packet |
| Address Table |
8K entries, automatic source address learning and aging |
| Shared Data Buffer |
4Mbits |
| Flow Control |
IEEE 802.3x pause frame for full duplex
Back pressure for half duplex |
| Jumbo Frame |
9Kbytes |
| Power Over Ethernet |
| PoE Standard |
IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type |
End-span |
| PoE Power Output |
IEEE 802.3af Standard
Per port 48V~51V DC (depending on the power supply), max. 15.4 watts
IEEE 802.3at Standard
Per port 51V~54V DC (depending on the power supply), max. 36 watts |
| Power Pin Assignment |
End-span: 1/2(+), 3/6(-) |
| PoE Power Budget |
144W maximum
※Dual power input must be the same as DC voltage, like dual 54V. |
| Max. Number of Class 2 PDs |
4 |
| Max. Number of Class 3 PDs |
4 |
| Max. Number of Class 4 PDs |
4 |
| PoE Management Functions |
| PoE System Management |
PoE Port status monitoring
Total PoE power budget control
PoE usage threshold and temperature threshold |
| Enhanced PoE Mode |
Standard/Legacy/Force |
| PoE Device Live Detection |
Per port remote PD IP address
4 actions
None
PD reboot
PR reboot and alarm
Alarm |
| PoE Power Recycling |
Daily or predefined schedule |
| PoE Schedule |
4 schedule profiles |
| PoE Extend Mode |
Remote power feeding up to 100m in standard mode and 250m in extend mode |
| Layer 3 Function |
| IP Interfaces |
Max. 8 VLAN interfaces |
| Routing Table |
Max. 32 routing entries |
| Routing Protocols |
IPv4 software static routing
IPv6 software static routing |
| Layer 2 Function |
| Port Configuration |
Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Port link capability control |
| Port Status |
Display each port’s speed duplex mode, link status, flow control status,
auto negotiation status, trunk status |
| Port Mirroring |
TX/RX/both
Many-to-1 monitor
RMirror – Remote Switched Port Analyzer (Cisco RSPAN)
Supports up to 5 sessions |
| VLAN |
IEEE 802.1Q tag-based VLAN
IEEE 802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
GVRP (GARP VLAN Registration Protocol)
Up to 4K VLAN groups, out of 4095 VLAN IDs |
| Spanning Tree Protocol |
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
BPDU Guard |
| Link Aggregation |
IEEE 802.3ad LACP/static trunk
Supports 3 trunk groups with 6 ports per trunk group |
| IGMP Snooping |
IPv4 IGMP (v1/v2/V3) snooping
IPv4 IGMP querier mode support
Up to 255 multicast groups |
| MLD Snooping |
IPv6 MLD (v1/v2) snooping
IPv6 MLD querier mode support
Up to 255 multicast groups |
| Ring |
Supports ERPS, and complies with ITU-T G.8032
Recovery time < 10ms @ 3 nodes
Recovery time <50ms @ 16 nodes
Supports major ring and sub-ring |
| Synchronization |
IEEE 1588v2 PTP (Precision Time Protocol)
Peer-to-peer transparent clock
End-to-end transparent clock |
| QoS |
Traffic classification based, strict priority and WRR
8-level priority for switching
Port number
802.1p priority
802.1Q VLAN tag
DSCP/TOS field in IP packet |
| Bandwidth Control |
Per port bandwidth control
Ingress: 100Kb~3276Mbps
Egress: 100Kb~3281Mbps |
| Storm Control |
Unicast/Multicast/Broadcast |
| Security Functions |
| Access Control List |
IP-based ACL/MAC-based ACL
ACL based on:
MAC Address
IP Address
Ethertype
Protocol Type
VLAN ID
DSCP
802.1p Priority
Up to 512 entries |
| Security |
Port security
IP source guard, up to 512 entries
Dynamic ARP inspection, up to 1K entries
Command line authority control based on user level
Static MAC address, up to 64 entries |
| AAA |
RADIUS client
TACACS+ client |
| Network Access Control |
IEEE 802.1x port-based network access control
MAC-based authentication
Local/RADIUS authentication |
| Management |
| Basic Management Interfaces |
Console; Telnet; Web browser; SNMP v1, v2c |
| Secure Management Interfaces |
SSHv2,TLSv1.2, SNMP v3 |
| System Management |
Firmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote syslog
System log
LLDP protocol
NTP
PLANET Smart Discovery Utility
PLANET NMS system
PLANET NMSViewerPro/CloudViewerPro |
| Event Management |
Remote syslog
System log
SMTP |
| ONVIF |
ONVIF device discovery
ONVIF device monitoring
Floor Map |
| SNMP MIBs |
RFC-1213 MIB-II
IF-MIB
RFC-1493 Bridge MIB
RFC-1643 Ethernet MIB
RFC-2863 Interface MIB
RFC-2665 Ether-Like MIB
RFC-2819 RMON MIB (Group 1, 2, 3 and 9)
RFC-2737 Entity MIB
RFC-2618 RADIUS Client MIB
RFC-2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB
Power over Ethernet MIB |
| Standards Conformance |
| Regulatory Compliance |
FCC Part 15 Class A, CE |
| Stability Testing |
IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration) |
| Standards Compliance |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3z Gigabit SX/LX
IEEE 802.3bz 2.5GBASE-X
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1ad Q-in-Q VLAN stacking
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy-Efficient Ethernet
IEEE 802.3ah OAM
IEEE 802.1ag Connectivity Fault Management(CFM)
IEEE 1588 PTPv2
RFC 768 UDP
RFC 783 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 793 TCP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
ITU-T G.8032 ERPS Ring
ITU-T Y.1731 Performance Monitoring |
| Environment |
| Operating Temperature |
-40 ~ 75 degrees C |
| Storage Temperature |
-40 ~ 85 degrees C |
| Humidity |
5 ~ 95% (non-condensing) |
