| Hardware Specifications |
| Fast Ethernet Copper Ports |

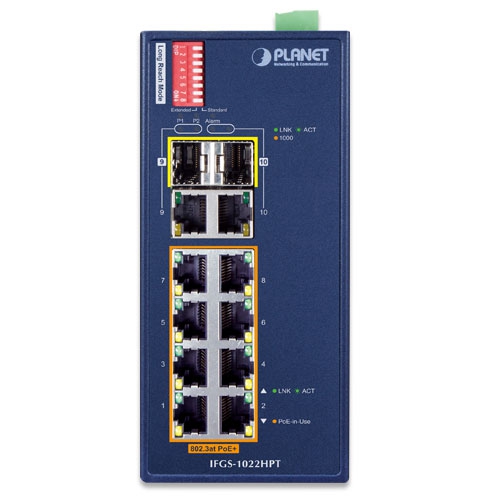

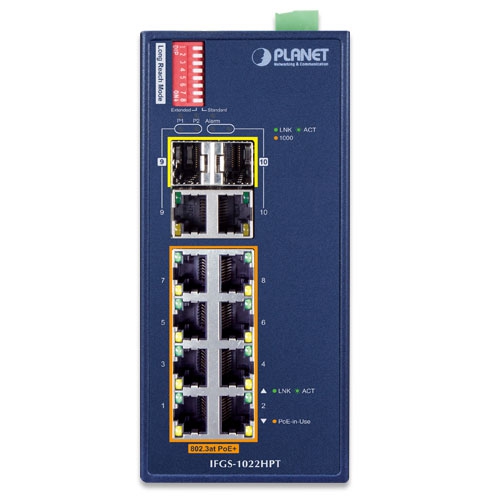

Eight 10/100BASE-TX RJ45 auto-MDI/MDI-X ports (Ports 1 to 8) |
| Gigabit Ethernet Copper Ports |
Two 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
(shared with Ports 9 to 10) |
| SFP/mini-GBIC Slots |
Two 1000BASE-SX/LX/BX SFP interfaces (shared with Ports 9 to 10) |
| PoE Injector Port |
Eight ports with 802.3af/802.3at PoE+ injector function (Ports 1 to 8) |
| DIP Switch (Port-1 to Port-8) |
Standard mode: 30-watt PoE transmit distance of 100m at speed of 10/100Mbps
Extend mode: 30-watt PoE transmit distance of 250m at speed of 10Mbps |
| Connector |

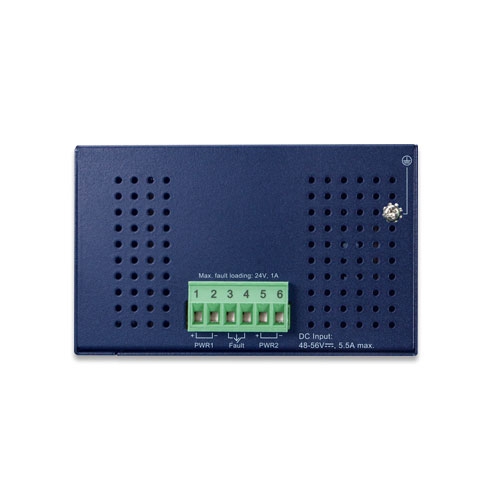

Removable 6-pin terminal block
■ Pin 1/2 for Power 1
■ Pin 3/4 for power fault alarm
■ Pin 5/6 for Power 2 |
| Alarm |
One relay output for power failure.
Alarm relay current carry ability: 1A @ 24V AC |
| Power Requirements |
48~54V DC, 5.5A (max.) (>51V DC for PoE+ output recommended) |
| Power Consumption/ Dissipation |
4.3 watts, 14.6BTU (Standby without PoE function) at DC 54V power input
256 watts, 873BTU (Full loading with PoE function) at DC 54V power input |
| Dimensions (W x D x H) |
66 x 107 x 152 mm |
| Weight |
829g |
| ESD Protection |
6KV DC |

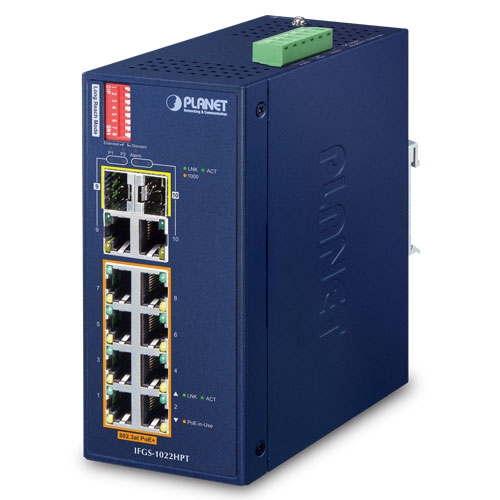

| Enclosure |
IP30 metal case |
| Installation |
DIN-rail kit and wall-mount kit |
| LED |
3 x LED for System and Power:
■ Green: DC Power 1
■ Green: DC Power 2
■ Red: Power Fault Alarm
2 x LED for PoE Copper Port (Port-1~Port-8):
■ Green: LNK/ACT (10/100Mbps)
■ Amber: PoE-In-Use
2 x LED for 10/100/1000T Copper Port (Port-9~Port-10):
■ Green: LNK/ACT
■ Amber: 1000
2 x LED for per mini-GBIC interface (Port-9~Port-10)
■ Green: LNK/ACT
■ Amber: 1000 |
| Switching Specifications |
| Switch Architecture |
Store-and-Forward |
| Switch Fabric |
5.6Gbps/non-blocking |
| Switch Throughput@64 bytes |
4.1Mpps @64 bytes |
| MAC Address Table |
16K entries |
| Shared Data Buffer |
4Mb SRAM |
| Flow Control |
IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex |
| Jumbo Frame |
10 Kbytes |
| Power over Ethernet |
| PoE Standard |
IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type |
End-span |
| Power Pin Assignment |
1/2(+), 3/6(-) |
| PoE Power Output |
IEEE 802.3af Standard
- Per port 48V~51V DC (depending on the power supply), max. 15.4 watts
IEEE 802.3at Standard
- Per port 51V~54V DC (depending on the power supply), max. 30 watts |
| PoE Power Budget |
Dual power input: maximum 240W (depending on power input) |
| Max. Number of Class 2 PDs |
8 |
| Max. Number of Class 3 PDs |
8 |
| Max. Number of Class 4 PDs |
8 |
| Standards Conformance |
| Regulatory Compliance |
FCC Part 15 Class A, CE |
| Stability Testing |
IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration) |
| Standards Compliance |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3z Gigabit SX/LX
IEEE 802.3x Flow Control and Back Pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Environment |
| Operating Temperature |
-40 ~ 75 degrees C |
| Storage Temperature |
-40 ~ 85 degrees C |
| Humidity |
5 ~ 95% (non-condensing) |
