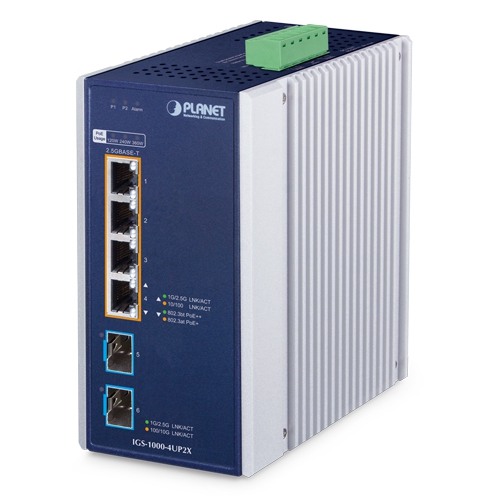

| Hardware Specifications |
| Copper Ports |
4 10/100/1000/2500BASET
RJ45 auto-MDI/MDI-X ports |
| SFP+ Slots |
2 10GBASE-X SFP+ interfaces (Ports 5 to 6)
Backward compatible with 100BASE-FX, 1000BASE-X and 2500BASE-X SFP transceivers |

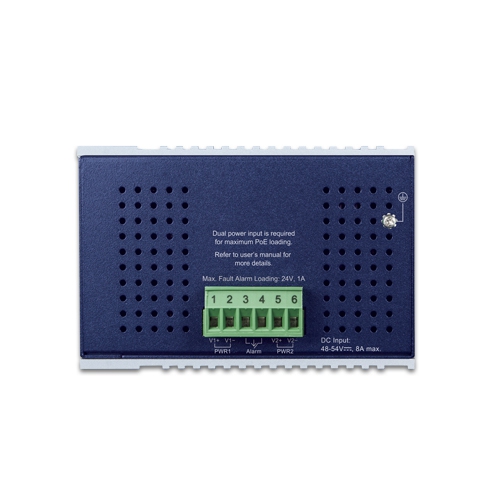

| Connector |
Removable 6-pin terminal block
Pin 1/2 for Power 1
Pin 3/4 for fault alarm
Pin 5/6 for Power 2 |
| Power Requirements |
48~54V DC, 8A max.
Redundant power with reverse polarity protection |
| Power Consumption |
Max. 4.86 watts/16.6BTU (System on)
Max. 372 watts/1268.5BTU (Ethernet + PoE Full Loading) |
| Dimensions (W x D x H) |
76.8 x 107.3 x 152 mm |
| Weight |
1018g |
| Enclosure |
IP30 aluminum case |
| Installation |
DIN-rail kit and wall-mount kit |
| ESD Protection |
±8KV air gap discharge
±4KV contact discharge |
| Surge Immunity |
±5KV |

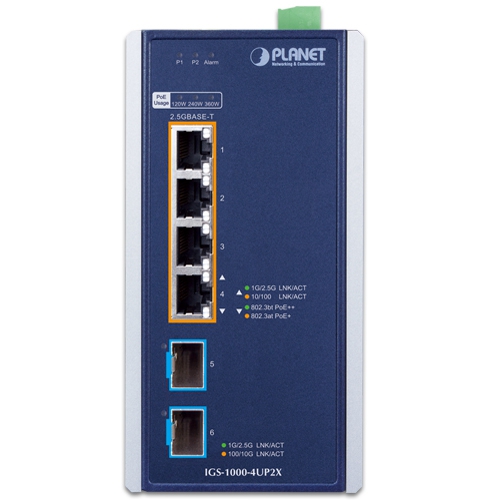

| LED Indicators |
System:
P1, P2 (Green), Alarm Red)
10/100/1000/2500BASE-T RJ45 Ports (Ports 1 to 4):
1000/2500Mbps LNK/ACT (Green)
10/100Mbps LNK/ACT (Amber)
802.3bt PoE-in-Use (Green)
802.3at PoE-in-Use (Amber)
100/1G/2.5G/10Gbps SFP+ Ports (Ports 5 to 6):
1G/2.5G LNK/ACT (Green)
100/10G LNK/ACT (Amber)
PoE Usage:

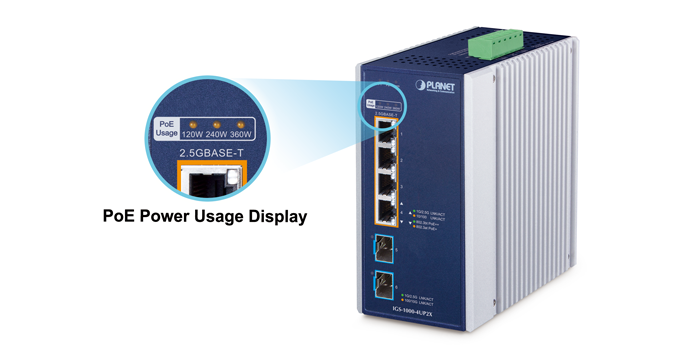

120W, 240W, 360W (Amber) |
| Switch Specifications |
| Switch Architecture |
Store-and-Forward |
| Switch Fabric |
60Gbps |
| Throughput (packet per second) |
44.462Mpps@64bytes |
| Address Table |
4K entries |
| Buffer Memory |
8M bits on-chip buffer memory |
| Jumbo Frame |
12Kbytes |
| Flow Control |
Back pressure for half duplex
IEEE 802.3x pause frame for full duplex |
| Power over Ethernet |
| PoE Standard |
IEEE 802.3bt PoE++ PSE
IEEE 802.3at PoE+ PSE |
| PoE Power Supply Type |
802.3bt, End-span + Mid-span |
| PoE Power Output |
95 watts max. |
| Power Pin Assignment |
End-span + Mid-span:1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Power Budget (max.) |
Single power input: 240W maximum
Dual power input: 360W maximum |
| Standards Conformance |
| Regulatory Compliance |
FCC Part 15 Class A, CE |
| Stability Testing |
IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
Standards Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ae 10 Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3bt Power over Ethernet Plus Plus PSE
IEEE 802.3at Power over Ethernet Plus PSE
IEEE 802.3af Power over Ethernet Plus
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.1p Class of Service
IEEE 802.3bz 2.5GBASE-T |
| Environment |
| Temperature |
Operating: -40~75 degrees C
Storage: -40~75 degrees C |
| Humidity |
Operating: 5~90% (non-condensing)
Storage: 5~90% (non-condensing) |
