| Hardware Specifications |
| Fast Ethernet Copper Ports |

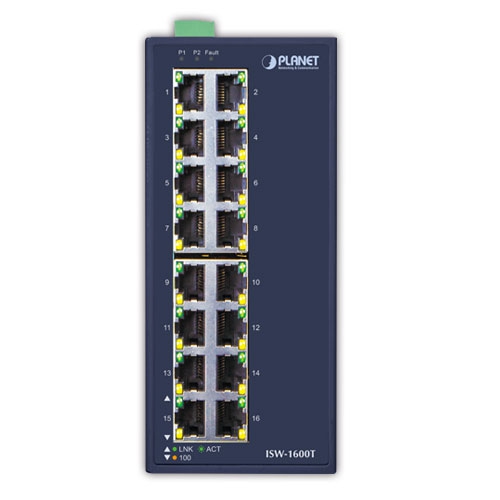

16 10/100BASE-TX RJ45 auto-MDI/MDI-X ports |
| Switch Architecture |
Store-and-Forward |
| Switch Fabric |
3.2Gbps (non-blocking) |
| Throughput (packet per second) |
2.38Mpps@ 64 bytes |
| Address Table |
16K entries, automatic source address learning and aging |
| Jumbo Packet Size |
16K |
| Shared Data Buffer |
4Mbits |
| Flow Control |
IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex |
| ESD Protection |
6KV DC |
| Enclosure |

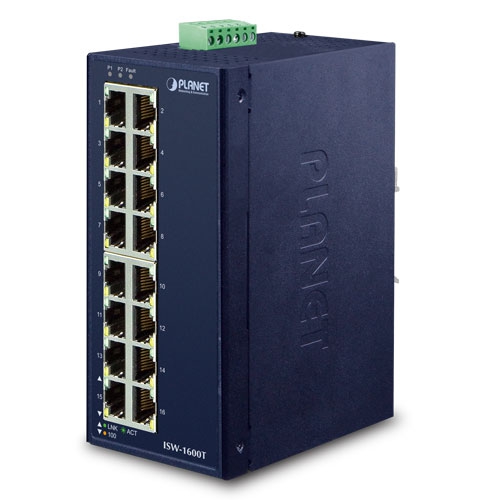

IP30 metal case |
| Installation |
DIN-rail kit and wall-mount kit |
| Connector |

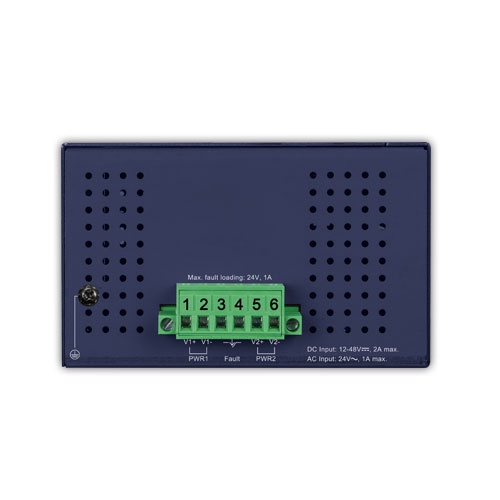

Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 |
| Alarm |
One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC |
| Dimensions (W x D x H) |
66 x 107 x 152 mm |
| Weight |
750g |
| Power Requirements |
Dual 12~48V DC, 24V AC |
| Power Consumption |
Max. 5.3 watts/18BTU (Ethernet full loading) |
| Standards Conformance |
| Regulatory Compliance |
FCC Part 15 Class A, CE, UL |
| Stability Testing |
IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration) |
| Standards Compliance |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x flow control and back pressure
IEEE 802.1p Class of Service
IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Environment |
| Operating Temperature |
-40 ~ 75 degrees C |
| Storage Temperature |
-40 ~ 85 degrees C |
| Humidity |
5 ~ 95% (non-condensing) |
