| Serial Interface |
| Serial Port |
1 x DB9 male |
| Serial Standards |
RS232/RS422/4-wire RS485/2-wire RS485 |
| Baud Rate (Data Rate) |
50bps to 921Kbps |
| Data Bits |
5, 6, 7, 8 |
| Stop Bit |
1, 1.5, 2 |
| Parity Type |
Odd, Even, None, Space, Mark |
| Flow Control |
RTS/CTS and DTR/DSR (RS232 only)
XON/XOFF |
| Signals |
RS232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS422: Tx+, Tx-, Rx+, Rx-, GND
4-wire RS485: Tx+, Tx-, Rx+, Rx-, GND
2-wire RS485: Data A (+), Data B (-), GND |
| Pin Assignment |
| Pin | RS232 | RS422
RS485-4W | RS485-2W | | 1 | DCD | TxD+ | -- | | 2 | RxD | TxD- | -- | | 3 | TxD | RxD- | Data- | | 4 | DTR | RxD+ | Data+ | | 5 | GND | GND | GND | | 6 | DSR | -- | -- | | 7 | RTS | -- | -- | | 8 | CTS | -- | -- | | 9 | -- | -- | -- | |
| Pin |
RS232 |
| 1 |
DCD |
| 2 |
RxD |
| 3 |
TxD |
| 4 |
DTR |
| 5 |
GND |
| 6 |
DSR |
| 7 |
RTS |
| 8 |
CTS |
| 9 |
-- |
| Ethernet Interface |
| Ethernet Ports |
1 x RJ45 |
| Standard |
10/100BASE-TX |
| Distance |
100m |
| ESD Protection |
6KV |

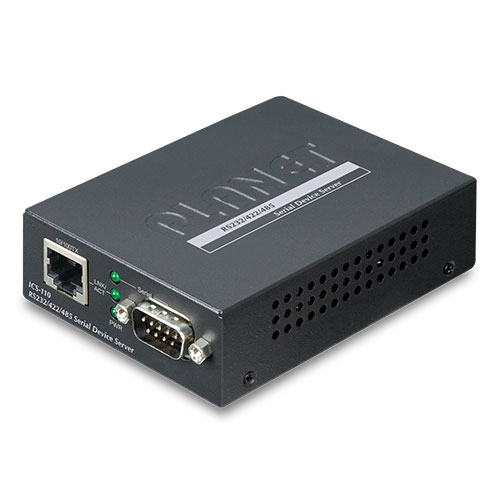

| Hardware |
| Dimensions (W x D x H) |
94 x 70.3 x 26.2mm |
| Weight |
184g |

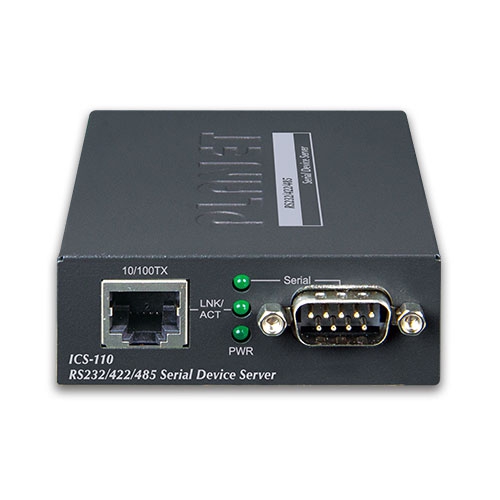

| LED Indicators |
System: Link
TP Port: Link/Active
Serial Port: Active |

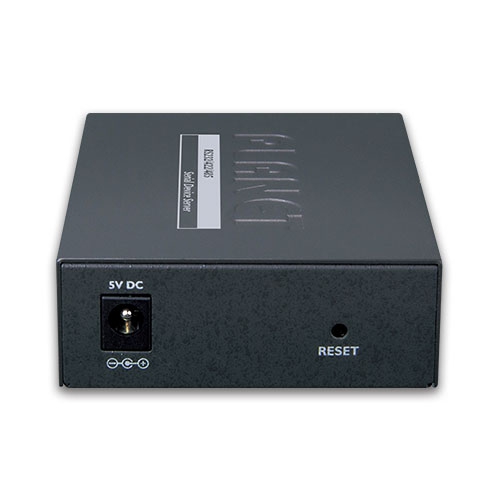

| Power Requirements |
External Power Adaptor 5V DC, 2A max. |
| Power Consumption |
5.5 watts (max) |
| Material |
Metal |
| Installation |
Standalone, wall-mount , and DIN-rail kit (optional) |
| Reset Button |
< 5 sec: System reboot
> 5 sec: Factory default |
| Compatible Media Converter Chassis |
MC-700/MC-1500/MC-1500R |
| Management |
| Management Interfaces |
Web management
Telnet Console management
Windows-based VCOM Utility management
SNMPv1, v2c / SNMP Trap
UNI-NMS monitoring
PLANET Smart Discovery Utility |
| IP Version |
IPv4 and IPv6 |

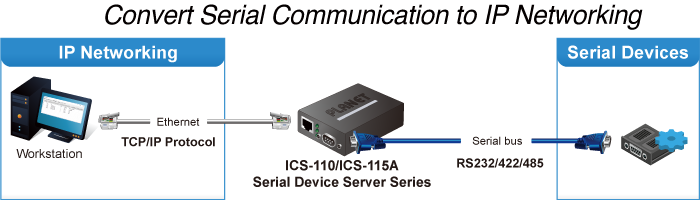

| Operation Mode |
■ TCP Server / TCP Client
■ UDP Client
■ Virtual COM
■ RFC2217
■ Telnet Server
■ Pair Connection – Remote (Slave)
■ Pair Connection – Local (Master)
■ Modbus converter server / client |
| Virtual COM Utility Platform Supports |
Windows-based Only:
Windows XP
Windows Server 2003
Windows 7
Windows Server 2008
Windows 8 (Must install the latest version of WinPcap)
Windows Server 2012 (Must install the latest version of WinPcap)
Windows 10 |
| Fault Alarm |
Record: System log / SNMP trap |
| Time |
NTP |
| Security |
Accessible IP (white list) |
| SNMP |
SNMP v1 and v2c |
| Standards Conformances |
| Regulatory Compliance |
FCC Part 15 Class A,
CE Certification Class A |
| Standards |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 854 Telnet
RFC 958 NTP
RFC 1908 SNMPv2c
RFC 2068 HTTP
RFC 2131 DHCP Client
RFC 2732 Format for Literal IPv6 Addresses in URL's
RFC 3315 DHCPv6 Client
RFC 3513 IPv6 Addressing Architecture
RFC 4443 ICMPv6
EIA/TIA RS232/422/485 |
| Regulatory Approval |
RoHS |
| Environment |
| Operating Temperature |
-10 ~ 60 degrees C |
| Storage Temperature |
-10 ~ 70 degrees C |
| Humidity |
5 ~ 95% (non-condensing) |
