| Hardware Specifications |
| Copper Port |
10/100/1000BASE-T Ethernet TP RJ45 port (auto-MDI/MDI-X) twisted pair |
| Fiber Port |
100/1000BASE-X |
| Fiber Port Type (connector) |
SFP (LC) |
| Copper Maximum Distance |
100m |
| Fiber Maximum Distance |
Vary by SFP Transceiver |

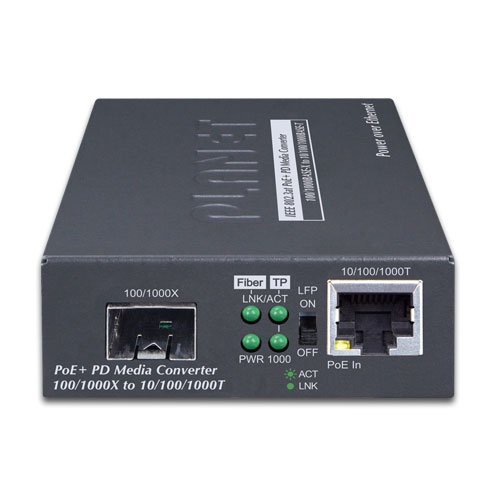

| LED Indicator |
System: Power x 1 (Green)
TP LINK/ACT, 1000 LINK/ACT (Green). PoE In (Amber)
Fiber LINK/ACT (Green) |
| DIP Switch |
LFP function (Disable / Enable) setting |
| Power Consumption |
DC 48V PoE In: 3.1 watts/10.5BTU
DC 54V PoE In: 3.2watts/10.9BTU |
| Power Requirements |

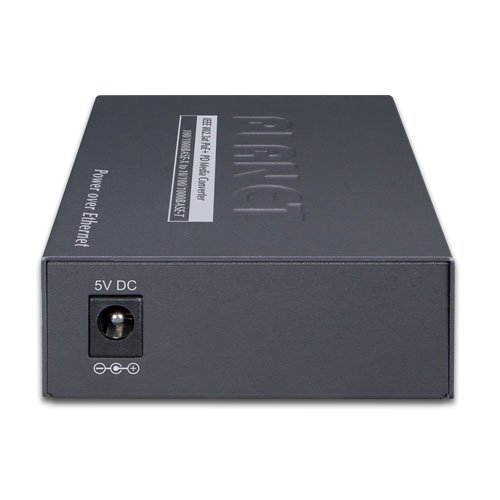

IEEE 802.3af/at/bt PoE 48V-54V DC in-line power or optional DC 5V/2A external power adapter(Not included in standard package) |
| Dimensions (W x D x H) |
94 x 70.3 x 26.2 mm |
| Weight |
186g |
| Converter Specifications |
| Speed |
Twisted-pair:
10/20Mbps for half/full duplex
100/200Mbps for half/full duplex
2000Mbps for full duplex
Fiber optic:
200Mbps for full duplex
2000Mbps for full duplex |
| Network Cables |
Twisted-pair:
10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100m
100BASE-TX: 2-pair UTP Cat. 5, up to 100m
1000BASE-T: 4-pair STP Cat 5 up to 100m
Fiber-optic Cable
1000BASE-SX:
50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m/2km.
1000BASE-LX:
9/125μm single-mode cable, providing long distance of 2/10/20/40/80/120km (depending on SFP module)
100BASE-FX:
50/125μm or 62.5/125μm multi-mode fiber cable for up to 2km (depending on SFP module)
9/125μm single-mode cable for 20/40/60/120km (vary on SFP module) |
| Jumbo Packet Size |
9K |
| Standard Conformance |
| Standards Compliance |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3x full-duplex and half-duplex back pressure flow control to eliminate packet loss
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt 4-pair Power over Ethernet Plus Plus (Type 3)
IEEE 802.3bt 4-pair Power over Ethernet Plus Plus (Type 4) |
| Regulatory Compliance |
FCC Part 15 Class A, CE |
| Environment |
| Operating Temperature |
0 ~ 50 degrees C |
| Storage Temperature |
-10 ~ 70 degrees C |
| Operating Humidity |
5 ~ 95%, relative humidity, non-condensing |
| Storage Humidity |
5 ~ 95%, relative humidity, non-condensing |
