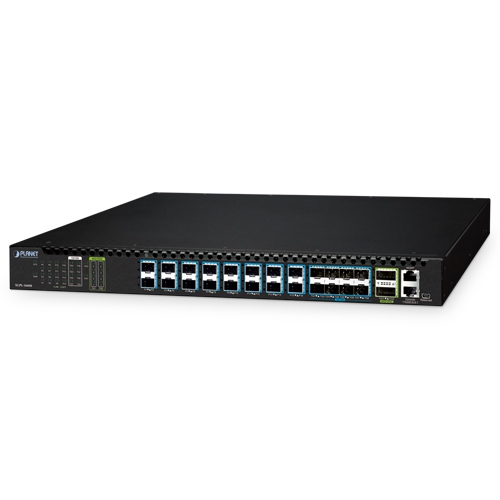

| Hardware Specifications |

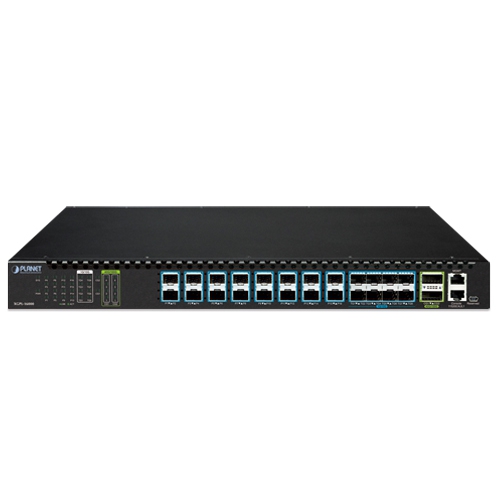

| XGS-PON Ports |
16, supporting Class B+/C+/C++/C+++/D+ XGS-PON/GPON transceivers |
| 10GBASE-X SFP+ Slots |
8, supporting 10GBASE-SR/LR SFP+ transceiver
Backward compatible with 1GBASE-X SFP transceivers |
| 100G QSFP28 Ports |
2-port 100G QSFP28
Backward compatible with 40G QSFP+ |
| Management Port |
One 10/100BASE-TX RJ45 port |
| Console |
One RJ45-to-RS232 serial port (115200, 8, N, 1) |
| RAM |
2048MB |
| Flash Memory |
4096MB |
| Dimensions (W x D x H) |
442.5 x 280 x 44.6 mm |
| Weight |
4,600g with single modular power supply |
| Power Consumption |
120 watts/409.56BTU |
| Power Requirements - AC |
100~240V AC, 1.5A max. |
| Power Requirements - DC |
36~72V DC, 3A max. |

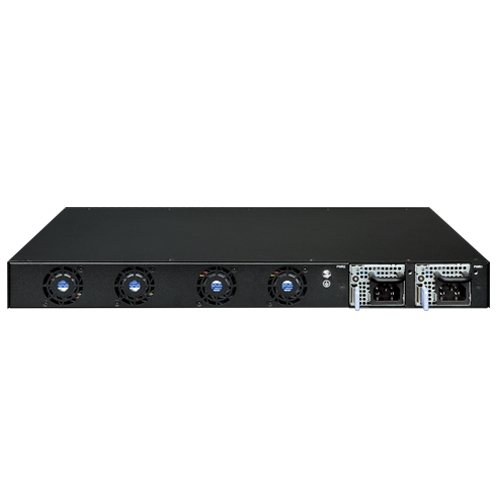

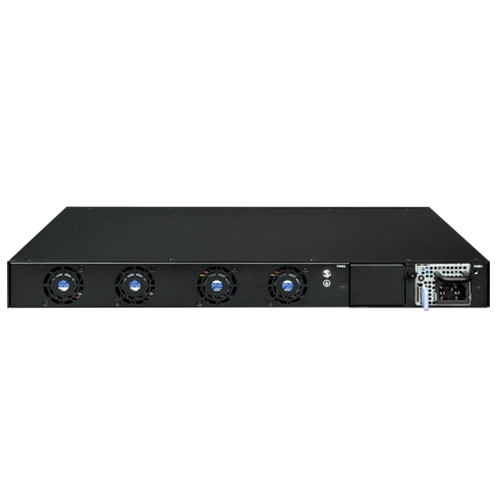

| Fan |
4 Fans, Front-to-back airflow |
| Switching |
| Switch Architecture |
Store-and-forward |
| Switch Fabric |
176Gbps |
| Address Table |
128K |
| ARP Table |
36K |
| ACL Table |
Max. 3840 for IPv4
Max. 1920 for IPv6 |
| Shared Data Buffer |
2MB |
| Jumbo Frame |
9KB |
| Flow Control |
Back pressure for half duplex
IEEE 802.3x pause frame for full duplex |
| XGS-PON Specifications |
| Transmission Speed |
Downstream: 10Gbps; Upstream: 10Gbps (XGS-PON)
Downstream: 10Gbps; Upstream: 2.5Gbps (XG-PON)
Downstream: 2.5Gbps; Upstream: 1.25Gbps (GPON) |
| Optical Split Ratio |
Up to 256 per port |
| Transmission Distance |
20km |
| PON Module Wavelength |
XG(S)-PON: TX 1577nm / RX 1270nm
GPON: TX 1490nm / RX 1310nm |
| PON Fiber Type |
9/125um SMF (Single mode fiber optic) |
| Layer 3 Functions |
| IP Interfaces |
Up to 1K VLAN interfaces, shared by both IPv4 and IPv6 |
| Routing Table |
8K for IPv4
20K for IPv6 |
| Routing Protocols |
Static Routing
RIP
OSPF
BGP
IS-IS
VRRP |
| Layer 2 Functions |
| Port Configuration |
Port disable/enable
Flow control disable/enable
Bandwidth control on each port
Port loopback detect |
| Port Mirroring |
TX/RX/Both
Many to 1 |
| VLAN |
IEEE 802.1Q tag-based VLAN, up to 4K VLAN groups
IEEE 802.1ad Q-in-Q VLAN stacking/tunneling
Flexible Q-in-Q
GVRP for VLAN management |
| Spanning Tree Protocol |
IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) |
| Multicast |
IPv4 IGMP v1/v2/v3 snooping
IPv4 Querier mode support
IGMP Filtering and IGMP Throttling
IGMP Proxy reporting
IGMP multicast forwarding
IPv6 MLD v1/v2 snooping
Multicast VLAN Register (MVR)
Up to 3840 multicast groups |
| Link Aggregation |
IEEE 802.3ad Ling Aggregation Control Protocol (LACP)
Static trunk link aggregation
Supports 64 groups with 16 ports per trunk group
Up to 80Gbps bandwidth (full duplex mode)
Load Balance Algorithm:
Source IP/destination IP/Source + destination IP
Source MAC/destination MAC/Source + destination MAC |
| Storm Control |
Per 100pps
1-14880 |
| Bandwidth Control |
Supports rate limiting per ONU / per port
At least 64Kbps stream
Dynamic Bandwidth Allocation (DBA) on PON ports
Supports SLA (Service Level Agreement) |
| QoS |
PON interfaces:
Dynamic Bandwidth Allocation (DBA)
Service Level Agreement (SLA)
Limiting the upstream/downstream rate based on each ONT/ONU/HGU
8 priority queues on all switch ports
Scheduling for priority queues
Weighted Round Robin (WRR)
Strict priority
Traffic classification:
IEEE 802.1p CoS/DSCP/Precedence
VLAN ID
Policy-based ingress and egress QoS |
| Ring |
ITU-T G.8032 ERPS Ring |
| Security Functions |
| Access Control List |
Supports Standard and Expanded ACL
IP-based ACL
MAC-based ACL
Time-based ACL
ACL based on:
MAC Address
IPv4/IPv6 IP Address
Protocol-number
Sport/dport
ToS/Precedence
Up to 1k entries |
| Security |
Transmission data encryption on the PON interface
MAC limitation
MAC sticky
Port isolation
DHCP snooping
Dynamic ARP inspection
IP source guard |
| AAA |
TACACS+ and IPv4/IPv6 over RADIUS |
| Network Access Control |
IEEE 802.1x port-based network access control |
| Management Functions |
| System Configuration |
Console and Telnet
Web browser
SNMP v1, v2c |
| Secure Management Interfaces |
SSHv2, SSLv3
Maximum 8 sessions for SSH and telnet connection |
| System Management |
IPv4 and IPv6 dual stack management
SNMP MIB and TRAP
SNMP RMON 1, 2, 3, 9 four groups
Firmware upgrade by HTTP/TFTP/FTP protocol through Ethernet network
Configuration upload/download through HTTP/TFTP/FTP protocol
Supports IEEE 802.1ab LLDP protocol
NTP and SNTP client
RADIUS authentication for IPv4/IPv6 login user name and password |
| Event Management |
Remote syslog
System log |
| SNMP MIBs |
RFC 1213 MIB-II
RFC 1215 Internet Engineering Task Force
RFC 1271 RMON
RFC 1354 IP-Forwarding MIB
RFC 1493 Bridge MIB
RFC 1643 Ether-like MIB
RFC 1907 SNMPv2
RFC 2011 IP/ICMP MIB
RFC 2012 TCP MIB
RFC 2013 UDP MIB
RFC 2096 IP forward MIB
RFC 2233 if MIB
RFC 2452 TCP6 MIB
RFC 2454 UDP6 MIB
RFC 2465 IPv6 MIB
RFC 2466 ICMP6 MIB
RFC 2573 SNMPv3 notification
RFC 2574 SNMPv3 VACM
RFC 2674 Bridge MIB Extensions |
| Standard Conformance |
| Regulatory Compliance |
CE, FCC, LVD |
| Standards Compliance |
IEEE 802.3z Gigabit 1000BASE-SX/LX
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X port authentication network control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
ITU-T G.9807.1 (XGS-PON)
ITU-T G.987 (XG-PON)
ITU-T G.988 (ONU Management and Control Interface) |
| Environments |
| Operating |
Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 90% (non-condensing) |
| Storage |
Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 90% (non-condensing) |
