| Hardware Specifications |

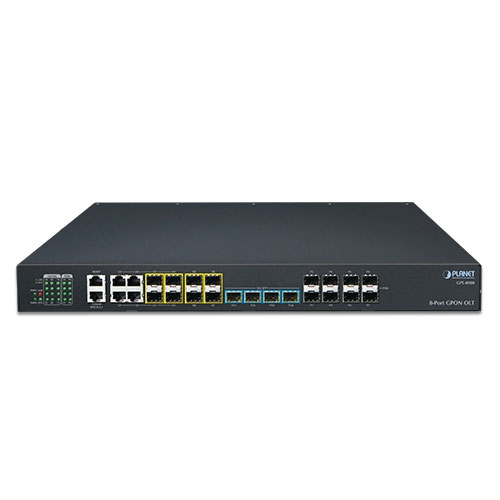

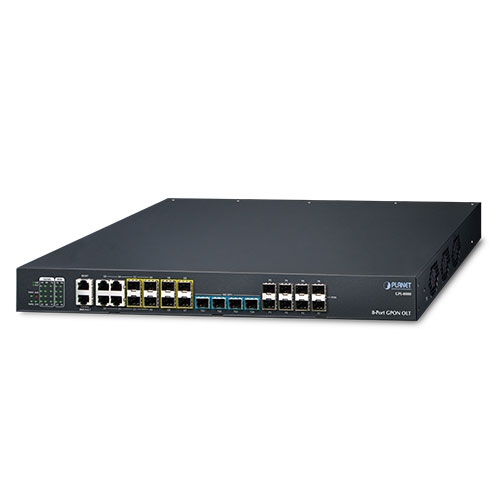

| GPON Ports |
8, supporting Class C+, Class C++ and Class B+ |
| 10/100/1000BASE-T RJ45 Ports |
4 TP/SFP combo interfaces, shared with Port-1 to Port-4 |
| 1000BASE-X SFP Slots |
8, supporting 1000BASE-SX/LX/BX SFP transceiver
Backward compatible with 100BASE-FX SFP transceiver |
| 10GBASE-X SFP+ Slots |
4, supporting 10GBASE-SR/LR SFP+ transceiver |
| Management Port |
One 10/100BASE-TX RJ45 port |
| Console |
One RJ45-to-RS232 serial port (9600, 8, N, 1) |
| CPU |
600MHz |
| RAM |
512MB |
| Flash Memory |
32MB |
| Dimensions (W x D x H) |
442.5 x 300 x 44.6 mm |
| Weight |
5,500g |
| Power Consumption |
60 watts/204.73BTU |

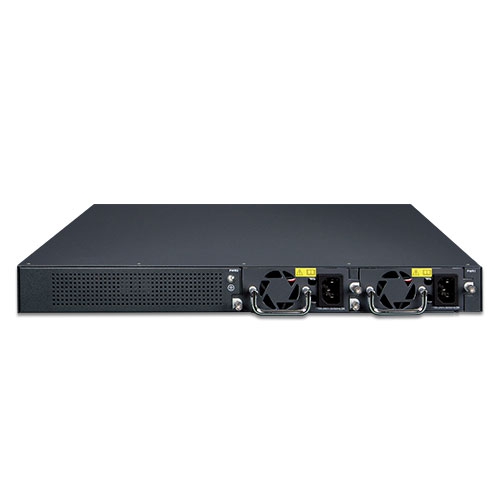

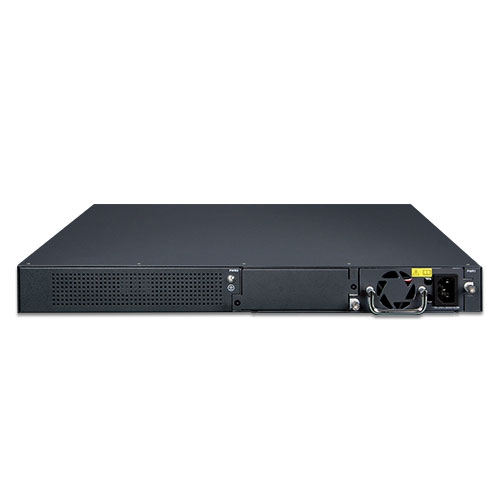

| Power Requirements - AC |
100~240V AC, 1.5A max. |

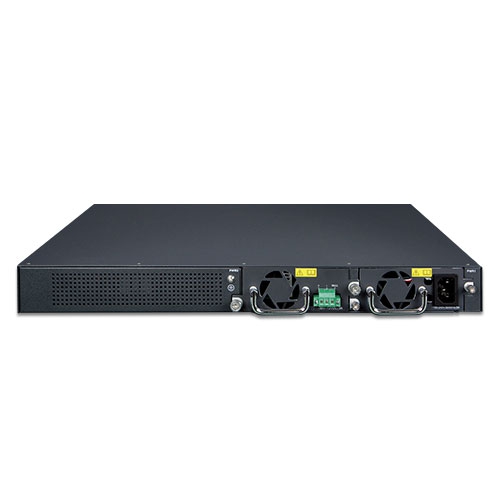

| Power Requirements - DC |
36~72V DC, 3A max. |
| Fan |
3 |
| Switching |
| Switch Architecture |
Store-and-forward |
| Switch Fabric |
176Gbps |
| Switch Throughput |
Uplink 87Mpps
Downlink 102Mpps |
| Address Table |
40K |
| ARP Table |
8K |
| ACL Table |
1K |
| Shared Data Buffer |
2MB |
| Jumbo Frame |
2KB |
| Flow Control |
Back pressure for half duplex
IEEE 802.3x pause frame for full duplex |
| GPON Specifications |
| Transmission Speed |
Downstream: 2.5Gbps
Upstream: 1.25Gbps |
| Optical Split Ratio |
Up to 128 |
| Transmission Distance |
20km |
| PON Module Wavelength |
TX: 1490nm; RX: 1310nm |
| PON Fiber Type |
9/125um SMF(Single mode fiber optic) |
| Layer 3 Functions |
| IP Interfaces |
Max. 1K VLAN interfaces for IPv4
Max. 256 VLAN interfaces for IPv6 |
| Routing Table |
32K for IPv4
8K for IPv6 |
| Routing Protocols |
Static routing
RIP
OSPF |
| Layer 2 Functions |
| Port Configuration |
Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Bandwidth control on each port
Port loopback detect |
| Port Mirroring |
TX/RX/Both
Many to 1 |
| VLAN |
IEEE 802.1Q tag-based VLAN, up to 4K VLAN groups
IEEE 802.1ad Q-in-Q VLAN stacking/tunneling
GVRP for VLAN management |
| Spanning Tree Protocol |
IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) |
| Multicast |
IPv4 IGMP v1/v2/v3 snooping
IPv4 Querier mode support
IGMP Filtering and IGMP Throttling
IGMP Proxy reporting
IGMP multicast forwarding
IPv6 MLD v1/v2 snooping
Multicast VLAN Register (MVR)
Up to 2K multicast groups |
| Link Aggregation |
IEEE 802.3ad Ling Aggregation Control Protocol (LACP)
Static trunk link aggregation
Supports 32 groups with 8 ports per trunk group
Up to 80Gbps bandwidth (full duplex mode)
Load Balance Algorithm:
- Source IP/destination IP/Source + destination IP
- Source MAC/destination MAC/Source + destination MAC |
| Storm Control |
Per 100pps
1-14880 |
| Bandwidth Control |
At least 64Kbps stream |
| QoS |
PON interfaces:
Dynamic Bandwidth Allocation (DBA)
Service Level Agreement (SLA)
Limiting the upstream/downstream rate based on each ONT/ONU/HGU
8 priority queues on all switch ports
Scheduling for priority queues
- Weighted Round Robin (WRR)
- Strict priority
Traffic classification:
- IEEE 802.1p CoS/DSCP/Precedence
- VLAN ID
- Policy-based ingress and egress QoS |
| Ring |
IGU-T G.8032 ERPS Ring |
| Security Functions |
| Access Control List |
Supports Standard and Expanded ACL
- IP-based ACL
- MAC-based ACL
- Time-based ACL
ACL based on:
- MAC Address
- IPv4/IPv6 IP Address
- Protocol-number
- sport/dport
- ToS/Precedence
Up to 1k entries |
| Security |
Transmission data encryption on the PON interface
MAC limitation
MAC sticky
Port isolation
DHCP snooping
Dynamic ARP inspection
IP source guard |
| AAA |
TACACS+ and IPv4/IPv6 over RADIUS |
| Network Access Control |
IEEE 802.1x port-based network access control |
| Management Functions |
| System Configuration |
Console and Telnet
Web browser
SNMP v1, v2c |
| Secure Management Interfaces |
SSHv2, SSLv3
Maximum 8 sessions for SSH and telnet connection |
| System Management |
IPv4 and IPv6 dual stack management
SNMP MIB and TRAP
SNMP RMON 1, 2, 3, 9 four groups
Firmware upgrade by HTTP/TFTP/FTP protocol through Ethernet network
Configuration upload/download through HTTP/TFTP/FTP protocol
Supports IEEE 802.1ab LLDP protocol
NTP and SNTP client
RADIUS authentication for IPv4/IPv6 login user name and password |
| Event Management |
Remote syslog
System log |
| SNMP MIBs |
RFC 1213 MIB-II
RFC 1215 Internet Engineering Task Force
RFC 1271 RMON
RFC 1354 IP-Forwarding MIB
RFC 1493 Bridge MIB
RFC 1643 Ether-like MIB
RFC 1907 SNMPv2
RFC 2011 IP/ICMP MIB
RFC 2012 TCP MIB
RFC 2013 UDP MIB
RFC 2096 IP forward MIB
RFC 2233 if MIB
RFC 2452 TCP6 MIB
RFC 2454 UDP6 MIB
RFC 2465 IPv6 MIB
RFC 2466 ICMP6 MIB
RFC 2573 SNMPv3 notification
RFC 2574 SNMPv3 VACM
RFC 2674 Bridge MIB Extensions |
| Standard Conformance |
| Regulatory Compliance |
CE / FCC / LVD |
| Standards Compliance |
IEEE 802.3z Gigabit 1000BASE-SX/LX
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X port authentication network control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
FRC 3810 MLD v2 |
| Environments |
| Operating |
Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 90% (non-condensing) |
| Storage |
Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 90% (non-condensing) |
