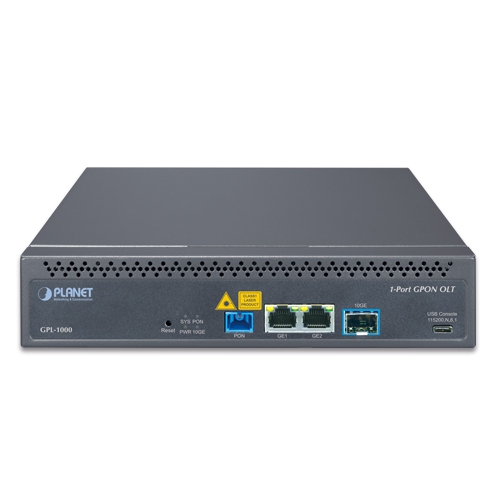

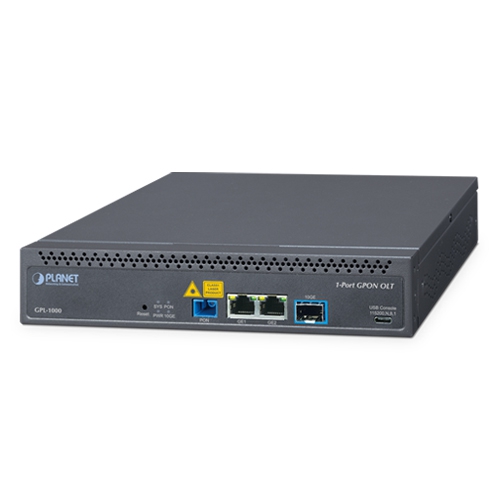

| Hardware Specifications |
| PON Interface |
1 x GPON port |
| Ethernet Interface |
2 x 10/100/1000BASE-T Copport port, port-1 to port-2
1 x 10GBASE-X SFP+ slot, supporting 10GBASE-SR/LR SFP+ transceiver
Backward compatible with 1000BASE-X SFP transceiver |
| Console |
One USB serial port (115200, 8, N, 1) |
| RAM |
512MB |
| Flash Memory |
256MB |
| Dimensions (W x D x H) |
210 x 173 x 43.6mm |
| Weight |
1.2kg |
| Power Consumption |
AC 240V:
Max. 9.5 watts/32.4BTU (Power on without any connection)
Max.14.8 watts/50.4BTU (Full loading)
DC 12V:
Max. 9.5 watts/32.4BTU (Power on without any connection)
Max.14.5 watts/49.4BTU (Full loading) |

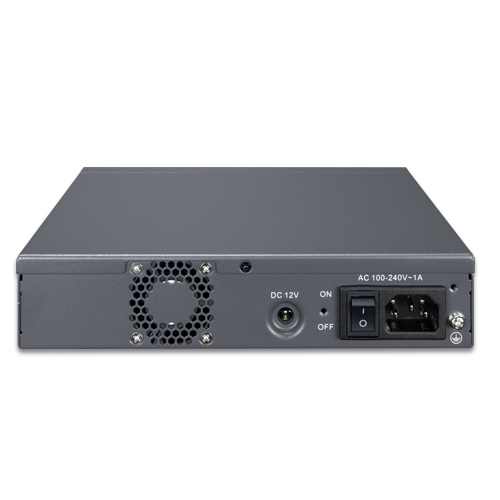

| Power Requirements - AC |
100~240V AC, 1A max. |
| Power Requirements - DC |
12 DC, 2A max. |
| Fan |
1 |
| GPON Specifications |
| Connector |
1 GPON OLT SC/UPC Connector (TX: 9dBm & Sen: -32dBm) |
| Transmission Speed |
Downstream: 2.5Gbps
Upstream: 1.25Gbps |
| Optical Split Ratio |
Up to 128 |
| Transmission Distance |
20km |
| PON Module Wavelength |
TX: 1490nm; RX: 1310nm |
| PON Fiber Type |
9/125um SMF(Single mode fiber optic) |
| Switching |
| Switch Architecture |
Store-and-forward |
| Switch Fabric |
29Gbps |
| Switch Throughput |
21Mpps |
| Address Table |
8K |
| ARP Table |
8K |
| Jumbo Frame |
10/100/1000BASE-T RJ45 copper ports: 9022Bytes
GPON OLT SC/UPC Connector: 1652 Bytes
10GBASE-SR/LR SFP+ slot: 9036 Bytes |
| Flow Control |
Back pressure for half duplex
IEEE 802.3x pause frame for full duplex
Working with Rate Limit(Kbps) function |
| Layer 3 Functions |
| IP Interfaces |
Max. 512 VLAN interfaces for IPv4
Max. 512 VLAN interfaces for IPv6 |
| Routing Protocols |
IPv4/IPv6 static routing |
| WAN |
IPv4/IPv6/IPv4 & IPv6 versions
Static/DHCP/PPPoE connect mode options |
| NAT |
NAT1/NAT2/NAT4(default) for NAT Config options
NAT DMZ Hosts |
| Layer 2 Functions |
| Port Configuration |
Description
Admin Status (Port disable/enable)
Speed
Flow control
Isolate
PVID
Broadcast and Unicast Storm Limit
Ingress & Egress Rate Limit |
| Port Mirroring |
TX/RX/Both
1 to 1 |
| VLAN |
IEEE 802.1Q tag-based VLAN, up to 512 VLAN groups
VLAN Translation
Bridging (VLAN Q-in-Q, IEEE 802.1ad)
PON P2P
DSCP-to-CoS QoS Mapping: Supports bi-directional mapping between Layer 3 DSCP fields and Layer 2 CoS (IEEE 802.1p) within VLAN tags |
| Spanning Tree Protocol |
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) |
| Multicast |
IPv4 IGMP snooping v1 and v2
Up to 256 multicast groups
IPv6 MLD v1/v2 snooping
Up to 510 multicast groups
Querier mode support |
| Storm Control |
Broadcast Storm Limit
Unicast Storm Limit
0/64-13000kbps |
| Bandwidth Control |
Ingress Rate Limit
Egress Rate Limit
0/64-1000000kbps |
| QoS |
PON interfaces:
Dynamic Bandwidth Allocation (DBA)
Service Level Agreement (SLA)
Limiting the upstream/downstream rate based on each ONT/ONU/HGU
4 priority queues on all switch ports
Scheduling for priority queues
Weighted Round Robin (WRR)
Strict priority
Traffic classification:
IEEE 802.1p CoS/DSCP/Precedence
VLAN ID
Policy-based ingress and egress QoS |
| Security Functions |
| Access Control List |
Supports Standard and Expanded ACL
IP-based ACL
MAC-based ACL
Port-based ACL
Protocol-based ACL
ACL based on:
MAC Address
IPv4/IPv6 IP Address
Protocol-number
Port
Up to 1k entries |
| Security |
Transmission data encryption on the PON interface
DHCP snooping
Dynamic ARP inspection |
| Authentication |
TACACS+ users access authentication |
| Management Functions |
| System Configuration |
Console and Telnet
Web browser
SNMP v1, v2c |
| Secure Management Interfaces |
SSHv2 |
| System Management |
IPv4 and IPv6 dual stack management
IPV4 DNS/IPv4 Gateway
IPv6 SLAAC/IPv6 Gateway
SNMP MIB and TRAP
SNMP RMON 1, 2, 3, 9 four groups
Firmware upgrade by HTTPs protocol through Ethernet network
Configuration upload/download through HTTPs protocol
IEEE 802.1ab LLDP protocol
NTP client |
| DHCP Function |
DHCP Relay
DHCP Option 82
DHCP Snooping
DHCP Server
DHCPv6 Server
DHCPv6 Relay |
| Event Management |
Remote syslog
System log |
| SNMP MIBs |
RFC 1213 MIB-II
RFC 1215 Internet Engineering Task Force
RFC 1271 RMON
RFC 1354 IP-Forwarding MIB
RFC 1493 Bridge MIB
RFC 1643 Ether-like MIB
RFC 1907 SNMPv2
RFC 2011 IP/ICMP MIB
RFC 2012 TCP MIB
RFC 2013 UDP MIB
RFC 2096 IP forward MIB
RFC 2233 if MIB
RFC 2452 TCP6 MIB
RFC 2454 UDP6 MIB
RFC 2465 IPv6 MIB
RFC 2466 ICMP6 MIB
RFC 2573 SNMPv3 notification
RFC 2574 SNMPv3 VACM
RFC 2674 Bridge MIB Extensions |
| Standard Conformance |
| Regulatory Compliance |
CE / LVD |
| Standards Compliance |
ITU-T G.984.x GPON
IEEE 802.3z Gigabit 1000BASE-SX/LX
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x Flow Control and Back Pressure
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 783 TFTP
RFC 792 ICMP
RFC 793 IP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
FRC 3810 MLD v2
RFC 5246 (TLS 1.2) |
| Environments |
| Operating |
Temperature: -20 ~60 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage |
Temperature: -40 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
