| Hardware Specifications |

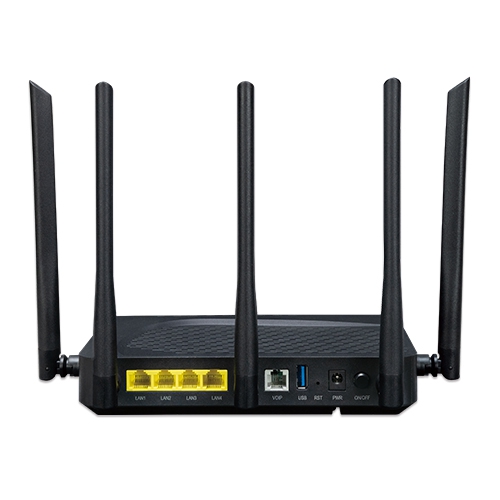

| UNI port |
4 x 10/100/1000BASE-T RJ45 copper
Wi-Fi 6 external 5 antennas (2.4GHz x 2, 5GHz x 3)
1 x USB 2.0 host port
1 x RJ11 FXS port |
| PON port |
Transmission rate: 2.5Gbps downlink / 1.25Gbps uplink
Network Coverage Radius: 20 kilometers
Receiver Sensitivity: ≤-28dBm
Transmit Optical Power: 0.5~5dBm

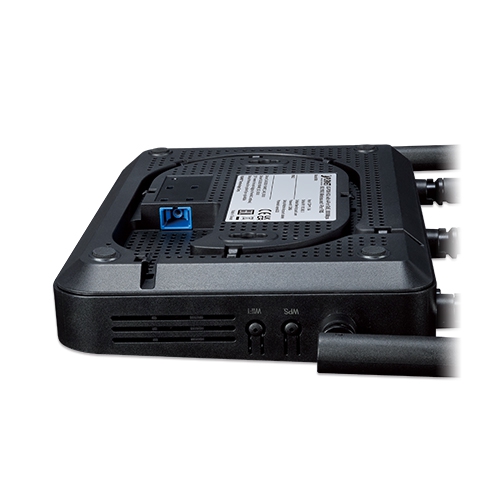

Optical interface type: SC/UPC |
| Button |
1 x power ON/OFF button
1 x reset button (Press for about 15 seconds to reset the device to factory default.)
1 x WLAN enable/disable button
1 x WPS enable/disable button
1 x LED on/off button |
| Thermal Fan |
Fanless |

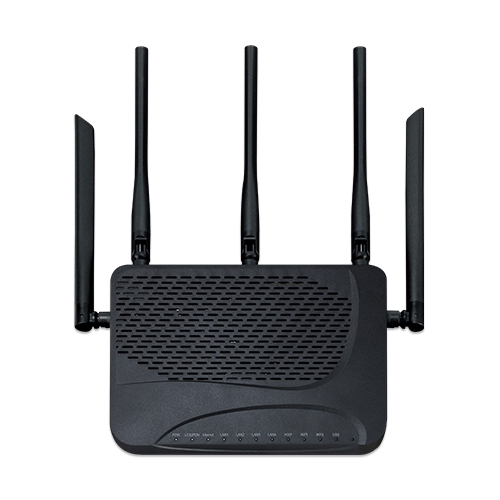

| LED Indicators |
PWR (Green)
LOS/PON (Red)/(Green)
Internet (Green)
LAN1-LAN4 (Green)
VoIP (Green)
Wi-Fi (Green)
WPS (Green)
USB (Green) |
| Installation |
Desktop installation or wall mounting |
| Power Requirements |
12V DC, 1.5A max. |
| Power Consumption |
18W max. |
| Weight |
500g |
| Enclosure |
Plastic |
| Wi-Fi |
802.11b/g/n/ac/ax
MIMO, with a maximum rate of 3000Mbps.
multiple SSIDs and SSID encryption |
| Dimensions (WxDxH) |
244.3 x 162.15 x 193 mm (including antennas) |
| Heat dissipation |
Extended use (24 hours) does not result in performance degradation or damage due to device overheating or deformation. |
| Wireless Interface Specifications |
| Standard |
IEEE 802.11ax 5GHz
IEEE 802.11ax 2.4GHz
IEEE 802.11a/b/g/n/ac compatible |
| Frequency Band |
Simultaneous 2.4GHz and 5GHz |
| Modulation Type |
802.11ax: OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM / 1024QAM)
802.11n/g/a: OFDM
802.11b: DSSS (DBPSK / DQPSK / CCK) |
| Data Transmission Rates |
2.4GHz up to 574Mbps
5GHz up to 2402Mbps @ 160MHz) |
| Channel |
2.4GHz:
FCC (America): 2.412–2.462GHz (11 Channels)
ETSI (Europe): 2.4122.472GHz (13 Channels)
5.180~5.825GHz (up to 24 channels, depending on country) |
| Channel Width |
802.11ax: 20/40/80/160MHz |
| Max. RF Power / EIRP |
2.4GHz: < 20dBm
5GHz: < 23dBm (varies by region) |
| Wireless Management Features |
| Encryption Security |
64/128-bit WEP, WPA, WPA2-PSK, WPA3-SAE |
| Wireless Security |
SSID broadcast enable/disable
Wireless MAC address filtering
WPS (Wi-Fi Protected Setup) support
Client isolation |
| Wireless Advanced |
Transmit power adjustment
Beacon interval configuration
WMM (Wi-Fi Multimedia) support
Band steering (2.4GHz/5GHz auto-switch)
Wi-Fi schedule |
| Max. Supported Clients |
Up to 128 wireless clients |
| Router Features |
| Data Forwarding |
Routing Mode, Bridging Mode, and Routing + Bridging Hybrid Mode |
| DNS |
DNS Relay |
| DHCP |
DHCP server |
| VLAN |
Port-based VLAN
IEEE 802.1Q VLAN |
| Multicast |
Supports IGMP Snooping
Supports CTC-defined dynamic multicast
Supports MLD Snooping
Supports Full-Routing Multicast |
| QoS |
Backpressure Flow Control (Half-Duplex)
IEEE 802.3x Flow Control (Full-Duplex)
Preventing Head-of-Line Blocking
IEEE 802.1p, CoS
8 Priority Queues per Port
WR, SP, and FIFO
Port Rate Limiting |
| Reliability |
Loop Detection
Dying-Gasp
Type B Dual Homing Protection |
| Security |
Port MAC Address Limitation
Port Protection
Port Storm Suppression
Supports firewall MAC/IP/Port/URL/Domain filtering
Supports DDoS protection |
| Management Configuration |
Web, TELNET, TR069, OMCI
Software Upgrade through TFTP, WEB, TR069, and OLT |
| VoIP Protocols and Standard |
| Standard |
T.38 (G.711 Fax pass-through) |
| Voice Codec |
G.711A/G.711U/G.723/G.729 |
| Voice Standard |
VAD (Voice Activity Detection) |
| Standards Conformance |
| Standards |
ITU-T G.987.3, G.988
IEEE 802.1Q, VLAN |
| Environment Specifications |
| Operating |
Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage |
Temperature: -10 ~ 60 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
