Name: 1口10/100/1000T以太网转VDSL2转换器（带G.vectoring）
Brand: PLANET Technology

Print Version

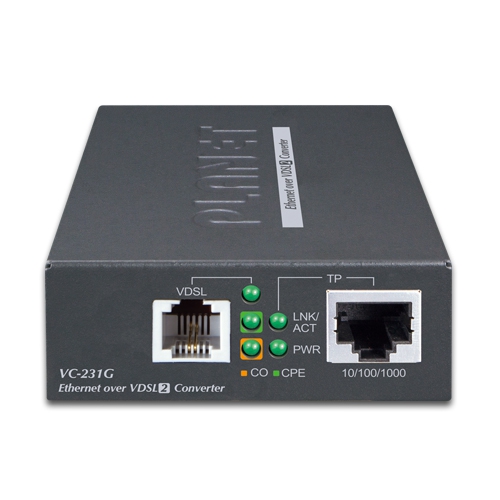

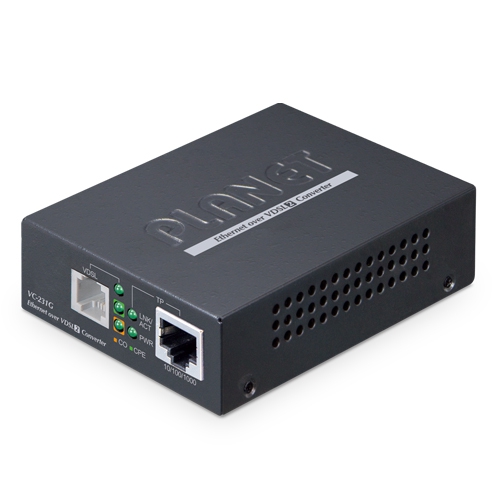

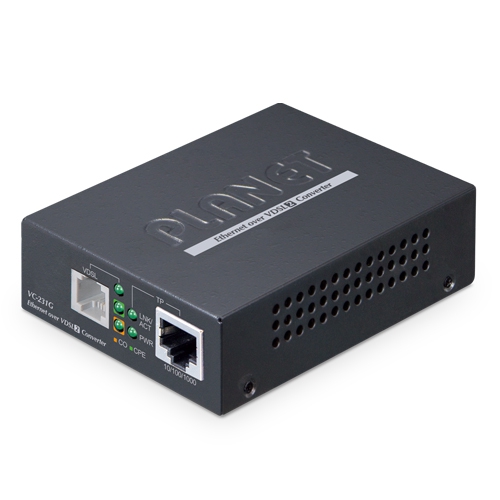

VC-231G

1口10/100/1000T以太网转VDSL2转换器（带G.vectoring）

概述
应用场景
功能特性
产品规格
下载

200/200Mbps下行/上行，高性能电话线千兆以太网解决方案

普莱德VC-231G是一款新一代高性能千兆以太网-over-VDSL2转换器，采用全新的VDSL2 Super Vector 35b配置文件，与普及的电话线网络良好配合，在200米距离内对称数据速率高达200/200Mbps（G.INP，Sym，8dB），在1.4公里长距离下可达21/13Mbps。它基于双核心网络技术——千兆以太网和VDSL2（甚高速数字用户线路2）。VDSL2技术在现有的铜质电话线上提供绝对最快的数据传输速度，无需重新布线。

基于VDSL2的高性能以太网

通过最新的VDSL2技术，普莱德VC-231G提供高速互联网接入，上行和下行数据传输均可达200Mbps。集成支持ITU-T新的G.993.5向量化技术，VC-231G与支持向量化的DSLAM配合使用，可消除串扰干扰，并在现有铜缆基础设施上提高最大线路带宽。

利用现有电话铜线实施

VC-231G也是一个长距离以太网（LRE）转换器，提供一个RJ45以太网端口和一个RJ11电话插孔，用于VDSL2连接。使用VC-231G包装中附带的附加分离器与POTS共享现有电话线，因此无需更换现有铜线。只需将VC-231G与附加分离器插入现有的RJ11电话插孔，即可连接高性能VDSL2网络。它非常适合用作现有以太网网络的以太网延伸器。

为ISP/三重播放设备提供高要求的服务连接

VC-231G为家庭娱乐和通信的三重播放设备提供了卓越的带宽需求。通过非对称数据传输316/60Mbps (G.INP, 非对称, 8dB)，VC-231G使得许多多媒体服务能够在本地区域互联网上运行，例如VoD（视频点播）、IP语音、视频电话、IPTV、互联网缓存服务器、远程教育等。

简便灵活的安装

VC-231G提供两种模式：CPE和CO，用于应用——CPE模式用于客户端，CO模式用于局端。可以使用内置DIP开关调整CPE或CO模式。对于点对点连接，必须将一个CPE模式的VC-231G和一个CO模式的VC-231G设置为一对转换器来执行连接。

VC-231G采用即插即用设计，完全兼容各种网络协议，当通过DC适配器供电时可以作为一个独立单元使用，或者作为插入式模块安装在普莱德10/19英寸7/15槽媒体转换器机箱（MC-700/MC-1500/MC-1500R/MC-1500R48）中。此外，通过前面板丰富的诊断LED指示灯可以监控每个独立端口和整个系统的运行状态。

ADSL2+ 回退

对于那些仍提供ADSL宽带服务的ISP，VC-231G通过ADSL2+技术可支持高达24Mbps的下行速率和1Mbps的上行速率。VC-231G与ISP建立连接，并可在ISP网络升级后直接切换到VDSL2。

Hardware Specifications

Hardware Version

LAN Ports

1 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports

VDSL Port

1 VDSL2 RJ11 female phone jack

Twisted-pair telephone wires (AWG-24 or better) up to 1.4km

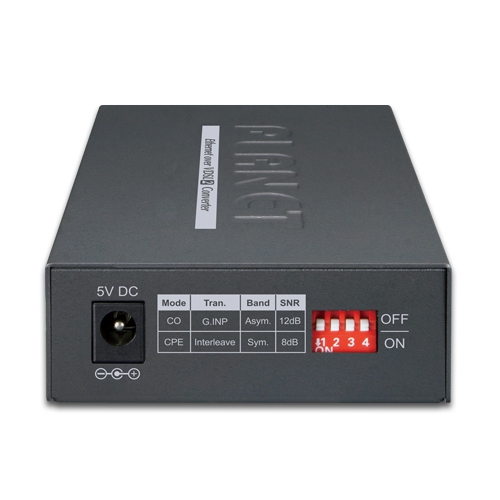

DIP Switch & Functionality

4-position DIP switch

　CO or CPE mode selectable

　Selectable G.INP and interleaved mode

　Selectable target Band plan

　Selectable target SNR mode

Phone Port

Additional splitter for POTS connection

Dimensions (W x D x H)

94 x 70.3 x 26.2 mm

Weight

196g

Power Requirements

DC 5V, 2A external power

LED Indicators

1 x power： Green

1 x 10/100/1000BASE-T LNK/ACT： Green

1 x VDSL： Green

1 x CO： Green

1 x CPE： Green

Housing

Metal

Installation

Wall-mount or DIN-rail installation (optional)

Switch Specifications

Switch Processing Scheme

Store-and-Forward

Address Table

1K entries

Maximum Packet Size

1522bytes

Standards Conformance

VDSL Compliance

VDSL-DMT

　ITU-T G.993.1 VDSL

　ITU-T G.997.1

　ITU-T G.993.2 VDSL2 (Profile 17a/30a/35b support)

　ITU-T G.993.5 G.vectoring

　ITU-T G.998

　G.INP

ADSL Compliance

Capable of ADSL2/2+ standard

　ITU G.992.3 G.dmt.bis

　ITU G.992.5 G.dmt.bisplus

Data Rate: Up to 24Mbps

Standards Compliance

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.1p Class of Service

ITU-T G.993.1 VDSL

ITU-T G.997.1

ITU-T G.993.2 VDSL2 (Profile 17a/30a/35b support)

ITU-T G.993.5 G.Vectoring & G.INP

ITU-T G.998

Regulatory Compliance

FCC Part 15 Class A, CE

Environment

Temperature

Operating: 0~50 degrees C

Storage: -10~70 degrees C

Humidity

Operating: 5~95% (non-condensing)

Storage: 5~95% (non-condensing)

Performance

Performance* (Downstream/Upstream)

Interleave, Asym, 8dB	Interleave, Asym, 12dB
200M → 260Mbps/56Mbps 400M → 180Mbps/53Mbps 600M → 111Mbps/48Mbps 800M → 68Mbps/39Mbps 1000M → 53Mbps/18Mbps 1200M → 42Mbps/8Mbps 1400M → 24Mbps/4Mbps	200M → 267Mbps/57Mbp 400M → 161Mbps/49Mbps 600M → 93Mbps/46Mbps 800M → 56Mbps/33Mbps 1000M → 47Mbps/14Mbps 1200M → 34Mbps/8Mbps 1400M → 30Mbps/6Mbps
Interleave, Sym, 8dB	Interleave, Sym, 12dB
200M → 175Mbps/180Mbps 400M → 109Mbps/130Mbps 600M → 75Mbps/93Mbps 800M → 50Mbps/65Mbps 1000M → 37Mbps/33Mbps 1200M → 26Mbps/22Mbps 1400M → 20Mbps/13Mbps	200M → 165Mbps/172Mbp 400M → 107Mbps/115Mbps 600M → 65Mbps/82Mbps 800M → 43Mbps/55Mbps 1000M → 31Mbps/29Mbps 1200M → 21Mbps/16Mbps 1400M → 12Mbps/8Mbps
G.INP, Asym, 8dB	G.INP, Asym, 12dB
200M → 316Mbps/60Mbps 400M → 185Mbps/56Mbps 600M → 110Mbps/51Mbps 800M → 68Mbps/38Mbps 1000M → 51Mbps/18Mbps 1200M → 39Mbps/10Mbps 1400M → 37Mbps/6Mbps	200M → 291Mbps/60Mbp 400M → 161Mbps/51Mbps 600M → 91Mbps/44Mbps 800M → 55Mbps/34Mbps 1000M → 47Mbps/15Mbps 1200M → 35Mbps/8Mbps 1400M → 32Mbps/2Mbps
G.INP, Sym, 8dB	G.INP, Sym, 12dB
200M → 187Mbps/190Mbps 400M → 108Mbps/134Mbps 600M → 74Mbps/95Mbps 800M → 50Mbps/66Mbps 1000M → 34Mbps/35Mbps 1200M → 24Mbps/22Mbps 1400M → 21Mbps/13Mbps	200M → 174Mbps/184Mbp 400M → 99Mbps/119Mbps 600M → 63Mbps/84Mbps 800M → 40Mbps/55Mbps 1000M → 30Mbps/30Mbps 1200M → 22Mbps/18Mbps 1400M → 20Mbps/10Mbps

＊The performance data above is for reference only.
The actual data rate will vary on the quality of the copper wire and environmental factors

Interleave, Asym, 8dB

Interleave, Asym, 12dB

200M → 260Mbps/56Mbps400M → 180Mbps/53Mbps600M → 111Mbps/48Mbps800M → 68Mbps/39Mbps1000M → 53Mbps/18

200M → 267Mbps/57Mbp
400M → 161Mbps/49Mbps
600M → 93Mbps/46Mbps
800M → 56Mbps/33Mbps
1000M → 47Mbps/14Mbps
1200M → 34Mbps/8Mbps
1400M → 30Mbps/6Mbps

Interleave, Sym, 8dB

Interleave, Sym, 12dB

200M → 175Mbps/180Mbps400M → 109Mbps/130Mbps600M → 75Mbps/93Mbps800M → 50Mbps/65Mbps1000M → 37Mbps/3

200M → 165Mbps/172Mbp
400M → 107Mbps/115Mbps
600M → 65Mbps/82Mbps
800M → 43Mbps/55Mbps
1000M → 31Mbps/29Mbps
1200M → 21Mbps/16Mbps
1400M → 12Mbps/8Mbps

G.INP, Asym, 8dB

G.INP, Asym, 12dB

200M → 316Mbps/60Mbps400M → 185Mbps/56Mbps600M → 110Mbps/51Mbps800M → 68Mbps/38Mbps1000M → 51Mbps/18

200M → 291Mbps/60Mbp
400M → 161Mbps/51Mbps
600M → 91Mbps/44Mbps
800M → 55Mbps/34Mbps
1000M → 47Mbps/15Mbps
1200M → 35Mbps/8Mbps
1400M → 32Mbps/2Mbps

G.INP, Sym, 8dB

G.INP, Sym, 12dB

200M → 187Mbps/190Mbps400M → 108Mbps/134Mbps600M → 74Mbps/95Mbps800M → 50Mbps/66Mbps1000M → 34Mbps/3

200M → 174Mbps/184Mbp
400M → 99Mbps/119Mbps
600M → 63Mbps/84Mbps
800M → 40Mbps/55Mbps
1000M → 30Mbps/30Mbps
1200M → 22Mbps/18Mbps
1400M → 20Mbps/10Mbps

订购信息
VC-231G	1-Port 10/100/1000T Ethernet to VDSL2 Converter (35b profile w/ G.vector)

附件
RKE-DIN	DIN-Rail Mounting Kit
