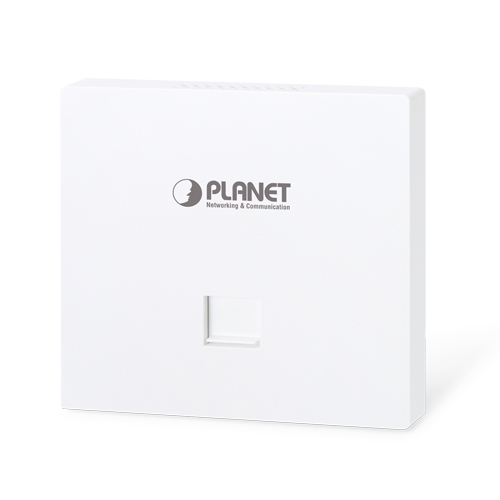

Name: Wi-Fi 7双频802.11be 3600Mbps入墙式无线接入点
Brand: PLANET Technology

首页 > 产品 > 无线网 > 室内无线接入点/桥接器 > Wi-Fi 7 > WDAP-W3600BE

Print Version

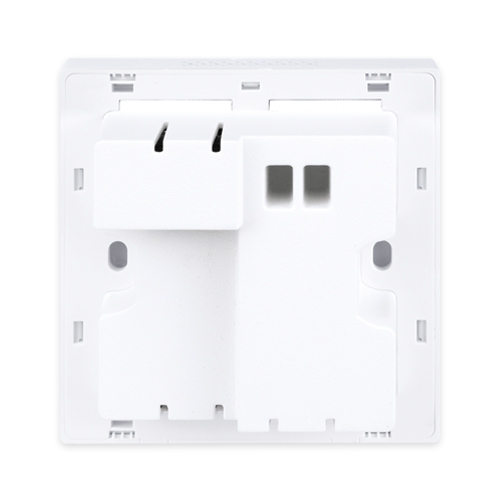

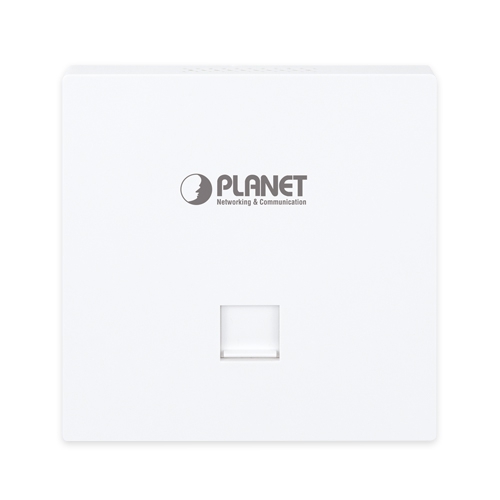

WDAP-W3600BE

Wi-Fi 7双频802.11be 3600Mbps入墙式无线接入点

概述
应用场景
功能特性
产品规格
下载

Hardware Specifications

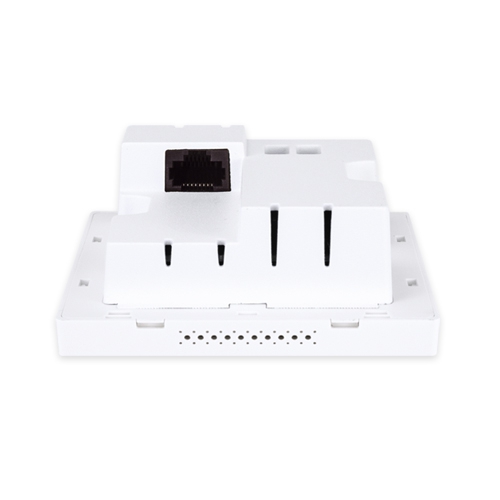

Interfaces

WAN/PoE: 1 x 100/1000/2500BASE-T RJ45 port

LAN: 1 x 10/100/1000BASE-T RJ45 port

Auto-negotiation and auto MDI/MDI-X

Antennas

2 × internal dual-band antennas (2.4GHz: 1.7dBi, 5GHz: 3dBi)

Reset Button

Reset button on the rear side (Press 6-10 seconds to reset the device to factory default.)

LED Indicators

Composite LED (Red: Booting, Green: 2.4GHz+5GHz or 5GHz only, Blue: 2.4GHz only)

Dimensions

86 × 86 × 42.8 mm (W × D × H, with 10.8 mm beyond wall surface)

Weight

210g

Power Requirements

IEEE 802.3af/at PoE (48V DC)

Power Consumption

Max. 5.1 watts / 17.4 BTU (Power on without any connection, PoE 54V)

Max. 14.1 watts / 48.1 BTU (Full loading, PoE 48V)

Mounting

In-wall mount

Wireless Interface Specifications

Standard

5GHz:

　IEEE 802.11be

　IEEE 802.11ax

　IEEE 802.11ac

　IEEE 802.11n

　IEEE 802.11a

2.4GHz:

　IEEE 802.11be

　IEEE 802.11ax

　IEEE 802.11n

　IEEE 802.11b

　IEEE 802.11g

IEEE 802.3 10BASE-T

IEEE 802.3u 100BASE-TX

IEEE 802.3ab 1000BASE-T

IEEE 802.3bz 2500BASE-T

IEEE 802.3x flow control

IEEE 802.11k, 802.11v, and 802.11r*

IEEE 802.11i

Media Access Control

CSMA/CA

Data Modulation

802.11be: MIMO-OFDM/OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM / 1024QAM / 4096QAM)

802.11ax: MIMO-OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM, 1024QAM)

802.11ac: MIMO-OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM)

802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM)

802.11b: DSSS (DBPSK / DQPSK / CCK)

Band Mode

2.4GHz / 5GHz concurrent mode

Frequency Range

2.4GHz:

　FCC: 2.412~2.462GHz

　ETSI: 2.412~2.472GHz

5GHz:

　FCC: 5.180~5.240GHz, 5.745~5.825GHz

　ETSI: 5.180~5.700GHz

Operating Channels

ETSI:

　2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 (13 Channels)

　5GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120,124,128,132, 136, 140 (19 channels)

FCC:

　2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11 (11 channels)

　5GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116,120,124,128,132, 136, 140, 149, 153, 157, 161,165 (24 channels)

5GHz channel list may vary in different countries according to their regulations.

Max. Transmit Power (dBm)

FCC: up to 23 ± 2dBm

ETSI: < 19dBm (EIRP)

Network Mode	Data Rate	Max. Transmit Power (dBm)
2.4G Power
802.11b	11Mbps 1Mbps	23±2 23±2
802.11g	54Mbps 6Mbps	20±2 22±2
802.11n HT20	MCS7 MCS0	18.5±2 21±2
802.11n HT40	MCS7 MCS0	18.5±2 21±2
802.11ax HE20	MCS11 MCS0	17±2 20.5±2
802.11ax HE40	MCS11 MCS0	17±2 20.5±2
802.11be EHT20	MCS13 MCS0	16±2 20.5±2
802.11be EHT40	MCS13 MCS0	16±2 20.5±2
5G Power
802.11a	54Mbps 6Mbps	19.5±2 22±2
802.11n HT20	MCS7 MCS0	19±2 21±2
802.11n HT40	MCS7 MCS0	19±2 21±2
802.11ac VHT20	MCS8 MCS0	18.5±2 21±2
802.11ac VHT40	MCS7 MCS0	18.5±2 20.5±2
802.11ac VHT80	MCS9 MCS0	18.5±2 20.5±2
802.11ac VHT160	MCS9 MCS0	18±2 21±2
802.11ax HE20	MCS11 MCS0	18±2 20.5±2
802.11ax HE40	MCS11 MCS0	18±2 20.5±2
802.11ax HE80	MCS11 MCS0	17±2 20±2
802.11ax HE160	MCS11 MCS0	16±2 19.5±2
802.11be EHT20	MCS13 MCS0	15.5±2 20.5±2
802.11be EHT40	MCS13 MCS0	16±2 20.5±2
802.11be EHT80	MCS13 MCS0	15.5±2 20.5±2
802.11be EHT160	MCS13 MCS0	14.5±2 19.5±2

Network Mode

Data Rate

802.11b

11Mbps
1Mbps

802.11g

54Mbps
6Mbps

802.11n HT20

MCS7
MCS0

802.11n HT40

MCS7
MCS0

802.11ax HE20

MCS11
MCS0

802.11ax HE40

MCS11
MCS0

802.11be EHT20

MCS13
MCS0

802.11be EHT40

MCS13
MCS0

802.11a

54Mbps
6Mbps

802.11n HT20

MCS7
MCS0

802.11n HT40

MCS7
MCS0

802.11ac VHT20

MCS8
MCS0

802.11ac VHT40

MCS7
MCS0

802.11ac VHT80

MCS9
MCS0

802.11ac VHT160

MCS9
MCS0

802.11ax HE20

MCS11
MCS0

802.11ax HE40

MCS11
MCS0

802.11ax HE80

MCS11
MCS0

802.11ax HE160

MCS11
MCS0

802.11be EHT20

MCS13
MCS0

802.11be EHT40

MCS13
MCS0

802.11be EHT80

MCS13
MCS0

802.11be EHT160

MCS13
MCS0

Receive Sensitivity

Network Mode	Data Rate	Max. Transmit Power (dBm)
2.4G Power
802.11b	11Mbps 1Mbps	-87 -95
802.11g	54Mbps 6Mbps	-75 -92
802.11n HT20	MCS7 MCS0	-74 -92
802.11n HT40	MCS7 MCS0	-71 -89
802.11ax HE20	MCS11 MCS0	-63 -92
802.11ax HE40	MCS11 MCS0	-60 -88
802.11be EHT20	MCS13 MCS0	-56 -92
802.11be EHT40	MCS13 MCS0	-53 -89
5G Power
802.11a	54Mbps 6Mbps	-74 -91
802.11n HT20	MCS7 MCS0	-73 -90
802.11n HT40	MCS7 MCS0	-70 -87
802.11ac VHT20	MCS8 MCS0	-67 -91
802.11ac VHT40	MCS7 MCS0	-63 -88
802.11ac VHT80	MCS9 MCS0	-60 -85
802.11ax HE20	MCS11 MCS0	-62 -91
802.11ax HE40	MCS11 MCS0	-59 -89
802.11ax HE80	MCS11 MCS0	-58 -86
802.11ax HE160	MCS11 MCS0	-53 -83
802.11be EHT20	MCS13 MCS0	-55 -91
802.11be EHT40	MCS13 MCS0	-52 -88
802.11be EHT80	MCS13 MCS0	-49 -85
802.11be EHT160	MCS13 MCS0	-46 -82

Network Mode

Data Rate

802.11b

11Mbps
1Mbps

802.11g

54Mbps
6Mbps

802.11n HT20

MCS7
MCS0

802.11n HT40

MCS7
MCS0

802.11ax HE20

MCS11
MCS0

802.11ax HE40

MCS11
MCS0

802.11be EHT20

MCS13
MCS0

802.11be EHT40

MCS13
MCS0

802.11a

54Mbps
6Mbps

802.11n HT20

MCS7
MCS0

802.11n HT40

MCS7
MCS0

802.11ac VHT20

MCS8
MCS0

802.11ac VHT40

MCS7
MCS0

802.11ac VHT80

MCS9
MCS0

802.11ax HE20

MCS11
MCS0

802.11ax HE40

MCS11
MCS0

802.11ax HE80

MCS11
MCS0

802.11ax HE160

MCS11
MCS0

802.11be EHT20

MCS13
MCS0

802.11be EHT40

MCS13
MCS0

802.11be EHT80

MCS13
MCS0

802.11be EHT160

MCS13
MCS0

2.4G EVM

802.11b : ≤-10dB；802.11g : ≤-25dB；802.11n : ≤ -28dB；802.11ax : ≤ -35dB；802.11be : ≤-38dB

5G EVM

802.11a : ≤-25dB；802.11n : ≤-28dB；802.11ac : ≤ -32dB；802.11ax : ≤ -35dB；802.11be : ≤-38dB

Software Features

LAN

Static IP / Dynamic IP

WAN

Static IP
Dynamic IP
PPPoE/PPTP/L2TP

Wireless Mode

Access Point

Gateway

Repeater

WISP

Channel Width

20MHz, 40MHz, 80MHz, 160MHz

Encryption Security

WPA3 Personal

WPA2/WPA3 Personal

WPA2 Personal (AES)

WPA2 Personal (TKIP)

WPA2 Personal (TKIP+AES)

WPA/WPA2 Personal (AES)

WPA/WPA2 Personal (TKIP)

WPA/WPA2 Personal (TKIP+AES)

WPA2 Enterprise (802.1X)

WPA/WPA2 Enterprise (802.1X)

Supported EAP Methods

EAP - Transport Layer Security (TLS)

EAP-Tunneled TLS (TTLS) + Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)

Protected EAP (PEAP) v0 + EAP-MSCHAPv2

PEAP v1 + EAP-Generic Token Card (GTC)

Wireless Security

Enable/Disable SSID broadcast

Wireless max. 32 MAC address filtering

User isolation

Max. SSIDs

8 (4 per radio)

Max. Clients

256 (128 is suggested, depending on usage)

Wireless QoS

Supports Wi-Fi Multimedia (WMM)

Wireless Advanced

Auto Channel Selection

5-level Transmit Power Control Max (100%), Efficient (75%), Enhanced (50%), Standard (25%) or Min (15%)

Client Limit Control, Coverage Threshold

Wi-Fi channel analysis chart

Seamless roaming

Beamforming

BSS coloring

Status Monitoring

Device status, wireless client List

PLANET Smart Discovery

DHCP client table

System Log supports remote syslog server

VLAN

IEEE 802.1Q VLAN (VID: 1~4094)
SSID-to-VLAN mapping to up to 4 SSIDs

Self-healing

Supports auto reboot settings per day/hour

Management

Remote management through PLANET DDNS/ Easy DDNS

Configuration backup and restore

Supports UPnP*

Supports IGMP Proxy

Supports PPTP/L2TP/IPSec VPN Pass-through

Supports Captive Portal, RADIUS Server/Client

Central Management

Applicable controllers: NMS APC, WS APC, VR/IVR APC, ICG APC, PLANET CloudNMS

Environment & Certification

Temperature

Operating: -10~ 50 degrees C

Storage: -40 ~ 70 degrees C

Humidity

Operating: 10 ~ 90% (non-condensing)

Storage: 5 ~ 95% (non-condensing)

Regulatory

CE, RoHS

Remarks [*]: The feature will be supported through firmware/system upgrade.

订购信息
WDAP-W3600BE	Wi-Fi 7 Dual Band 802.11be 3600Mbps In-wall Wireless Access Point (EU Type, 1 100/1000/2500T 802.3at PoE PD and 1 10/100/1000T LAN Port)
