WDAP-5100BE

Wi-Fi 7 双频 802.11be 5100Mbps 室外无线接入点

概述
应用场景
功能特性
产品规格
下载

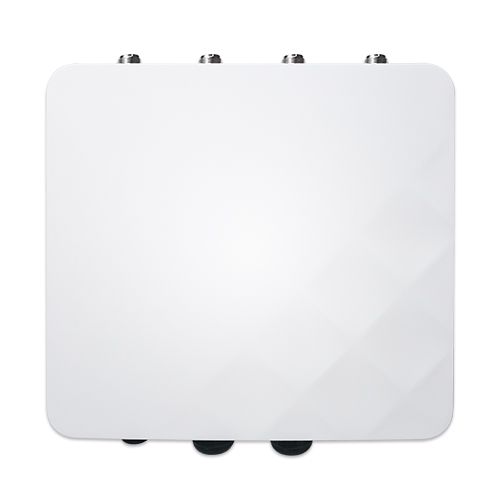

下一代室外Wi-Fi 7旗舰性能

WDAP-5100BE是普莱德的新一代旗舰室外无线接入点，采用升级的2×2（2.4GHz）+ 3×3（5GHz）Wi-Fi 7架构，总吞吐量高达5100Mbps。凭借先进的Wi-Fi 7技术，包括EHT调制、4096-QAM、OFDMA、MU-MIMO和BSS Coloring，它在广域部署中提供超快速度、极低延迟和高效的带宽利用率。即使在干扰严重或高密度的室外环境中，WDAP-5100BE也能为关键任务应用提供持续流畅和响应迅速的无线性能。

坚固的IP67金属结构，适用于极端室外环境

WDAP-5100BE 采用强化金属外壳，具备IP67防护等级，能够完全抵抗灰尘侵入和强力水淋，确保在恶劣环境条件下可靠运行。其工业级硬件支持-40°C至70°C的宽工作温度范围，无论在严寒气候还是酷热室外环境中均能稳定工作。凭借增强的防雷电路和出色的机械耐久性，WDAP-5100BE 在部署于杆塔、屋顶、建筑外墙或暴露的工业场所时依然高度可靠。

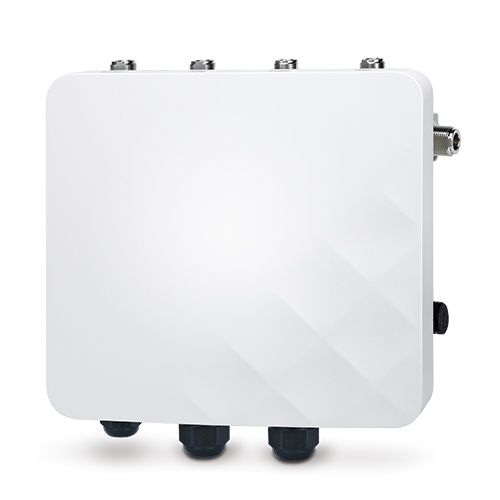

灵活的外部天线部署以扩展覆盖范围

WDAP-5100BE配备5个N型连接器（2x2用于2.4GHz + 3x3用于5GHz），允许灵活选择天线以匹配部署需求。这种先进的Wi-Fi 7架构增强了波束成形增益和接收灵敏度，显著提高了上行稳定性。通过在更远距离上保持更高的MCS速率，它超越了传统的2x2解决方案，非常适合高密度环境和关键任务监控上行链路。

企业级安全与无缝移动性

WDAP-5100BE采用企业级无线安全性和移动性设计，支持WPA3加密、SSID到VLAN的划分、无缝漫游机制和高级访问控制功能。用户和设备可以在广阔的户外环境中移动而不会遇到服务中断，使该AP非常适合校园设施、度假区、市政户外网络以及其他需要稳定安全连接的大型露天部署。

普莱德CloudNMS – 基于云端的通用网络管理

普莱德的CloudNMS平台和移动应用程序使IT人员能够实时远程管理所有网络设备和受电设备（PD）。专为企业及行业设计，CloudNMS通过提供集中监控、故障检测和即时告警，最大程度减少现场故障排除的需求。

借助CloudNMS，企业可以更高效、安全且智能地管理多样化的网络部署——所有这些都来自一个统一的云端平台。

Hardware Specifications

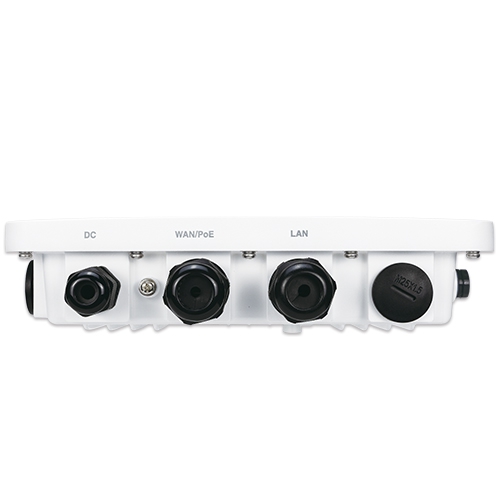

Interfaces

WAN/PoE: 1 x 100/1000/2500BASE-T RJ45 port
LAN: 1 x 10/100/1000BASE-T RJ45 port
Auto-negotiation and auto MDI/MDI-X

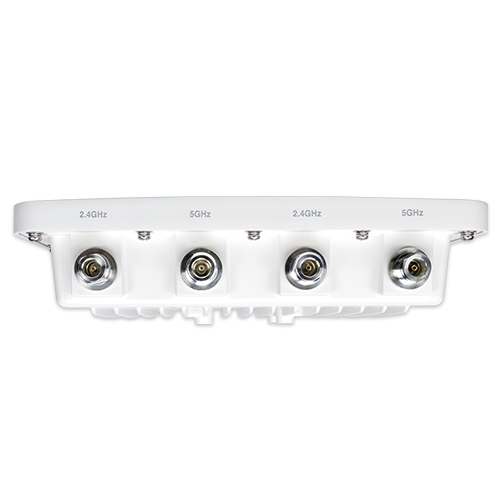

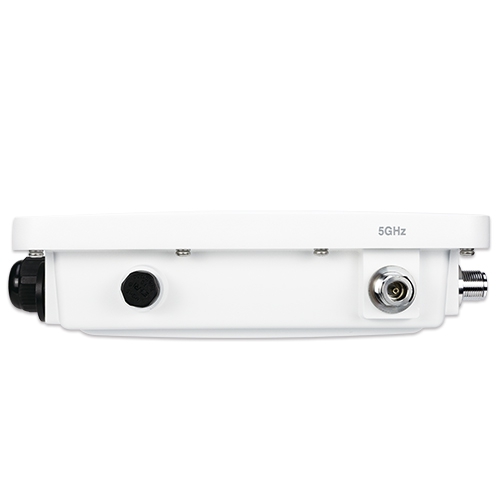

Antennas Connectors

2 x 2.4GHz N-Type Connectors
3 x 5GHz N-Type Connectors

Reset Button

Reset button on the rear side (Press over 5 seconds to reset the device to factory default.)

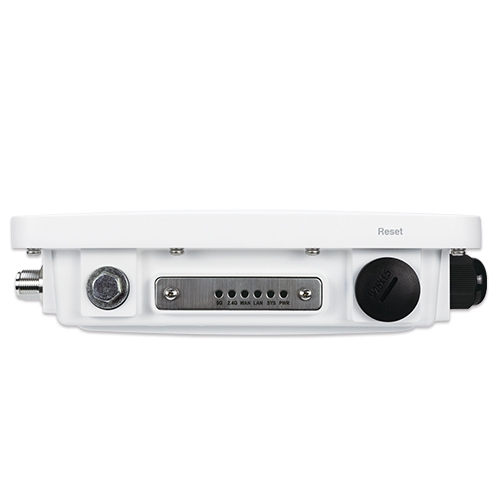

LED Indicators

6 x Green LEDs for Power, System, LAN, WAN, 2.4GHz, and 5GHz status

Dimensions (W × D × H)

243.16 × 218.26 × 64.04 mm (without antennas)

Weight

2.0 kg

Material

Aluminum

Power Requirements

IEEE 802.3at PoE (End-span, not support Mid-span), DC 12V/2A

Power Consumption

Max. 5.9 watts / 20.12 BTU (Power on without any connection)
Max. 10.5 watts / 35.81 BTU (Full loading)

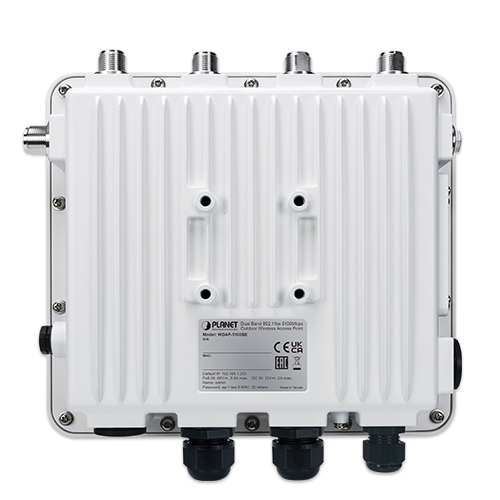

Mounting

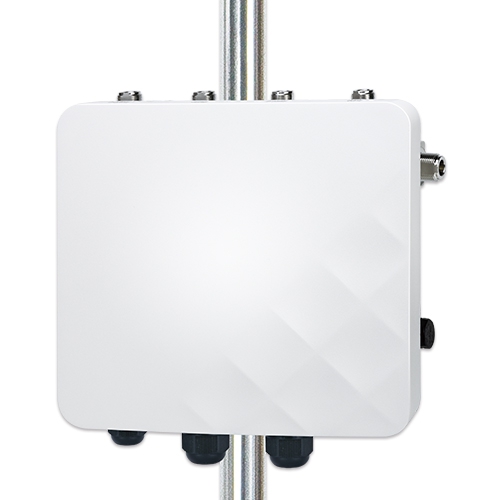

Mast mounting

IP Level

IP67

ESD Protection

±8kV air gap discharge
±6kV contact discharge

Surge Protection

2KV (Common Mode), ±1KV (Differential Mode)

Wireless Interface Specifications

Standard

5GHz:
　IEEE 802.11be
　IEEE 802.11ax
　IEEE 802.11ac
　IEEE 802.11n
　IEEE 802.11a
2.4GHz:
　IEEE 802.11be
　IEEE 802.11ax
　IEEE 802.11n
　IEEE 802.11b
　IEEE 802.11g
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2500BASE-T
IEEE 802.3x flow control
IEEE 802.11k, 802.11v, and 802.11r*
IEEE 802.11i

Media Access Control

CSMA/CA

Data Modulation

802.11be: MIMO-OFDM/OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM / 1024QAM / 4096QAM)
802.11ax: MIMO-OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM, 1024QAM)
802.11ac: MIMO-OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM)
802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM)
802.11b: DSSS (DBPSK / DQPSK / CCK)

Band Mode

2.4GHz / 5GHz concurrent mode

Frequency Range

2.4GHz:
FCC: 2.412~2.462GHz
ETSI: 2.412~2.472GHz
5GHz:
FCC: 5.180~5.240GHz, 5.745~5.825GHz
ETSI: 5.180~5.700GHz

Operating Channels

ETSI:
　2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 (13 Channels)
　5GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120,124,128,132, 136, 140 (19 channels)
FCC:
　2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11 (11 channels)
　5GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116,120,124,128,132, 136, 140, 149, 153, 157, 161,165 (24 channels)

5GHz channel list may vary in different countries according to their regulations.

Max. Transmit Power (dBm)

FCC: up to 24 ± 2dBm
ETSI: < 19dBm (EIRP)

Network Mode	Data Rate	Max. Transmit Power (dBm)
2.4GHz Power
802.11b	11M 1M	24 ± 2 24 ± 2
802.11g	54M 6M	21 ± 2 23 ± 2
802.11n HT20	MCS7 MCS0	20 ± 2 22 ± 2
802.11n HT40	MCS7 MCS0	20 ± 2 22 ± 2
802.11ax HE20	MCS11 MCS0	18 ± 2 22 ± 2
802.11ax HE40	MCS11 MCS0	18 ± 2 22 ± 2
802.11be EHT20	MCS13 MCS0	18 ± 2 22 ± 2
802.11be EHT40	MCS13 MCS0	18 ± 2 22 ± 2
5G Power
802.11a	54M 6M	19 ± 2 21 ± 2
802.11n HT20	MCS7 MCS0	16 ± 2 19 ± 2
802.11n HT40	MCS7 MCS0	16 ± 2 19 ± 2
802.11ac VHT20	MCS7 MCS0	16 ± 2 19 ± 2
802.11ac VHT40	MCS7 MCS0	16 ± 2 19 ± 2
802.11ac VHT80	MCS9 MCS0	15 ± 2 19 ± 2
802.11ax HE20	MCS11 MCS0	16 ± 2 19 ± 2
802.11ax HE40	MCS11 MCS0	16 ± 2 19 ± 2
802.11ax HE80	MCS11 MCS0	15 ± 2 19 ± 2
802.11ax HE160	MCS11 MCS0	15 ± 2 19 ± 2
802.11be EHT20	MCS13 MCS0	15 ± 2 19 ± 2
802.11be EHT40	MCS13 MCS0	15 ± 2 19 ± 2
802.11be EHT80	MCS13 MCS0	14 ± 2 19 ± 2
802.11be EHT160	MCS13 MCS0	14 ± 2 19 ± 2

Network Mode

Data Rate

802.11b

11M
1M

802.11g

54M
6M

802.11n HT20

MCS7
MCS0

802.11n HT40

MCS7
MCS0

802.11ax HE20

MCS11
MCS0

802.11ax HE40

MCS11
MCS0

802.11be EHT20

MCS13
MCS0

802.11be EHT40

MCS13
MCS0

802.11a

54M
6M

802.11n HT20

MCS7
MCS0

802.11n HT40

MCS7
MCS0

802.11ac VHT20

MCS7
MCS0

802.11ac VHT40

MCS7
MCS0

802.11ac VHT80

MCS9
MCS0

802.11ax HE20

MCS11
MCS0

802.11ax HE40

MCS11
MCS0

802.11ax HE80

MCS11
MCS0

802.11ax HE160

MCS11
MCS0

802.11be EHT20

MCS13
MCS0

802.11be EHT40

MCS13
MCS0

802.11be EHT80

MCS13
MCS0

802.11be EHT160

MCS13
MCS0

Receive Sensitivity

Network Mode	Data Rate	Receive Sensitivity (dBm) (dBm)
2.4GHz
802.11b	11Mbps 1Mbps	-88 -97
802.11g	54Mbps 6Mbps	-75 -92
802.11n HT20	MCS7 MCS0	-72 -92
802.11n HT40	MCS7 MCS0	-68 -88
802.11ax HE20	MCS11 MCS0	-63 -92
802.11ax HE40	MCS11 MCS0	-58 -88
802.11be EHT20	MCS13 MCS0	-58 -88
802.11be EHT40	MCS13 MCS0	-56 -86
5GHz
802.11a	54Mbps 6Mbps	-75 -95
802.11n HT20	MCS7 MCS0	-72 -92
802.11n HT40	MCS7 MCS0	-70 -88
802.11ac VHT20	MCS7 MCS0	-68 -88
802.11ac VHT40	MCS7 MCS0	-63 -86
802.11ac VHT80	MCS9 MCS0	-60 -84
802.11ax HE20	MCS11 MCS0	-60 -88
802.11ax HE40	MCS11 MCS0	-58 -86
802.11ax HE80	MCS11 MCS0	-54 -84
802.11ax HE160	MCS11 MCS0	-52 -82
802.11be EHT20	MCS13 MCS0	-54 -86
802.11be EHT40	MCS13 MCS0	-52 -84
802.11be EHT80	MCS13 MCS0	-50 -82
802.11be EHT160	MCS13 MCS0	-48 -80

Network Mode

Data Rate

802.11b

11Mbps
1Mbps

802.11g

54Mbps
6Mbps

802.11n HT20

MCS7
MCS0

802.11n HT40

MCS7
MCS0

802.11ax HE20

MCS11
MCS0

802.11ax HE40

MCS11
MCS0

802.11be EHT20

MCS13
MCS0

802.11be EHT40

MCS13
MCS0

802.11a

54Mbps
6Mbps

802.11n HT20

MCS7
MCS0

802.11n HT40

MCS7
MCS0

802.11ac VHT20

MCS7
MCS0

802.11ac VHT40

MCS7
MCS0

802.11ac VHT80

MCS9
MCS0

802.11ax HE20

MCS11
MCS0

802.11ax HE40

MCS11
MCS0

802.11ax HE80

MCS11
MCS0

802.11ax HE160

MCS11
MCS0

802.11be EHT20

MCS13
MCS0

802.11be EHT40

MCS13
MCS0

802.11be EHT80

MCS13
MCS0

802.11be EHT160

MCS13
MCS0

2.4G EVM

802.11b : ≤-10dB；802.11g : ≤-25dB；802.11n : ≤ -28dB；802.11ax : ≤ -35dB；802.11be : ≤-38dB

5G EVM

802.11a : ≤-25dB；802.11n : ≤-28dB；802.11ac : ≤ -32dB；802.11ax : ≤ -35dB；802.11be : ≤-38dB

Software Features

LAN

Static IP / Dynamic IP

WAN

Static IP
Dynamic IP
PPPoE / PPTP / L2TP

Wireless Mode

Access Point

Gateway

Repeater

WISP

Channel Width

20MHz, 40MHz, 80MHz, 160MHz

Encryption Security

WPA3 Personal

WPA2/WPA3 Personal

WPA2 Personal (AES)

WPA2 Personal (TKIP)

WPA2 Personal (TKIP+AES)

WPA/WPA2 Personal (AES)

WPA/WPA2 Personal (TKIP)

WPA/WPA2 Personal (TKIP+AES)

WPA2 Enterprise (802.1X)

WPA/WPA2 Enterprise (802.1X)

Supported EAP Methods

EAP - Transport Layer Security (TLS)

EAP-Tunneled TLS (TTLS) + Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)

Protected EAP (PEAP) v0 + EAP-MSCHAPv2

PEAP v1 + EAP-Generic Token Card (GTC)

Wireless Security

Enable/Disable SSID broadcast

Wireless max. 32 MAC address filtering

User isolation

Max. SSIDs

8 (4 per radio)

Max. Clients

256 (128 is suggested, depending on usage)

Wireless QoS

Supports Wi-Fi Multimedia (WMM)

Wireless Advanced

Auto Channel Selection

5-level Transmit Power Control Max (100%), Efficient (75%), Enhanced (50%), Standard (25%) or Min (15%)

Client Limit Control, Coverage Threshold

Wi-Fi channel analysis chart

Seamless roaming

Beamforming

BSS coloring

Status Monitoring

Device status, wireless client List

PLANET Smart Discovery

DHCP client table

System Log supports remote syslog server

VLAN

IEEE 802.1Q VLAN (VID: 1~4094)
SSID-to-VLAN mapping to up to 4 SSIDs

Self-healing

Supports auto reboot settings per day/hour

Management

Remote management through PLANET DDNS/ Easy DDNS

Configuration backup and restore

Supports UPnP*

Supports IGMP Proxy

Supports PPTP/L2TP/IPSec VPN Pass-through

Supports Captive Portal*, RADIUS Server/Client

Central Management

Applicable controllers: NMS APC, WS APC, VR/IVR APC, ICG APC, PLANET CloudNMS

Environment & Certification

Temperature

Operating: -40~ 70 degrees C

Storage: -40 ~ 70 degrees C

Humidity

Operating: 10 ~ 90% (non-condensing)

Storage: 5 ~ 95% (non-condensing)

Regulatory

CE, RoHS

Remarks [*]: The feature will be supported through firmware/system upgrade.

Note: Optional accessories, such as antenna adapters, are not included.

订购信息
WDAP-5100BE	Wi-Fi 7 Dual Band 802.11be 5100Mbps Outdoor Wireless Access Point
