| Hardware Specifications |
| Interfaces |

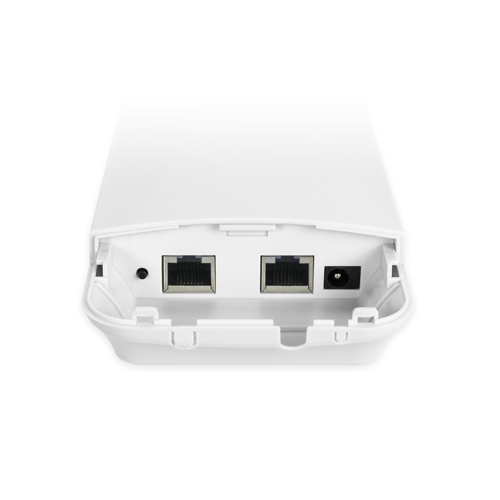

WAN/PoE: 1 x 100/1000/2500BASE-T RJ45 port
LAN: 1 x 10/100/1000BASE-T RJ45 port
Auto-negotiation and auto MDI/MDI-X |
| Antennas |

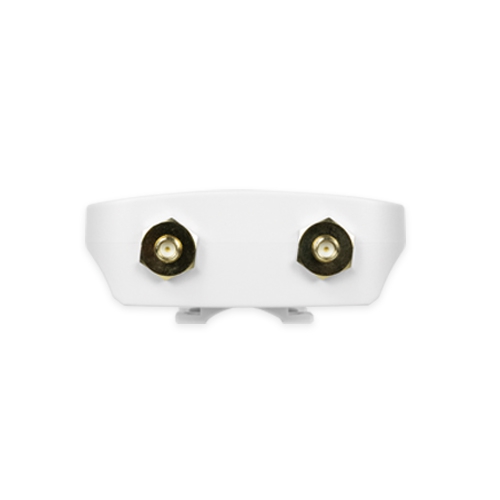

2 × External dual-band RP-SMA type antennas (2.4GHz / 5GHz: 5dBi) |
| Reset Button |
Reset button on the rear side (Press 6-10 seconds to reset the device to factory default.) |
| LED Indicators |

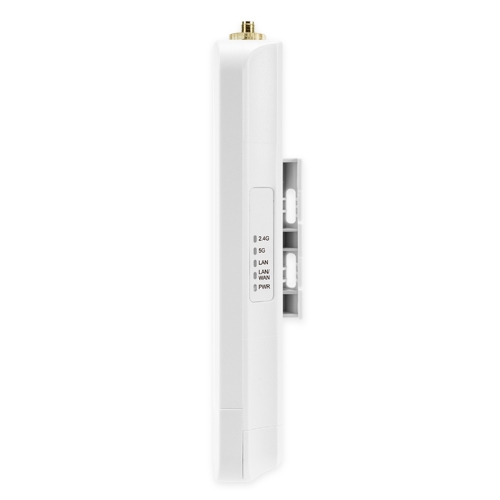

5 × Green LEDs for Power, LAN, WAN, and Wi-Fi (2.4GHz / 5GHz) status |
| Dimensions (W × D × H) |
86 × 30 × 186 mm (without antennas) |
| Weight |
550g |
| Material |
ABS+PC |
| Power Requirements |
IEEE 802.3af/at PoE (End-span, not support Mid-span), DC 12V/2A |
| Power Consumption |
Max. 5.5 watts / 18.76 BTU (Power on without any connection) Max. 9.5 watts / 32.4 BTU (Full loading) |
| Mounting |

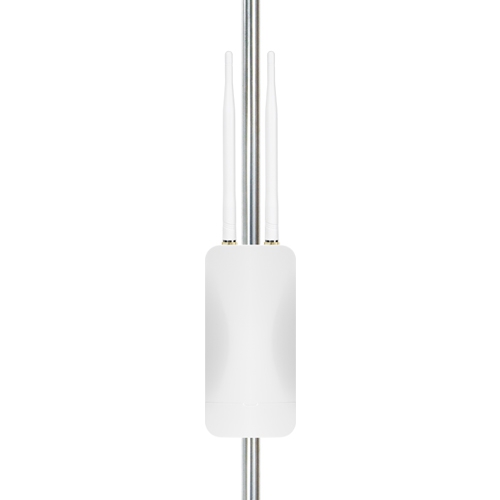

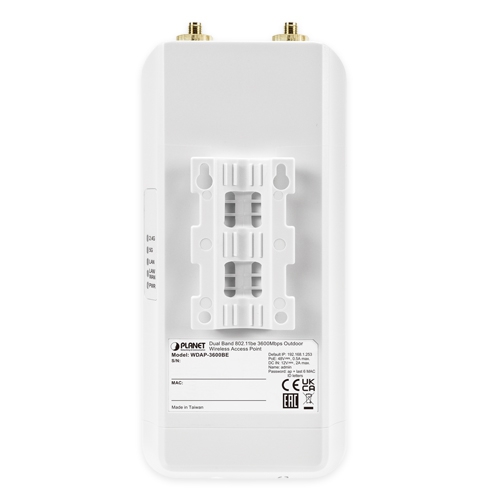

Mast mounting |
| IP Level |
IP65 |
| Surge Protection |
±2KV (Common Mode), ±1KV (Differential Mode) |
| Wireless Interface Specifications |
| Standard |
5GHz: IEEE 802.11be IEEE 802.11ax IEEE 802.11ac IEEE 802.11n IEEE 802.11a 2.4GHz: IEEE 802.11be IEEE 802.11ax IEEE 802.11n IEEE 802.11b IEEE 802.11g IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2500BASE-T IEEE 802.3x flow control IEEE 802.11k, 802.11v, and 802.11r* IEEE 802.11i |
| Media Access Control |
CSMA/CA |
| Data Modulation |
802.11be: MIMO-OFDM/OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM / 1024QAM / 4096QAM) 802.11ax: MIMO-OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM, 1024QAM) 802.11ac: MIMO-OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM) 802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM) 802.11b: DSSS (DBPSK / DQPSK / CCK) |
| Band Mode |
2.4GHz / 5GHz concurrent mode Frequency Range 2.4GHz: FCC: 2.412~2.462GHz ETSI: 2.412~2.472GHz 5GHz: FCC: 5.180~5.240GHz, 5.745~5.825GHz ETSI: 5.180~5.700GHz |
| Operating Channels |
ETSI: 2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 (13 Channels) 5GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120,124,128,132, 136, 140 (19 channels) FCC: 2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11 (11 channels) 5GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116,120,124,128,132, 136, 140, 149, 153, 157, 161,165 (24 channels) *5GHz channel list may vary in different countries according to their regulations. |
| Max. Transmit Power (dBm) |
FCC: up to 22 ± 2dBm ETSI: < 19dBm (EIRP) | Network Mode | Data Rate | Max. Transmit Power (dBm) | 2.4G Power | | 802.11b | 11Mbps 1Mbps | 22±2 22±2 | | 802.11g | 54Mbps 6Mbps | 20±2 22±2 | | 802.11n HT20 | MCS7 MCS0 | 18±2 20±2 | | 802.11n HT40 | MCS7 MCS0 | 18±2 20±2 | | 802.11ax HE20 | MCS11 MCS0 | 17±2 20±2 | | 802.11ax HE40 | MCS11 MCS0 | 17±2 21±2 | | 802.11be EHT20 | MCS13 MCS0 | 16±2 20±2 | | 802.11be EHT40 | MCS13 MCS0 | 16±2 20±2 | | 5G Power | | 802.11a | 54Mbps 6Mbps | 18±2 20±2 | | 802.11n HT20 | MCS7 MCS0 | 17±2 19±2 | | 802.11n HT40 | MCS7 MCS0 | 18±2 19±2 | | 802.11ac VHT20 | MCS8 MCS0 | 16±2 19±2 | | 802.11ac VHT40 | MCS7 MCS0 | 17±2 19±2 | | 802.11ac VHT80 | MCS9 MCS0 | 17±2 19±2 | 802.11ax HE20 | MCS11 MCS0 | 16±2 19±2 |
|
| Network Mode |
Data Rate |
| 802.11b |
11Mbps 1Mbps |
| 802.11g |
54Mbps 6Mbps |
| 802.11n HT20 |
MCS7 MCS0 |
| 802.11n HT40 |
MCS7 MCS0 |
| 802.11ax HE20 |
MCS11 MCS0 |
| 802.11ax HE40 |
MCS11 MCS0 |
| 802.11be EHT20 |
MCS13 MCS0 |
| 802.11be EHT40 |
MCS13 MCS0 |
| 802.11a |
54Mbps 6Mbps |
| 802.11n HT20 |
MCS7 MCS0 |
| 802.11n HT40 |
MCS7 MCS0 |
| 802.11ac VHT20 |
MCS8 MCS0 |
| 802.11ac VHT40 |
MCS7 MCS0 |
| 802.11ac VHT80 |
MCS9 MCS0 |
| 802.11ax HE40 |
MCS11 MCS0 |
| 802.11ax HE80 |
MCS11 MCS0 |
| 802.11ax HE160 |
MCS11 MCS0 |
| 802.11be EHT20 |
MCS13 MCS0 |
| 802.11be EHT40 |
MCS13 MCS0 |
| 802.11be EHT80 |
MCS13 MCS0 |
| 802.11be EHT160 |
MCS13 MCS0 |
