| Hardware |
| Standard Support |
IEEE 802.11a/n/ac
IEEE 802.11i
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x flow control
IEEE 802.11k, 802.11v, and 802.11r |
| Dimensions (W x D x H) |
87 x 38 x 260 mm |
| Weight |
405g |
| Power Requirements |
48V DC IN,0.5A, IEEE 802.3 at PoE+ or
12V DC IN, 1.0A from DC Jack |
| Power Consumption (max.) |
< 10W |

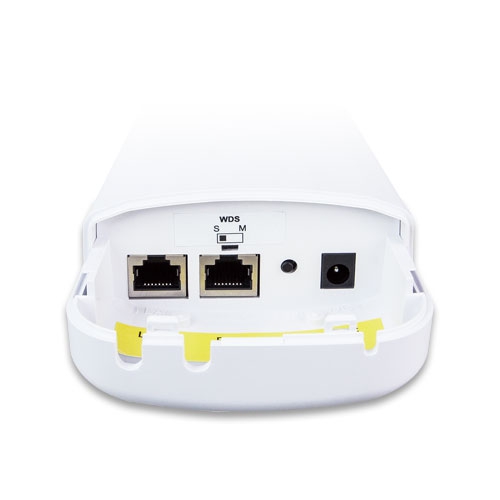

| Interface |
Wireless IEEE 802.11a/n/ac, 2T2R
PoE: 1 x 10/100/1000BASE-TX, auto-MDI/MDIX, 802.3 at PoE In
LAN: 1x 10/100/1000BASE-TX, auto-MDI/MDIX |
| Button |
Reset/Pair button, PtP Switch |
| Antenna |
Built-in 14dBi directional antenna with dual polarization
Half-power beam width
Horizontal: 50 degrees
Vertical: 15 degrees |
| Data Rate |
IEEE 802.11a: up to 54Mbps
IEEE 802.11n (20MHz): up to 150Mbps
IEEE 802.11n (40MHz): up to 300Mbps
IEEE 802.11ac (80MHz): up to 867Mbps |
| Media Access Control |
CSMA/CA |
| Modulation |
802.11 a/n/ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM) |
| Frequency Band |
FCC: 5.180~5.240GHz, 5.745~5.825GHz
ETSI: 5.180~5.700GHz |
| Operating Channels |
FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165 (9 channels)
ETSI: 36, 40, 44, 48, 100, 104, 108, 112, 116, 132, 136, 140 (12 channels)
5GHz channel list will vary in different countries according to their regulations. |
| Max. Transmit Power (dBm) |
FCC: up to 25 ± 1dBm
ETSI: < 20dBm (EIRP) |
| Receiver Sensitivity (dBm) |
| Network Mode | Data Rate | Receive Sensitivity (dBm) | | 802.11a | 6Mbps | -92 | | 54Mbps | -75 | | 802.11n HT20 | MCS0/MCS8 | -91 | | MCS7/MCS15 | -72 | | 802.11n HT40 | MCS0/MCS8 | -88 | | MCS7/MCS15 | -70 | | 802.11ac VHT20 | MCS0 | -92 | | MCS8 | -70 | | 802.11ac VHT40 | MCS0 | -89 | | MCS9 | -65 | | 802.11ac VHT80 | MCS0 | -87 | | MCS9 | -61 | |
| Network Mode |
Data Rate |
| 802.11a |
6Mbps |
| 54Mbps |
-75 |
| 802.11n HT20 |
MCS0/MCS8 |
| MCS7/MCS15 |
-72 |
| 802.11n HT40 |
MCS0/MCS8 |
| MCS7/MCS15 |
-70 |
| 802.11ac VHT20 |
MCS0 |
| MCS8 |
-70 |
| 802.11ac VHT40 |
MCS0 |
| MCS9 |
-65 |
| 802.11ac VHT80 |
MCS0 |
| MCS9 |
-61 |
| Environment & Certification |
| Operating Temperature |
-20 ~ 70 degrees C |
| Operating Humidity |
5 ~ 90% (non-condensing) |
| IP Level |
IP55 |
| ESD Protection |
± 8kV air-gap discharge
± 4kV contact discharge |
| Surge Protection |
± 4kV |
| Regulatory |
CE, RoHS |
| Software |
| LAN |
Static IP/DHCP
Supports IP-MAC binding |
| WAN Type (GW/WISP mode) |
- Static IP
- Dynamic IP
- PPPoE
|
| Wireless Modes |
- Access Point
- Gateway
- Repeater
- Super WDS
- WISP
|
| Channel Width |
20MHz, 40MHz, 80MHz |
| Encryption Type |
64-/128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X |
| Wireless Security |
Enable/Disable SSID Broadcast
Wireless Max. 32 MAC address filtering
User Isolation |
| Max. SSIDs |
4 |
| Max. Wireless Clients |
64 per radio (50 is suggested, depending on usage) |
| Max. WDS Peers |
4 (Up to 3 peers by using “One-click WDS”) |
| Wireless QoS |
Supports Wi-Fi Multimedia (WMM) |
| Wireless Advanced |
Auto Channel Selection
5-level Transmit Power Control (Max. (100%), Efficient (75%), Enhanced (50%), Standard (25%), Min. (12.5%))
Client Limit Control, Coverage Threshold
Wi-Fi channel analysis chart
Fast Roaming(IEEE 802.11k, 802.11r, 802.11v) |
| Status Monitoring |
Device status, wireless client List
PLANET Smart Discovery
DHCP client table
System Log supports remote syslog server |
| VLAN |
IEEE 802.1Q VLAN (VID: 3~4094)
SSID-to-VLAN mapping up to 4 SSIDs |
| Self-healing |
Supports auto reboot settings per day/hour |
| Management |
Remote management through PLANET DDNS/Easy DDNS
Configuration backup and restore
Supports UPnP
Supports IGMP Proxy
Supports PPTP/L2TP/IPSec VPN Pass-through
SNMP v1/v2c/v3 support, MIB I/II, Private MIB |
| Central Management |
Applicable controllers: WAPC-500, WAPC-1000, NMS-500, NMS-1000V |
