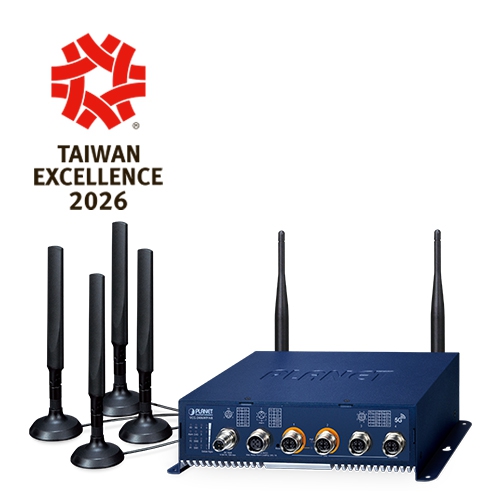

| Hardware Specifications |
| Copper Ports |

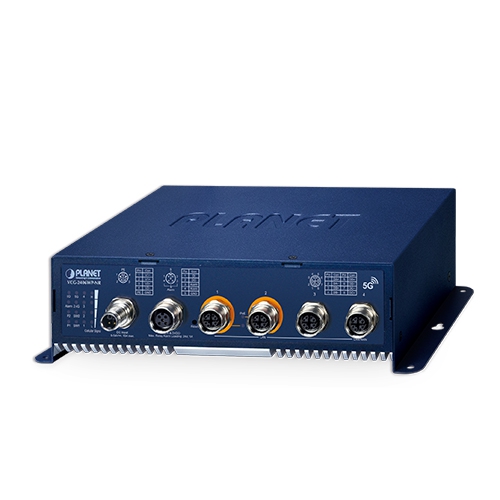

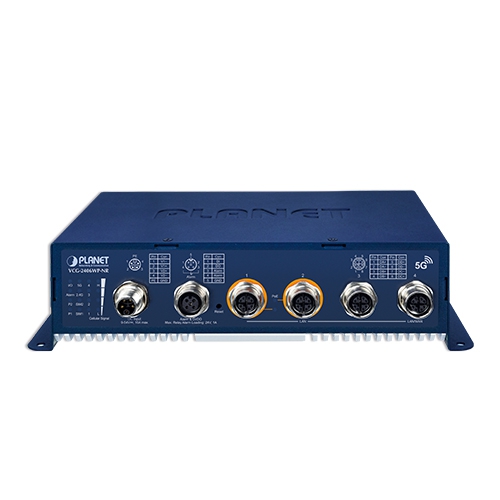

Total: 4 × 10/100/1000BASE-T Ethernet ports, M12 8-pin X-coded female connectors
Port assignments:
Ports 1–2: LAN ports with IEEE 802.3at PoE (PSE)
Port 3: Dedicated LAN port
Port 4: Configurable LAN/WAN port |
| SIM Interface |

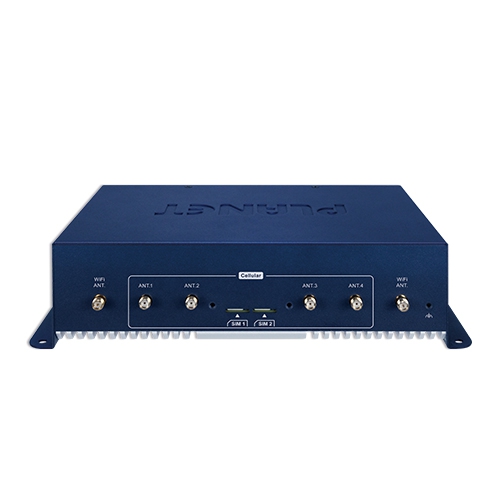

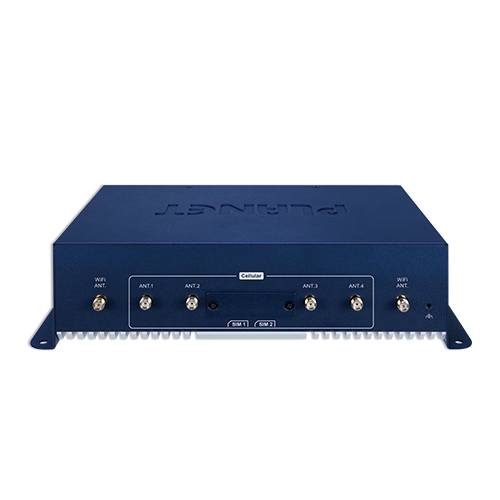

2 SIM card slots supporting Nano-SIM |
| Cellular Antenna |

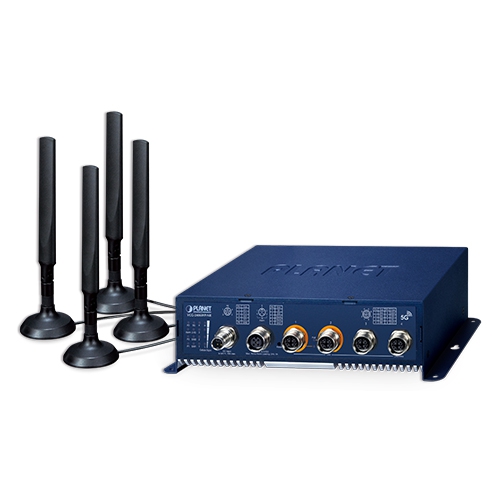

4 × 5 dBi gain external antennas, SMA-type connectors, for 5G NR |
| Wireless Antenna |
2 × 2.4GHz and 5GHz dual-band external antennas with RP-SMA female connectors for Wi-Fi
peak gain: 4.33 dBi @2.4GHz, 4.47 dBi @5GHz |
| DI & DO Interfaces |
1 x M12 A-coded 5-pin male connector for DI/DO and alarm interface
Pin 1 for DI and Pin 2 for DO
Pin 3/4 for Alarm
Pin 5 for GND |
| Alarm |
One relay output for port breakdown and power failure.
Alarm relay current carry ability: 1A @ 24V DC |
| Digital Input (DI) |
One digital input (DI)
Level 0: -24V~2.1V (±0.1V)
Level 1: 2.1V~24V (±0.1V)
Input load to 24V DC, 10mA max. |
| Digital Output (DO) |
One digital output (DO)
Open collector to 24V DC, 100mA max. |

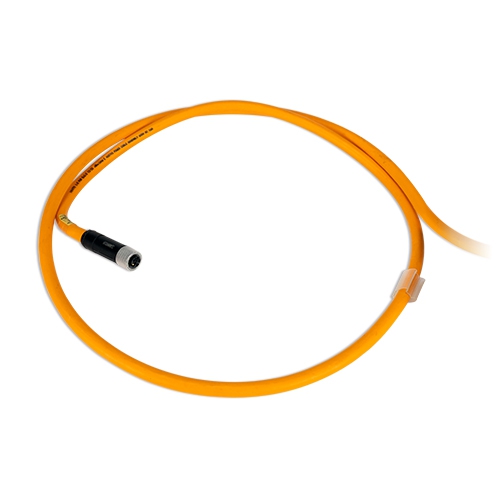

| Power Connector |
Connector type: M12 K-coded, 5-pin female
Pin assignment:
Pin 1: V1-
Pin 2: V1+
Pin 3: V2+
Pin 4: V2−
Pin PE: GND |
| Number of Power Input |
2 |
| Power Requirements |
Input voltage: 9–54 V DC |
| Power Consumption |
Max.10.2 watts/34.8BTU (Power on without any connection)
Max. 81 watts/276.38 BTU (Full loading) |
| Enclosure |

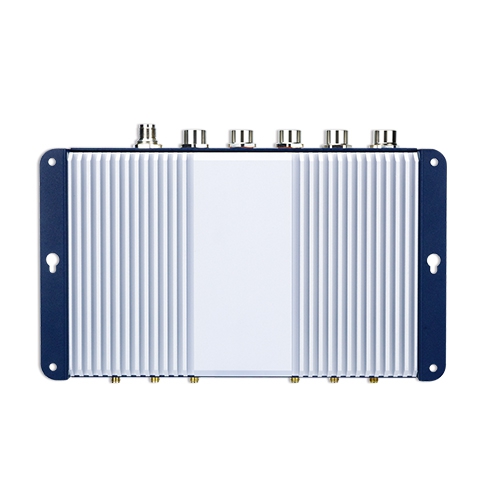

IP50 aluminum case |
| Reset Button |
Press < 5 seconds: System reboot
Press > 5 seconds: Restore factory default settings |
| Installation |
Desktop
Wall-mount |
| Weight |
1725g |
| Dimensions |
245 × 140.5 × 60 mm (W × D × H) |
| LED Indicators |
System
P1 (Green): Power 1 status
P2 (Green): Power 2 status
Alarm (Red): System alarm indicator
I/O (Red): Digital input/output status
Ethernet Interfaces (Ports 1–4)
10/100/1000 LNK/ACT (Green): Link/activity at 10/100/1000 Mbps
PoE
PoE (Amber): Link/activity
Wi-Fi
2.4G (Green): 2.4 GHz Wi-Fi status
5G (Green): 5 GHz Wi-Fi status
Cellular SIM
SIM1 (Green): SIM card 1 status
SIM2 (Green): SIM card 2 status
Cellular Signal Strength
4 levels (Green): Indicates signal strength (1–4 LEDs lit) |
| Multi Band Supports |
| 5G |
NSA: n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79
SA: n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79 |
| LTE |
LTE-FDD: B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/ 66/ 71
LTE-TDD: B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48
LAA: B46 |
| UMTS/WCDMA |
B1/ 2/ 4/ 5/ 8/ 19 |
| GNSS |
GPS/ GLONASS/ BDS/ Galileo/ QZSS |
| Data Transmission Throughput |
5G SA Sub-6 data rate Max. 2.4 Gbps (DL) / Max. 900 Mbps (UL)
5G NSA Sub-6 data rate Max. 3.4 Gbps (DL) / Max. 550 Mbps (UL)
LTE data rate Max. 1.6 Gbps (DL) / Max. 200 Mbps (UL)
WCDMA data rate Max. 42 Mbps (DL) / Max. 5.76 Mbps (UL) |
| Power over Ethernet |
| PoE Standard |
IEEE 802.3af / 802.3at PoE+ PSE |
| PoE Power Supply Type |
End-span |
| PoE Power Output |
Per port 54V DC, 36 watts (max.) |
| Power Pin Assignment |
1/2 (+), 3/6 (-) |
| PoE Power Budget |
60 watts (max.) |
| Max. Number of Class 4 PDs |
2 |
| PoE Management |
PD Alive Check
Scheduled Power Recycling
PoE Schedule
PoE Usage Monitoring |
| Wireless |
| Standard |
IEEE 802.11a/n/ac/ax (5 GHz)
IEEE 802.11g/b/n/ax (2.4 GHz) |
| Band Mode |
2.4 GHz and 5 GHz concurrent mode |
| Frequency Range |
2.4GHz
FCC: 2.412~2.462GHz
ETSI: 2.412GHz~2.472GHz
5GHz
FCC: 5.150 – 5.850 GHz
ETSI: 5.150 – 5.725 GHz |
| Operating Channels |
2.4GHz
FCC: Channels 1–11
ETSI: Channels 1–13
5GHz
FCC
Non-DFS: 36, 40, 44, 48, 149, 153, 157, 161, 165
DFS: 52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140
ETSI
Non-DFS: 36, 40, 44, 48
DFS: 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140
Note: 5 GHz channel availability may vary by country according to local regulations. |
| Modulation Type |
802.11ax: MIMO-OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM, 1024QAM)
802.11ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM)
802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM)
802.11b: DSSS (DBPSK / DQPSK / CCK) |
| Channel Width |
20 MHz, 40 MHz, 80 MHz |
| Data Transmission Rates |
Transmit: 600 Mbps* for 2.4 GHz and 1200 Mbps* for 5 GHz
Receive: 600 Mbps* for 2.4 GHz and 1200 Mbps* for 5 GHz
*The estimated transmission distance is based on the theory. The actual distance will vary in different environments. |
| Transmission Power |
11b：23 dBm ±1.5 dBm @11Mbps
11g：20 dbm ±1.5 dBm @54Mbps
11g/n：20 dBm ±1.5 dBm @MCS7, HT20
17 dBm@MCS7,HT40
11a：19.5 dBm ±1.5 dBm @54Mbps
11a/n：19.5 dBm ±1.5 dBm @MCS7, HT20
17dBm@MCS7, HT40
11ac HT20: 20 dBm ±1.5 dBm @MCS8
11ac HT40: 17 dBm ±1.5 dBm @MCS9
11ac HT80: 14.5 dBm ±1.5 dBm @MCS9
11ax HT20: 20 dBm ±1.5 dBm @MCS9
11ax HT40: 17 dBm ±1.5 dBm @MCS9
11ax HT80: 14.5 dBm ±1.5 dBm @MCS11 |
| Encryption Security |
WEP: 64/128-bit encryption
WPA / WPA2: TKIP / AES encryption
WPA-PSK / WPA2-PSK: TKIP / AES encryption
WPA3-PSK (SAE): AES encryption only
802.1X Authenticator |
| Wireless Advanced |
Wi-Fi Multimedia (WMM)
Auto channel selection
Wireless output power management
MAC address filtering |
| Wireless AP Management |
| Maximum Managed APs |
128 |
| Maximum AP Groups |
10 |
| Maximum APs per AP Group |
128 |
| Wireless Encryption/Security |
WEP encryption security
WPA Personal / Enterprise (TKIP / AES)
WPA2 Personal / Enterprise (TKIP / AES)
WPA3 Personal
Enterprise Class 802.1x |
| AP Auto Discovery |
Supports AP auto discovery |
| SSID/RF Profile |
Allows multiple wireless profiles creation and maintenance |
| Cluster Management |
Allows AP grouping for bulk provisioning and batch upgrading |
| Bulk AP Provisioning |
Supports bulk AP provisioning with user-defined profiles |
| Bulk AP Firmware Upgrade |
Supports bulk AP firmware upgrade |
| Coverage Heat Map |
Enables real signal coverage of managed AP reflecting on the uploaded zone maps |
| Status Monitoring |
Real-time traffic statistics reporting of AP and activated clients |
| Graphical Statistics |
Real-time and historical visibility of traffic flow [2] |
| Profile Backup/Restoration |
Provides SSID, radio profile backup/restoration |
| SSIDs-to-VLANs Mapping |
Allows to configure SSIDs-to-VLANs mapping in supported APs |
| Supported Access Point Models [1] |
| Indoor AP |
IAP-1800AX
IAP-2400AX
IAP-3600BE [2]
IAP-3600BE-4PF [2]
WDAP-3600BE
WDAP-W3600BE
WDAP-C5100BE
WDAP-W3000AX
WDAP-C3000AX
WDAP-C7210E(V2)
WDAP-C1800AX(V2)
WDAP-W1800AXU
WDAP-C7210E
WDAP-W1200E
WDAP-C7200E
WDAP-W750E
WNAP-C3220E
WNAP-W2200UE |
| Outdoor AP |
WDAP-3000AX
WDAP-1800AX
WDAP-850AC
WDAP-802AC
WBS-512AC
WBS-502N
WBS-202N
WAP-552N
WAP-252N
WDAP-702AC
WBS-502AC
WBS-500N
WBS-200N
WAP-500N
WAP-200N |
| Remarks |
[1] The supported AP models may be changed after a firmware upgrade.
[2] Planned via future firmware update. |
| Security Service |
| Firewall Security |
Cybersecurity
Stateful Packet Inspection (SPI)
Blocks DoS/DDoS attack |
| ALG (Application Layer Gateway) |
SIP, RTSP, FTP, H.323, TFTP |
| NAT |
Port forwarding
DMZ Host
UPnP |
| Content Filtering |
MAC filtering
IP filtering
Web filtering |
| Bandwidth Management |
Outbound load balancing
Failover for dual-WAN
QoS (Quality of Service) |
| Networking |
| Routing Protocol |
Routing: Static routing
Dynamic routing: RIP, OSPF |
| VLAN |
802.1q Tag-based, Port-based, Multi-VLAN |
| Multicast |
IGMP Proxy |
| NAT Throughput |
Up to 900 Mbps (test conditions TBA) |
| Outbound Load Balancing |
Supported algorithms: Weight |
| Protocol |
IPv4, IPv6, TCP/IP, UDP, ARP, HTTP, HTTPS, NTP, DNS, PLANET DDNS, PLANET Easy DDNS, DHCP, PPPoE, SNMPv1/v2c/v3, |
| Key Features |
HA (High Availability)
Captive Portal
RADIUS Server/Client
AP Control |
| Advanced Functions |
| VPN |
IPSec / Remote Server: Net-to-Net, Host-to-Net modes
GRE (Generic Routing Encapsulation)
PPTP Server
L2TP Server
SSL VPN Server / Client (OpenVPN) |
| VPN Tunnels |
Up to 60 (test conditions TBA) |
| VPN Throughput |
Up to 108 Mbps (test conditions TBA) |
| Encryption Methods |
DES
3DES
AES (AES-128 / AES-192 / AES-256) |
| Authentication Methods |
MD5
SHA-1
SHA-256
SHA-384
SHA-512 |
| Management |
| Basic Management Interfaces |
Web browser
SNMP v1, v2c
PLANET Smart Discovery utility
NMS controller supported |
| Secure Management Interfaces |
SSHv2
TLS v1.2
SNMP v3 |
| System Log |
System event log |
| Others |
Setup wizard
Dashboard
System status / service monitoring
Statistics
Connection status
Auto reboot
Diagnostics |
| Standards Conformance |
| Regulatory Compliance |
CE, FCC, E-Mark Vehicle Compliance Ready |
| Stability |
IEC60068-2-32(Free fall)
IEC60068-2-27(Shock)
IEC60068-2-6(Vibration) |
| Environment |
| Operating |
Temperature: -40 ~ 75 degrees C
Relative humidity: 5 ~ 90% (non-condensing) |
| Storage |
Temperature: -40 ~ 85 degrees C
Relative humidity: 5 ~ 90% (non-condensing) |
