| Hardware |
| WAN |

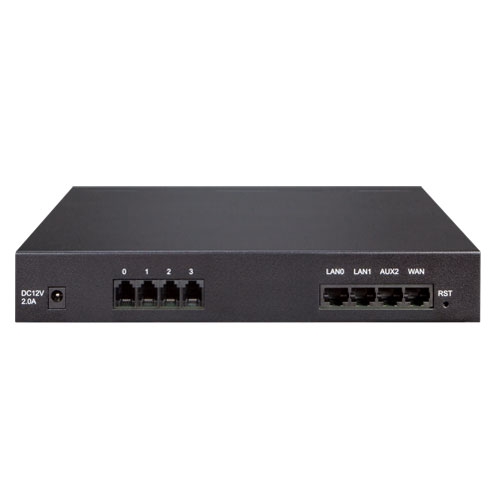

1 x 10/100BASE-TX RJ45 port |
| LAN |
2 x 10/100BASE-TX RJ45 port |
| Voice |
4 x RJ11 connection (4 x FXO) |
| Weight |
853g |
| Dimensions (W x D x H) |
242 x 152 x 35 mm |
| Power Requirements |
100-240VAC, 50-60 Hz@DC12V 2A |
| Power Consumption |
12W |
| Protocols and Standard |
| FXO |
Dial Mode: DTMF/Pulse Dialing Caller ID: FSK, DTMF Reverse Polarity Answer Delay Busy Tone Detection No Current Detection |
| Voice & Fax |
G.711A/U law, G.723.1, G.729A/B, G.726
Silence Suppression
Comfort Noise Generation (CNG)
Voice Activity Detection (VAD)
Echo Cancellation(G.168), with up to 128ms
Adaptive (Dynamic) Jitter Buffer
Programmable Gain Control
T.38/Pass-through
Modem/POS
DTMF mode: Signal/RFC2833/INBAND
VLAN 802.1P/802.1Q
Layer3 QoS and DiffServ |
| VoIP |
Protocol: SIP v2.0 (UDP/TCP),RFC3261,SDP,RTP(RFC2833), RFC3262, 3263,3264,3265,3515,2976,3311 SIP TLS/SRTP RTP/RTCP, RFC2198, 1889 RFC4028 Session Timer RFC3266 IPv6 in SDP RFC2806 TEL URI RFC3581 NAT,rport Outbound Proxy DNS SRV/A Query/NATPR Query SIP Trunk Early Media/Early Answer NAT:STUN, Static/Dynamic NAT |
| Network |
Static/Dynamic IP PPPoE DHCP Client IPv4/IPv6 TCP, UDP,TFTP, FTP, ARP,RARP, Ping, NTP, SNTP, HTTP/HTTPS, DNS Ping /Tracert DHCP Option 66,120,121 OpenVPN |
| Software Features |
Port Group
Web ACL
Telnet ACL
Action URL
Digitmap
Routing Rules based Prefixes
Caller/Called Number Manipulation
Speed Dial |
| Management |
SNMP v1/v2c/v3
TR069, TR181
Auto Provisioning
Web/Telnet
Configuration Backup/Restore
Firmware Upgrade via Web
CDR
Syslog
Network Capture
NTP/Daylight Saving Time
IVR Local Maintenance |
| Environments |
| Operating Temperature |
0 ~ 50 degrees C |
| Storage Temperature |
-20 ~ 80 degrees C |
| Operating Humidity |
10%~90% relative humidity, non-condensing |
| Emission |
CE, FCC |
