| Hardware |
| LAN |

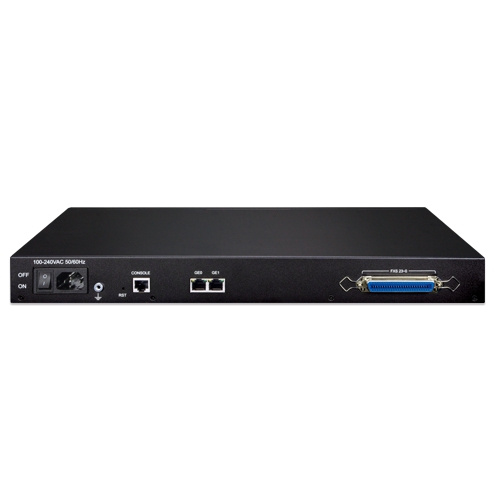

2 x 10/100/1000BASE-T RJ45 port |
| Voice |

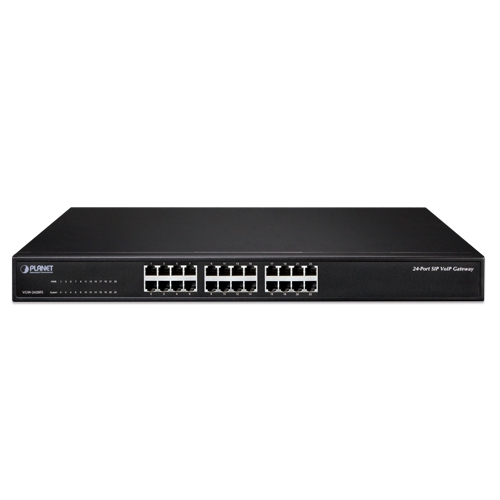

24 x RJ11 connection (24 x Foreign eXchange Station)
1 x RJ21, 50 PIN |
| Console |
1 x RS232, 115200bps |
| Weight |
3200g |
| Dimensions (W x D x H) |
440 x 250 x 44 mm |
| Power Requirements |
100-240VAC, 50-60 Hz |
| Power Consumption |
40W |
| Protocols and Standard |
| FXS |
Dial Mode: DTMF and Pulse
Pulse: 10 and 20 PPS
Caller ID: DTMF/FSK CLI Presentation
Max Cable Length: 3KM
Reverse Polarity
Programmable Call Progress Tone |
| Voice & Fax |
G.711A/U law, G.723.1, G.729A/B,G.726 and iLBC
Silence Suppression
Comfort Noise Generation (CNG)
Voice Activity Detection(VAD)
Echo Cancellation (G.168), with up to 128ms
Adaptive (Dynamic) Jitter Buffer
Hook Flash
Programmable Gain Control
T.38/Pass-through
Modem/POS
DTMF mode: Signal/RFC2833/INBAND
VLAN 802.1P and 802.1Q
Layer3 QoS and DiffServ |
| VoIP |
IETF Session Initiation Protocol (SIP) v2.0 (UDP/TCP)
RFC 3261 and Session Description Protocol (SDP)
RTP (RFC 2833), RFC 3262, RFC 3263, RFC 3264, RFC 3265, RFC 3515, RFC 2976 and RFC 3311
RTP/RTCP, RFC2198, 1889
RFC4028 Session Timer
RFC3266 IPv6 in SDP
RFC2806 TEL URI
RFC3581 NAT and rport
Primary/Backup SIP Server
Outbound Proxy
DNS SRV/ A Query/NATPR Query
SIP Trunk
Early Media/Early Answer
NAT:STUN, Static/Dynamic NAT |
| Supplementary Service |
Call Waiting
Blind Transfer
Attend Transfer
Call Forward on Busy
Call Forward on No Reply
Unconditional Call Forward
Warm/Immediately Hotline
Call Hold
Do-not-disturb
3-way Conferencing
Message Waiting Indicator |
| Software Features |
Hunting Group
Web ACL
Telnet ACL
Action URL
PPPoE/IPv4/IPv6
Digitmap
Bandwidth Optimization
Routing Rules based Prefixes
Caller/Called Number Manipulation |
| Management |
SNMP v1/v2/v3
TR069
Auto Provisioning
Web/Telnet
Configuration Backup/Restore
Firmware Upgrade via Web
CDR
Syslog
Ping and Tracert Test
Network Capture
Outward Test (GR909)
NTP and Daylight Saving Time
IVR local Maintenance |
| Environments |
| Operating Temperature |
0 ~ 45 degrees C |
| Storage Temperature |
-20 ~ 80 degrees C |
| Operating Humidity |
10%~90% relative humidity, non-condensing |
| Emission |
CE, FCC |
