| Hardware |

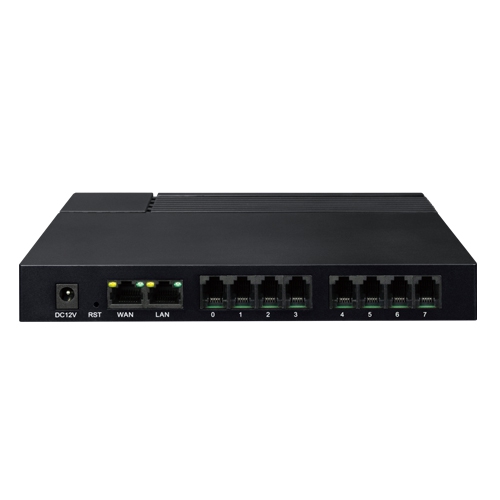

| WAN |
1 x 10/100/1000BASE-T RJ45 port |
| LAN |
1 x 10/100/1000BASE-T RJ45 port |
| Voice |
8 x RJ11 connection (8 x Foreign eXchange Station) |
| Weight |
300g |
| Dimensions (W x D x H) |
194 x 110 x 28 mm |
| Power Requirements |
100-240VAC, 50-60 Hz@DC12V 2A |
| Power Consumption |
18W |
| Protocols and Standard |
| FXS |
Dial Mode: DTMF and Pulse
Pulse: 10 and 20 PPS
Caller ID: DTMF/FSK CLI Presentation
Max. Cable Length: 3KM
Reverse Polarity
Programmable Call Progress Tone |
| Voice & Fax |
G.711A/U law, G.723.1, G.729A/B,G.726 and iLBC
Silence Suppression
Comfort Noise Generation (CNG)
Voice Activity Detection(VAD)
Echo Cancellation (G.168), with up to 128ms
Adaptive (Dynamic) Jitter Buffer
Hook Flash
Programmable Gain Control
T.38/Pass-through
Modem/POS
DTMF mode: Signal/RFC2833/INBAND
VLAN 802.1P and 802.1Q
Layer 3 QoS and DiffServ |
| VoIP |
Protocol: SIP v2.0 (UDP/TCP), RFC3261, SDP, RTP(RFC2833), RFC3262, 3263, 3264, 3265, 3515, 2976, 3311
RTP/RTCP, RFC2198, 1889
RFC4028 Session Timer
RFC3266 IPv6 in SDP
RFC2806 TEL URI
RFC3581 NAT and rport
Primary/Backup SIP Server
Outbound Proxy
DNS SRV/ A Query/NATPR Query
SIP Trunk
Early Media/Early Answer
NAT: STUN, Static/Dynamic NAT |
| Supplementary Service |
Call Waiting
Blind Transfer
Attend Transfer
Call Forward on Busy
Call Forward on No Reply
Unconditional Call Forward
Warm/Immediately Hotline
Call Hold
Do-not-disturb
3-way Conferencing
Message Waiting Indicator |
| Software Features |
Hunting Group
Web ACL
Telnet ACL
Action URL
PPPoE/IPv4/IPv6
Digitmap
Bandwidth Optimization
Routing Rules based Prefixes
Caller/Called Number Manipulation |
| Management |
SNMP v1/v2/v3
TR069
Auto Provisioning
Web/Telnet
Configuration Backup/Restore
Firmware Upgrade via Web
CDR
Syslog
Ping and Tracert Test
Network Capture
Outward Test (GR909)
NTP and Daylight Saving Time
IVR local Maintenance |
| Environments |
| Operating Temperature |
0 ~ 45 degrees C |
| Storage Temperature |
-20 ~ 80 degrees C |
| Operating Humidity |
10%~90% relative humidity, non-condensing |
| Emission |
CE, FCC |
