| Interface |
| Lines (Direct Numbers) |
20 SIP Lines |
| Display and Indicator |

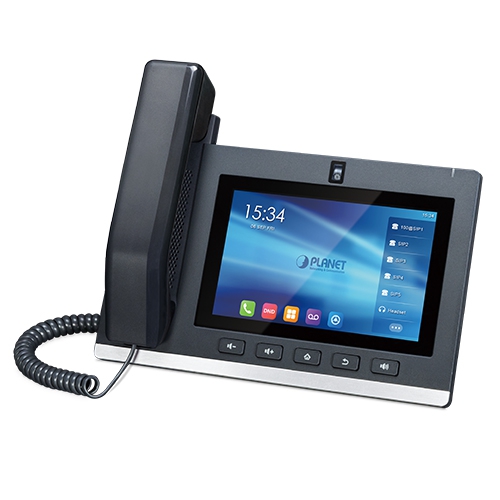

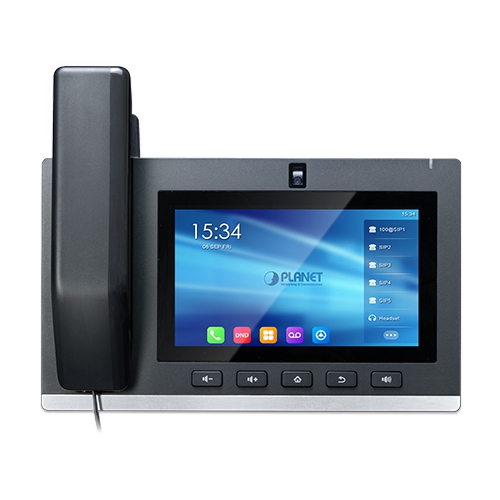

112 one-touch DSS keys on 7-inch (1024 x 600) color touch screen
4 points multi-touch surface
Screensaver and wallpaper
LED for call and message waiting indication
Intuitive user interface with icons and soft keys
Multilingual user interface
Caller ID with name, number and photo |
| Feature Keys |
5 keys, including
1 x Home key
1 x Return key
2 x Volume Control keys – Up and Down
1 x Hands-free key |
| Network Interfaces |
Dual-port Gigabit Ethernet:
Network x 1 (802.3at PoE enabled)
PC x 1 (Bridged Network)
Built-in Wi-Fi (2.4GHz/5GHz) |
| Camera |
Pixels: 5 megapixels
Video Codec: H.264
Video Call Resolution: 1080p@30fps |

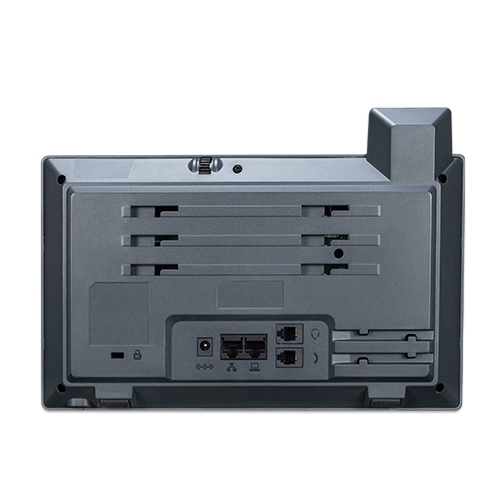

| Connectors |
RJ9 Port x 2: Handset x 1, Headset x 1
Safety keyhole x 1 |
| Android Bundled Applications |
| Operating System |
Android 9.0 OS with higher security and better compatibility
Files, Calendar, Gallery, Browser, Email, Calculator, Notepad,
Sound Recorder, Clock, Video, Music
Third-party Android application support |
| Network and Provisioning |
| Network |

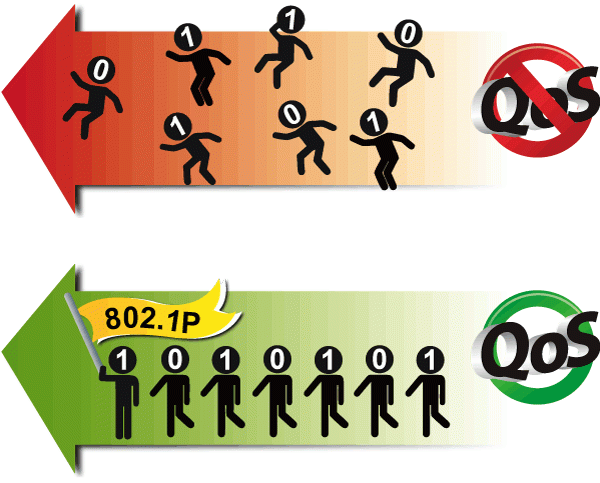

IP Mode: IPv4 IP Configuration: Static / DHCP Network Access Control: 802.1x VPN: OpenVPN (Requires third-party app support) VLAN, LLDP, CDP, QoS |
| Protocols |
SIP2.0 over UDP/TCP/TLS, DNS A/SRV/NAPTR, RTP/RTCP/SRTP, STUN, DHCP, CDP, LLDP, 802.1x, OpenVPN (Requires third-party app support), SNTP, FTP/TFTP, HTTP/HTTPS, TR-069 |
| Deployment & Maintenance |
Auto-provisioning via FTP, TFTP, HTTP/HTTPS, DHCP OPT66, SIP PNP, TR-069
Web management portal, Telnet
Encrypted configuration files download with AES
Web upgrade, factory reset data
The third-party communication app |
| Features |
| Audio Features |
HD voice microphone/speaker (handset/hands-free, 0 ~ 7KHz
frequency response)
Wideband ADC/DAC 16KHz sampling
Narrowband codec: G.711a/u, G.729, G.729A, G.729B, G.729AB, iLBC
Wideband codec: G.722, Opus
Full-duplex acoustic echo canceller (AEC)
Noise reduction (NR)
Packet loss concealment (PLC)
Dynamic adaptive jitter buffer
DTMF: In-band, out-of-band, DTMF-relay (RFC2833), SIP Info |
| Video Features |
Video decoding: H.264
Video call resolution: QVGA/CIF/VGA/4CIF/720P/1080P
Image format: JPEG/PNG/BMP
Video format: MP4
Bandwidth selection: 64kbps~4Mbps
Frame rate selection: 5~30fps
Video from remote site can be displayed in full screen

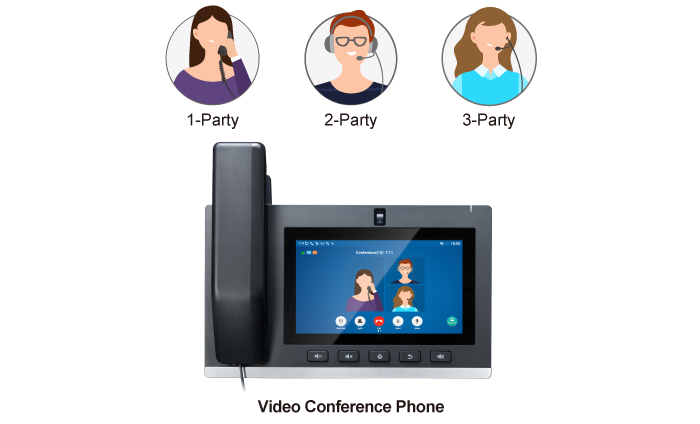

3-way video conferencing
Self-view (local video preview)
Built-in camera: 5 megapixels, adjustable video angle. |
| Phone Features |
Local Phonebook (2000 entries)
Remote Phonebook (XML/LDAP, 2000 entries)
Intelligent Search for Contacts and Call Log
Call logs (In/out/missed, 1000 entries)
Black/White List Call Filter
Screen saver
Message Waiting Indication (MWI)
Programmable DSS/Soft keys
Network Time Synchronization
Built-in 2.4GHz/5GHz dual-band Wi-Fi
Support Recording
Action URL / Active URI
UaCSTA
Audio/Video Recording
SIP Hotspot
Group Broadcasting
Action Plan
Group listening |
| Call Features |
Call out / Answer / Reject
Mute / Unmute (Microphone)
Call Hold / Resume
Call Waiting
Intercom
Caller ID Display
Speed Dial
Anonymous Call (Hide Caller ID)
Call Forwarding (Always/Busy/No Answer)
Call Transfer (Attended/Unattended)
Call Parking/Pick-up (Depending on server)
Redial
Do-Not-Disturb
Auto-Answering
Voice Message (On IP PBX or SIP server)
3-party video/audio mixed conferencing
10-party audio conferencing
Hot Line
Hot desking
BLF (Busy Lamp Field) |
| Environment |
| Power Requirements |
IEEE 802.3af/at PoE, 48~54V DC (Network port)
12V DC (optional external power supply) |
| Power Consumption |
PoE: 3.52~10.76W
Adapter: 2.38~8.6W |
| Operating Temperature |
0 ~ 45 degrees C |
| Operating Humidity |
10 ~ 95% (non-condensing) |
| Weight |
760 g |

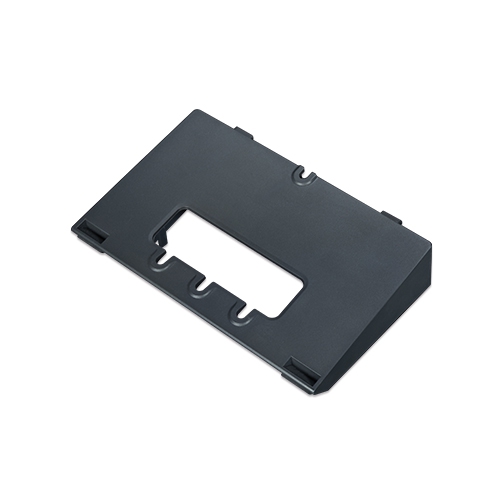

| Dimensions (W x D x H) |
Desktop Stand(Angle 1): 265x172.1x145.2mm
Desktop Stand(Angle 2): 265x161.7x154.5mm
Wall Mounted: 265x78.6x184mm
Without Stand : 264.97 x 70.58 x 216.71mm |
| Emission |
CE, FCC, RoHS |
