| Hardware |
| CPU |
Intel Processor |
| RAM |
2GB |
| Operating System |
Windows 7 Standard Embedded |

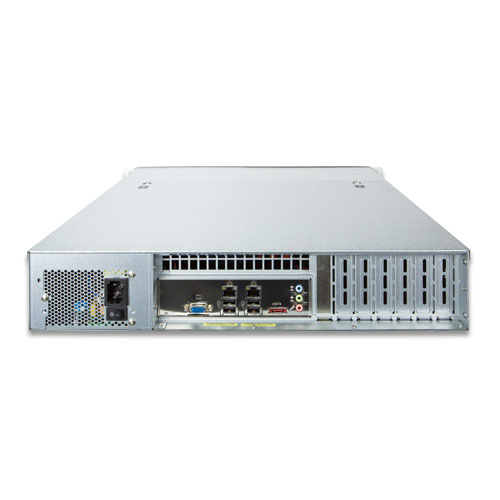

| Ethernet |
2 x RJ45, 10/100/1000BASE-T |
| USB Interface |
6 x USB 2.0 for backup device and firmware upgrade |
| Video Interface |
VGA video interface |
| Audio Interface |
Mic-in, line-in and line-out |
| Storage Device |

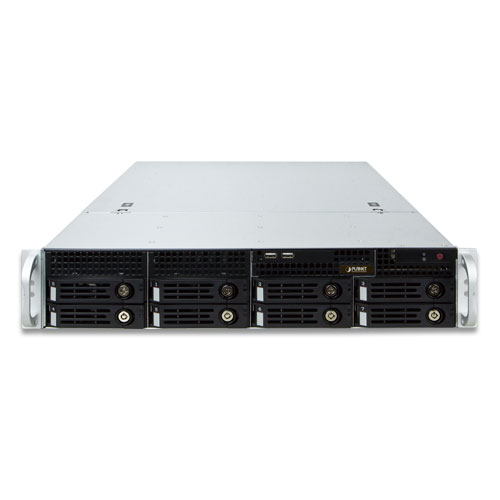

8 x 3.5" SATA II hard disk connectors; up to 6TB per HDD |
| External Storage Interface |
1 x eSATA |
| LED |
Power |
| Button |
Power |
| Camera |
| Max. Channels |
64-channel IP cameras
*Resolution 320 x 240, 1 Mbps bitrate, 30 FPS per camera |
| Function |
Manual, auto or ONVIF search |
| Video |
| Compression |
H.264, MPEG-4, M-JPEG |
| Resolution |
10MP, 5MP, 4MP, 3MP, 2MP, 1.3MP, 1MP, VGA |
| Max. Live Video Frame Rate (Local Display) |
6fps@10MP (1-ch), 15fps@5MP (1-ch), 8fps@4MP (1-ch), 15fps@3MP (1-ch), 30fps@2MP (1-ch), 30fps@1.3MP (1-ch), 30fps@1MP (1-ch), 30fps@VGA (1-ch)
*The above performance was tested with the following parameters: H.264 compression and 3Mbps bitrate
|
| Audio |
| Audio Type |
2-way |
| Live View |
| Display Layout Mode |
Local: 1, 4, 5, 6, 8, 9, 10, 12, 16
Remote: 1, 4, 5, 6, 8, 9, 10, 12, 16, 18, 24, 25, 35, 36, 48, 49, 64
|
| Digital Zoom |
Zoom in/out digitally by PiP (Picture-in-Picture) |
| Manual Recording/ Snapshot |
Instant recording upon mouse click/Instant snapshot upon mouse click or hot key |
| Dual Stream Management |
Live view of stream 1 or stream 2 of dual stream devices |
| Event Panel |
Displays event status upon alarm or upon connection loss or recovery |
| Instant Playback |
Instant playback in live view window |
| E-map |
Area maps with camera icons and small live view windows hyperlinks |
| Playback |
| Video Search |
Time/Event based |
| Playback Control |
Continuous forward and backward playback with speeds 1x, 2x, 4x, 8x or frame-by-frame; pause; stop |
| Manual Snapshot |
Instant snapshot from playback upon mouse click |
| Digital Zoom |
Zoom in/out digitally by PiP (Picture-in-Picture) |
| Synchronized Playback |
Up to 9 channels for local display; up to 64 channels for remote client |
| Video Export |
Export video clips in AVI or RAW format |
| Recording |
| Recording Throughput |
Maximum total bitrate 300Mbps |
| Schedule Recording |
Record video with user defined schedule |
| Event Recording |
Record video when the alarm event is triggered, including the pre-event buffered video clip |
| Frame Rate Setting |
Different recording frame rate settings for non-event and triggered event |
| Manual Recording |
Instant recording upon mouse click |
| Dual Stream Management |
Recording of stream 1 or stream 2 of dual stream devices |
| Recording Frame Rate |
Max. 1920fps in total; max. 30fps per camera |
| Monitor |
| Max. Local Display Resolution |
1920 x 1200 |
| Network and Configuration |
| Network Service |
IPv4, IPv6, TCP/IP, UDP, HTTP, DHCP, RTP, RTSP, DNS, NTP (SNTP), ICMP, ARP, SMTP, FTP, UPnP, LDAP, ONVIF |
| Triggers and Event |
| Event Type |
Video motion detection, passive IR sensor, external device through digital input, video loss and recovery, network loss and recovery, server loss and recovery, disk full, disk not found |
| Event Action |
Record video, pop-up window with live video, switch to hotspot window, play beep sound, activate external device through digital output, upload snapshot to FTP server, execute system command to activate other programs, eMail notification with snapshots, command a PTZ device to go to a preset point |
| Manual Event |
Manually activate external devices through digital output via live view monitor |
| Scheduler |
Define the schedule of event manager |
| Management |
| Max. Number of Clients |
1 local, 3 remote |
| Privileges |
Live, Playback, Setup, Global |
| User Interface |
- Graphic local user interface (Operated by mouse, keyboard)
- Web browser (Internet Explorer 7 or above)
- CMS utility
- App viewer
|
| Multiple Languages Support |
Arabic, Czech, Danish, German, Estonian, English, Spanish, Finnish, French, Hebrew, Hungarian, Indonesian, Italian, Japanese, Netherland, Polish, Portuguese, Romanian, Russian, Swedish, Thai, Turkish, Vietnamese, Simplified Chinese, Traditional Chinese |
| Log Type |
User Operation, Setup Device, Setup System, Setup Users, Setup Schedule, Setup Event, System Status, Request Log |
| Environment |
| Power |
100-240V AC, 4-2A, 50-60Hz |
| Consumption |
200W |
| Operating Temperature |
0~40 degrees C |
| Humidity |
10~85% RH |
| Weight |
11.4 kg (with 1 system HDD and front cover) |
| Dimensions (W x D x H) |
482 x 560 x 88 mm |
