| Camera |
| Image Sensor |
1/2.7" Progressive Scan CMOS Sensor |
| Lens |
Focus Length: 4mm
Focus Control: Fixed
Lens Type: Fixed
Pixels:8MP
Angle of view:
Horizontal FOV: 87 degrees
Vertical FOV: 46 degrees
Diagonal FOV: 105 degrees |
| Min. Illumination |
0.05 lux (color) @ F1.6
0 Lux white light, B/W: 0 Lux with IR |
| Illuminations |

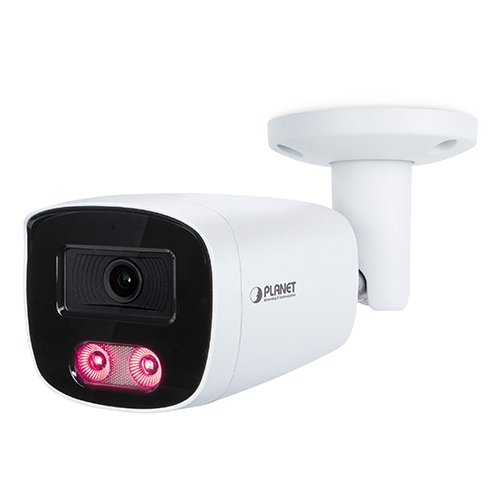

Built-in Smart IR illuminators, effective up to 40 meters

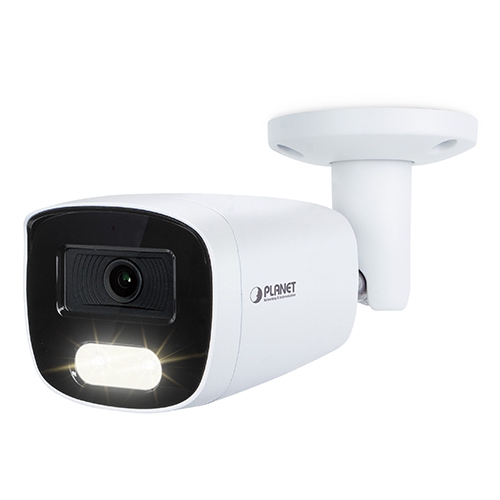

Built-in Full color illuminators, effective up to 30 meters
*The IR distance is based on the environment. |
| Effective Pixels (H x V) |
3840 (H) x 2160 (V) |
| Power over Ethernet |
| PoE Standard |
IEEE 802.3af/at PoE PD |
| Image |
| Video Compression |
H.264/H.264+/H.265/H.265+/MJPEG |
| Video Resolution |
| Item | Main Stream: | Sub Stream: | H.264/H.264+ H.265/H.265+
| 3840 x 2160@20fps 3200 x 1800@20fps 2880 x 1620@20fps 1920 x 1080@30fps 1280 x 720@30fps | 1280 x 720@30fps 720 x 480@30fps 352 x 288@30fps
| | MJPEG | 1280 x 720@30fps |
|
| Item |
Main Stream: |
| H.264/H.264+H.265/H.265+ |
3840 x 2160@20fps 3200 x 1800@20fps 2880 x 1620@20fps 1920 x 1080@30fps 1280 x 720@30fps |
| MJPEG |
1280 x 720@30fps |
| Frame Rate |
Up to 20~30 fps for all resolutions |
| Bitrate |
32~16384kbps |
| Shutter Time |
Auto: 1/3-1/100000Sec |
| Image Setting |
Saturation/Brightness/Contrast /Sharpness, Mirror, Anti Flicker, Video Tampering, HLC
Full Color
Corridor Pattern
Color/ B&W (IR-CUT )
White Balance
Video Adjustment
Image Enhancement
Defog Model Distortion
OSD Settings
Motion detection
Video Tampering
Intrusion Detection
3 configurable regions of privacy mask to protect personal privacy |
| Streaming |
Streaming over UDP, TCP, HTTP, or HTTPS
Controllable frame rate
Constant and variable bit rate
ROI (Region of Interest) |
| Audio |
| Audio Streaming |
Built-in mic (On-site sound recording, effective distance 3-5M) |
| Audio Compression |
G.711A/G.711U/AAC |
| Audio Input |
Built-in mic |
| Networking & Configuration |
| Standards Compliance |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3af/at Power over Ethernet |
| Protocol |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, PPPoE, NTP, SMTP, UDP, Qos,802.1x, P2P, Cloud |
| Security |
User Management options for various authority levels
Admin
Operator
Guest |
| Users |
On-line monitoring of 7 clients at the same time |
| Web Brower |
Microsoft IE8-11, Edge, Google Chrome, Firefox |
| App |
Yes (Android, IOS with P2P QR code) |
| Language |
Chinese Simplified, Chinese Traditional, English, Russian, Korean, Polish, French, Japanese, Spanish, Portuguese, Italian, Hebrew, Ukrainian, Arabic, Vietnamese, Thai, Hungarian |
| System Integration |
| Application Programming Interface |
ONVIF compliant |
| Alarm Triggering |
Motion detection, video tampering and intrusion detection |
| Alarm Events |
SMTP, FTP, Cloud (Google) |
| Hardware Specifications |
| Power Requirements |
12V DC, 0.7A
IEEE 802.3af/at Power over Ethernet |
| Power Consumption |
3.5W (IR on)
4.3W (White LED on) |
| Dimensions (W x D x H) |
70.47 x 169.49 x 67.5 mm |
| Weight |
450g |
| Reset Button |
Yes |
| LED |

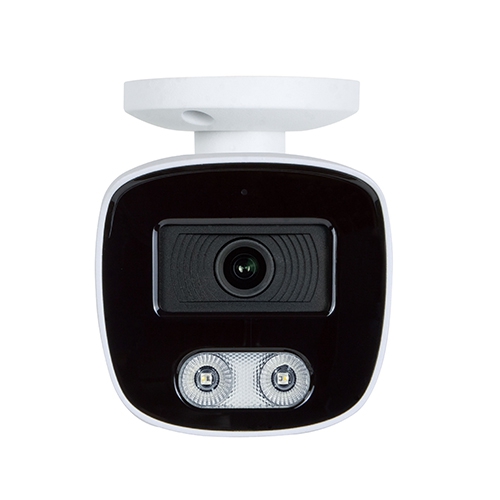

IR and warm LED (120∘) : 38μ x 2pcs IR 850nm 4000K warm LED |

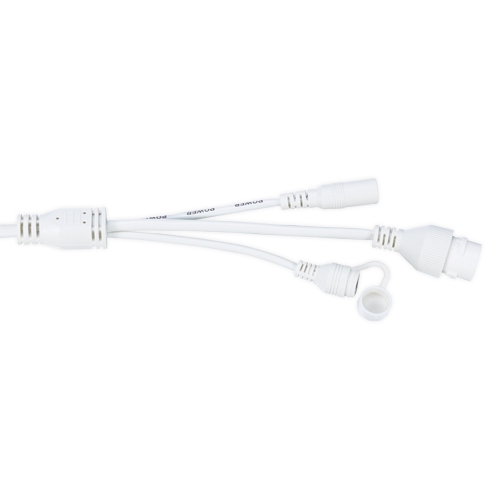

| Connector |
10/100Mbps Ethernet, waterproof/dustproof RJ45 connector
DC power jack |
| Enclosure |
IP67 metal case |
| Standards Conformance |
| Regulatory Compliance |
FCC Part 15 Subpart B, CE |
| NDAA Compliance |
Yes |
| Environment |
| Operating |
Temperature: -20 ~ 60 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage |
Temperature: -20 ~ 60 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
