| Hardware |
| Number of Ports |
8 |
| Maximum |
64 by cascading (KVM-210-08 x 8) |
| PC Ports |
Keyboard：USB Type A female head
Mouse：USB Type A female head
Video：8 x VGA DB15 Blue Female Head |
| Port Select Panel |
Number Key：10
Reset：1
Enter：1
LED：8
Segment display：1 |
| LCD Panel |
Monitor：17‘’ SXGA COLOR TFT-LCD
Video Resolution：1280 x 1024 @ 60HZ Local
Pixel Pitch：0.264 x 0.264 mm
Support Color：16.7M colors
Contrast Ratio：1000:1
Backlight：LED |
| LCD Button |
6 |
| Console USB Hub Ports |
3 x USB 2.0 Type A female |
| Remote Console |
1 RJ45 port for 10/100/1000BASE-T |
| Video Resolution |
Local side: 1280 x 1024 (max)
Remote side: 1920 x 1080 (max) |
| Keyboard |

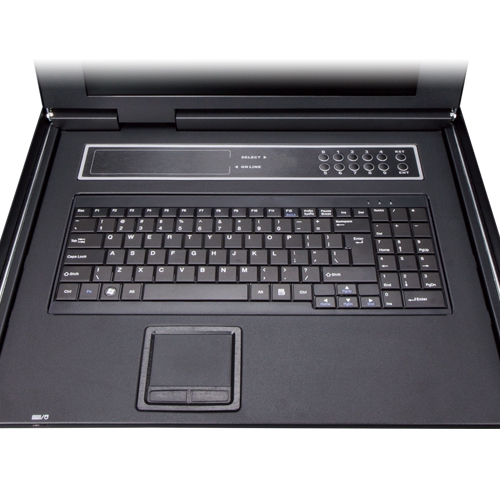

100-key chocolate ultra-thin keyboard |
| Touch Pad |
1 |
| Housing |
Metal |
| Dimensions (W x D x H) |
445 x 544 x 45mm |
| Weight |
10.24 kg |
| Power Requirement |
12V DC, 4A |
| Installation |
1U rack-mountable |
| Management |
| Supported Protocol |
TCP, IP, HTTP |
| Client Software |
IPKVM Software |

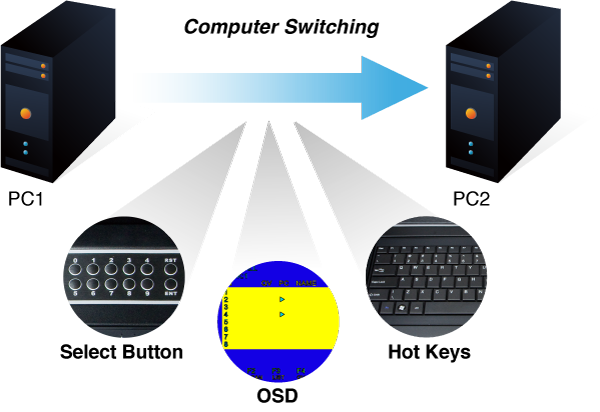

| PC Selection |
Port select button
Hotkeys on keyboard
OSD (on screen display) |
| Scan Interval |
3~60 seconds |
| Security |
User password and super password
DES, AES and 3DES |
| Environment & Certification |
| Operating Temperature |
0 ~ 50 degrees C |
| Storage Temperature |
-20 ~ 60 degrees C |
| Operating Humidity |
0-80% RH, no coagulation |
| Regulatory |
CE, FCC |
支持多种操作系统
远程组合键
安全保护
