High Performance Ethernet over VDSL

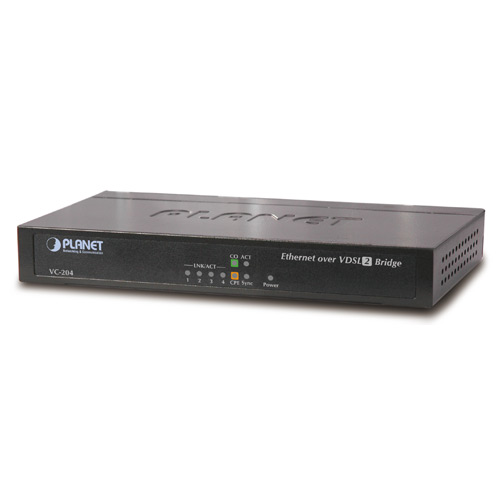

PLANET VC-204 is an Ethernet-over-VDSL2 product with high performance. It is based on two core networking technology, Ethernet and VDSL2 (Very-high-data-rate Digital Subscriber Line 2). The VDSL2 technology offers the absolutely fastest data transmission speeds over existing copper telephone lines without the need of rewiring. The VC-204 supports ultra-high performance to the pervasive telephone line network with up to 100/55Mbps asymmetric data rate within 200m and 25/4Mbps for 1.6km long range connections.
Implementing with Existing Telephone Copper Wires
The VC-204 is also a Long Reach Ethernet (LRE) converter providing four RJ-45 Ethernet ports and two RJ-11 phone jacks, in which one is for VDSL connection and the other one is for POTS (Plain Old Telephone Service) connection. The VC-204 has a built-in POTS splitter to share the existing phone line with POTS, therefore it is no need of replacing the existing copper wiring. Just plug the VC-204 into the existing RJ-11 telephone jack and a high-performance VDSL2 network can be connected. It is ideal for use as an Ethernet extender to an existing Ethernet network.
Delivering High-Demand Services Connectivity for ISP / Triple Play Devices
The VC-204 provides excellent bandwidth to satisfy the triple play devices for home entertainment and communication. With the capability of 100/55Mbps symmetric data transmission, the VC-204 enables many multi-media services to work on the local Internet, such as VOD (Video on Demand), Voice over IP, Video phone, IPTV, Internet caching server, distance education, and so on.
Easy Installation
The Converter comes with a plug-and-play design and is fully compatible with all kinds of network protocols. Moreover, the operating status of each individual port and the whole system can be watched via the rich diagnostic LEDs on the front panel. There are two selectable models of the VC-201A, one is used at client side (CPE) and the other one is at central side (CO). The CPE or CO mode can be adjusted by using a built-in DIP switch. For point-to-point connection, a CPE mode VC-201A and a CO mode VC-201A must be set up as one pair of converters to perform the connection.
Providing Superior Upstream and Downstream Transmission
The VC-204 also defines asymmetric (Plan 998) and symmetric (Plan 997) band plans for the transmission of upstream and downstream signals. The featured band plan 997 provides the symmetric transmission on both downstream and upstream. On the other hand, the band plan 998 performs higher transmission quality in short range for central side (CO) in asymmetric mode. In all, when the VC-204 is in symmetric mode, it provides better upstream performance, and when the VC-204 is in asymmetric mode, it gives better downstream performance. | | |

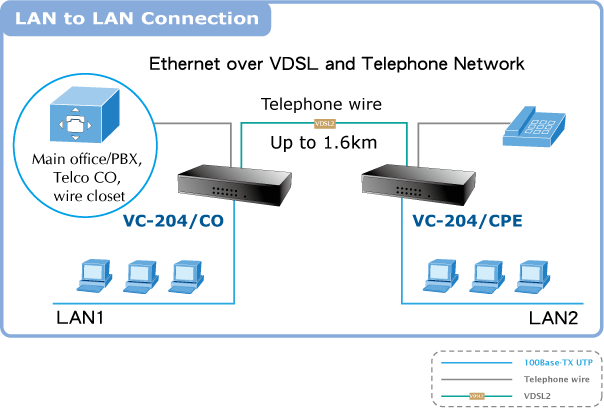

Ethernet Distance Extension
Two VC-204 acting as a standalone pair is good for Ethernet distance extension over existing telephone wires. With just one pair of AWG-24 copper wire, you can easily connect two Ethernet networks together with the data rate of maximum 100/55Mbps. Telephone service can still be used while the modems are in operation. The two solutions listed below are typical applications for the Ethernet over VDSL converter.

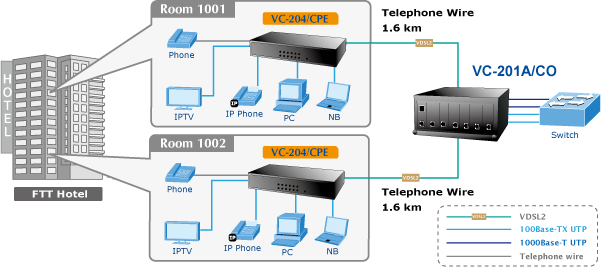

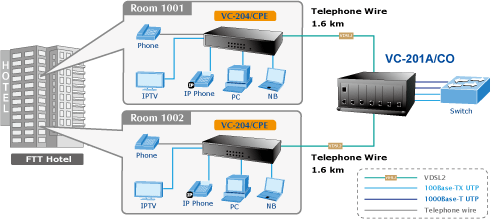

MTU / MDU / Hospitality Solution
The VC-201A is a perfect solution to quickly providing cost-effective yet high speed network services to multi-unit buildings such as residential buildings (multi-dwelling units), commercial (multi-tenant units) buildings, hotels or hospitals. By utilizing the existing telephony infrastructure, network installation is straightforward and requires no new wiring. With up to 100/55Mbps transmission, Video on Demand, IP telephony and various broadband services can be easily provisioned.

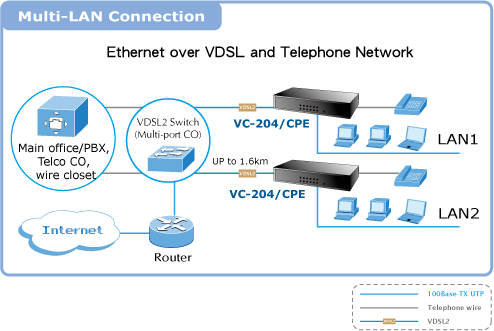

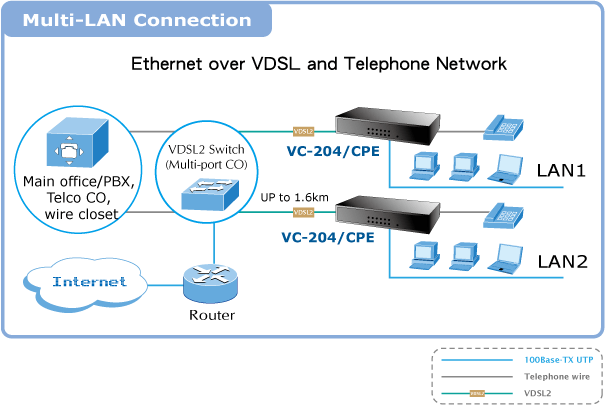

Last Mile of FTTx deployment
The VC-201A is an ideal solution for FTTx (Fiber to the Building, Fiber to the Campus or Fiber to the Node) applications. It supports high bandwidth VDSL2 over existing telephone wires in the last mile from the ISP / Telecom / Service providers fiber node to the buildings and customers home. The 10/100Mbps port of the VC-201A can be directly connected to a PC or to Ethernet devices such as Ethernet Switches or Broadband Routers. It is excellent for phone line network built by Internet because every room or house can use the existing phone line to transmit data through the Internet and the whole building can share the Internet to the wider area network at a minimum cost. | | | | | | | | | | | |
Cost-effective VDSL2 CO / CPE bridge solution
One box design, CO / CPE selectable via DIP Switch
Defines asymmetric (Plan 998) and symmetric (Plan 997) band plans for the
?transmission of upstream and downstream signals
Complies with IEEE 802.3, IEEE 802.3u and IEEE 802.3x standards
DMT (Discrete Multi-Tone) line coding
Half duplex Back pressure and IEEE 802.3x Full Duplex Pause frame flow control
Built-in POTS splitter to share voice and data
Two RJ-11 connectors for each VDSL port, one for VDSL connection and one for POTS
?connection
Voice and data communication can be shared simultaneously based on the existing
?telephone wire
Supports up to 1536 bytes packet size, IEEE 802.1Q VLAN tag transparent
VDSL2 stand-alone transceiver for simple bridge modem application
Advantage of minimum installation time (Simply as Plug-and-Play)
Selectable target band plan and target SNR margin
Supports extensive LED indicators for network diagnostics | | |
| 硬件规格 |
| 工作温度 |
0~50 Degree C |
| 储存温度 |
-25~70 Degree C |
| 工作湿度 |
10~90%, relative humidity, non-condensing |
| 电源要求 |
5V DC 2A |
| 尺寸 (W x D x H) |
155 x 86 x 26 mm |
| 重量 |
0.38 kg |
| 性能 |
Full VDSL2 bandwidth up to: (Down Stream / Up Stream)
� Asymmetric Mode
?- 200m -> 100/55Mbps
?- 400m -> 90/50Mbps
?- 600m -> 70/40Mbps
?- 800m -> 60/25Mbps
?- 1000m -> 45/15Mbps
?- 1200m -> 35/10Mbps
?- 1400m -> 30/6Mbps
?- 1600m -> 25/4Mbps
� Symmetric Mode
?- 200m -> 90/90Mbps
?- 400m -> 90/90Mbps
?- 600m -> 70/70Mbps
?- 800m -> 55/50Mbps
?- 1000m -> 40/35Mbps
?- 1200m -> 30/25Mbps
?- 1400m -> 25/20Mbps
?- 1600m -> 20/15Mbps |
| LED 指示灯 |
� One Power
� 4 for RJ-11 / VDSL2 WAN :
?- Green, ACT
?- Green, Sync
?- Green, CO mode
?- Green, CPE mode
� 1 for per RJ-45 10/100Base-TX port
?- Green, LNK / ACT
|
| 布线 |
� 10Base-T: 2-pair UTP Cat.3,4,5 up to 100m (328ft)
� 100Base-TX: 2-pair UTP Cat.5, up to 100m (328ft)
� VDSL: twisted-pair telephone wires (AWG24 or better) up to 1.6km
|
| 编码 |
� VDSL-DMT
?- ITU-T G.993.1 VDSL
?- ITU-T G.997.1
?- ITU-T G.993.2 VDSL2 (Profile 17a Support)
|
| 功能 |
� CO / CPE mode select
� Selectable fast and interleaved mode
� Selectable target band plan
� Selectable target SNR mode
|
| DIP 交换 |
4 position DIP switch |
| 端口 |
10/100Base-TX: 4 RJ-45, Auto-negotiation and Auto-MDI / MDI-X
VDSL: 1 RJ-11, female Phone Jack
PHONE: 1 RJ-11, Built-in splitters for POTS connection
|
| 存储湿度 |
10~90%, relative humidity, non-condensing |
| 交换规格 |
| 交换方式 |
Store-and-Forward |
| 地址表 |
2K entries |
| 流量控制 |
Back pressure for half duplex
IEEE 802.3x Pause Frame for full duplex
|
| 背板带宽 |
1.6Gbps |
| 吞吐量 |
11.9Mpps |
| 网络电缆 |
10/100Base-TX:
2-Pair UTP Cat. 3,4, 5 (100meters, max.)
EIA / TIA-568 100-ohm STP (100meters, max.)
|
| 符合标准 |
| 符合规定 |
FCC Part 15 Class A, CE |
| 国际标准 |
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
ITU-T
?- G.993.1 (VDSL)
?- G.997.1
?- G.993.2 VDSL2 (Profile 17a )
|
| * The actual data rate will vary on the quality of the copper wire or coaxial cable and environment |
