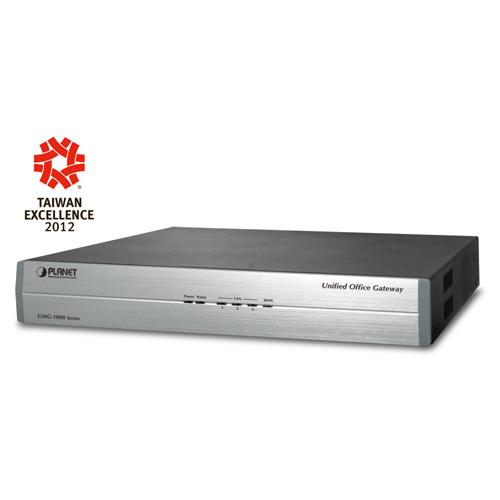

PLANET UMG-1000 is a desktop total IT solution for the small and medium businesses (SMBs). It is integrated with commonly used office appliance features and provides Internet access, telephone, fax and data in one device. Via the built in 4-port FXO, the UMG-1000 allows SMBs to connect to various Internet and telephone carriers easily.
Branch-to-Branch secured network and call features of the UMG-1000 bring your remote offices together. The UMG-1000 facilitates sharing files safely among multiple office locations through secure channels. For VoIP operations, the users can call any extension from any remote location without paying local or long distance call charge. In the storage feature, the storage volumes in the UMG-1000 can be created for individual users and groups within the corporate. The UMG-1000 is also as the Web and E-mail servers that are able to be set up with one mouse click. It furthermore provides schedule automated snapshot and backup tasks to prevent data loss.
The UMG-1000 enables the administrator to easily complete the initial setup via the Smart Wizard and to efficiently manage user accounts with privilege and access control. Besides the above functions, the extensive features provided by the UMG-1000 include DMZ support, VoIP call control, Call Detail Record (CDR), Least Cost Routing (LCR), Busy Lamp Field (BLF), Bridged Line Appearance (BLA), configuration backup and restore, secure remote management capabilities, and many more.
| | |

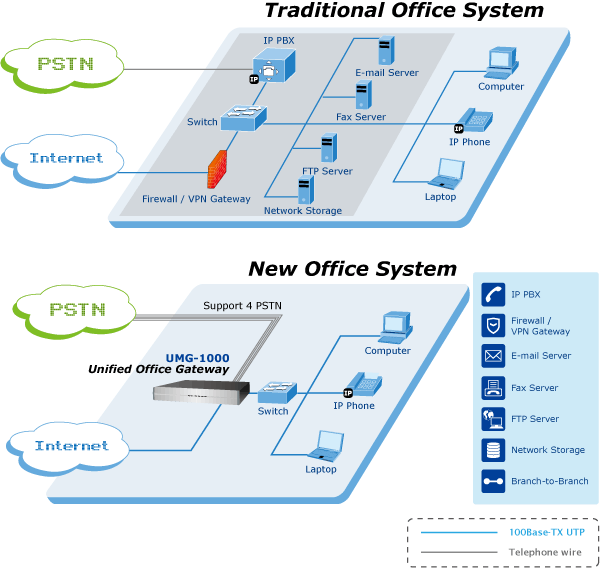

Highly Integrated IT Services
Providing IP PBX / VoIP, Internet Security, E-mail and Fax Server services, the UMG-1000 features single point of management to improve IT service ability.
The UMG-1000 beneficially provides the SMBs with lower cost of ownership, quick and easy deployment, low noise, space saving and energy conservation for better business environment.
| | | | | | Office Voice and Data Communication

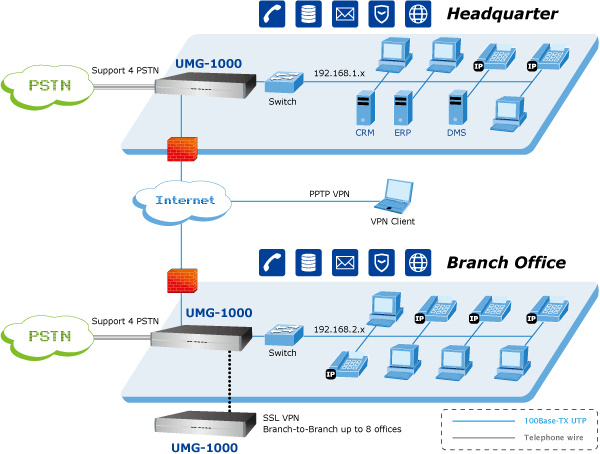

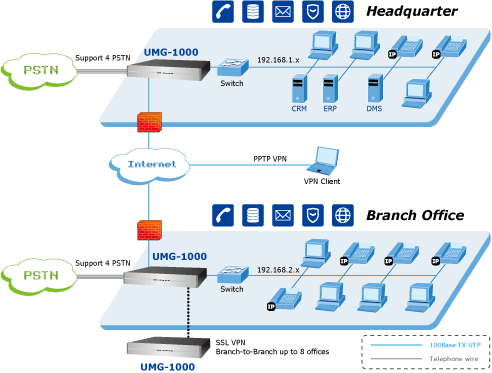

The exchange of business data and voice with high security and superior performance is in great demand. The Unified Office Gateway UMG-1000 meets the requirements. A secure channel based on SSL VPN is built for data synchronization. A private voice switching system helps to avoid local or long distance charges by exchanging voice via a secure Internet tunnel. Additionally, web-based remote management makes it possible to manage all IT resources in your branches without leaving your own office. The UMG-1000 supports Branch-to-Branch voice and data communication up to 8 offices. | | | | | |
IP PBX / VoIP Service
SIP 2.0 (RFC3261)
PSTN Support
Call-Parking, Echo Cancellation
FXO Disconnection Tone Detection
QoS Support
Music on Hold
Telephone Conference, 3-Way Calling
Voicemail to E-mail
Forwards to Voicemail on No-Answer
Supports Call Hold, Call Waiting
Blacklist of Number Patterns
Call Privilege Control, Call Log
450 Minutes Recording Time
Unconditional, Unavailable, Busy Call Forward
Fax Server Support
Multiple SIP Trunk Support
Upload Sound Files for IVR
Least Cost Routing (LCR)
Busy Lamp Field (BLF)
Bridged Line Appearance (BLA)
E-mail Service
Supports POP3, SMTP, IMAP
Secured Socket Layer (SSL)
Junk Mail Filtering
E-mail Storage Quota
E-mail Alias Group Assignment
Mail Attachment Size Restriction
User E-mail Storage Quota
E-mail Log Record Management
Anti-Virus and Anti-Spam
Auto Backup, Auto Reply
E-mail White and Black list Based on Domain
Name, User Name, and E-mail Address
Supports Web Mail
Supports Mail Service via DDNS
Internet Security Service
Static IP, PPPoE, DHCP, PPTP, L2TP
Web Content Filter by Domain and Keyword
Access Control List (ACL)
URL / IM / P2P Blocking
Firewall / NAT
IPSec / PPTP / L2TP Pass-through
DoS Attack Protection (TCP SYN Flood, UDP Flood, ICMP Flood, Ping of Death)
UPnP and DMZ
Site-to-Site SSL VPN
PPTP VPN Remote Access
RIP / Static Route
IP-MAC Binding
Network Storage Service
Up to 1.5TB Hard Disk
Supports User Network Storage Quota
Compatible Windows 2000 / XP / Vista, Mac, Linux
Scheduled Auto Backup, Auto Snapshot
Supports User / Group Privilege ACL
System Management
Single Point of Management
System Logging with E-mail Alert
Fast Recovery with Remote Service
Environment Monitoring
Dynamic Domain Name Services (DDNS)
Multiple Domain Name Support
Multiple Hostname Support | | |

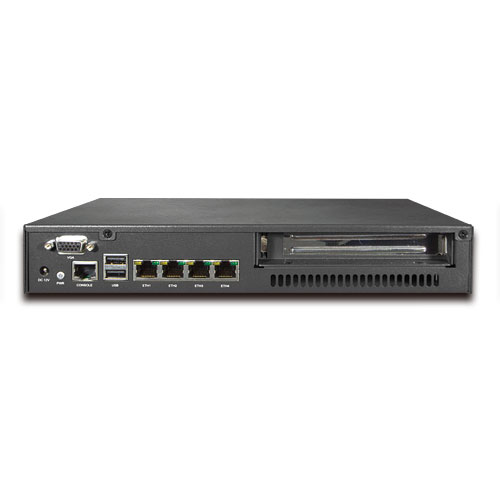

| 硬件规格 |
| Case |
Desktop placement |
| WAN |
1 x RJ-45 (10/100/1000Base-TX, Auto-Negotiation, Auto MDI/MDI-X) |
| LAN |
3 x RJ-45 (10/100/1000Base-T, Auto-Negotiation, Auto MDI/MDI-X) |
| 支持SATA |
1-Port SATA Controller (For SATA I, SATA II Hard Disk) |
| 支持硬盘 |
1 x SATA 2.5" internal Hard Disk (up to 1.5TB) |
| 语音 |
4 x RJ-11 (4 x FXO) |
| USB |
2 x USB2.0 (future feature) |
| CF端口 |
1 x On-board Compact Flash socket |
| Console端口 |
RJ-45 port (future feature) |
| LED 指示灯 |
1 x PWR LED
1 x Internet LED
1 x WAN LED
3 x LAN LED
|
| 软件规格 |
| VoIP |
SIP protocol
- SIP 2.0 (RFC3261,RFC2833)
Registration
- Max. 100 nodes
Calls
- Max. 30 concurrent calls
Voice Compression Code Technology
- G.711, G.726
Video Compression Code Technology
- H.261, H.263, H.263+, H.264
Echo Cancellation
- G.165/G.168
Gain Control
- In/Out +/-6db
Voice Processing
- Voice Activated Detection
- DTMF Detection/Generation
- G.165/G.168 Echo Cancellation (ECN)
- Comfort Noise Generation (CNG)
- Gain Control
|
| IP PBX |
- Support call hold, call waiting, 3-way call conference with feature phones
- Built-in in-line call transfer
- Unconditional, unavailable, busy call forward, custom time of no answer
- Per-calling-number forward and rejection
- Group-based call pick-up
- Call-parking
- Inter-PBX SIP Trunking
- Multi-room meet-me conference
- Auto-attendant
- Voice mail system
- Call privilege grouping
- FXO interface for PSTN Inbound/outbound
- FXO disconnection tone detection
- Caller ID detection
- In-band/RFC2833/SIP-INFO DTMF translation
- Music on hold (MoH), user upload MoH
- Direct line Outbound
- User upload IVR
|
| 语音信箱 |
- User PIN
- 450 minutes for personal record
- E-mail notification
- Personal reception on unavailability
- Reply call or new call in voicemail menu
|
| E-mail |
Protocol
- POP3,IMAP,SMTP
Support accounts
- 100 users
Email Security
- Secured Socket Layer (SSL)
Anti-Virus
- ClamAV
Anti-Spam
Junk mail block
Mailbox size Limit
- 200M/500M/1G/2G/No Limit
Attachment
- 2M/5M/10M/20M/50M/No Limit
White & Black List
- Share/User/Domain security modes
Email Backup
- Auto-Backup
|
| 网络存储 |
Data Sharing
- Windows Network Sharing, NFSv3
|
| 安全 |
Network Security
- DoS attack Prevention
VPN Max. connection
- 100 PPTP VPN tunnels
- 8 Site-to-Site SSL VPN tunnels
VPN pass-through
- IPSec, PPTP, L2TP pass-through
Internet Security
- Domain/Keyword Content Filter, Access Control
- IP-MAC Binding
|
| 其他协议/功能 |
Protocol
- TCP/IP, NAT, DHCP, HTTP, DNS, NTP, HTTPS, CIFS/SMB, NFSv3
Internet Access
- Static IP, PPPoE, DHCP, PPTP, L2TP
DMZ
UPnP
QoS
DDNS
Multiple Domain Name
|
| 管理 |
- Web based GUI management
- Firmware upgradeable via local
|
