1000Base-SX / LX SFP PCI Express Fiber Adapter

首页 > 产品 > 网络外围设备 > PCI网卡 > ENW-9701

Print Version

ENW-9701

1000Base-SX / LX SFP PCI Express Fiber Adapter

概述
应用场景
功能特性
产品规格
下载
相关产品

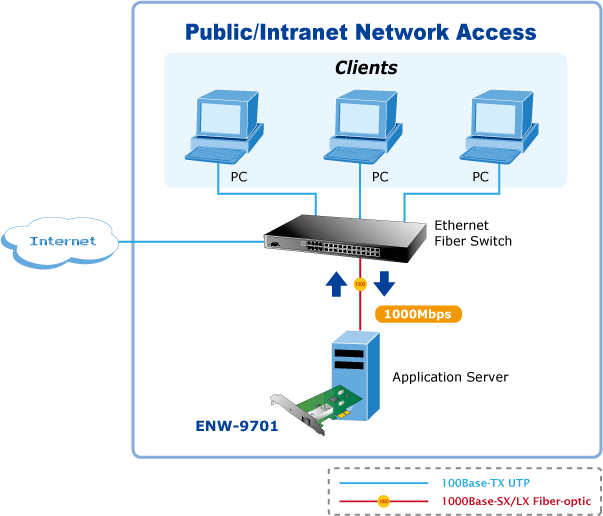

High Performance Boosts Network Traffic Speed and Flexible Distance Extension

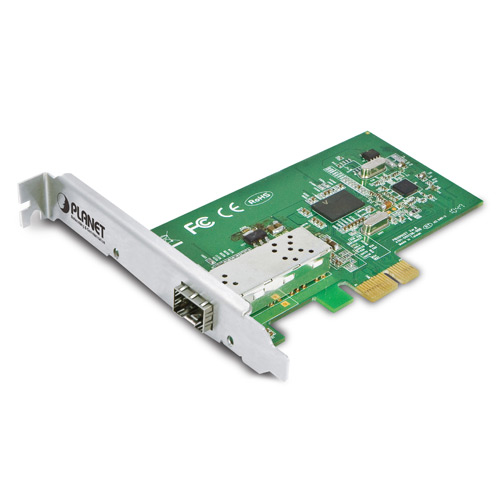

PLANET ENW-9701 1000Base-X Fiber PCI-Express Ethernet adapter is ideal for high end servers to extend long distance network reliably and flexibly with up to 2000Mbps full-duplex bandwidth capacity. It is an optimal solution for Ethernet applications by providing strictly low-power budgets and small form factor.

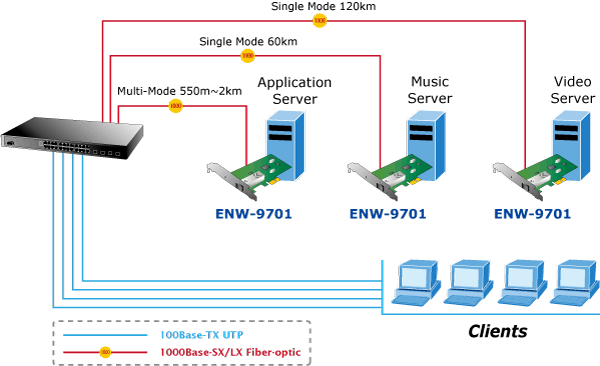

Flexible Distance Option
With the 1000Base-SX / LX SFP (Small-Form Factor Pluggable) interface supported by the ENW-9701, the fiber network deployment distance can be extended from 550 meters (via multi-mode fiber) up to above 10/20/30/40/50/70/120 kilometers (via single-mode fiber, respectively). Users can choose the most suitable SFP transceiver module depending on their needs. The ENW-9701 connects your servers and workstations, guaranteeing extremely high throughput and excellent signal quality.

More Bandwidth and Advanced Functions
The ENW-9701 is designed to address high-performance system requirements. With the innovative PCI Express Bus Architecture, the ENW-9701 provides better bandwidth and performance than the network cards which are based on 32/64bit PCI architecture. Moreover, the ENW-9701 supports IEEE 802.1Q VLAN which allows it to operate in a flexible and secure network environment. With 9K Jumbo Frame ability and IEEE 802.3 Flow Control support, it offers further optimal throughput and wire-speed packet transfer performance without risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit Ethernet environments.

Seamless Integration
The ENW-9701 is completely harmonious with most of the servers� operating systems, enabling simple integration into network designs. There is no need of any modification to the server's operating system or any special software required for the ENW-9701 to be integrated into the system. The ENW-9701 can take the place of the Ethernet MAC of any conventional TCP connection and have the existing TCP/IP stack of server�s CPU still kept intact. It requires only a simple, standard PCIe driver to connect the ENW-9701 to the software.

订购信息
ENW-9701	1000Base-SX / LX SFP PCI Express Ethernet Adapter
