| 硬件特性 |
| 硬件版本 |
2 |
| 接口 |
�Data� Input Ports: 4 x RJ-45
�Data+Power� Output Ports: 4 x RJ-45
|
| 端口速率 |
10/100/1000Mbps |
| LED指示灯 |
System: Power x 1 (Green)
Per PoE Port: PoE ready / in-use x 4 (Green) |
| 网线类型 |
10Base-T: 4-Pair UTP Cat. 5 up to 100m (328ft)
100Base-TX: 4-Pair UTP Cat. 5 up to 100m (328ft)
1000Base-T: 4-Pair UTP Cat. 5e, 6, up to 100m (328ft)
EIA/TIA- 568 100-ohm STP (100m, 328ft) |
| 尺寸 (W x D x H) |
26 x 70 x 97 mm |
| 重量 |
220g |
| 电源要求 |
DC 52V~56V |
| 以太网供电（PoE） |
| PoE Power Supply Type |
Mid-Span |
| PoE Power Output |

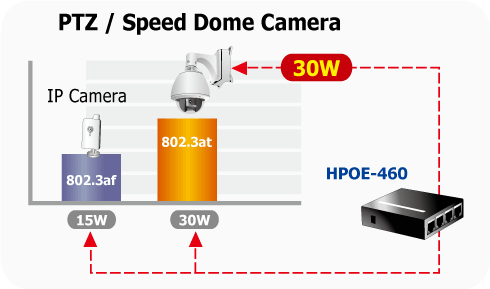

Per Port DC 52V 30.8 watts / 15.4 watts |
| Power Pin Assignment |
4/5(+), 7/8(-) |
| PoE Power Budget |
120 watts |
| Number of 802.3af PD Class 0, 1, 2, 3 can be powered |
4
|
| Number of 802.3at PD Class 1, 2, 3 can be powered |
4 |
| Number of 802.3at PD Class 0, 4 can be powered |
4 |
| 标准一致性 |
| 国际标准 |
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3at Enhancement Power over Ethernet
IEEE 802.3af Power over Ethernet |
| 遵从规章 |
FCC Part 15 Class A, CE |
| 环境 |
| 工作温度 |
0 ~ 50 degrees C |
| 存储温度 |
-10 ~ 70 degrees C |
| 存储湿度 |
5 ~ 95% (non-condensing) |
