IGTP-80xT Series

1000BASE-SX / LX to 10/100/1000BASE-T 802.3at PoE Industrial Media Converter

概述
应用场景
功能特性
产品规格
下载
相关产品

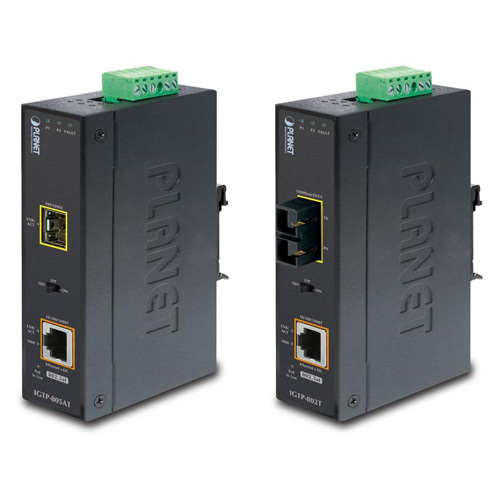

PLANET IGTP-80xT Industrial Gigabit Media Converter series combines Ethernet media conversion (from 1000Base-X to 10/100/1000Base-T) with 802.3at High Power over Ethernet (PoE) injector delivered in an IP30 rugged strong case. Particularly designed for network equipment requiring sufficient and reliable power input, the IGTP-80xT series supports up to 30 watts of power output and data transmission both delivered to remote powered devices over a single Ethernet cable. Its 1000Base-X fiber optic uplink port provides long distance, high speed and stable data transmission to remote core network. The special and convenient power system of the IGTP-80xT series supports 24/48V DC power inputs for power redundancy and operational flexibility. Being able to operate under the temperature ranging from -40 to 75 degrees C, the IGTP-80xT series can be placed in almost any difficult environment.

Fiber-Optic Link Capability Extends the Range of Network Deployment

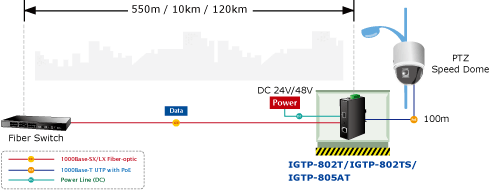

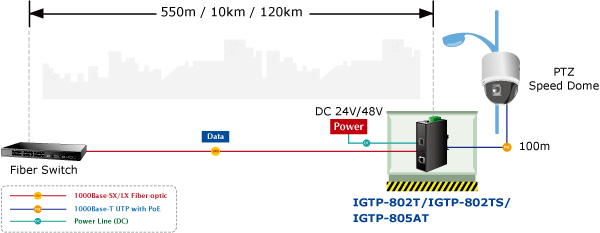

The maximum distance between the PoE PSE (Power Sourcing Equipment) and PD (Powered Device) via Ethernet cable is 100 meters. To extend the PoE deployment range, the IGTP-80xT series is integrated with fiber interface for farther distance applications. The IGTP-80xT series and its respective fiber connecting type include:
??? IGTP-802T: SC type multi-mode Fiber Interface, transmission distance up to 220m and 550m
??? IGTP-802TS: SC type single mode fiber interface, transmission distance up to 10km
??? IGTP-805AT: SFP slot supporting 100Base-FX / 1000Base-X Multi / Single Mode SFP module, transmission distance up to 120km (Varying on SFP module)

With the long fiber distance support, the IGTP-80xT series still sustains the transmission performance as high as 1000Mbps. It works in high performance Store and Forward mechanism, and also can prevent packet loss with IEEE 802.3x Flow Control and the LFP (Link Fault Pass-through function) function in the DIP Switch design. Furthermore, it can immediately alarm the administrators the issue from the link media and provide efficient solution to monitoring the network power usage.

Plug and Play High Power Sourcing Solution
Complying with the brand-new IEEE 802.3at High Power over Ethernet technology, the IGTP-80xT series provides up to 30 watts of output power that doubles PoE power, more than the conventional 802.3af PoE currently. It is also backward compatible with 802.3af PoE standards to allow users to flexibly deploy standard and high powered devices simultaneously with no need of software configuration. With data and Power over Ethernet from one unit, the IGTP-80xT series can reduce cable deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.

Convenient and Reliable Power System

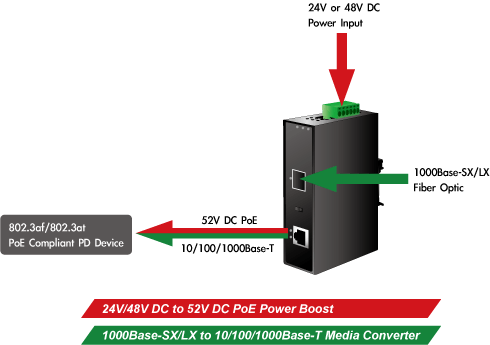

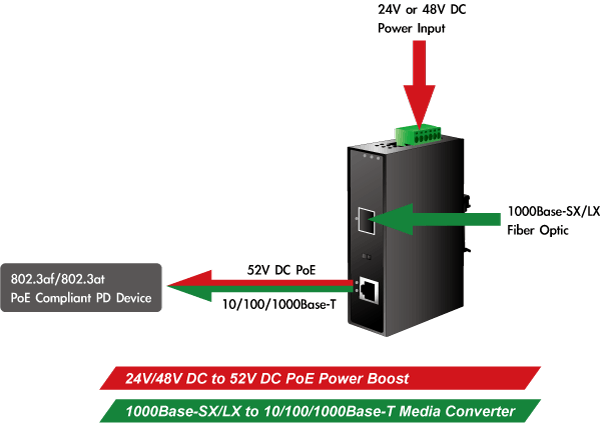

To facilitate the 802.3at High Power PoE usage with commonly used 24V DC or 48V DC power input for transportation and industrial-level applications, the IGTP-80xT series adapts 24/48V to 52V power boost technology to solving power source issue without the need for special power supplies. The IGTP-80xT series provides an integrated power supply with a wide range of voltages (24V / 48V DC) for worldwide operability. It also provides dual-redundant, reversible polarity 24V / 48V DC power supply inputs for high availability applications.

Environmentally Hardened Design for Industrial PoE Networks

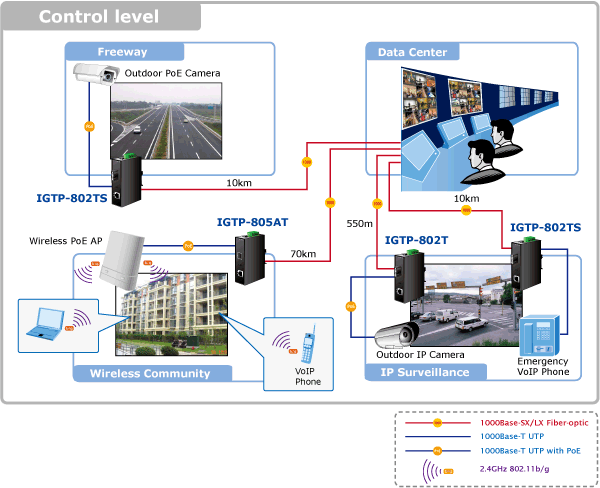

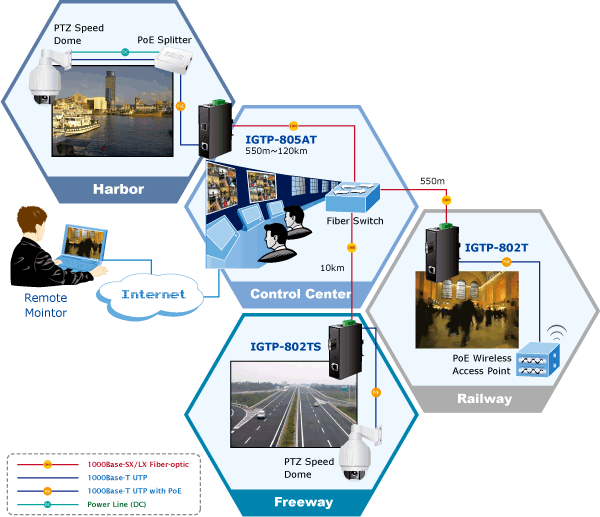

The IGTP-80xT series is specifically designed with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments like plant floors or curbside traffic control cabinets. The IGTP-80xT series is packaged in a compact, IP30 rugged strong case that allows either DIN-Rail or wall mounting to have the efficient use of cabinet space. With IP30 rugged strong case protection and PoE design, the IGTP-80xT series is ideal for service providers, campuses and public area to deploy the PoE wireless access points, IP cameras or IP phones in any places easily and efficiently with cost-effectiveness. It can also operate in wide temperature range of -40 to 75 degrees C, so it can be placed in almost any location.

硬件特性
电口	1-Port RJ-45 interface, auto-negotiation and auto MDI / MDI-X
光口	IGTP-802T: SC IGTP-802TS: SC IGTP-805AT: SFP (LC)
光纤电缆	IGTP-802T Multi-mode: 50/125um or 62.5/125um optic fiber IGTP-802TS Single-mode: 9/125um optic fiber IGTP-805AT Vary on SFP Module
传输距离	IGTP-802T: 220m / 550m IGTP-802TS: 10km IGTP-805AT: Vary on SFP Module
光频	IGTP-802T: 850nm IGTP-802TS: 1310nm IGTP-805AT: Vary on SFP Module
发射功率	IGPT-802T: Max. -4dBm Min. -9.5dBm IGTP-802TS: Max. -3dBm Min. -9.5dBm IGTP-805AT: Vary on SFP Module
接收灵敏度	IGTP-802T: -13.5dBm IGTP-802TS: -14.4dBm IGTP-805AT: Vary on SFP Module
最大输入功率	IGTP-802T: -18dBm IGTP-802TS: -20dBm IGTP-805AT: Vary on SFP Module
IEEE 802.3at / 802.3af PoE 端口	1, End-Span, 1/2(+), 3/6(-)
LED 指示灯	System: Power 1, Power 2 and Fault LED (Green) Fiber port: LNK / ACT (Green) 10/100/1000Base-T port: LNK / ACT, PoE In-use (Green / Orange)
DIP 开关	ON / OFF
流量控制	Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
巨型帧	9216 bytes
电源要求	24V DC or 48V DC, redundant power with polarity reverse protect function
材质	IP30 aluminum metal case
尺寸	135 x 87 x 32mm
重量	IGTP-802T / IGTP-802TS: 510g IGPT-805AT: 500g
安装方式	DIN rail kit and wall mount ear
ESD 保护	6KV DC
EFT 保护	6KV DC
报警	Provides one relay output for power fail Alarm relay current carry ability: 1A @ DC 24V
传输速率	Twisted-pair: 10/20Mbps for half / full-duplex, 100/200Mbps for half / full duplex 1000/2000Mbps for full duplex Fiber-Optic: 200Mbps / 2000Mbps for full-duplex
线缆类型	10/100/1000Base-T: 2-Pair UTP Cat. 3, 4, 5, 5e, 6 (maximum 100 meters) EIA / TIA-568 100-ohm STP (maximum 100 meters) 100Base-FX / 1000Base-SX / LX: Multi-mode: 50/125um or 62.5/125um optic fiber Single-mode: 9/125um optic fiber
电源要求	24V: 33 watts / 112BTU, 48V: 31 watts / 105BTU (With PoE)
以太网供电（PoE）
PoE 供电标准	IEEE 802.3af / 802.3at High Power over Ethernet / PSE
供电方式	End-Span
PoE 端口输出功率	52V DC. 15.4 watts 52V DC. 30 watts
供电针脚定义	1/2(+), 3/6(-)
标准一致性
国际标准	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX / FX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3z 1000Base-SX / LX Gigabit Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at High Power over Ethernet
遵从法规	FCC Part 15 Class A, CE
稳定性测试	IEC60068-2-32 (Free fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration)
环境
温度	Operating: -30~75 degrees C Storage: -40~85 degrees C
湿度	Operating: 5~90% (non-condensing) Storage: 5~90% (non-condensing)

订购信息
IGTP-802T	1000Base-SX to 10/100/1000Base-T 802.3at PoE Industrial Media Converter (SC,MM) -550m
IGTP-802TS	1000Base-LX to 10/100/1000Base-T 802.3at PoE Industrial Media Converter (SC,SM) -10km
IGTP-805AT	1000Base-SX / LX to 10/100/1000Base-T 802.3at PoE Industrial Media Converter (mini-GBIC, SFP)
