ICA-HM316W

2 Mega-Pixel 11n Outdoor IR IP Camera

概述
应用场景
功能特性
产品规格
下载
相关产品

Professional Outdoor Wireless Surveillance with Superb UXGA Quality

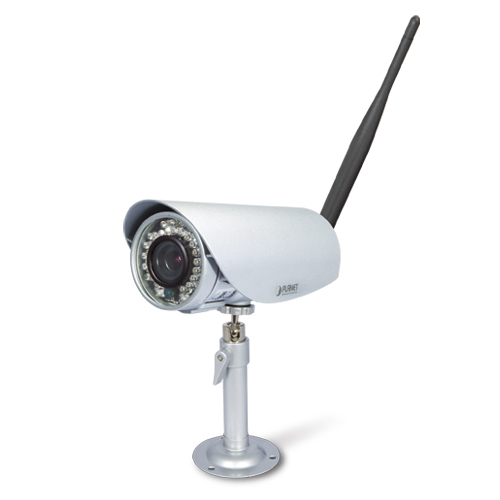

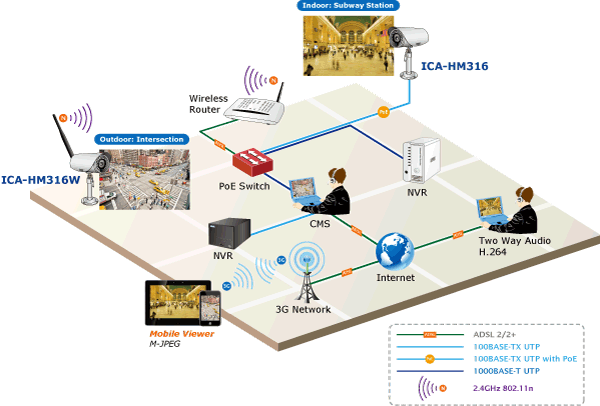

PLANET ICA-HM316W Network Camera with IR Illuminator is a high resolution camera for the round-the-clock surveillance over IP networks. It supports H.264, MPEG-4, and JPEG compression formats and delivers excellent picture quality in 2 mega-pixel resolutions at 15 frames per second (fps). Compliant with IEEE 802.11b/g/n, the ICA-HM316W enables users to access to Internet through up to 150Mbps high speed and secure wireless transmission with WEP / WPA encryptions. The IP66-rated housing protects the ICA-HM316W against rain and dust and ensures stable operation under extreme weather conditions. The ICA-HM316W is an ideal solution for outdoor surveillance applications such as buildings, roads, parking areas, garages, railway stations and airports.

Day & Night Functionality
To adapt to constantly changing lighting conditions, the ICA-HM316W comes with a removable IR-cut filter and built-in IR illuminators, which enables the camera to provide color video when there is sufficient light, and black/white video in dark conditions. The ICA-HM316W is able to maintain clear images 24 hours a day.

Exceptional Image Quality with Vari-focal Lens
With 3.6~10.5mm vari-focal lens, the ICA-HM316W meets various demands of installation. For instance, with traffic monitoring either on more than two lanes or one specified lane, it brings an extremely clear and exquisite picture quality.

Advanced Event Management

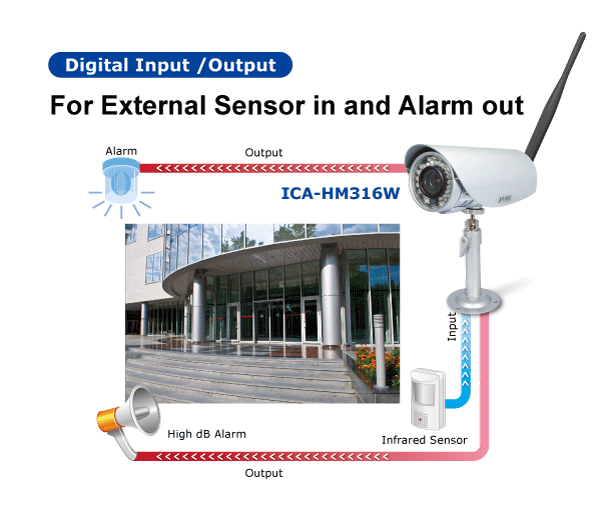

To enhance surveillance flexibility and event management capabilities, the ICA-HM316W supports a number of advanced features including auto-iris to avoid over exposure, AV out to perform the two-way audio function and inputs/outputs to connect with external devices such as door sensors and relays to activate light or closed doors.

Flexible Installation and Power Functionality
The ICA-HM316W is ONVIF compliant and therefore interoperable with other manufacturers� products. It also includes 64-CH central management software for ease of maintenance and remote monitoring. The ICA-HM316W is indisputably the top choice for reliable and high performance outdoor surveillance.

Camera
Image Device	1/3.2" 2 mega-pixel progressive scan CMOS sensor

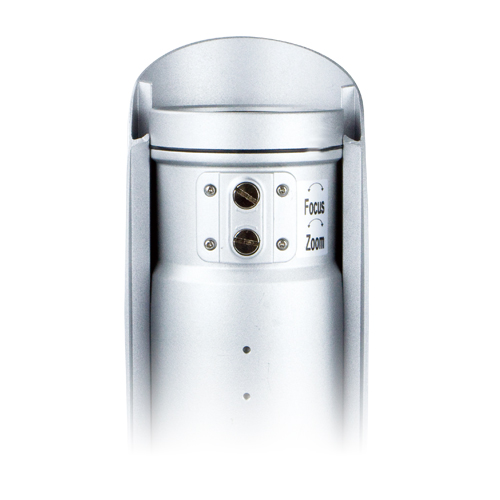

Lens	Vari-focal 3.6~10.5 mm, DC auto-iris Mechanical IR-cut Filter Angle of view : horizontal: 20.8 ~ 75.4 degrees / vertical: 15.7 ~ 54.9 degrees
Min Illuminator	0 lux @ F1.2

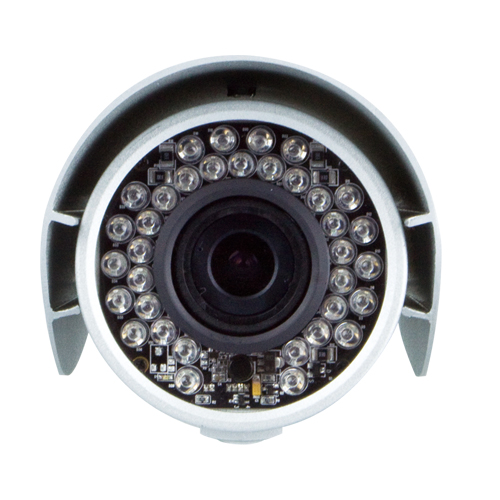

IR Illumination LED	IR LED*35, 850nm Built-in IR illuminators, effective up to 25 meter
Effective Pixels	1600 x 1200 pixels
Video Encoder	H.264 / MPEG-4 / M-JPEG
Video Profile	H.264: UXGA / 720P / SXGA / VGA / QVGA / QCIF M-JPEG: UXGA / 720P / SXGA / VGA / QVGA MPEG-4: QCIF (Only for 3GPP)
Frame Rate	UXGA Up to 15fps SXGA Up to 22fps HD-720P / SVGA / VGA / QVGA / QCIF Up to 30fps
Image Setting	Brightness, sharpness, contrast, AGC, Night Mode Text, time and date overlay
Streaming	Simultaneous multi-profile streaming M-JPEG streaming over HTTP Supports 3GPP mobile surveillance Controllable frame rate and bandwidth Constant and variable bit rate (MPEG-4 / H.264)
Audio
Audio Streaming	Two-way audio
Audio Encoder	RTSP: G.711 3GPP: AMR
Microphone	External microphone input
Audio Output	Phone jack
Network and Configuration
Network Standard	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.11b/g/n
Antenna connector	5dBi Dipole Antenna
Frequency	2.4GHz ~ 2.4835GHz
RF Transmit Power	OFDM: 14 dBm CCK: 17 dBm
Receiver Sensitivity	802.11b: � 1M: -90 dBm � 11M: -85 dBm 802.11g: � 6M: -87 dBm � 54M: -70 dBm 802.11n (BW20): � MCS0: -85 dBm � MCS7: -67 dBm 802.11n (BW40): � MCS0: -84 dBm � MCS7: -64 dBm
Data Rate	IEEE 802.11b Standard Data Rates: 1, 2, 5.5 and 11Mbps IEEE 802.11g Standard Data Rates: 6, 9, 12, 18, 24, 36, 48, 54Mbps IEEE 802.11n Standard Data Rates: Legacy and High Throughput Modes, supports 20 / 40MHz Bandwidth MCS0~7 (150Mbps PHY Rate)
Supported Protocols	IPv4, TCP, UDP, HTTP, SMTP, FTP, NTP, DNS, DDNS, DHCP, UPnP, RTSP, RTP, RTCP, PPPoE, 3GPP, ICMP
Security	Password protection, user access log WEP 64/128, WPA, WPA2, TKIP, AES
Users	10 simultaneous unicast users
System Integration
Application Programming Interface	Open API for software integration SDK
Alarm Triggers	Intelligent video motion detection and external input 3-zone video motion detection
Alarm Events	File upload via FTP, email and SAMBA External output activation Configurable Pre/Post alarm buffering
General
Power Supply	12V DC, 1A
Power Consumption	Max 6.24 W while IR LED ON Max 4.44 W while IR LED OFF
Housing	Weather-proof IP66-rated housing
Operating Temperature	-20 ~ 50 degrees C
Operating Humidity	20 ~ 80% (non-condensing)
Weight	850g
Dimension (? x L)	83 x 180 mm
Emission	CE, FCC

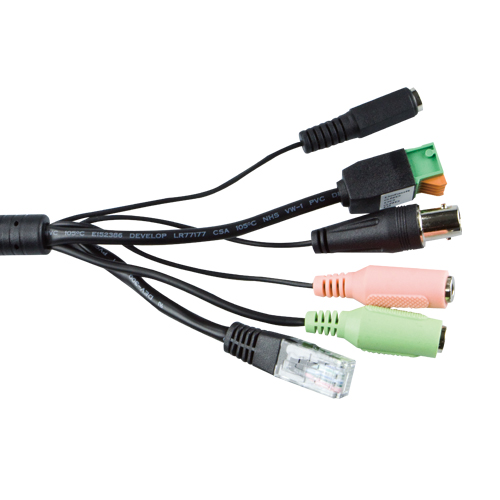

Connectors	10/100 Mbps Ethernet, RJ-45 DC power jack Terminal block for 1 alarm input, 1 output and factory default reset External MIC input Audio out Composited video out (max. resolution: D1 720 x 480 pixel) RP-SMA Type

订购信息
ICA-HM316W	2 Mega-pixel 11n Outdoor IR IP Camera
