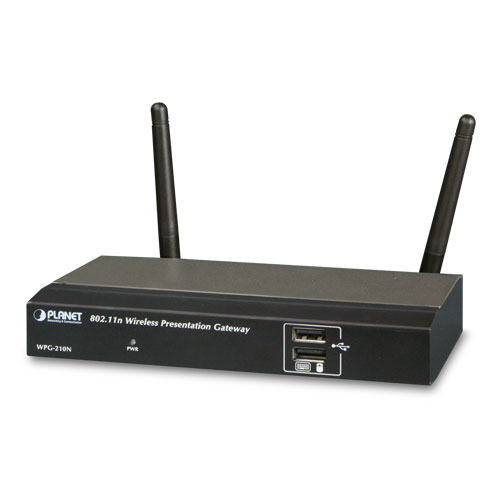

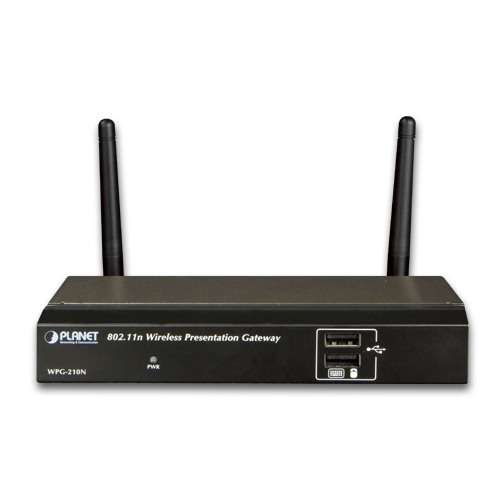

WPG-210N

802.11n Wireless Presentation Gateway

概述
应用场景
功能特性
产品规格
下载
相关产品

Delivering Smooth Presentations Wirelessly

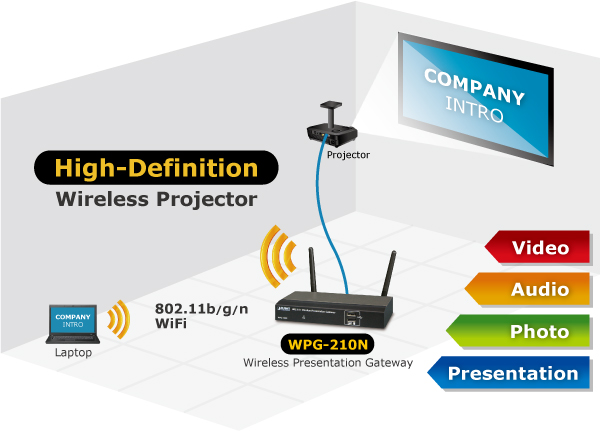

PLANET WPG-210N is a wireless presentation gateway adopting IEEE 802.11n technology to provide 300Mbps high speed wireless transmission. It is equipped with both VGA and HDMI video output interfaces and one 10/100Mbps Ethernet port for LAN connection. With the hardware decoding capability, the WPG-210N can project high-definition video on the screen and audio through wireless or wired LAN connections. It facilitates multiple users to freely display the presentations, images and videos via wireless connection to a projector or LCD TV without using lots of cables.

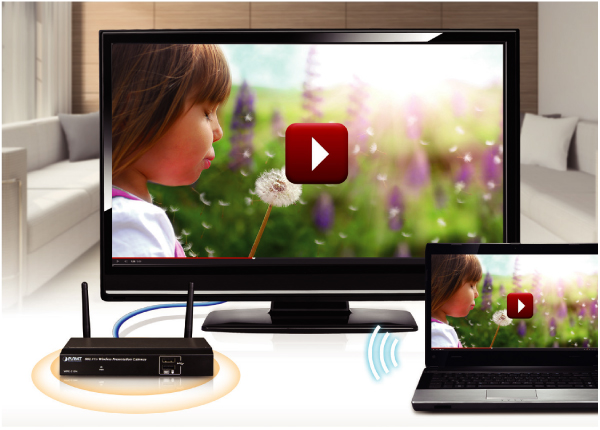

Smooth High Quality Multimedia Projection via Wireless Connection

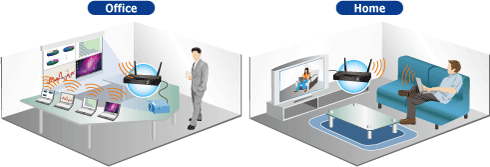

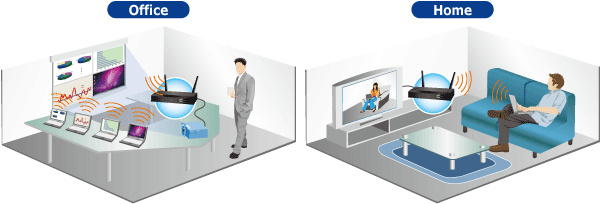

The WPG-210N supports real-time (30 frames per second) image screen speed and audio projection disregarding to video format and resolution. Thus the WPG-210N can be used not only for office presentation but also for home entertainment.Home users can easily share the multimedia on the big monitor / screen with friends without the cabling hassle. Furthermore, the WPG-210N output resolution supports up to 1440 x 900 (WXGA+), which performs high quality display in presentation or full-motion video.

Dual Video Output Interfaces
To deliver a perfect presentation solution, the WPG-210N is equipped with two types of video output interfaces: the VGA and HDMI connectors which make it compatible with most of the popular display devices. You can connect it to any type of projector, LCD TV, or other large screen displays wirelessly right away.

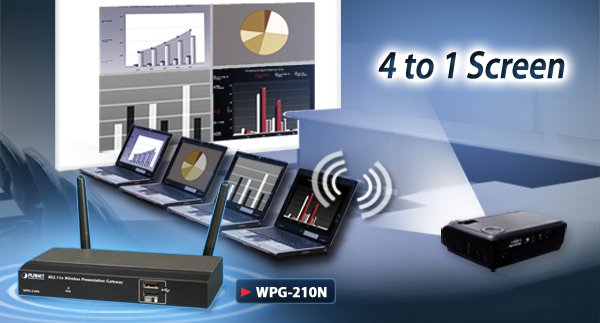

4-to-1 Split Screen Projection
With this 4-to-1 split screen feature, the WPG-210N allows up to four PC / Laptop screens to be projected through one projector at the same time. Therefore, the participants can easily do a side-by-side comparison of the four PC / Laptops to increase meeting efficiency.

High Speed 802.11n Wireless Connectivity
The WPG-210N features the latest IEEE 802.11n technology to provide improved wireless data rate speed up to 300Mbps and wider coverage. The incredibly wireless speed makes it ideal for handling high bandwidth video stream, VoIP and data streams at the same time stably and smoothly. It is also backward compliant with 802.11g and 802.11b standards and thus it is no need to change the existing network for maintaining connectivity.

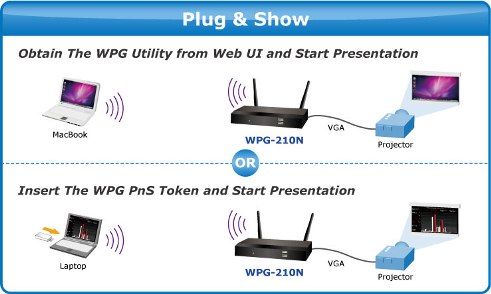

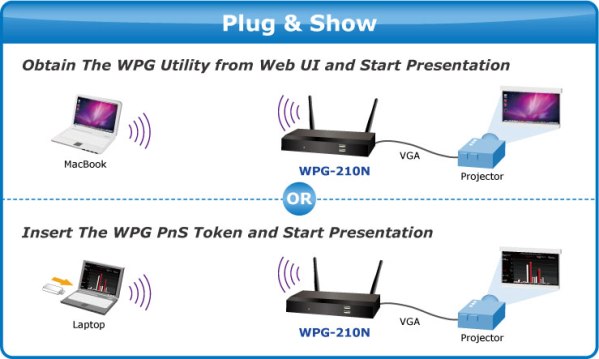

Easy to Use, Plug and Show
The embedded Windows-based utility enables the connected users to directly download the utility from the WPG-210N web UI or simply execute the utility from the created USB token. It offers the most convenient way for the new user to access to the presentation in seconds. Just link the PC / Laptop to the WPG-210N wirelessly or through Ethernet and the wireless projection can be performed via the connected projector easily.

Internet / Intranet Connectivity
The WPG-210N is also a Wireless Access Point. The 10/100Mbps LAN port and 11n wireless performance ensure the participants in the meeting are able to access the Internet and Intranet all the time, even while wireless presentations are projecting.

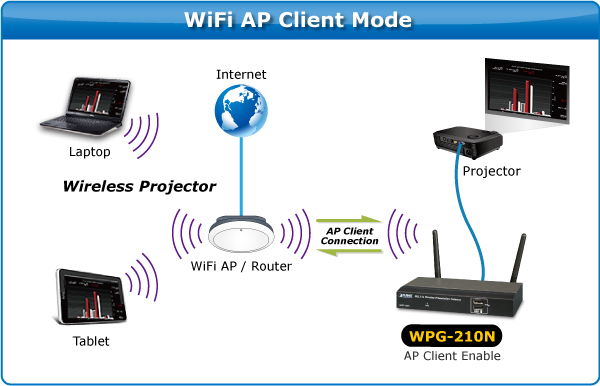

Easy Integration in AP-Client Mode
Furthermore, you can activate the AP-client mode to enable the WPG-210N to join the existing Access Point through Wi-Fi. This feature provides the flexibility of wireless network deployment in enterprise environment.

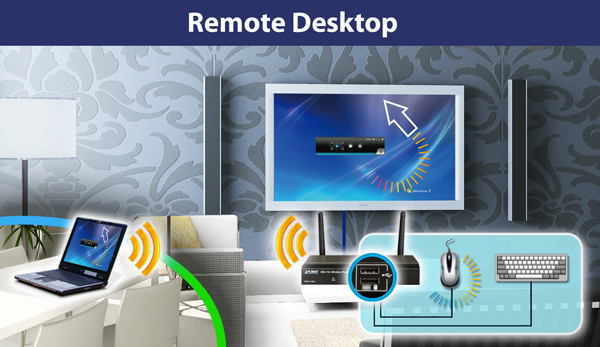

Enabling Remote Desktop Control
The WPG-210N supports USB interface for easy connection of USB keyboard and mouse. Users can just plug standard USB keyboard or mouse into the WPG-210N and then they are able to remotely control the PC or laptop. Hence it makes the presentation even easier today.

硬件特性

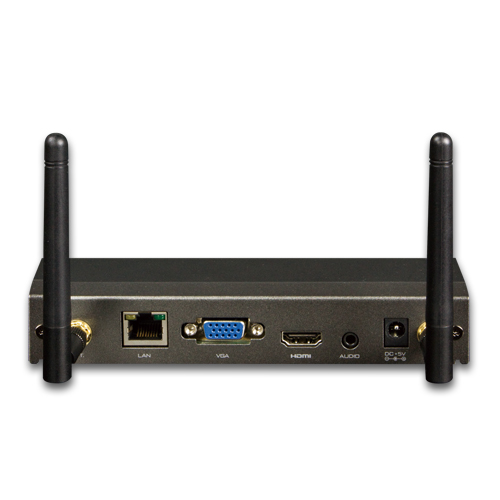

端口

Video: VGA Port: D-Sub 15-Pin female port HDMI 1.2
Audio Out: 3.5mm stereo jack
LAN: 10/100Base-TX RJ-45
Wireless LAN: IEEE 802.11n 300Mbps
USB Port: USB 2.0, Type-A, 5VDC / 0.5A output

天线

Gain: 2 x 2dBi RP-SMA detachable antenna
Orientation: Omni-directional

LED指示灯

Green: Power on
Red: Init / firmware upgrade

材质

Metal

尺寸

160 x 60.3 x 30 mm

重量

312g

电源要求

External power adaptor 5V DC input 2.6A
Multi-type swappable plug: US / EU / UK / AU

重置按钮

Reset to Factory Default

无线端口特性

标准

Compliant with IEEE 802.11n
Backward compatible with IEEE 802.11b/g

频段

2.412 ~ 2.4835GHz

无线传输数据速率

Up to 300Mbps

无线信道

America/ FCC: 2.412~2.462GHz (11 Channels)
Europe/ ETSI: 2.412~2.472GHz (13 Channels)
Japan/ TELEC: 2.412~2.4835GHz (14 Channels)

接收灵敏度

IEEE 802.11b: 11M -76dBm
IEEE 802.11g: 54M -67dBm
IEEE 802.11n: 65M (HT20) -64dBm
??????300M (HT40) -61dBm

无线安全

IEEE Standard 64/128 bit WEP / WPA / WPA2-PSK

操作模式

AP (Access Point)
AP-Client

视频显示

PC / 解决方案

SVGA (800x600) / XGA (1024x768)
SXGA (1280x1024) / WXGA (1280x768)
WSXGA (1440x900, 1600x1024) / UXGA (1600x1200)
WUXGA (1920x1200) / QXGA (2048x1536) / Others

输出分辨率

VGA:
?SVGA (800x600) / XGA (1024x768)
?WXGA (1280x768) / WXGA (1280x800)
?WXGA (1360x768) / WXGA+ (1440x900)
HDMI:
?720P (1280x720)

系统管理

协议

TCP/IP

IP 配置

Automatic: DHCP
Manual: Static IP address

管理

Web-based configuration

支持的Windows帐户权

Administrators
Limited User
Guest

支持的操作系统

Windows XP / Vista / 7 / 8
Mac OS X 10.5 and later

软件特性

4-to-1 split screen
Audio Projection
Remote Desktop Control
Virtual Extended Desktop (Windows platform)
Audio Latency Control
Conference Control
Gatekeeper
Advanced Screen Capture (Windows platform)

语言支持

English
Traditional Chinese
Simplified Chinese
Japanese
Korean

标准一致性

IEEE 标准

IEEE 802.11n (2T2R, up to 300Mbps)
IEEE 802.11g
IEEE 802.11b
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX

环境

温度

Operating:	0 ~ 40 degrees C
Storage:	-10 ~ 60 degrees C

湿度

Operating:	10 ~ 90% (non-condensing)
Storage:	10 ~ 80% (non-condensing)

订购信息
WPG-210N	802.11n Wireless Presentation Gateway
