| Hardware Specifications |

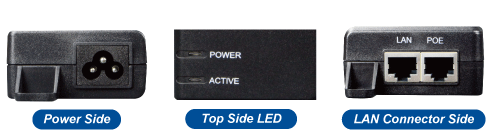

| 接口 |

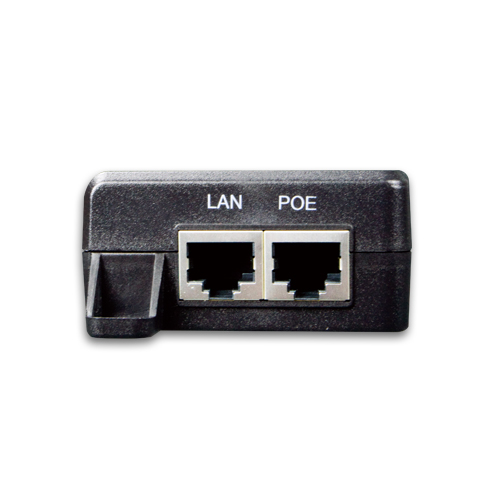

“Data” Input Port 1 x RJ-45 STP
“PoE (Data + Power)” Output Port 1 x RJ-45 STP

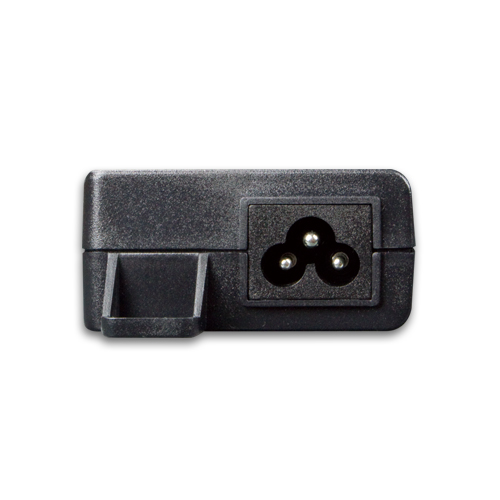

AC Input power socket 1
|

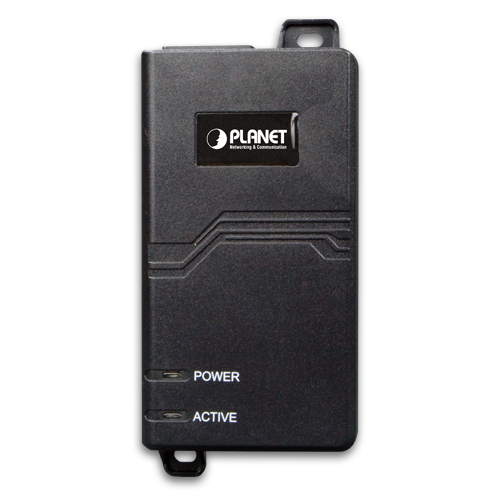

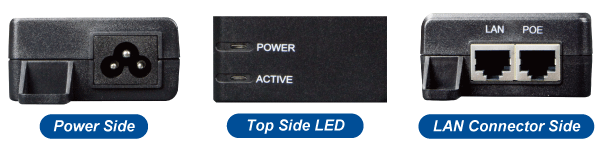

| LED 指示灯 |
System: Power x 1 (Green)
PoE Port: Active, PoE ready/In Use x 1 (Green) |
| 网络线缆 |
10Base-T: 2-Pair UTP Cat. 3, 4, 5, up to 100M (328ft)
100Base-TX: 2-Pair UTP Cat. 3, 4, 5, up to 100M (328ft)
EIA/TIA- 568 100-ohm STP (100m) |
| 速率 |
10/100Mbps |
| 外形尺寸 (W x D x H) |
115 x 62.5 x 31 mm |
| 重量 |
177g |
| 输出电压 |
DC 53V, 0.6A |
| 电源要求 |
100-240V AC, 50/60Hz, 0.75A |
| 电源功耗 |
30 watts max. |
| 受电设备数量 |
1 |
| 工作温度 |
0 ~ 50 degrees C |
| 存储温度 |
-10 ~ 70 degrees C |
| 工作温度 |
5 ~ 95%, relative humidity, non-condensing |
| 工作湿度 |
5 ~ 95%, relative humidity, non-condensing |
| Power over Ethernet |
| PoE 标准 |
IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE 供电输出 |
DC 53V/30 watts |
| PoE 供电支持类型 |
Mid-Span |
| 电源引脚分配 |
4/5(+), 7/8(-) |
| Standards Conformance |
| 标准一致性 |
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3at High Power over Ethernet
IEEE 802.3af Power over Ethernet |
| 法规遵循 |
FCC Part 15 Class B, CE |
