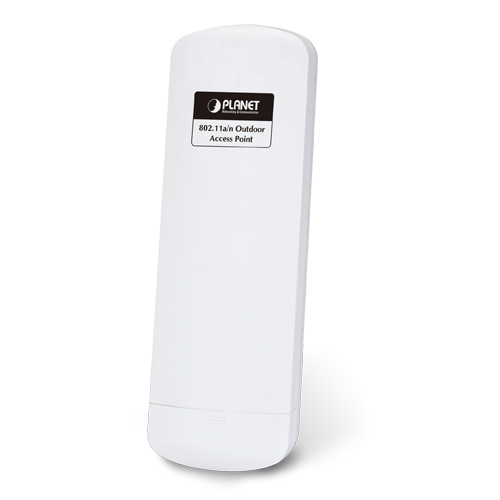

WNAP-7320

5GHz 300Mbps 802.11a/n Outdoor Wireless Access Point (Built-in 14dBi Antenna)

概述
应用场景
功能特性
产品规格
下载

High Power Outdoor Wireless Coverage
PLANET has come out with the latest high power outdoor wireless LAN solution � the WNAP-7320 300Mbps Outdoor Wireless AP. It provides higher transmit power, better performance, wider coverage and more stable connection than standard outdoor wireless AP. The WNAP-7320 is compliant with IEEE 802.11n standard and 2T2R MIMO technology which make it possible to deliver data rate up to 300Mbps, six times faster than the normal 802.11a wireless device. Via the embedded 14dBi dual-polarization (vertical and horizontal) directional antenna, it provides good diversity coverage and better noise immunity. Not only featuring high sensitivity but also the high output power up to 500mW, the WNAP-7320 can extend wider coverage in outdoor long range applications.

Multiple Operating and Wireless Modes

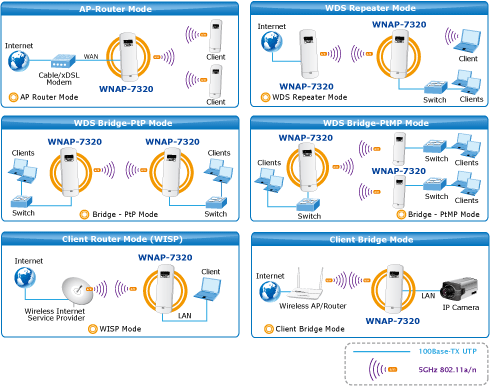

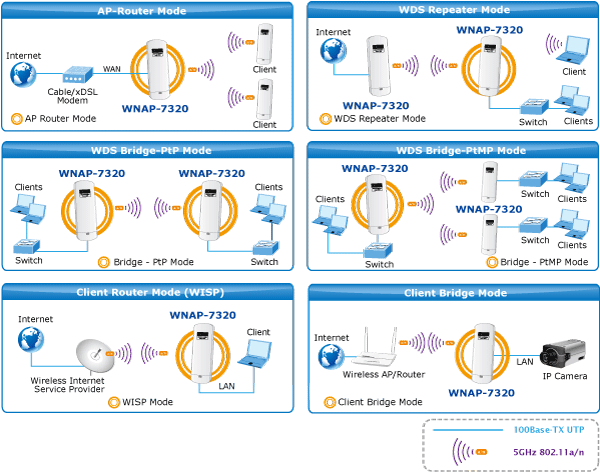

The WNAP-7320 supports multiple wireless communication connectivity (AP / Client CPE / WDS PtP / WDS PtMP / Repeater) allowing for various application requirements and thus gives users more comprehensive using experience. It helps users to easily build a wireless network and extend the wireless range of existing wireless network. The WNAP-7320 also supports WISP mode, so CPE users could easily connect to Internet via WISP provider or connect to a wired network.

Advanced Security and Management
In aspect of security, besides 64/128-bit WEP encryption, the WNAP-7320 integrates WPA / WPA2, WPA-PSK and WPA2-PSK to secure and protect your wireless LAN. The wireless MAC filtering and SSID broadcast control consolidate the wireless network security and prevent unauthorized wireless connection. In addition, with the Dual-SSID feature you can set up two different wireless networks. The WNAP-7320 can therefore serve as a virtual access point for segmented networks tailored to any office or industrial need.

Highly Reliable Outdoor Device

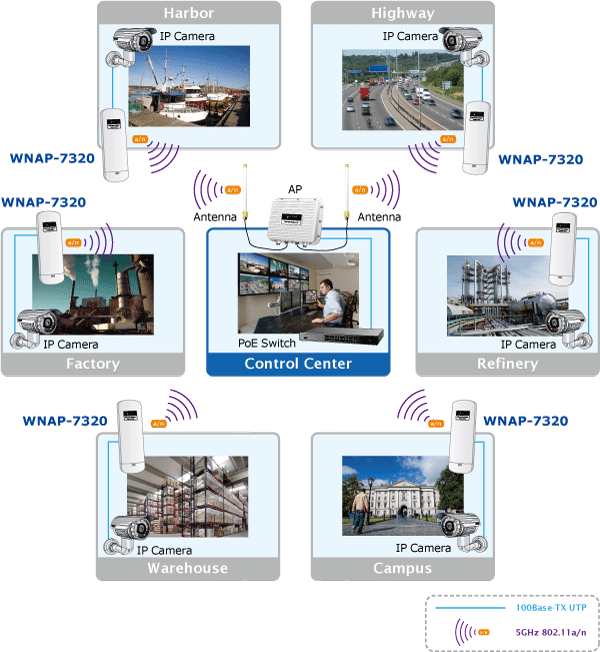

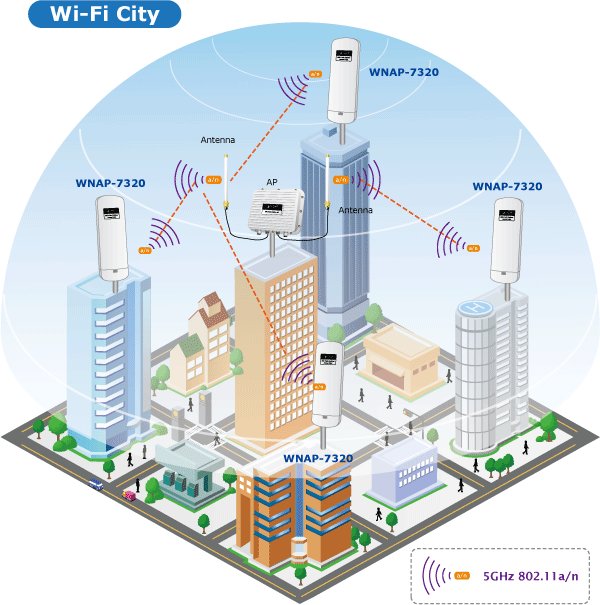

The WNAP-7320 is perfectly suitable to be installed in outdoor environments and exposed locations. Rated to operate at the temperature from -30 to 75 degrees C and adopting IP55 and outdoor UV stabilized enclosure, the WNAP-7320 can perform normally under rigorous weather conditions including heavy rain and wind. With the proprietary Power over Ethernet (PoE) design, the WNAP-7320 can be easily installed in the areas where power outlets are not available. It is the best way to use the WNAP-7320 to build outdoor wireless access applications between buildings on campuses, business communities, rural areas, etc.

Easy Installation and Management
With user-friendly Web UI and step by step Setup Wizard, the WNAP-7320 is easier to install, even for users who never experience in setting up a wireless network. Furthermore, with SNMP-based management interface, the WNAP-7320 is convenient to be managed and configured remotely.

硬件特性

Standard Support

IEEE 802.11a/n Wireless LAN
IEEE 802.11i Wireless Security
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Ethernet
IEEE 802.3x Flow Control

Memory

32 Mbytes DDR SDRAM
8 Mbytes Flash

端口

Wireless IEEE 802.11a/n, 2T2R
LAN: 1 x 10/100Base-TX, Auto-MDI/MDIX
WAN: 1 x 10/100Base-TX, Auto-MDI/MDIX

天线

Built-in 14dBi Dual-Polarization Antenna
?- Horizontal: 45 degree
?- Vertical: 60 degree

无线RF特性

Wireless Technology

IEEE 802.11a
IEEE 802.11n

数据传输速率

IEEE 802.11a: 54, 48, 36, 24, 18, 12, 9 and 6Mbps
IEEE 802.11n (20MHz): up to 150Mbps
IEEE 802.11n (40MHz): up to 300Mbps

Media Access Control

CSMA / CA

Modulation

Transmission / Emission Type: OFDM
Data modulation type: OFDM with BPSK, QPSK, 16-QAM, 64-QAM

Frequency Band

5.180GHz ~ 5.825GHz

Operating Channel

5.180GHz	CH36	5.580GHz	CH116
5.200GHz	CH40	5.600GHz	CH120
5.220GHz	CH44	5.620GHz	CH124
5.240GHz	CH48	5.640GHz	CH128
5.260GHz	CH52	5.660GHz	CH132
5.280GHz	CH56	5.680GHz	CH136
5.300GHz	CH60	5.700GHz	CH140
5.320GHz	CH64	5.745GHz	CH149
5.500GHz	CH100	5.765GHz	CH153
5.520GHz	CH104	5.785GHz	CH157
5.540GHz	CH108	5.805GHz	CH161
5.560GHz	CH112	5.825GHz	CH165

*The above 24 channels are defined in theory. The actual application will vary depending on the regulation in different regions and countries.

RF Output Power

IEEE 802.11a: 27 � 1dBm
IEEE 802.11n: 24 � 1dBm

Receiver Sensitivity

IEEE 802.11a: -92 ~ -73dBm @ 6Mbps ~ 54Mbps
IEEE 802.11n: -94 ~ -73dBm @ MCS0 ~ MCS15

Output Power Control

3~27dBm

软件特性

LAN端口

Built-in DHCP server supporting static IP address distributing
Supports 802.1d STP (Spanning Tree)

WAN端口

?? Static IP
?? Dynamic IP
?? PPPoE
?? PPTP
?? L2TP
?? IPSec

操作模式

?? Bridge
?? Gateway
?? WISP

防火墙

NAT firewall with SPI (Stateful Packet Inspection)
Built-in NAT server supporting Virtual Server and DMZ
Built-in firewall with Port / IP address / MAC / URL filtering

无线工作模式

?? AP
?? Client
?? WDS PTP
?? WDS PTMP
?? WDS Repeater (AP+WDS)

信道频宽

20MHz / 40MHz

无线隔离

Enables isolation of each connected wireless client from communicating with each other mutually.

加密类型

64/128-bits WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X

无线安全

Provides wireless LAN ACL (Access Control List) filtering
Wireless MAC address filtering
Supports WPS (Wi-Fi Protected Setup )
Enable / Disable SSID Broadcast

Multiple SSID

Up to 2

最大用户接入数量

Max. WDS AP

最大.客户端

WMM

Supports Wi-Fi Multimedia

QoS

Supports Quality of Service for bandwidth control

NTP

Network Time Management

管理

Web UI, DHCP Client, Configuration Backup & Restore, Dynamic DNS, SNMP

诊断工具

System Log, Ping Watchdog

Mechanical & Power

IP 速率

IP55

材料

Outdoor UV Stabilized Enclosure

尺寸

275 x 93 x 45 mm

重量

336 � 5g

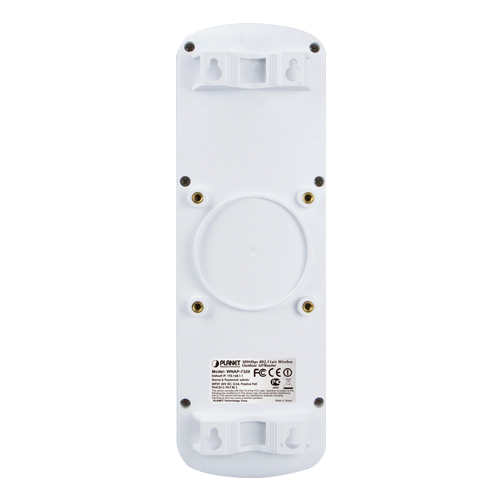

设备

Pole mounting or Wall mounting

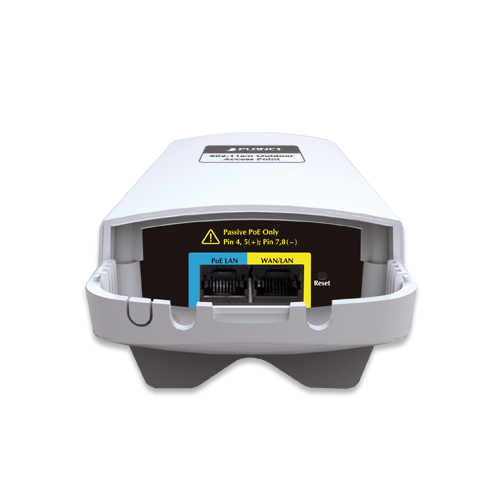

电源要求

LAN
?? 24V DC, 0.5A/ Passive PoE
?? Pin 4,5 VDC+
?? Pin 7,8 VDC-

功率损耗

7.68W

环境与认证

工作温度

-30~75 degrees C

工作湿度

10~95% non-condensing

调控

CE / RoHS

配件

标准配件

?? 24V DC Passive PoE Injector & Power Cord x 1
?? Mounting Tie x 2
?? Quick Installation Guide x 1
?? CD (User�s Manual, Quick Installation Guide) x 1

订购信息
WNAP-7320	5GHz 300Mbps 802.11a/n Outdoor Wireless Access Point (Built-in 14dBi Antenna)

附件
CB-STP-25	25 meter STP Cat5 Cable
ELA-100	Ethernet Lightning Arrest Box
