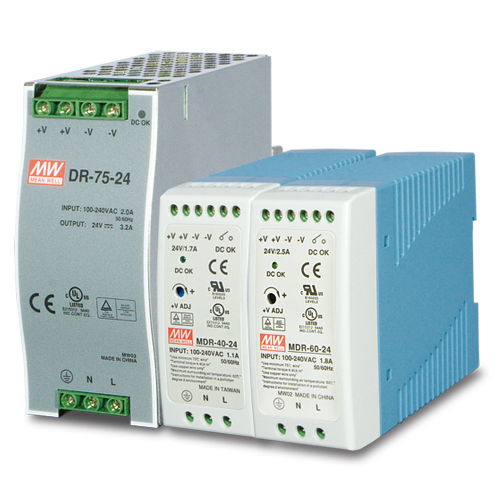

| PWR-40-24 (MEAN WELL/DR-40-24) |
| Dimensions (W x D x H) |
40 x 100 x 90 mm |
| Weight (kg) |
0.3kg |
| Input Voltage |
100-240V AC, 50/60Hz, 1.1A, 120-370V DC |
| Power Output |
40 watts, 24V, 1.7A |
| Temperature |
Operating: -20~70 degrees C
Storage: -40~85 degrees C |
| Humidity |
Operating: 20 ~ 90%
Storage: 10 ~ 95% (non-condensing) |
| Installation |
DIN rail TS-35/7.5 or 15 |
| Safety & Function |
UL508, UL60950-1, TUV EN60950-1 approved, NEC class 2 / LPS compliant |
| PWR-60-24 (MEAN WELL/MDR-60-24) |
| Dimensions (W x D x H) |
40 x 100 x 90 mm |
| Weight (kg) |
0.3kg |
| Input Voltage |
100-240V AC,50/60Hz,1.8A, 120-370V DC |
| Power Output |
60 watts, 24V, 2.5A |
| Temperature |
Operating: -20~70 degrees C
Storage: -40~85 degrees C |
| Humidity |
Operating: 20 ~ 90%
Storage: 10 ~ 95% (Non-condensing) |
| Installation |
DIN rail TS-35/7.5 or 15 |
| Safety & Function |
UL508, TUV EN60950-1 approved |
| PWR-75-24 (MEAN WELL/DR-75-24) |
| Dimensions (W x D x H) |
55 x 100 x 125 mm |
| Weight (kg) |
0.6kg |
| Input Voltage |
100-240V AC, 50/60Hz, 2.0A, 120-370V DC |
| Power Output |
75 watts, 24V, 3.2A |
| Temperature |
Operating: -10~60 degrees C
Storage: -20~85 degrees C
|
| Humidity |
Operating: 20 ~ 90%
Storage: 10 ~ 95% (non-condensing) |
| Installation |
DIN rail TS-35/7.5 or 15 |
| Safety & Function |
UL508, TUV EN60950-1 approved |
