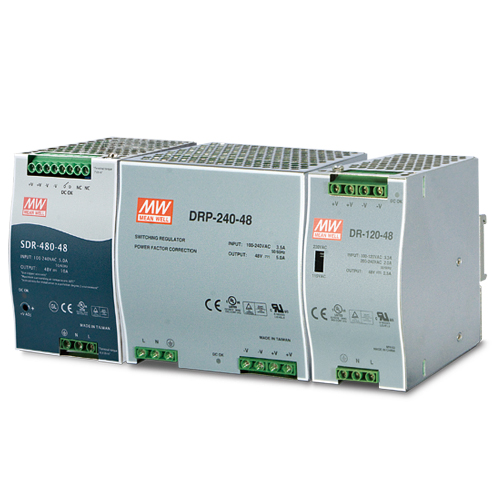

| PWR-120-48 (MEAN WELL/DR-120-48) |
| Dimensions (W x D x H) |
65 x 100 x 125 mm |
| Weight (kg) |
0.79kg |
| Input Voltage |
100-240V AC, 50/60Hz, 3.3A, 248-370V DC |
| Power Output |
120 watts, 48V, 2.5A |
| Temperature |
Operating: -10~60 degrees C
Storage: -20~85 degrees C
|
| Humidity |
Operating: 20 ~ 90%
Storage: 10 ~ 95% (non-condensing)
|
| Installation |
DIN rail TS-35/7.5 or 15 |
| Safety & Function |
UL508, UL60950-1, TUV EN60950-1 approved |
| PWR-240-48 (MEAN WELL/DR-240-48) |
| Dimensions (W x D x H) |
125 x 100 x 125 mm |
| Weight (kg) |
1.2kg |
| Input Voltage |
100-240V AC, 50/60Hz, 3.5A, 120-370V DC |
| Power Output |
240 watts, 48V , 5A |
| Temperature |
Operating: -10~70 degrees C
Storage: -20~85 degrees C
|
| Humidity |
Operating: 20 ~ 90%
Storage: 10 ~ 95% (non-condensing)
|
| Installation |
DIN rail TS-35/7.5 or 15 |
| Safety & Function |
UL508, UL60950-1, TUV EN60950-1 approved |
| PWR-480-48 (MEAN WELL/SDR-480-48) |
| Dimensions (W x D x H) |
85.5 x 128.5 x 125.2 mm |
| Weight (kg) |
1.6kg |
| Input Voltage |
100-240V AC, 50/60Hz, 5.0A, 127-370V DC |
| Power Output |
480 watts, 48V , 10A |
| Temperature |
Operating: -25~70 degrees C
Storage: -25~85 degrees C
|
| Humidity |
Operating: 20 ~ 90%
Storage: 10 ~ 95% (non-condensing)
|
| Installation |
DIN rail TS-35/7.5 or 15 |
| Safety & Function |
UL508, UL60950-1, TUV EN60950-1 approved |
