IGS-10020MT

Industrial 8-Port 10/100/1000T + 2 100/1000X SFP 管理型交换机(-40~75 degrees C)

概述
应用场景
功能特性
产品规格
下载
相关产品

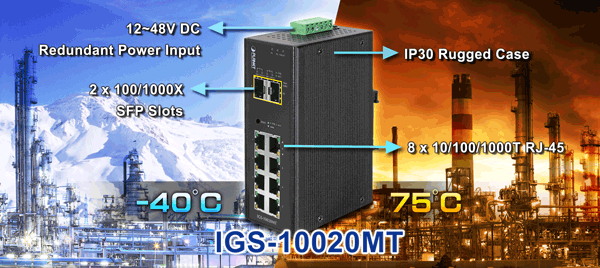

PLANET IGS-10020MT is an Industrial 10-Port Full Gigabit Managed Ethernet Switch specially designed to build a full Gigabit backbone to transmit reliable but high speed data in heavy industrial demanding environments and forward data to remote network through fiber optic. It provides 8-port 10/100/1000Base-T copper and 2 extra 100/1000Base-X SFP fiber optic interfaces delivered in an IP30 rugged strong caiise with redundant power system. Besides support for 20Gbps switch fabric to handle extremely large amounts of video, voice and important data in a secure topology, the IGS-10020MT provides user-friendly but advanced IPv6 / IPv4 management interfaces and abundant L2 / L4 switching functions. It is the best investment for industrial business expanding or upgrading its network infrastructure

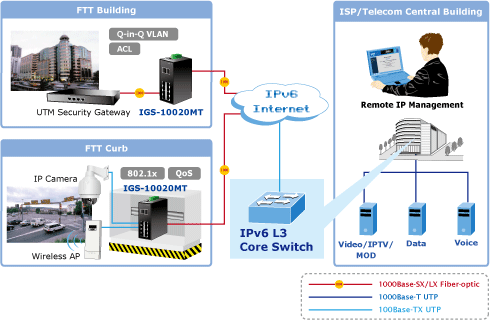

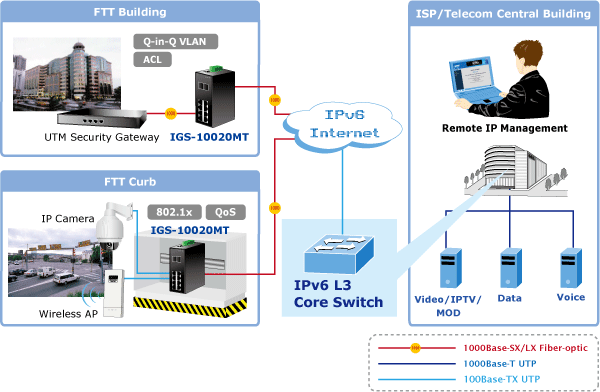

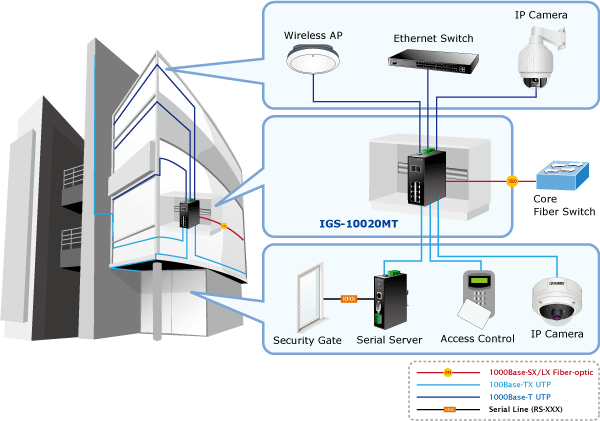

IPv6 / IPv4 Full-functioned Secure Switch for Building Automation Networking
The IGS-10020MT is the ideal solution to fulfilling the demand of IPv6 management Gigabit Ethernet Switch, especially in the Industrial hardened environment. It supports both IPv4 and IPv6 management functions and can work with original network structure. It provides advanced Layer 2 to Layer 4 data switching and redundancy, Quality of Service traffic control, network access control and authentication, and Secure Management features to protect customer�s industrial and building automation network connectivity with reliable switching recovery capability that is suitable for implementing fault tolerant and mesh network architectures.

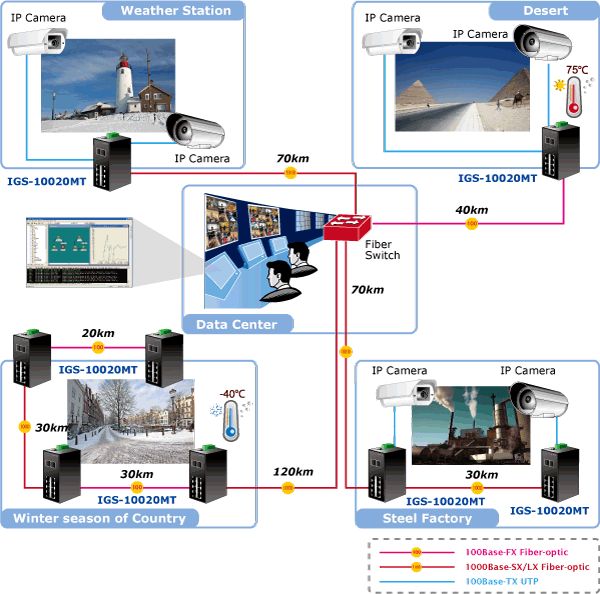

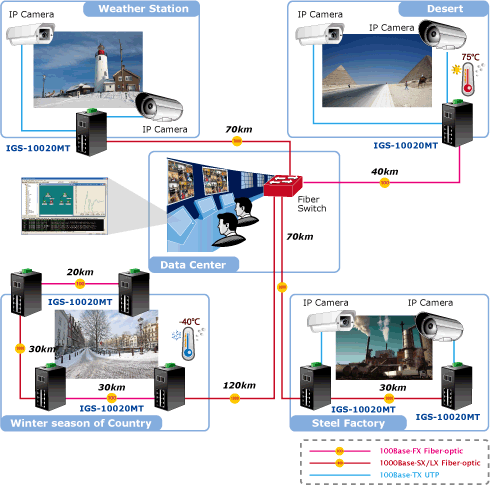

Redundant Ring, Fast Recovery for Surveillance System

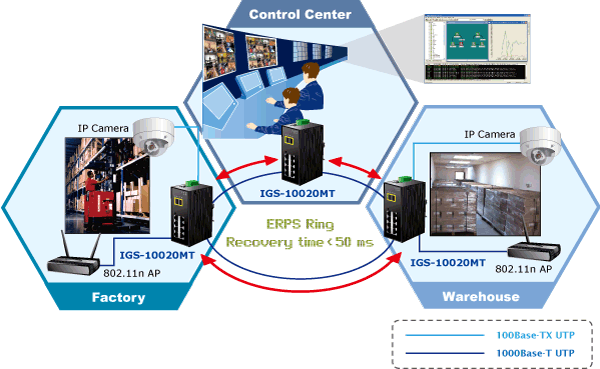

The IGS-10020MT supports redundant ring technology and features strong rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer�s industrial automation network to enhance system reliability and uptime in harsh factory environments. In certain simple Ring network, the recovery time of data link can be as fast as 20 ms.

Environmentally Hardened Design
With IP30 aluminum industrial case protection, the IGS-10020MT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. It also possesses an integrated power supply source with wide range of voltages (12 to 48V DC or 24V AC) for worldwide high availability applications requiring dual or backup power inputs. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-10020MT can be placed in almost any difficult environment.

Flexible and Extendable Solution

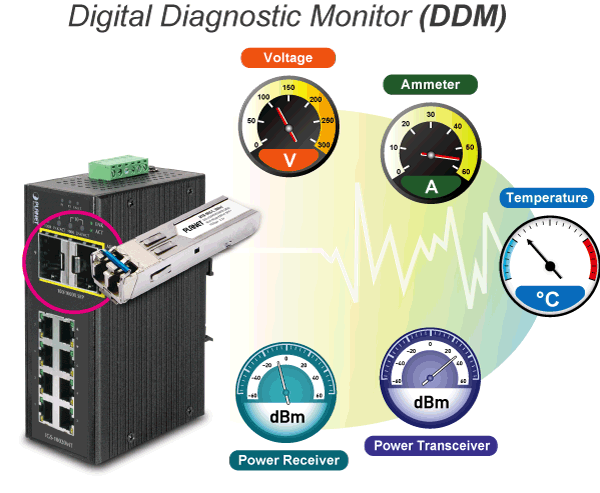

The 2 mini-GBIC slots built in the IGS-10020MT support dual-speed, 100Base-FX and 1000Base-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. The IGS-10020MT supports SFP-DDM(Digital Diagnostic Monitor) function that can easily monitor real-time parameters of the SFP for network administrator, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

Physical Port
� 8-Port 10/100/1000Base-T RJ-45 copper
� 2 100/1000Base-X mini-GBIC/SFP slots, SFP type auto detection

Industrial Case / Installation
� IP30 aluminum case protection
� DIN-rail and wall mount design
� Redundant Power Design
?- 12 to 48V DC, redundant power with polarity reverse protect function
?- AC 24V power adapter acceptable
� Supports EFT protection 6000 VDC for power line
� Supports 6000 VDC Ethernet ESD protection
� -40 to 75 degrees C operating temperature

Layer 2 Features
� Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
� High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
� Storm Control support
?- Multicast / Unknown-Unicast
� Supports VLAN
?- IEEE 802.1Q Tagged VLAN
?- Up to 255 VLANs groups, out of 4095 VLAN IDs
?- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
?- Private VLAN Edge (PVE)
?- Protocol-based VLAN
?- MAC-based VLAN
?- Voice VLAN
� Supports Spanning Tree Protocol
?- STP, IEEE 802.1D Spanning Tree Protocol
?- RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
?- MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN
?- BPDU Guard
� Supports Link Aggregation
?- 802.3ad Link Aggregation Control Protocol (LACP)
?- Cisco ether-channel (Static Trunk)
?- Maximum 5 trunk groups, up to 10 ports per trunk group
?- Up to 20Gbps bandwidth (duplex mode)
� Provides Port Mirror (many-to-1)
� Port Mirroring of the incoming or outgoing traffic on a particular port
� Supports E.R.P.S. (Ethernet Ring Protection Switching)

Quality of Service
� Ingress Shaper and Egress Rate Limit per port bandwidth control
� 8 priority queues on all switch ports
� Traffic classification
?- IEEE 802.1p CoS
?- IP TOS / DSCP / IP Precedence
?- IP TCP/UDP port number
?- Typical network application
� Strict priority and Weighted Round Robin (WRR) CoS policies
� Supports QoS and In/Out bandwidth control on each port
� Traffic-policing policies on the switch port
� DSCP remarking

Multicast
� Supports IGMP Snooping v1, v2 and v3
� Supports MLD Snooping v1 and v2
� Querier mode support
� IGMP Snooping port filtering
� MLD Snooping port filtering
� MVR (Multicast VLAN Registration)

Security
� IEEE 802.1x Port-based / MAC-based network access authentication
� Built-in RADIUS client to co-operate with the RADIUS servers
� TACACS+ login users access authentication
� RADIUS / TACACS+ users access authentication
� IP-based Access Control List (ACL)
� MAC-based Access Control List
� Source MAC / IP address binding
� DHCP Snooping to filter untrusted DHCP messages
� Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
� IP Source Guard prevents IP spoofing attacks
� Auto DoS rule to defend DoS attack
� IP address access management to prevent unauthorized intruder

Management
� Switch Management Interfaces
?-Web switch management
?-Remote Telnet management
?-SNMP v1, v2c, and v3 switch management
?-SSH / SSL secure access
� Four RMON groups (history, statistics, alarms, and events)
� IPv6 IP Address / NTP / DNS management
� Built-in Trivial File Transfer Protocol (TFTP) client
� BOOTP and DHCP for IP address assignment
� Firmware upload/download via HTTP / TFTP
� DHCP Relay
� DHCP Option 82
� User Privilege levels control
� NTP (Network Time Protocol)
� Link Layer Discovery Protocol (LLDP) Protocol
� Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues
� Reset button for system reboot or reset to factory default
� PLANET Smart Discovery Utility for deploy management

硬件特性

硬件版本

电口

8 10/ 100/1000Base-T RJ-45 Auto-MDI/MDI-X ports

光口

2 1000Base-SX/LX/BX SFP interfaces (Port-9 and Port-10)
Compatible with 100Base-FX SFP

处理方式

Store-and-Forward

背板带宽

20Gbps / non-blocking

吞吐量

14.8Mpps

地址表

8K entries, automatic source address learning and ageing

共享数据缓冲区

512 kilobytes

流控

IEEE 802.3x pause frame for full-duplex. Back pressure for half-duplex

巨型帧

9Kbytes

重置按钮

< 5 sec: System reboot
> 5 sec: Factory Default

ESD保护

6KV DC

EFT保护

6KV DC

材质

IP30 aluminum metal case

安装方式

DIN rail kit and wall mount kit

报警功能

One relay output for power failure.
Alarm relay current carry ability: 1A @ DC 24V

LED指示灯

System:

	Power 1 (Green)
	Power 2 (Green)
	Fault Alarm (Green)
	Ring (Green)
	R.O. (Green)

Per 10/100/1000T RJ-45 Ports:

	Power LNK/ACT (Green)
	1000 (Orange)

Per SFP Interface:

	LNK/ACT (Green)
	1000 (Orange)

尺寸

87.8 x 135 x 56 mm

重量

720g

电源要求

DC 12 to 48V. AC 24V power adapter

功率/损耗

10 watts / 34BTU (full loading)

2层特性

管理方式

Web Browser, Remote Telnet, SNMP v1, v2c

安全管理

SSH, SSL, SNMP v3

端口设定

Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow Control disable / enable
Power saving mode control

端口状态

Display each port�s speed duplex mode, link status, flow control status. Auto negotiation status, trunk status.

端口镜像

TX / RX / Both
Many to 1 monitor

VLAN

802.1Q Tagged based VLAN ,up to 255 VLAN groups
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
Up to 255 VLAN groups, out of 4095 VLAN IDs

链路聚合

IEEE 802.3ad LACP / Static Trunk
Support 5 groups of 10-Port trunk support

QoS

Traffic classification based, Strict priority and WRR
8-level priority for switching
?- Port Number
?- 802.1p priority
?- 802.1Q VLAN tag
?- DSCP/TOS field in IP Packet

IGMP Snooping

IGMP (v1/v2/V3) Snooping, up to 255 multicast Groups
IGMP Querier mode support

MLD Snooping

MLD (v1/v2) Snooping, up to 255 multicast Groups
MLD Querier mode support

访问控制列表(ACL)

IP-Based ACL / MAC-Based ACL
Up to 123 entries

带宽控制

Per port bandwidth control
?Ingress: 500Kb~80Mbps
?Egress: 64Kb~80Mbps

SNMP MIBs

RFC-1213 MIB-II
IF-MIB
RFC-1493 Bridge MIB
RFC-1643 Ethernet MIB
RFC-2863 Interface MIB
RFC-2665 Ether-Like MIB
RFC-2819 RMON MIB (Group 1, 2, 3 and 9)
RFC-2737 Entity MIB
RFC-2618 RADIUS Client MIB
RFC-2933 IGMP-STD-MIB
RFC3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB

标准一致性

法规

FCC Part 15 Class A, CE

Stability Testing

IEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)

标准

IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX / 100Base-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x Flow Control and Back pressure
IEEE 802.3ad Port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of service
IEEE 802.1Q VLAN Tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
FRC 3810 MLD version 2

环境

工作

Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (Non-condensing)

存储

Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)

订购信息
IGS-10020MT	Industrial 8-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch (-40~75 degrees C)
