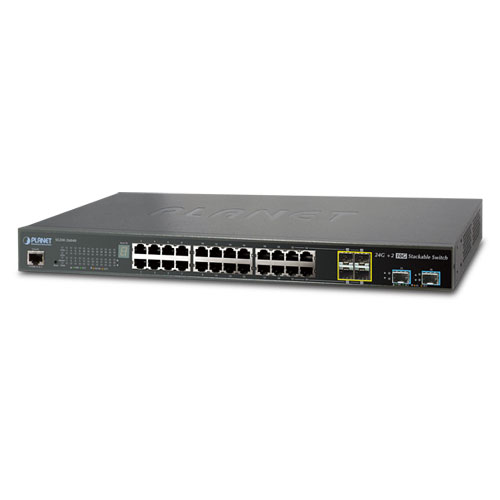

SGS-5220-24T2X

24口千兆可管理可堆叠支持万兆上联以太网交换机（24个千兆电口，4个千兆SFP复用端口，2个10G SFP+端口）

概述

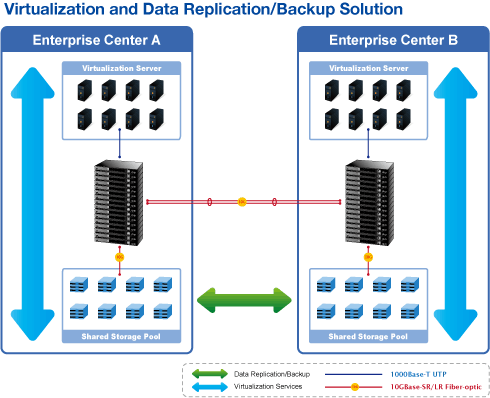

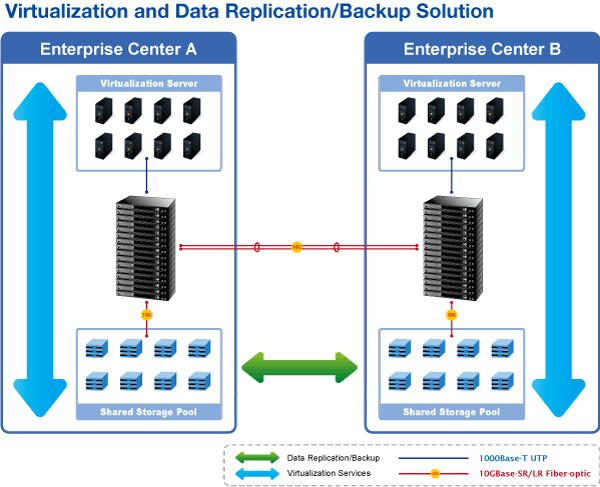

应用场景
功能特性
产品规格
下载
相关产品

High-Density, Resilient Deployment Switch Solution for Gigabit Networking of Enterprise, Campus and Data Center
For the growing Gigabit network and IoT (Internet of Things) demand, PLANET has launched a new-generation Stackable Gigabit Switch solution, the SGS-5220 switch series, to meet the needs of enterprises, telecoms and campuses for a large-scale network deployment. The SGS-5220-24T2X is Layer 2+ Managed Stackable Gigabit Switch, which supports both IPv4 and IPv6 protocols and hardware Layer 3 static routing capability, and provides 24 10/100/1000Mbps Gigabit Ethernet ports, 4 shared Gigabit SFP slots, 2 10G SFP+ uplink slots and another 2 dedicated 10G SFP+ stacked interfaces for stacking with the series of switches. Up to 16 units, 384 Gigabit Ethernet ports and 32 10Gbps SFP+ slots can be managed by a stacking group and you can add ports and functionality as needed.

Efficient Single IP Management

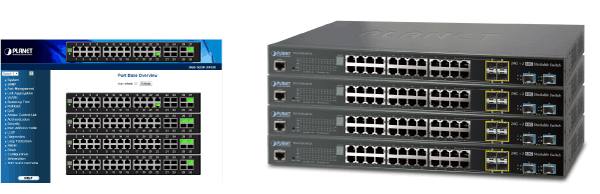

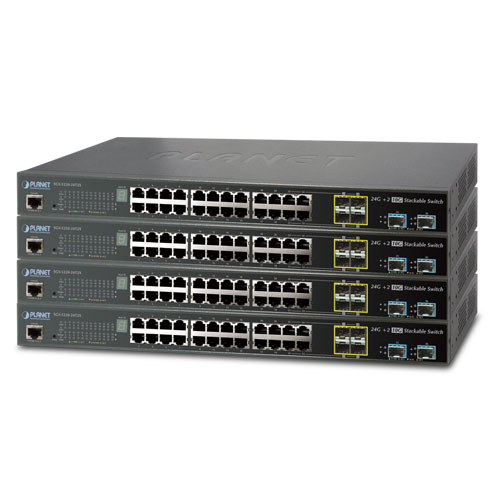

The SGS-5220 series applies the advantage of the stacking technology to managing the stack group with one single IP address, which helps network managers to easily manage a stack of switches instead of connecting and setting each unit one by one. The stacking technology also enables the chassis-based switches to be integrated into the SGS-5220 Managed Switch series at an inexpensive cost.

Highly-reliable Stacking Ability

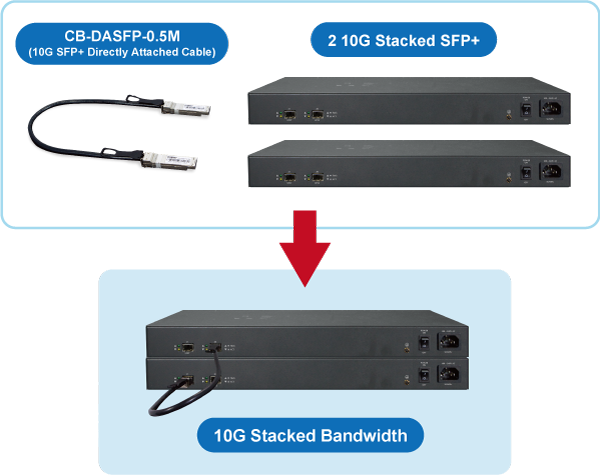

Through its up to 40Gbps, bi-directional high bandwidth tunnel and stacking technology, the SGS-5220-24T2X gives the enterprises, service providers and telecoms flexible control over port density, uplinks and switch stack performance. The stack redundancy of the SGS-5220-24T2X ensures that data integrity is retained even if one switch in the stack fails. You can even hot-swap switches without disrupting the network, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands.

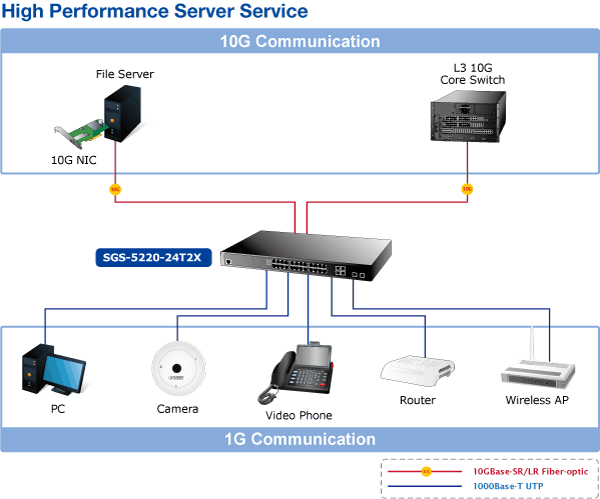

Cost-effective 10Gbps Uplink Capacity
10G Ethernet is a big leap in the evolution of Ethernet. The two 10G SFP+ slot of the SGS-5220-24T2X supports Dual-speed, 10GBase-SR/LR or 1000Base-SX/LX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. They greatly support SMB network to achieve 10Gbps high performance in a cost-effective way because 10GbE interface usually could be available in Layer 3 Switch but Layer 3 Switch could be too expensive to SMBs.

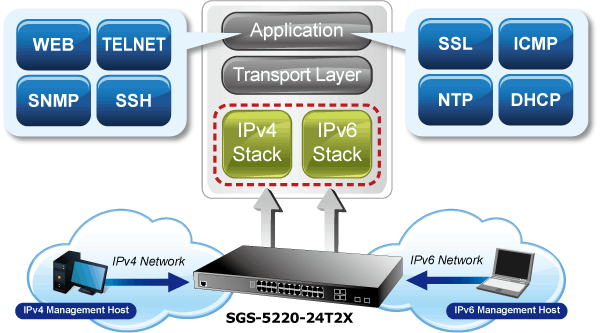

Solution for IPv6 Networking
By supporting IPv6 / IPv4 dual stack and plenty of management functions with easy and friendly management interfaces, the SGS-5220 series is the best choice for IP surveillance, VoIP and wireless service providers to connect with the IPv6 network. It also helps the SMB to step in the IPv6 era with the lowest investment but not necessary to replace the network facilities while the ISP constructs the IPv6 FTTx edge network.

IPv4 and IPv6 VLAN Routing for Secure and Flexible Management
To help customers stay on top of their businesses, the SGS-5220 switch series not only provides ultra high transmission performance and excellent layer 2 technologies, but also offers IPv4/IPv6 VLAN routing feature which allows to cross over different VLANs and different IP addresses for the purpose of having a highly secured, flexible management and simpler networking application.

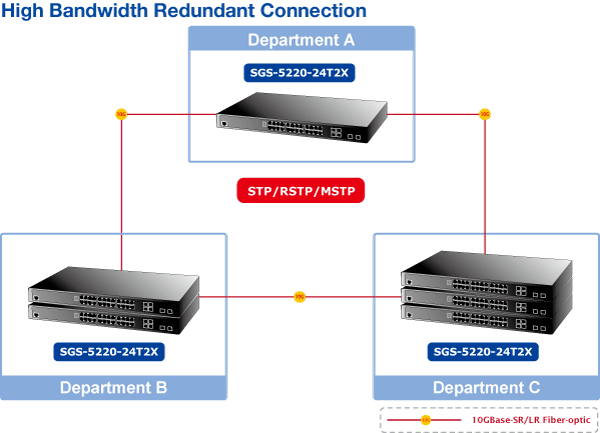

Robust Layer2 Features

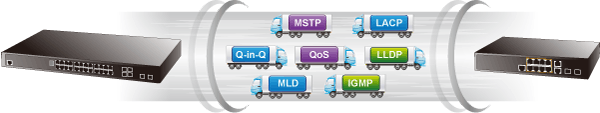

The SGS-5220 series can be programmed for advanced switch management function, such as dynamic port link aggregation, Q-in-Q VLAN, Multiple spanning tree protocol(MSTP), Layer 2/4 QoS, bandwidth control and IGMP/MLD snooping. The SGS-5220 series allows the operation of a high-speed trunk combining multiple ports. It enables up to 14 groups of 8 ports for trunk maximum and supports connection fail-over as well.

Powerful Security
The SGS-5220 series offers comprehensive layer2 to layer4 access control list (ACL) for enforcing security to the edge. It can be used to restrict to network access by denying packets based on source and destination IP address, TCP/UDP port number or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.

Enhanced Security and Traffic Control
The SGS-5220 series also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection
functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrator can now construct highly secured corporate networks with considerably less time and effort than before.

User-friendly Secure Management
For efficient management, the SGS-5220 series managed switch series is equipped with console, web and SNMP management interfaces. With the built-in web-based management interface, the SGS-5220 series offers an easy-to-use, platform independent management and configuration facility. The SGS-5220 series supports SNMP and it can be managed via any management software based on standard of SNMP v1 and v2 protocol. For reducing product learning time, the SGS-5220 series offers Cisco-like command via Telnet or console port and customer doesn�t need to learn new command from these switches. Moreover, the SGS-5220 series offers remote secure management by supporting SSH, SSL and SNMPv3 connection which can be encrypted the packet content at each session.

Flexible and Extendable Solution
The 4 mini-GBIC SFP slots built in the SGS-5220-24T2X support dual speed as it features 100Base-FX and 1000Base-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules. Now the administrator can flexibly choose the suitable SFP transceiver according to not only the transmission distance, but also the transmission speed required. The distance can be extended from 550 meters to 2km (multi-mode fiber) and up to above 10/20/30/40/50/70/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

Intelligent SFP Diagnosis Mechanism
The SGS-5220-24T2X supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

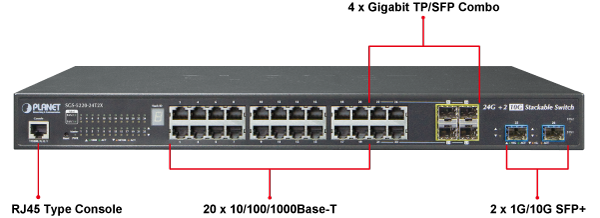

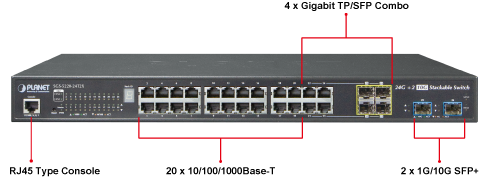

Physical Port

24-Port 10/100/1000Base-T RJ-45 copper
4 100/1000Base-X mini-GBIC/SFP slots, shared with Port-21 to Port-24 compatible with 100Base-FX SFP
2 10GBase-SR/LR SFP+ slots, compatible with 1000Base-SX/LX/BX SFP

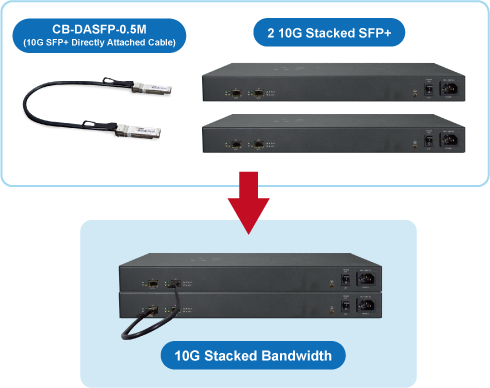

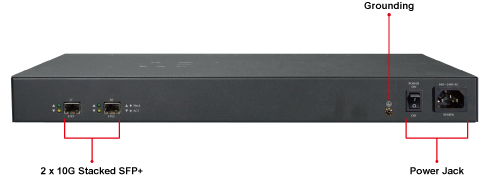

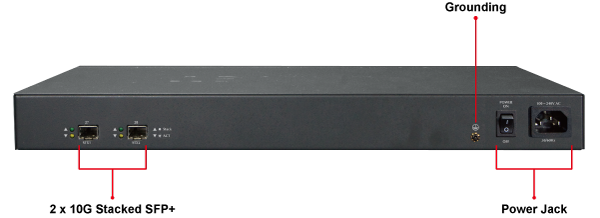

2 10GBase-SR/LR SFP+ stackable slots
RJ-45 console interface for basic management and setup

Stacking Features

Physical stacking up to 16 units, 384 Gigabit ports, 32 10 Gigabit ports
Single IP address stack management
Stacking architecture supports Chain and Ring mode
Plug and Play connectivity
Mirror across stack
Link Aggregation groups spanning multiple switches in a stack
Physical MAC address learning with MAC table synchronization across stack

Layer 2 Features

Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
Storm Control support

- Broadcast / Multicast / Unknown unicast

Supports VLAN

- IEEE 802.1Q tagged VLAN

- Up to 255 VLANs groups, out of 4094 VLAN IDs

- Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad

- Private VLAN Edge (PVE)

- Protocol-based VLAN

- MAC-based VLAN

- Voice VLAN

Supports Spanning Tree Protocol

- STP, IEEE 802.1D Spanning Tree Protocol

- RSTP, IEEE 802.1w Rapid Spanning Tree Protocol

- MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN

- BPDU Guard

Supports Link Aggregation
- 802.3ad Link Aggregation Control Protocol (LACP)
- Cisco ether-channel (Static Trunk)
- Maximum 10 trunk groups, up to 16 ports per trunk group
- Up to 32Gbps bandwidth (full duplex mode)
Provides port mirror (many-to-1)
Port mirroring to monitor the incoming or outgoing traffic on a particular port
Loop protection to avoid broadcast loops

Layer 3 IP Routing Features

Supports maximum 128 static routes and route summarization

Quality of Service

Ingress Shaper and Egress Rate Limit per port bandwidth control
8 priority queues on all switch ports
Traffic classification

- IEEE 802.1p CoS

- TOS / DSCP / IP Precedence of IPv4/IPv6 packets

- IP TCP/UDP port number

- Typical network application

Strict priority and Weighted Round Robin (WRR) CoS policies
Supports QoS and In/Out bandwidth control on each port
Traffic-policing policies on the switch port
DSCP remarking

Multicast

Supports IGMP Snooping v1, v2 and v3
Supports MLD Snooping v1 and v2
Querier mode support
IGMP Snooping port filtering
MLD Snooping port filtering
Multicast VLAN Registration (MVR) support

Security

Authentication

- IEEE 802.1x Port-based / MAC-based network access authentication

- Built-in RADIUS client to co-operate with the RADIUS servers

- TACACS+ login users access authentication

- RADIUS / TACACS+ users access authentication

Access Control List

- IP-based Access Control List (ACL)

- MAC-based Access Control List

Source MAC / IP address binding
DHCP Snooping to filter un-trusted DHCP messages
Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
IP Source Guard prevents IP spoofing attacks
Auto DoS rule to defend DoS attack
IP address access management to prevent unauthorized intruder

Management

IPv4 and IPv6 dual stack management
Switch Management Interfaces

- Console / Telnet Command Line Interface

- Web switch management

- SNMP v1, v2c, and v3 switch management

- SSH / SSL secure access

IPv6 IP Address / NTP / DNS management
Built-in Trivial File Transfer Protocol (TFTP) client
BOOTP and DHCP for IP address assignment
System Maintenance

- Firmware upload/download via HTTP / TFTP

- Reset button for system reboot or reset to factory default

Dual Images

DHCP Relay
DHCP Option82
User Privilege levels control
NTP (Network Time Protocol)
Link Layer Discovery Protocol (LLDP) and LLDP-MED
Network Diagnostic

- ICMPv6 / ICMPv4 Remote Ping

- Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues

SMTP / Syslog remote alarm
Four RMON groups (history, statistics, alarms and events)
SNMP trap for interface Link Up and Link Down notification
System Log
PLANET Smart Discovery Utility for deploy management

硬件规格
电口	24个千兆电口
TP/SFP 组合端口	4个千兆TP/SFP复用端口，共享端口21 -24
10Gbps 光纤上行链路端口	2个 1/10GBase-SR/LR SFP+ 插槽
10G 可堆叠端口	2个10GBase-SR/LR SFP+堆叠端口
Console端口	1 x RJ-45 serial port (115200, 8, N, 1)
交换方式	存储转发
背板带宽	128Gbps / 无阻塞
吞吐量	95.2Mpps@64Bytes
地址表	16K 地址表，地址源自动学习和老化
共享数据缓冲区	4 megabits
流量控制	支持IEEE 802.3x 全双工和半双工
巨型帧	9K bytes
复位键	< 5秒: 系统重启 > 5 秒: 恢复出厂设置
LED指示灯	系统: 电源 (Green) 主板 (Green) 风扇1 (Green) 风扇2 (Green) 电口 (Port 1 to Port 24): 1000 LNK/ACT (Green), 10/100 LNK/ACT (Orange) 100/1000Mbps SFP 接口 (Port 21 to Port 24): 1000 (Green), 100 (Orange) 1/10G SFP+ 接口 (Port 25 to Port 26): 10G (Green), 1G (Orange) 10G 堆叠端口(Port 27 to Port 28): 堆叠状态 (Green), LNK/ACT (Orange)
电源要求	100~240V AC, 50/60Hz, 2A
功率消耗（满载）	43 watts
ESD 保护	6KV DC
尺寸 (W x D x H)	440 x 200 x 44.5 mm, 1U 高度
重量	2850g
堆叠功能
堆叠端口	2个SFP+插槽
堆叠数	16
堆叠带宽	40Gbps（全双工）
堆叠ID显示	7-Segment LED 显示 (1~9, A~F, 0)
堆叠拓扑	Ring / Chain / Back-to-Back
2层管理功能
基本管理界面	Console, Telnet, Web管理, SNMP v1, v2c
安全管理界面	SSH, SSL, SNMP v3
端口配置	端口禁用/启用自动协商10/100/1000Mbps的全双工和半双工模式选择流量控制禁用/启用
端口状态	显示每个端口的速度双工模式，链路状态，流量控制状态，自动协商状态，Trunk状态
端口镜像	TX / RX / 两者 Many-to-1 端口镜像
VLAN	802.1Q tagged VLAN, 支持255个VLAN组 Q-in-Q Private VLAN Edge (PVE) 基于MAC VLAN 基于协议 VLAN 语音VLAN MVR (Multicast VLAN Registration) 支持255个VLAN组, 最多4094条VLAN ID
链路聚合	IEEE 802.3ad LACP / 静态 Trunk 支持10组Trunk，每组16个端口
QoS	每个端口8个输出队列基于端口、802.1p、802.1Q VLAN tag 、DSCP/TOS的优先级
IGMP Snooping	IGMP (v1/v2/v3) Snooping, 可达到255个组播组支持IGMP 查询模式
MLD Snooping	MLD (v1/v2) Snooping, 可达到255个组播组支持MLD查询模式
访问控制列表	基于IP ACL /基于 MAC地址ACL，支持256 条
带宽控制	每个端口带宽控制进: 100Kbps~1000Mbps 出: 100Kbps~1000Mbps
SNMP MIBs	RFC 1213 MIB-II IF-MIB RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2737 Entity MIB RFC 2819 RMON MIB (Group 1, 2, 3 and 9) RFC 2618 RADIUS Client MIB RFC 3411 SNMP-Frameworks-MIB IEEE 802.1X PAE LLDP MAU-MIB
3层功能
VLAN 接口	支持128个 VLAN 接口
路由表	支持32 条路由条目
路由协议	支持IPv4 、IPv6 静态路由协议
标准
认证标准	FCC Part 15 Class A, CE
遵循国际标准	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX/100Base-FX IEEE 802.3z 1000Base-SX/LX IEEE 802.3ab 1000Base-T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree protocol IEEE 802.1w Rapid Spanning Tree protocol IEEE 802.1s Multiple Spanning Tree protocol IEEE 802.1p Class of service IEEE 802.1Q VLAN tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP version 1 RFC 2236 IGMP version 2 RFC 3376 IGMP version 3 RFC 2710 MLD version 1 FRC 3810 MLD version 2
环境
工作环境	温度: 0 ~ 50 °C 相对湿度: 5 ~ 95% (无冷凝)
储存环境	温度: -10 ~ 70 °C 相对湿度: 5 ~ 95% (无冷凝)

订购信息
SGS-5220-24T2X	24口千兆可管理可堆叠支持万兆上联以太网交换机（24个千兆电口，4个千兆SFP复用端口，2个10G SFP+端口）
