NVR-915

9-Ch Network Video Recorder

概述

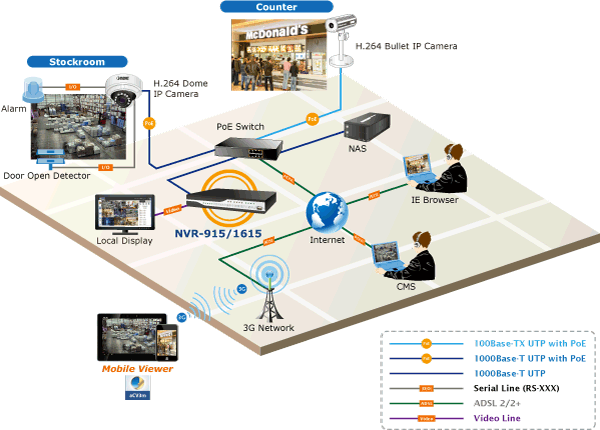

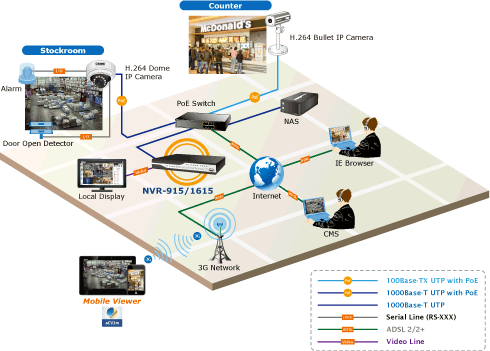

应用场景
功能特性
产品规格
下载
相关产品

Efficient SMB Surveillance Solution

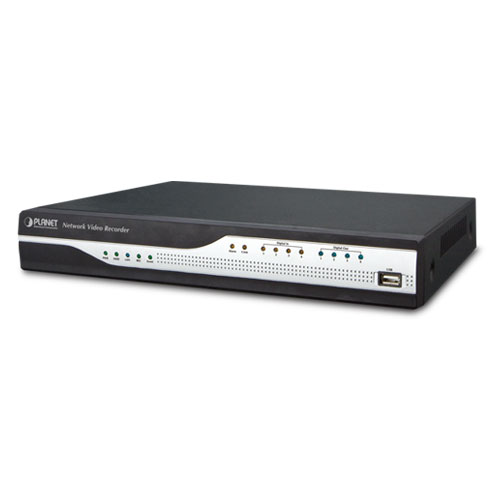

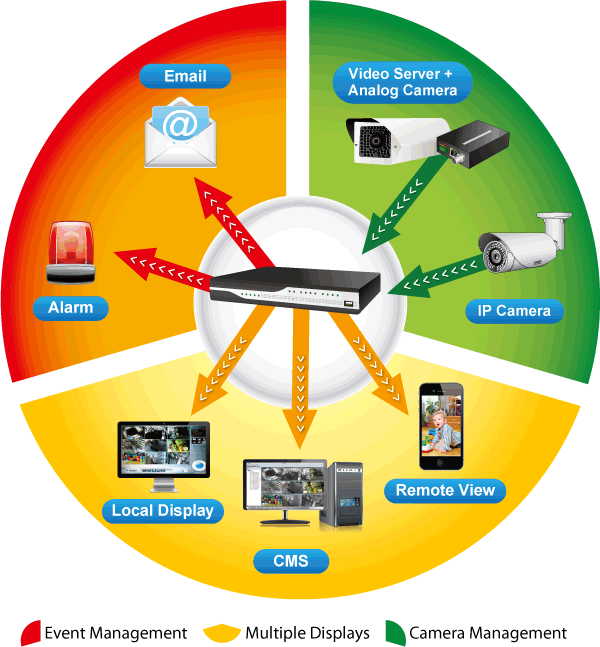

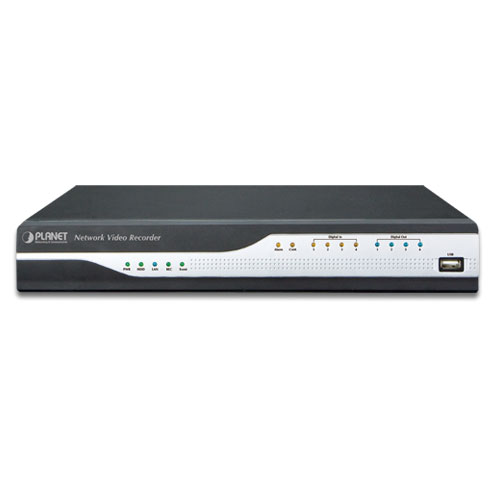

PLANET NVR-915 is a 9-channel Linux embedded network video recorder (NVR) for restaurants, retail stores, stockrooms and more. The NVR-915 supports IP cameras with up to 5 megapixels and H.264 video codec for high-quality real-time monitoring, recording and playback. It also supports high-resolution video quality on any HD monitor. With two internal 4TB SATA III hard disks and e-SATA interface, it provides you with more storage capacity and keeps video files in the NVR for a long period of time. Once the NVR-915, armed with a complete surveillance equipment, detects any suspicious events, you will be alerted with alarm via email; FTP, HTTP and TCP servers; and more. The NVR-915 is thus able to further enhance security within the premises to protect your property. Moreover, it is fully compatible with mobile app and Internet Explorer on Windows operating system for multi-platform remote access.

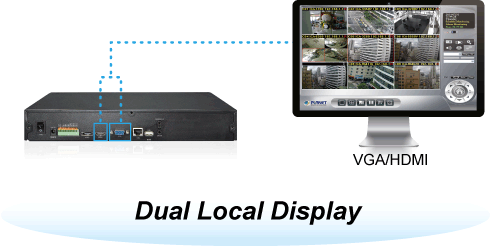

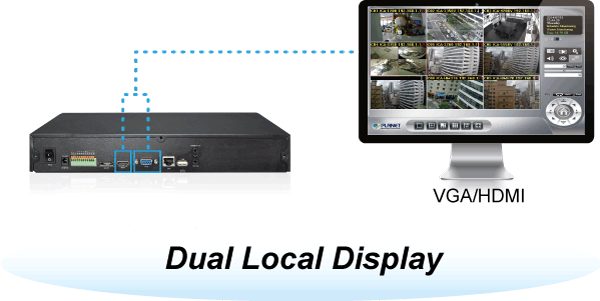

High-resolution Local Display
The NVR-915 comes with HDMI and VGA video output interfaces for dual local display. It can be connected to an HDMI monitor and VGA monitor separately, where live viewing contents or playback contents can be displayed simultaneously. With the dual local display function, users can monitor locally with high flexibility in a different display resolution, thus eliminating the need for a separate PC to view video from the unit. Besides, the NVR also can be operated with the USB mouse to configure and monitor all the system easily.

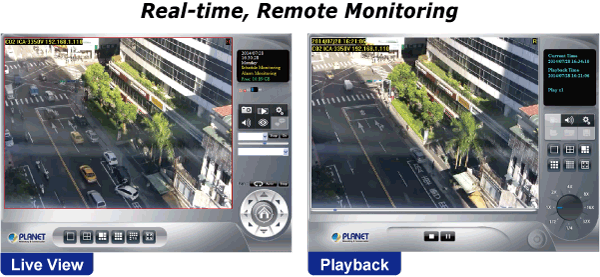

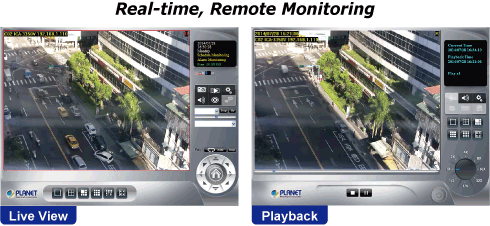

Real-time, Remote Monitoring
You are able to search and install Planet IP cameras via Web interface with more convenience and efficiency. Besides the Web interface, the NVR also supports aCV3m viewer app software for smart phone so you can connect to the NVR at anytime and anywhere.

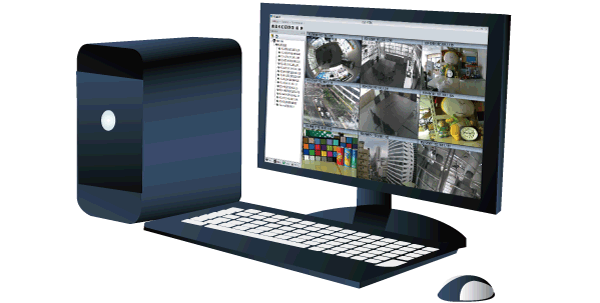

Live View and CMS Administration
The Central Management System (CMS) of the NVR-915 can manage up to 256 channels. With low bitrate transmission and unlimited group management, the CMS is able to view a maximum of 64 channels on one page and you may switch between groups to see up to 256 channels of live view or a maximum of 16 channels of playback on one page. The CMS of the NVR-915 is good for chain stores via Internet, large installations in the LAN environment, or any environment where its control center is utilized to monitor via multiple NVRs.

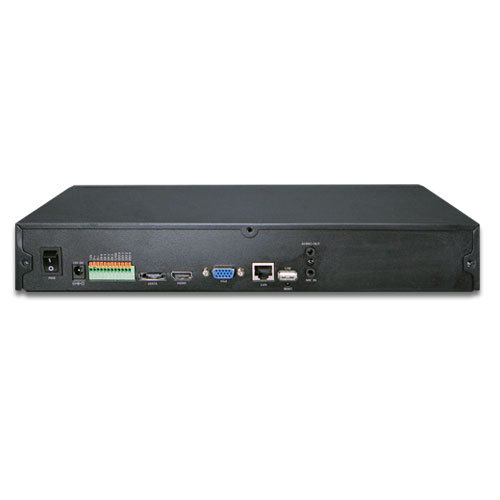

Hardware
Ethernet	1 x RJ-45, 10/100/1000Base-T
USB Interface	2 x USB 2.0 for backup device and mouse
Video Interface	VGA and HDMI video interfaces
Audio Interface	1 x mic-in (phone jack 3.5mm), 1 x audio-out (phone jack 3.5mm)
Storage Device	2 x 3.5" SATA III hard disk connector, 1 x e-SATA connector
LED	Power, HDD, LAN, REC, Event, Alarm, Camera, DI/DO
Button	Reset
Buzzer	1 x Buzzer
DI/DO	4 x Digital in, 4 x Digital out
Camera
Max. Channels	9-channel IP cameras
Camera Added	Manual / Auto Search / Auto Setup
Video
Compression	H.264
Resolution	5M / 3M / Full HD / SXGA / VGA / QVGA
Max. Live Video Frame Rate (Local Display)	480fps@D130 360fps@720P30 120fps@1080P30 20fps@5M15 Max. 5MP/channel
Max. Throughput	48Mbps
Snapshot	Preview snapshot in HDD or removable device Search event snapshot Backup to USB device
Audio
Audio Type	2-way
Audio Format	G.711, G.726
Live View
Display Mode	Live View / Playback / Full Screen
Split Screen	1 / 4 / 6 / 9 / Full Screen
Full Screen	1 / 4 / 6 / 9
PTZ Support	Preset / Tour / Auto Pan / Iris / Focus / Speed and Joystick
Playback
Split Screen	1 / 4 / 6 / 9 / Full Screen
Search Mode	Simple / Graphical / Event
Play Method	Play / Reverse / Pause / Seek / Pre I-frame / Next Frame Search by time or event
Record
Recording Mode	Scheduled recording each camera Round the Clock / Motion Record mode / DI Detection / Event Triggering Pre-alarm / Post-alarm configuration Auto Recycle
Monitor
Dual Monitor	Displays the same contents, depending on max. channels
Monitor Resolutions	1920x1080, 1440x900, 1366x768, 1280x1024, 1024x768
Network and Configuration
Network Service	Fixes IP / DHCP / PPPOE / DIPS Report / UPNP / DDNS
Notification	SMTP / HTTP / FTP / TCP

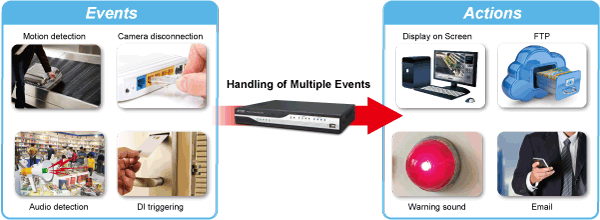

Triggers and Event
Event Type	Motion Alarm Alarm Disconnection Detection Digital Input Scheduled Triggering HDD Error
Event Action	Display on Screen DO Alarm Snapshot Recording Mail FTP TCP HTTP
Management
Number of Groups	2 (Administrator and User )
Privileges	Live View / Playback / Record / Setting / PTZ / Two-way Audio
User Interface	Graphic local user interface (operated by mouse) Web browser (Internet Explorer 7 or above) CMS Utility
Log Type	System / Event / Bit-rate
Software Utility	Search utility / Mobile app / CMS
Environment
Power	12V DC, 4.16A
Consumption	8W (without HDD)
Operating Temperature	0~40 degrees C
Storage Temperature	-40~70 degrees C
Humidity	0~85% (non-condensing)
Weight	1455g
Dimensions (W x D x H)	330 x 252 x 57 mm

订购信息
NVR-915	9-Ch Network Video Recorder
