| 硬件特性 |
| Standard Support |
IEEE 802.11b/g/n
IEEE 802.3
IEEE 802.3u
IEEE 802.3x |
| Memory |
32 Mbytes DDR SDRAM
4 Mbytes Flash |
| PoE |
Passive PoE |

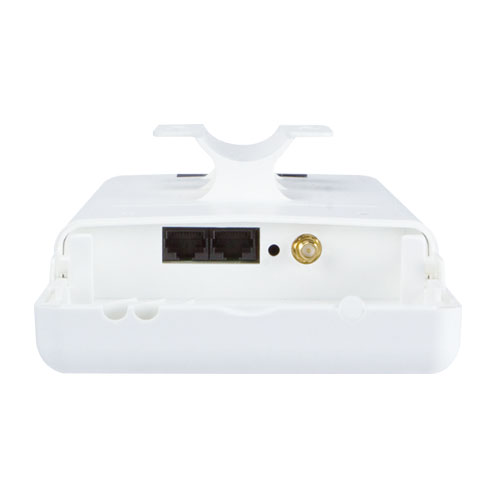

| 端口 |
Wireless IEEE 802.11b/g/n, 1T1R
PoE LAN (LAN 1): 1 x 10/100BASE-TX, auto-MDI/MDIX, passive PoE
LAN 2/ WAN: 1 x 10/100BASE-TX, auto-MDI/MDIX |
| 天线 |
Internal (Default): 12dBi directional antenna
? Horizontal: 30 degree
? Vertical: 20 degree

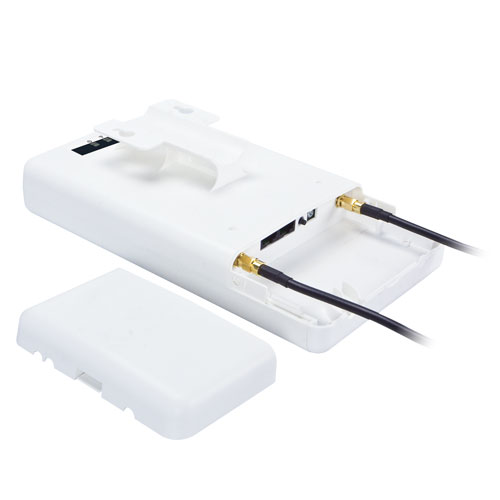

External (Option): RP-SMA type Connector
? Switchable by Software
? For External Antenna Mode, attach antenna before power on
|
| 无线RF特性 |
| 无线技术 |
IEEE 802.11b/g
IEEE 802.11n |
| 数据传输速率 |
IEEE 802.11b: 1, 2, 5.5, 11Mbps
IEEE 802.11g: up to 54Mbps
IEEE 802.11n (20MHz): up to 72Mbps
IEEE 802.11n (40MHz): up to 150Mbps |
| Media Access Control |
CSMA/CA |
| 调制 |
Transmission/Emission type: OFDM
Data modulation type: OFDM with BPSK, QPSK, 16-QAM, 64-QAM |
| 频段 |
2.412GHz ~ 2.484GHz |
| 操作信道 |
America/ FCC: 2.414~2.462GHz (11 Channels)
Europe/ ETSI: 2.412~2.472GHz (13 Channels) |
| RF Output Power (Max.) |
IEEE 802.11b: up to 26 1dBm
IEEE 802.11g: up to 21 1dBm
IEEE 802.11n: up to 17 1dBm |
| Receiver Sensitivity(dBm) |
IEEE 802.11b: -97dBm
IEEE 802.11g: -90dBm
IEEE 802.11n: -90dBm
|
| Output Power Control |
5-level TX power control |
| 软件特性 |
| LAN端口 |
Built-in DHCP server supporting static IP address distribution
Supports UPnP
Supports IGMP Proxy
Supports 802.1d STP (Spanning Tree) |
| WAN端口 |
? Static IP
? DHCP (Dynamic IP)
? PPPoE
? PPTP
? L2TP |
| VPN Passthrough |
? PPTP
? L2TP
? IPSec
? IPv6
|
| 操作模式 |
? Gateway
? Bridge
? WISP
|
| 防火墙功能 |
NAT firewall with SPI (Stateful Packet Inspection)
Built-in NAT server supporting virtual server and DMZ
Built-in firewall with port/ IP address/ MAC/ URL filtering
|

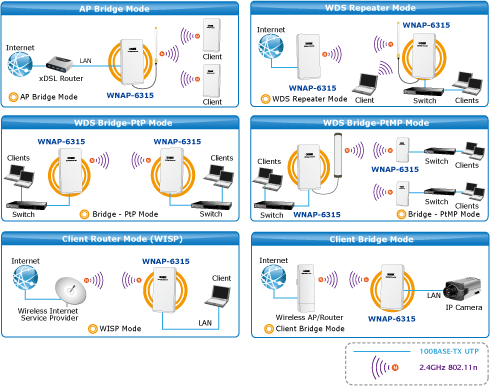

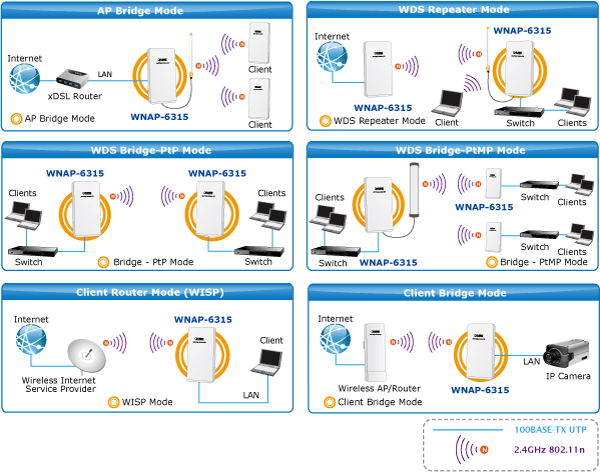

| 无线模式 |
? AP Bridge
? AP Router
? Client Bridge
? Client Router (WISP)
? WDS PtP
? WDS PtMP
? WDS Repeater
? Universal Repeater (AP+Client) |
| Max. SSID |
Up to 5 |
| 信道频宽 |
20MHz / 40MHz |
| 无线隔离 |
Enable to isolate each connected wireless client so that they cannot access mutually |
| 加密类型 |
64/128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X |
| 无线安全 |
Wireless LAN ACL (Access Control List) filtering
Wireless MAC address filtering
Supports WPS (Wi-Fi Protected Setup )
Enable/Disable SSID Broadcast |
| 最大 无线客户端 |
20 |
| Max. WDS APs |
8 |
| 最大.有线客户端 |
253 |
| WMM |
Supports Wi-Fi multimedia |
| QoS |
Supports Quality of Service for bandwidth control |
| NTP |
Network Time Management |
| Self Healing |
Supports Schedule Reboot |
| B/G Protection Mode |
Supports protection mechanism to prevent collisions among 802.11b/g modes |
| IAPP Roaming |
Supports IAPP (Inter Access Point Protocol) roaming |
| 管理 |
Web UI, DHCP Client, Configuration Backup and Restore, Dynamic DNS |
| 诊断工具 |
System Log |
| Mechanical and Power |
| IP Level |
IP55 |
| 材质 |
Outdoor UV-resistant enclosure |
| 尺寸 |
127 x 63 x 254 mm |
| 重量 |
485g |
| 设备 |

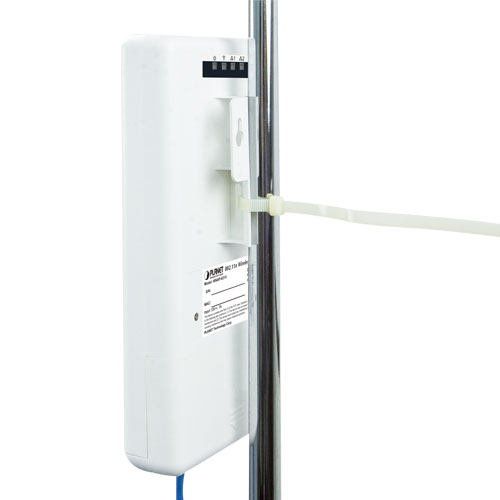

Pole mounting or wall mounting |
| 电源要求 |
LAN1
? 12V DC, 1A/ passive PoE
? Pin 4 V DC+
? Pin 5 reset
? Pin 7,8 V DC-
|
| 功率损耗（最大） |
4W
|
| 环境与认证 |
| 工作温度 |
-20~70 degrees C |
| 工作湿度 |
10~95% non-condensing |
| 法规 |
CE, FCC, RoHS |
| 配件 |
| 标准配件 |
? WNAP-6315 x 1
? 12V Power Adapter x 1
? PoE Injector x 1
? Plastic Strap x 1
? Quick Installation Guide x 1 |
