10/100/1000BASE-T to 100/1000BASE-X SFP工业级光电转换器(-40~75 degrees C)

首页 > 产品 > 工业级产品 > 工业光纤收发器 > IGT-805AT

Print Version

IGT-805AT

10/100/1000BASE-T to 100/1000BASE-X SFP工业级光电转换器(-40~75 degrees C)

概述
应用场景
功能特性
产品规格
下载
相关产品

Flexible, Reliable and Industrial-grade Network Distance Extension Solution

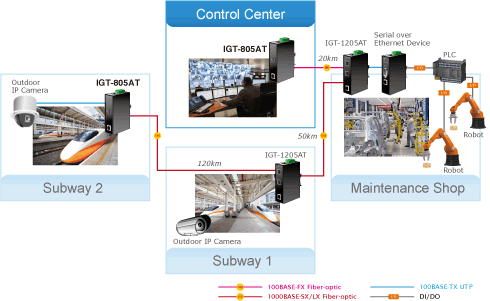

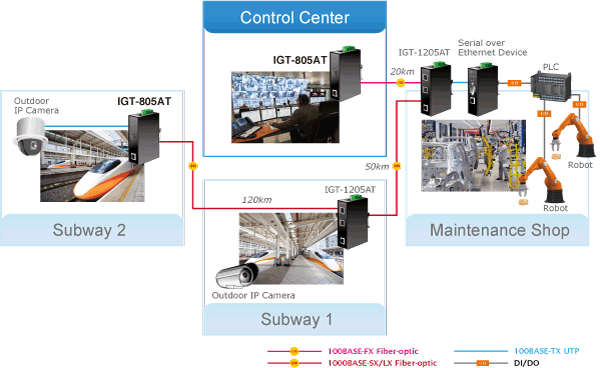

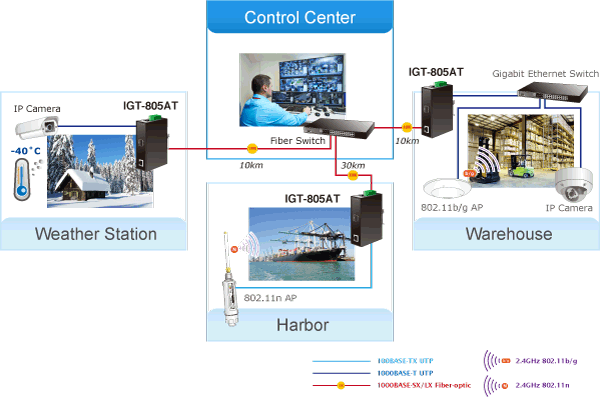

PLANET IGT-805AT is an Industrial Gigabit Media Converter providing non-blocking wire-speed performance and great flexibility for Gigabit Ethernet extension in harsh industrial environment. It is equipped with one 10/100/1000BASE-T RJ45 copper and one 100/1000BASE-X SFP fiber optic interface delivered in an IP30 rugged strong case with redundant power system. The IGT-805AT is well suited for applications in deploying surveillance system, and securing control and wireless service in climatically demanding environments with wide temperature range from -40 to 75 degrees C. With 9K jumbo frame feature support, the IGT-805AT can handle extremely large amounts of data transmission in a secure topology linking to a backbone or high-power servers.

Fiber-Optic Link Capability Enables Extension of Network Deployment

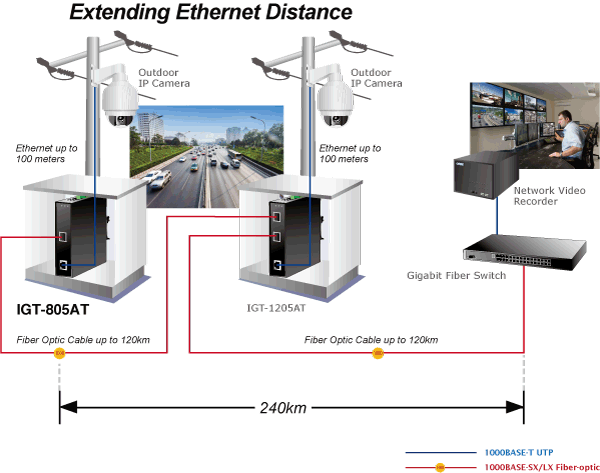

The SFP slot of the IGT-805AT is compatible with 100BASE-FX and 1000BASE-SX / LX / WDM through SFP (Small Form Factor Pluggable) fiber-optic transceivers. The fiber optic uplink capability guarantees the throughput to all nodes hooked into the network and the Gigabit Ethernet distance can be extended from 550 meters (multi-mode fiber cable) to 10/20/30/40/50/60/70/120 kilometers (single-mode fiber cable), and also the Fast Ethernet distance can be extended from 2km (multi-mode fiber cable) to 20/40/60 kilometers (single-mode fiber cable). It is the ideal product for applications within the factory data centers and distributions.

Enhanced Smart Management Features
The IGT-805AT provides auto MDI/MDI-X on its TP port and built-in Link Fault Pass-through function (LFP). The LFP function includes Link Loss Carry Forward (LLCF) and Link Loss Return (LLR), both of which can immediately alarm administrators the problem of the link media and provide efficient solution to monitoring the net. LLCF means when a device connected to the converter and the TP line loses the link, the converter�s fiber port will disconnect the link of transmission. LLR means when a device connected to the converter and the fiber line loses the link, the converter�s fiber port will disconnect the link of transmission. Therefore, the IGT-805AT greatly supports the administrators to manage the network efficiently.

Environmentally Hardened Design

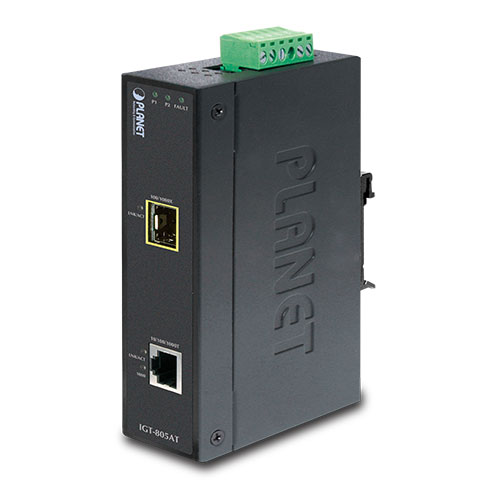

The IGT-805AT is equipped with the slim-type IP30 metal case for easy deployment in heavy Industrial demanding environments. With IP30 industrial case protection, the IGT-805AT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curbside traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C, the IGT-805AT can be placed in almost any difficult environment. The IGT-805AT also allows either DIN rail or wall mounting for efficient use of cabinet space.

Convenient and Reliable Power System
To enhance the operation reliability and flexibility, the IGT-805AT is equipped with two DC power input connectors for redundant power supply installation. It also possesses an integrated power supply source with wide-ranging voltages (12 to 48V DC or 24V AC) for worldwide high availability applications requiring dual or backup power inputs.

硬件特性
电口	1 x 10/100/1000BASE-T RJ45 TP Auto-MDI/MDI-X, auto-negotiation
光口	1 1000BASE-SX/LX/BX SFP interface. Compatible with 100BASE-FX SFP
连接器	Removable 6-pin terminal block Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
报警功能	Provides one relay output for power failure Alarm relay current carry ability: 1A @ DC 24V
LED指示灯	3 x LED for System and Power: ? Green: DC Power 1 ? Green: DC Power 2 ? Green: Power Fault 2 x LED for Per Copper Port: ? Green: LNK/ACT ? Green:1000 1 x LED for Per Mini-GBIC Interface ? Green: LNK/ACT
ESD 保护	6KV DC
EFT保护	6KV DC
材质	IP30 type metal case
安装方式	DIN rail kit and wall mount ear
尺寸	135 x 87 x 32 mm
重量	458g
电源要求	DC 12~48V, redundant power with polarity reverse protection function. AC 24V power adapter
功率/损耗	3.3 watts/11BTU
2层特性
流量控制	Back pressure for half duplex. IEEE 802.3x pause frame for full duplex
背板带宽	4Gbps
吞吐量	2.97Mpps@64bytes
最大传输单元	9216 bytes
电缆	10/100/1000BASE-T: Cat3, 4, 5, 5e, 6 UTP cable (100 meters, max.) EIA/TIA-568 100-ohm STP (100 meters, max.) 1000BASE-SX: 50/125?m or 62.5/125?m multi-mode fiber optic cable, up to 550m (varying on SFP module) 1000BASE-LX: 9/125?m single-mode fiber optic cable, up to 10/20/30/40/50/60/70/120 kilometers (varying on SFP module) 100BASE-FX: 50/125?m or 62.5/125?m multi-mode fiber optic cable, up to 2 kilometers (varying on SFP module) 9/125?m single-mode fiber optic cable, up to 20/40/60 kilometers (varying on SFP module)
标准一致性
标准符合性	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet IEEE 802.3x full-duplex flow control
遵从法规	FCC Part 15 Class A, CE
稳定性测试	IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)
环境
温度	Operating: -40~75 degrees C Storage: -40~75 degrees C
湿度	Operating: 5~95% (non-condensing) Storage: 5~95% (non-condensing)

订购信息
IGT-805AT	Industrial 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter
